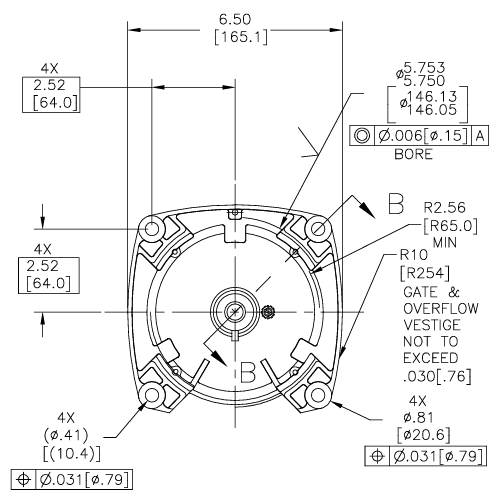

technical parts diagram of century pool pump motor square flange showing bore diameter, bolt hole locations, and flange dimensions with measurements in inches and millimeters

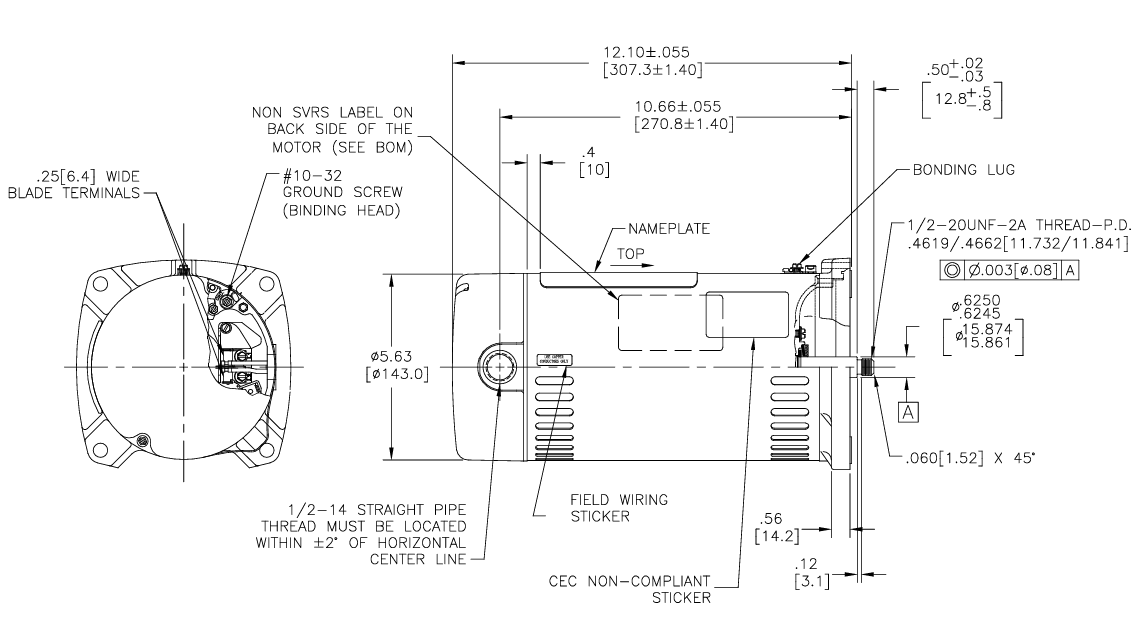

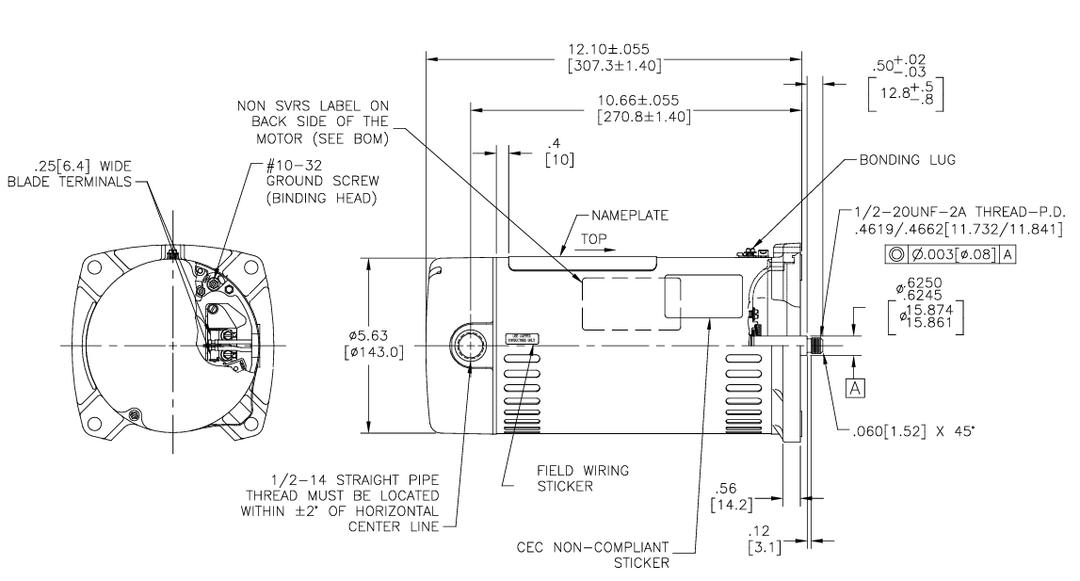

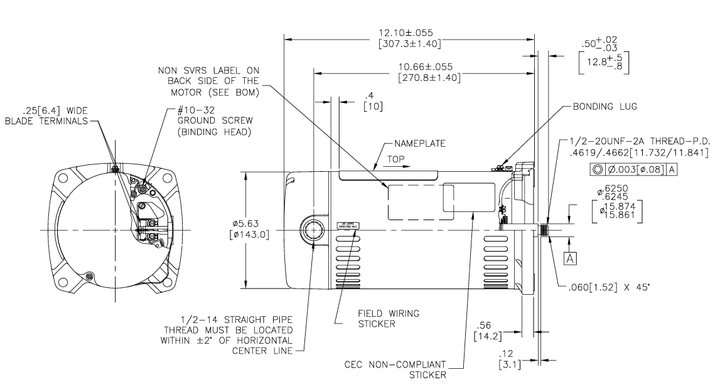

technical parts breakdown diagram of Century pool pump motor showing measurements, blade terminals, ground screw, bonding lug, and labeling locations
Century Pool Pump Motor Square Flange 1HP 1-Speed 115/230V 48Y Frame | USQ1102
Century Pool Pump Motor Square Flange 1HP 1-Speed 115/230V 48Y Frame | USQ1102
Century Pool Pump Motor Square Flange 1HP 1-Speed 115/230V 48Y Frame | USQ1102
Century Pool Pump Motor Square Flange 1HP 1-Speed 115/230V 48Y Frame | USQ1102
technical parts diagram of century pool pump motor square flange showing bore diameter, bolt hole locations, and flange dimensions with measurements in inches and millimeters
technical parts breakdown diagram of Century pool pump motor showing measurements, blade terminals, ground screw, bonding lug, and labeling locations
Century

Century Pool Pump Motor Square Flange 1 HP 1-Speed 115/230V 48Y Frame | USQ1102

$229.99
/
Shipping calculated at checkout.
  • Ships within 1-2 business days. FREE Shipping for orders over $100 or $9.99 flat rate to lower 48 states. Free Returns within 30 days*!
  • In stock, ready to ship
  • Backordered, shipping soon

Century (A.O. Smith) Flanged Motor - Up Rated - 1 HP, USQ1102

50øC Ambient

Notice

Due to state energy regulations (CA Title 20 §1605.3(g)(6); NY Title 21 §509.23), this motor may not be sold or installed in California or New York if it is a single-speed motor rated ≥ 0.5 THP. Please verify compliance before purchase.  For this reason we cannot ship this item to a CA or NY address.

Features and Benefits:

  • Auto Protector
  • Class B Insulation
  • Sealed Ball Bearings
  • Capacitor Start
  • Open Drip proof
  • 303 Stainless Steel Threaded Shaft
  • 50°C Ambient Temperature
  • 48Y Frame, 115/230V
