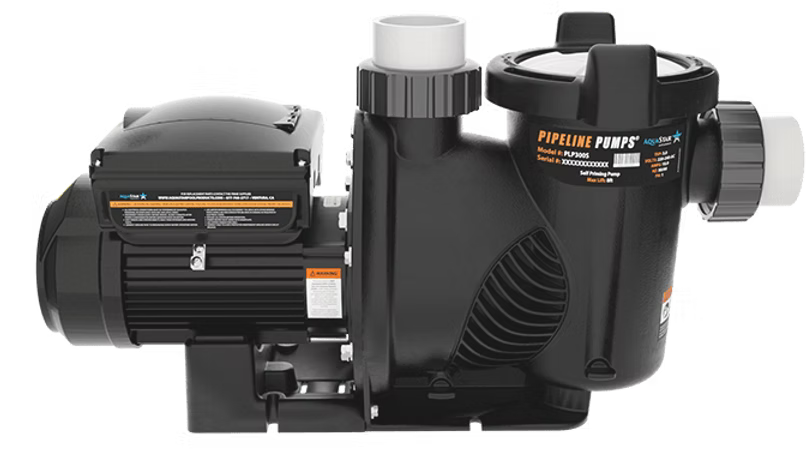

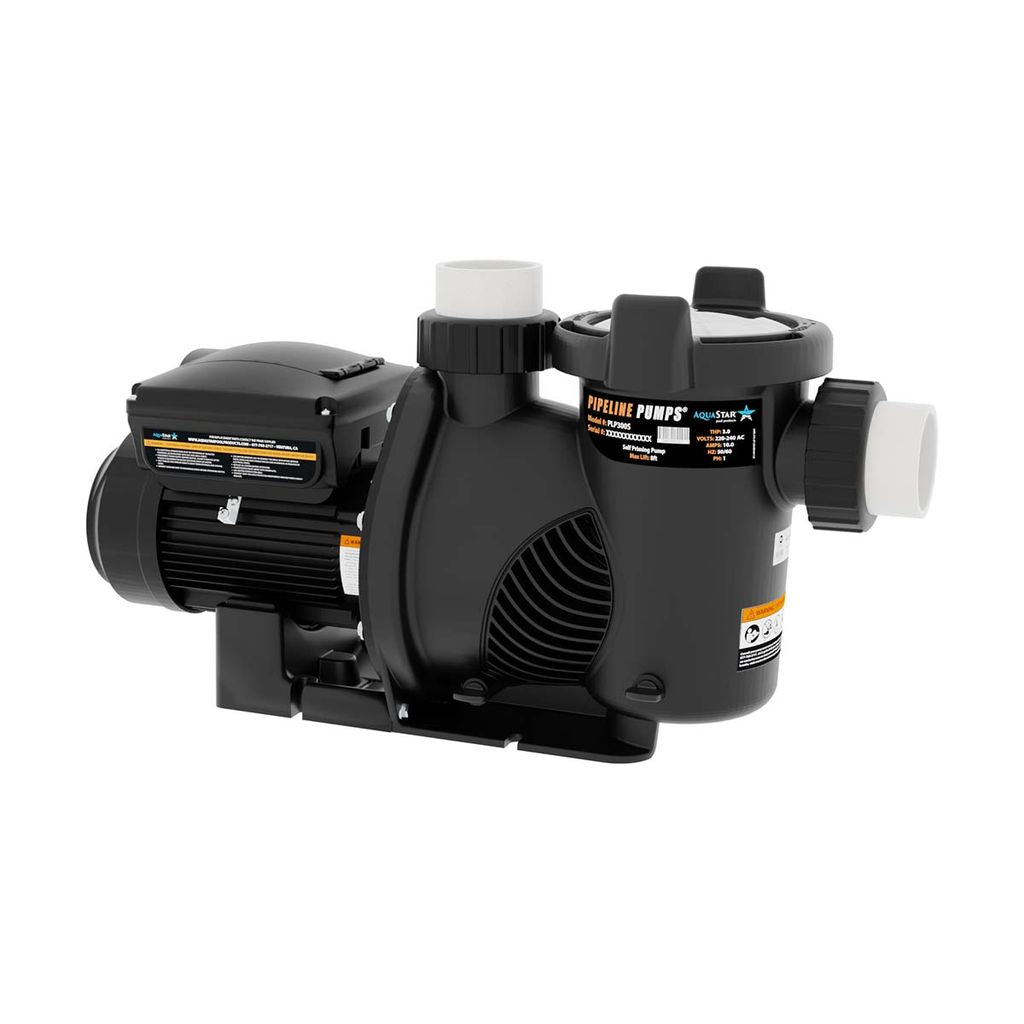

AquaStar Pipeline Smart Model Variable Speed Pump, 1.5 HP, 230 V | PLP150S

AquaStar Pool Pump, 1.5 HP, Variable Speed Smart Model

Engineered for whisper-quiet operation and superior efficiency, this pump uses advanced technology to maintain optimal flow while reducing energy consumption. Experience the ultimate in quiet performance and energy savings with the Pipeline Pump.

• Maximum Input Power: 1500 w
• Total Power (THP): 1.5
• WEF: 7.2 kgal/kWh
• Weight: 48 lbs.
• Amp Ratings: 7.0A
• Total Enclosed Fan Cool (TEFC)
• Connection Size: 2" or 2-1/2" socket
• Voltage/Frequency: 230VAC 50/60Hz Single Phase
• Three Year Warranty
• Four programmable speeds from 800 to 3400 RPM

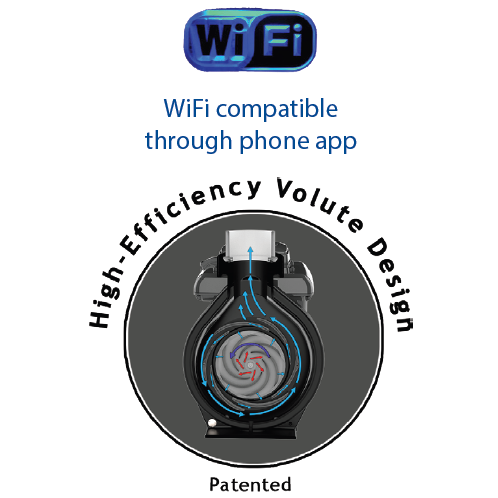

• Features integrated Wifi connectivity and an RS485 communication port compatible with Hayward, Jandy, Pentair and The Attendant by Poolside Tech and also supports Modbus protocols.
• Self-contained programmable start/stop times

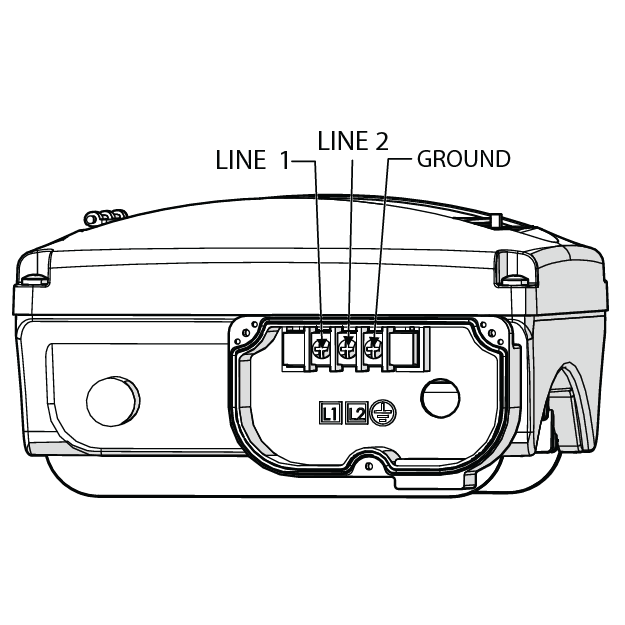

• Wiring: Requires wiring harness with direct connections for hot lines & ground. See photos for wiring diagram.

QUIET TECHNOLOGY

Features a Permanent Magnet Motor (PMM) for reduced mechanical noise and a Totally Enclosed Fan Cooled (TEFC) design that effectively minimizes sound emissions, ensuring efficient ultra-quiet operation.

OPTIMIZED DESIGN

The 2-1/2'' internal frame maintains smooth, unrestricted water flow, reducing turbulence and minimizing noise for efficient ultra-quiet performance.

HIGH-TECH RUBBER MOTOR MOUNT

Absorbs vibrations and dampens sound, significantly reducing operational noise for a quieter pool experience.

Video: See the details about the AquaStar Pipeline Pumps!
