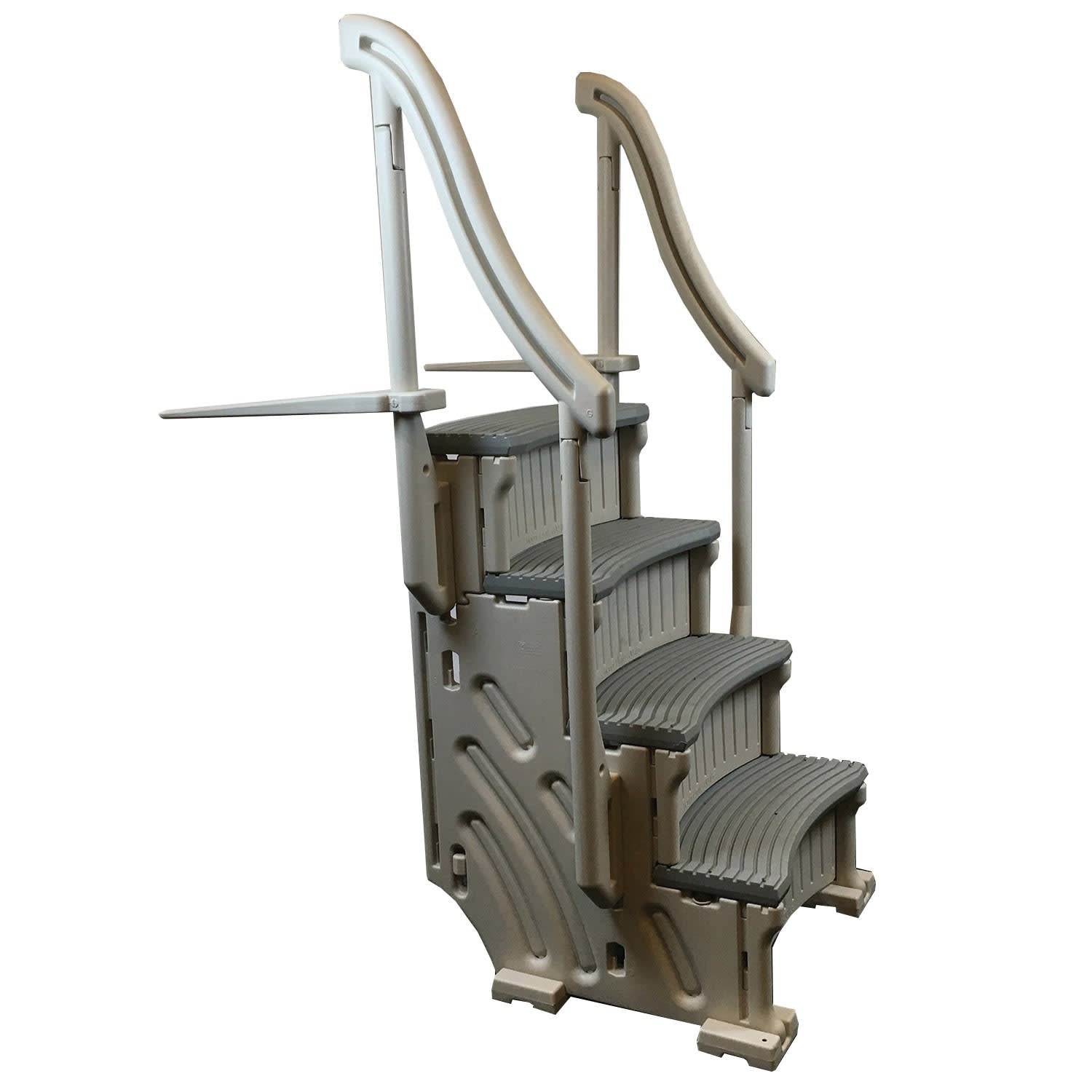

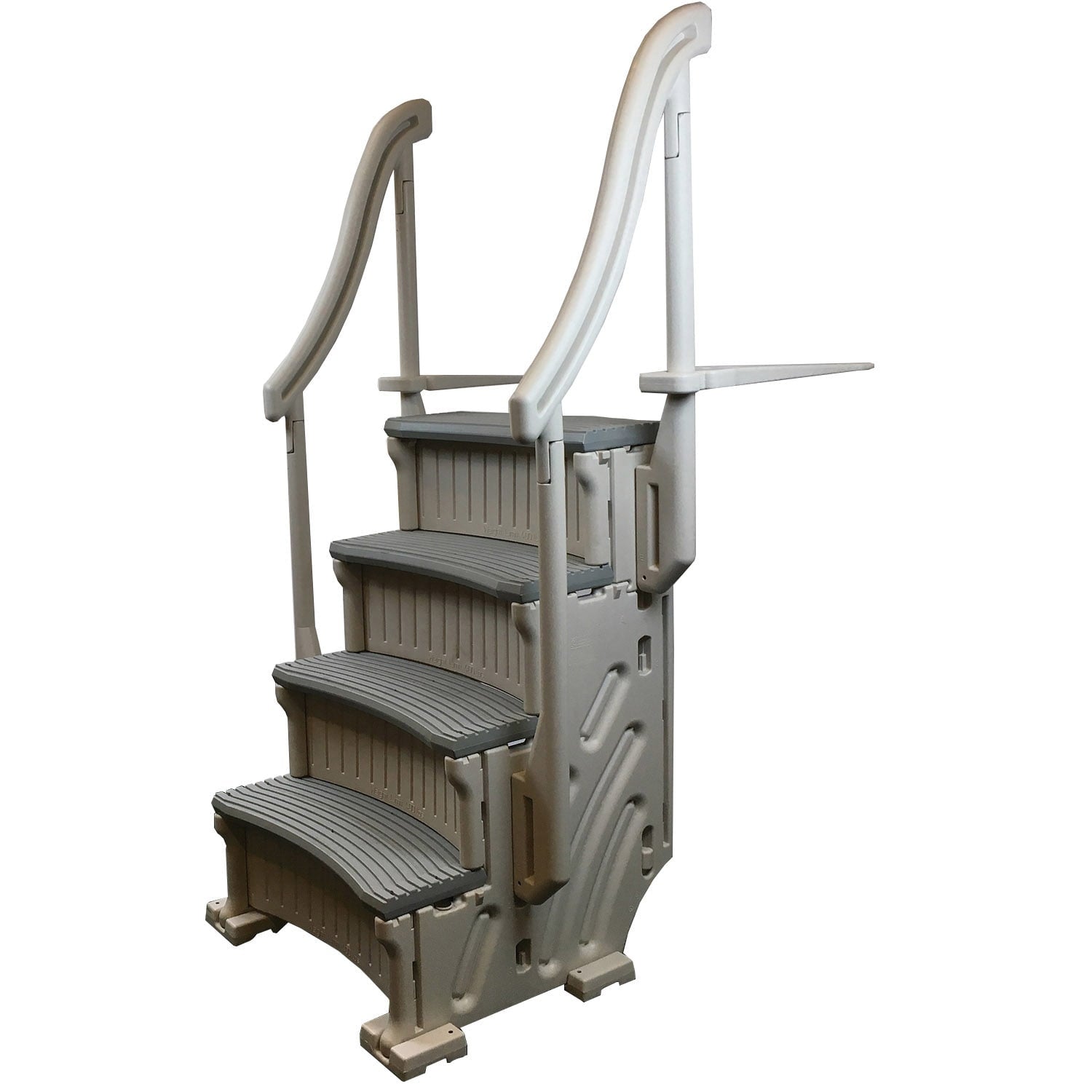

Confer Curve Base In-Pool 4 Step for A/G Pool, Beige | CCX-AG

The CCXAG is the base step unit for Confers Curve System to provide that sweeping "wedding cake" look for Above Ground pools. With 4 treads and a 5 year manufacturer warranty this step complements any swimming pool.

Looking for the In Ground Pool Steps?  Click here for the 3 Step In Ground Model.

Features and Benefits:

• Available in four configurations; two for aboveground and two for inground
• Start with the base step unit (staircase) and then expand into a complete Curve system at any time - Click Here for Add On Extension, CCX-ADDON
• Pool Exterior Ladder: Optional add-on is the 8100X pool exterior ladder, sold separately.
• Curve system has the sweeping “wedding cake” look that many homeowners want in a pool step
• Four tread unit is for above ground pools
• Three tread unit is for inground pools
• Above ground unit can be assembled with treads curving inwards or outwards depending on customer preferences
• Eye-catching, graceful sloping handrails
• Two tone color – grey treads with warm grey (beige) sidewalls and handrails. Complements any swimming pool!
• Adjustable base pads to compensate for a slightly-dished pool floor
• Weighed down by adding 20lbs of sand to the sidewalls

• Weight limit – 400 lbs.

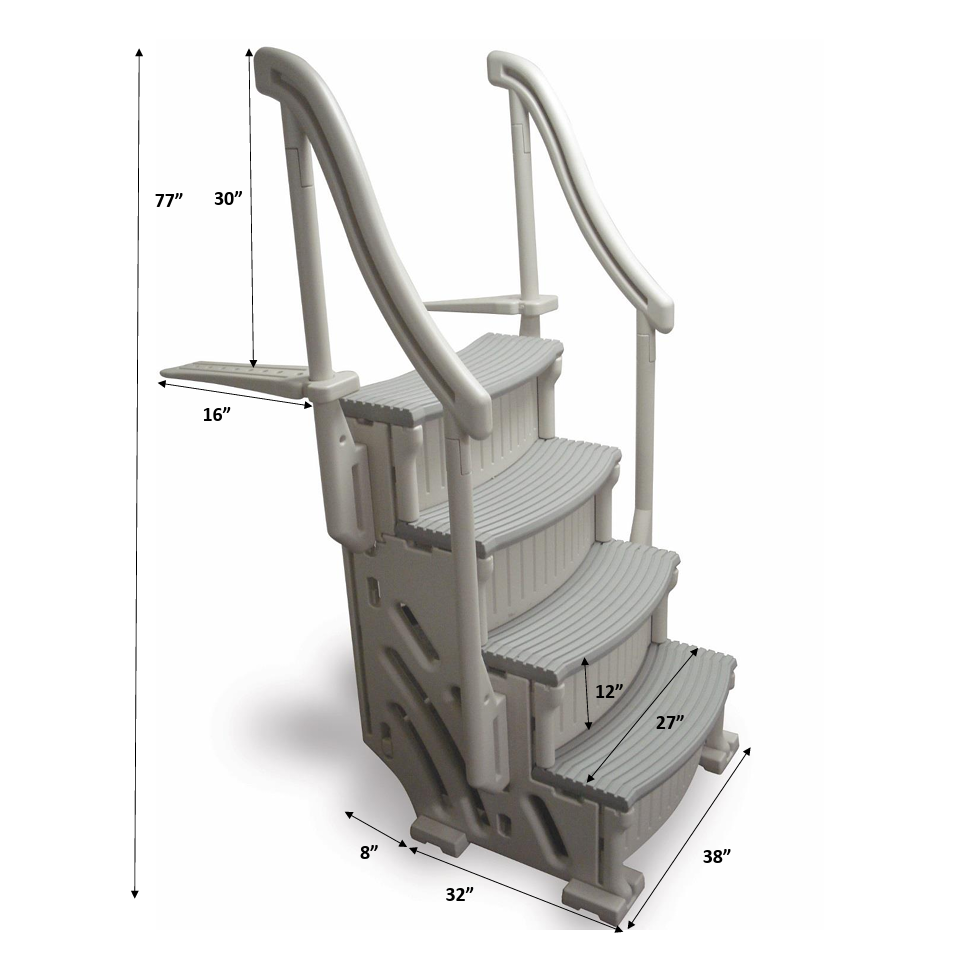

• Tread width – 27”
• Tread depth – 10”
• Riser height – 11”
• Unit depth – 32”
• Handrail height (from top step) – 30”
• Height to top tread – In ground 36” – Above ground 47”
• Mounting bracket length – 24”
• Overall outside width – 38”
• Complete Curve System width – 58”
• 5 year full factory warranty on manufacturing defects and workmanship
• Built in compliance with ISPSC 2021


Assembly & Installation Instructions Video

Also known as: CCXAG
