Hayward Nut Assembly PVC for Trimline Ball Valves SP0722 SP0722S SP0723 SP0723S SP0723UN | SPX0722D
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX0722D
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

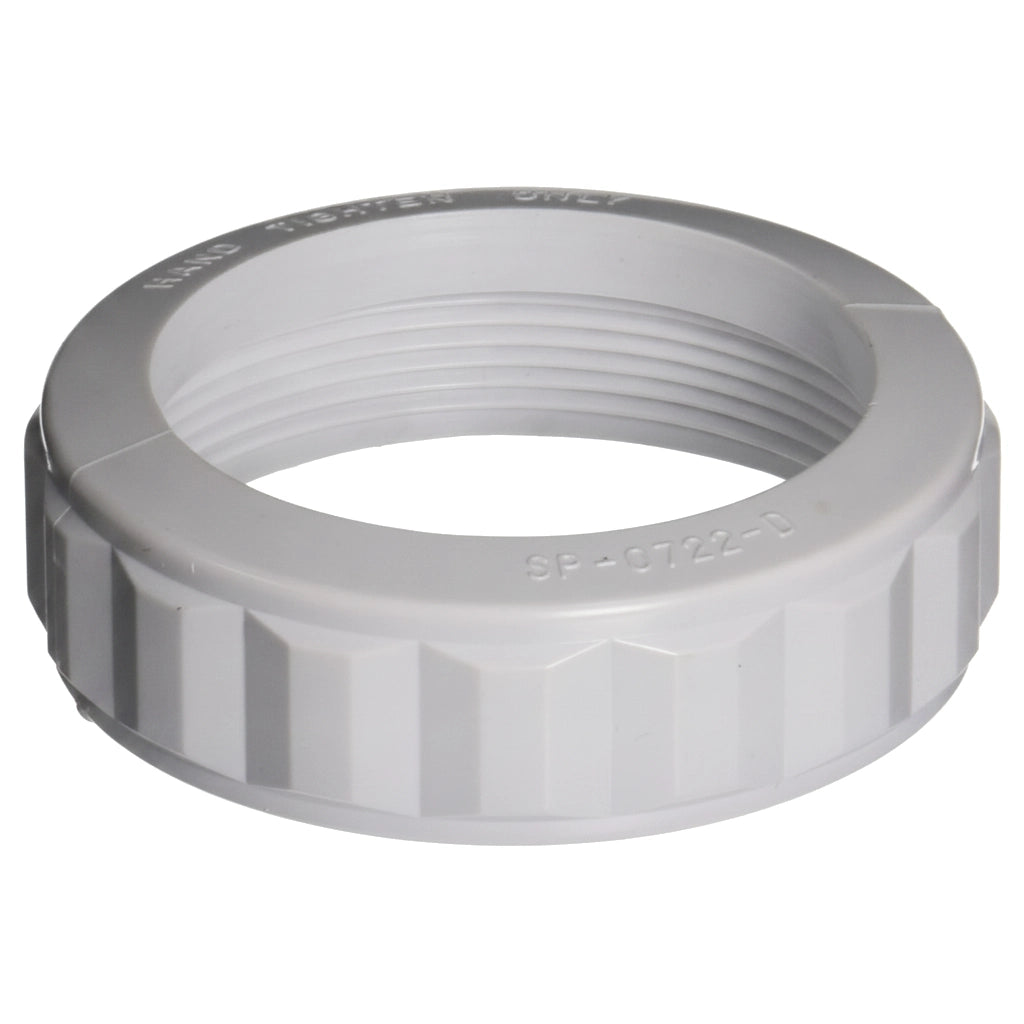

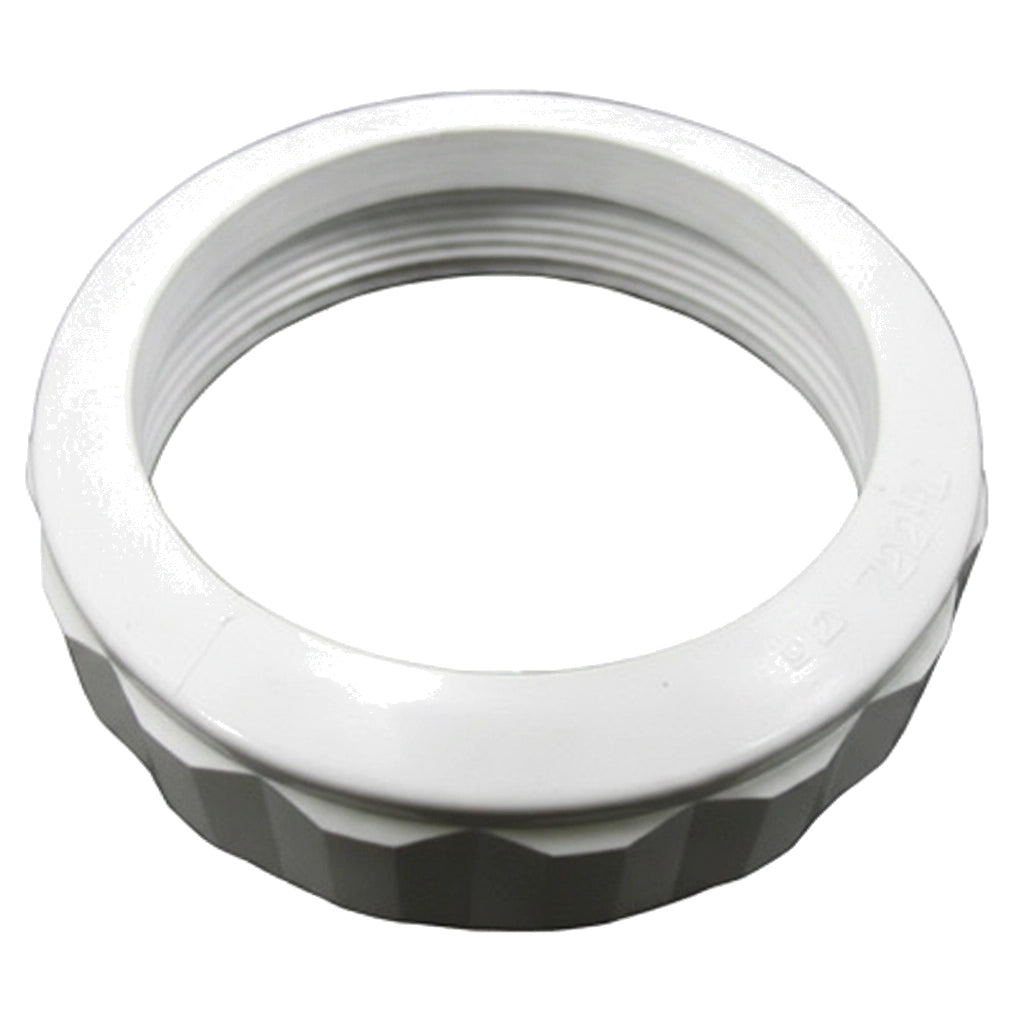

The Hayward Nut Assembly PVC (SPX0722D) is the OEM replacement PVC nut assembly for Hayward Trimline 2-way ball valves, restoring a secure, leak-free seal at the valve bonnet.
This PVC nut assembly clamps the valve bonnet to the valve body, maintaining the internal sealing components in their correct position during operation. Replacing a cracked, stripped, or deteriorated nut assembly returns the valve to factory-specification clamping force and prevents bypass leakage around the stem.
Specifications
| Hayward Part Number | SPX0722D |
| Material | PVC |
| UPC | 610377035385 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | Trimline Ball Valve – 2-way – 1½″ FIP | SP0722 | Position v1 #6 |
| Hayward | Builder Pack of 12 – SP0722 | SP0722PAK | Position v1 #6 |
| Hayward | Trimline Ball Valve – 2-way – 1½″ SKT | SP0722S | Position v1 #6 |
| Hayward | Builder Pack of 12 – SP0722S | SP0722SPAK | Position v1 #6 |
| Hayward | Trimline Ball Valve – 2-way – 1½″ MIP × 1½″ FIP | SP0723 | Position v1 #6 |
| Hayward | Trimline Ball Valve – 2-way – 1½″ MIP × 1½″ SKT | SP0723S | Position v1 #6 |
| Hayward | Trimline Union Ball Valve – Male & Female | SP0723UN | Position v1 #6 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before installing the replacement nut assembly, inspect the valve bonnet O-ring and any internal seals for wear or deformation — these components are often disturbed during bonnet removal and are inexpensive to replace at the same time. Hand-tighten the nut assembly until snug, then apply only firm hand pressure to seat it; over-torquing PVC threads can crack the valve body.
