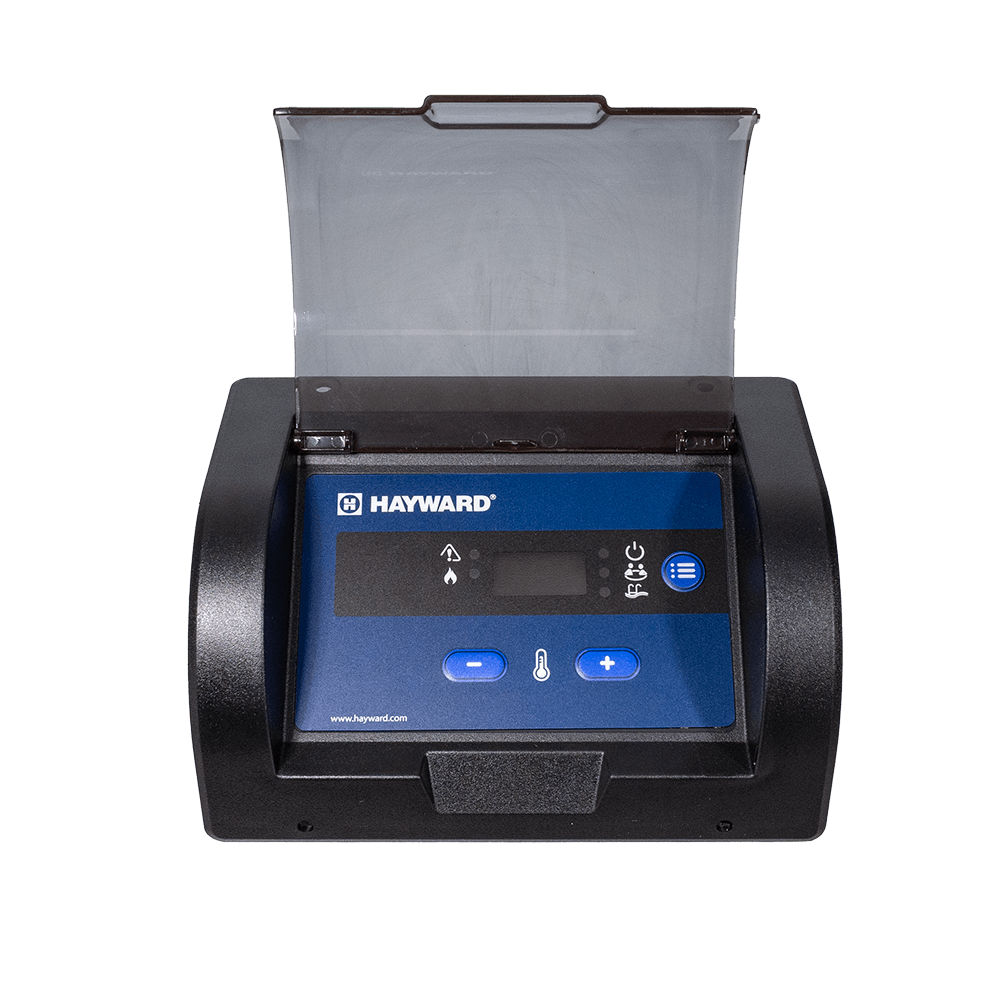

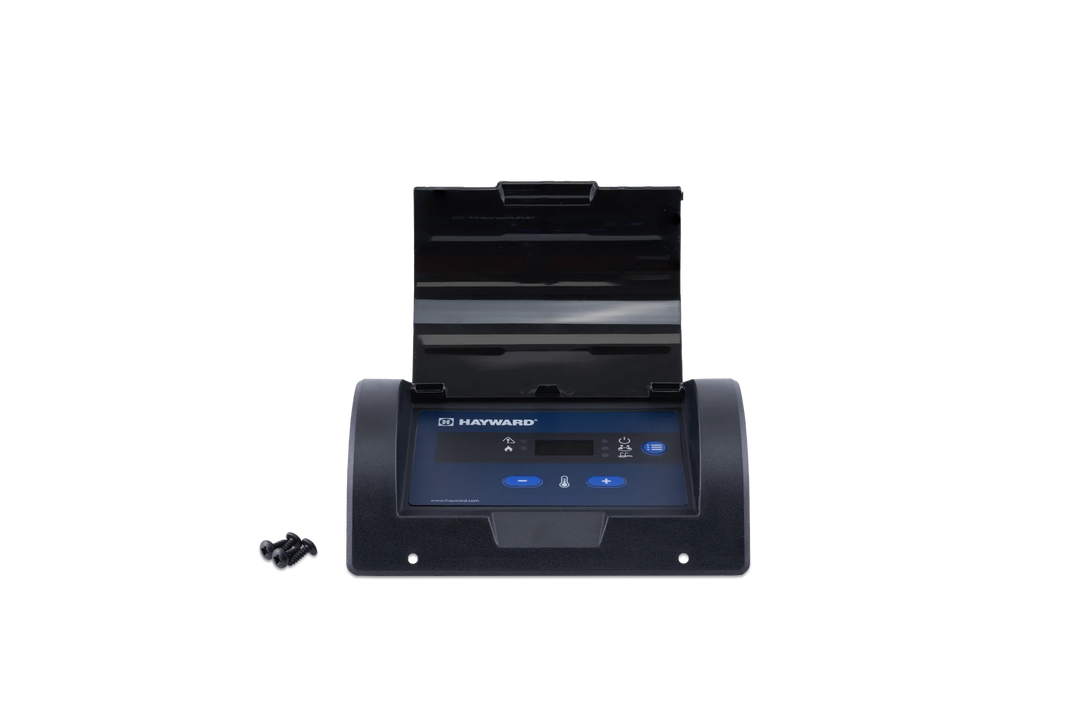

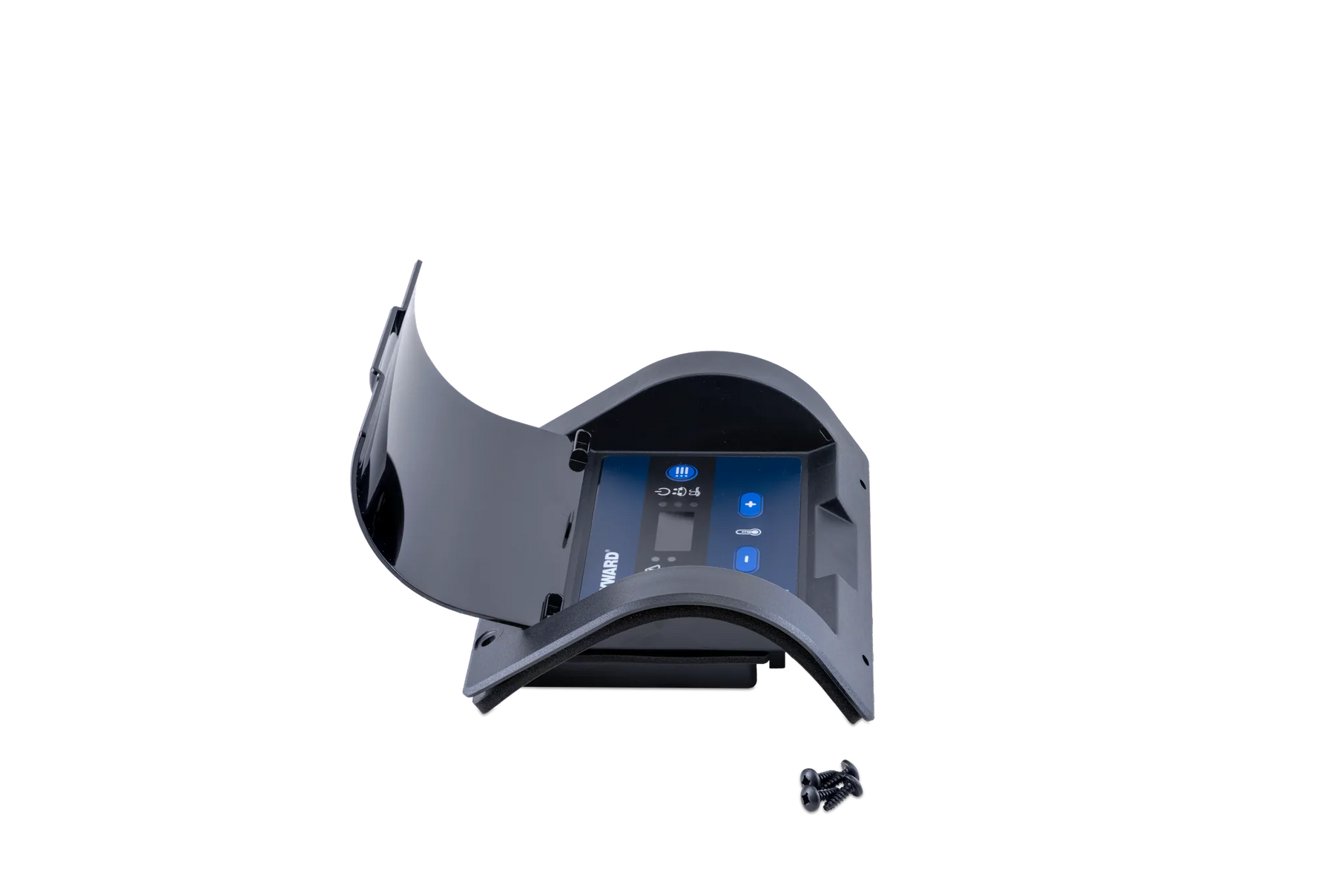

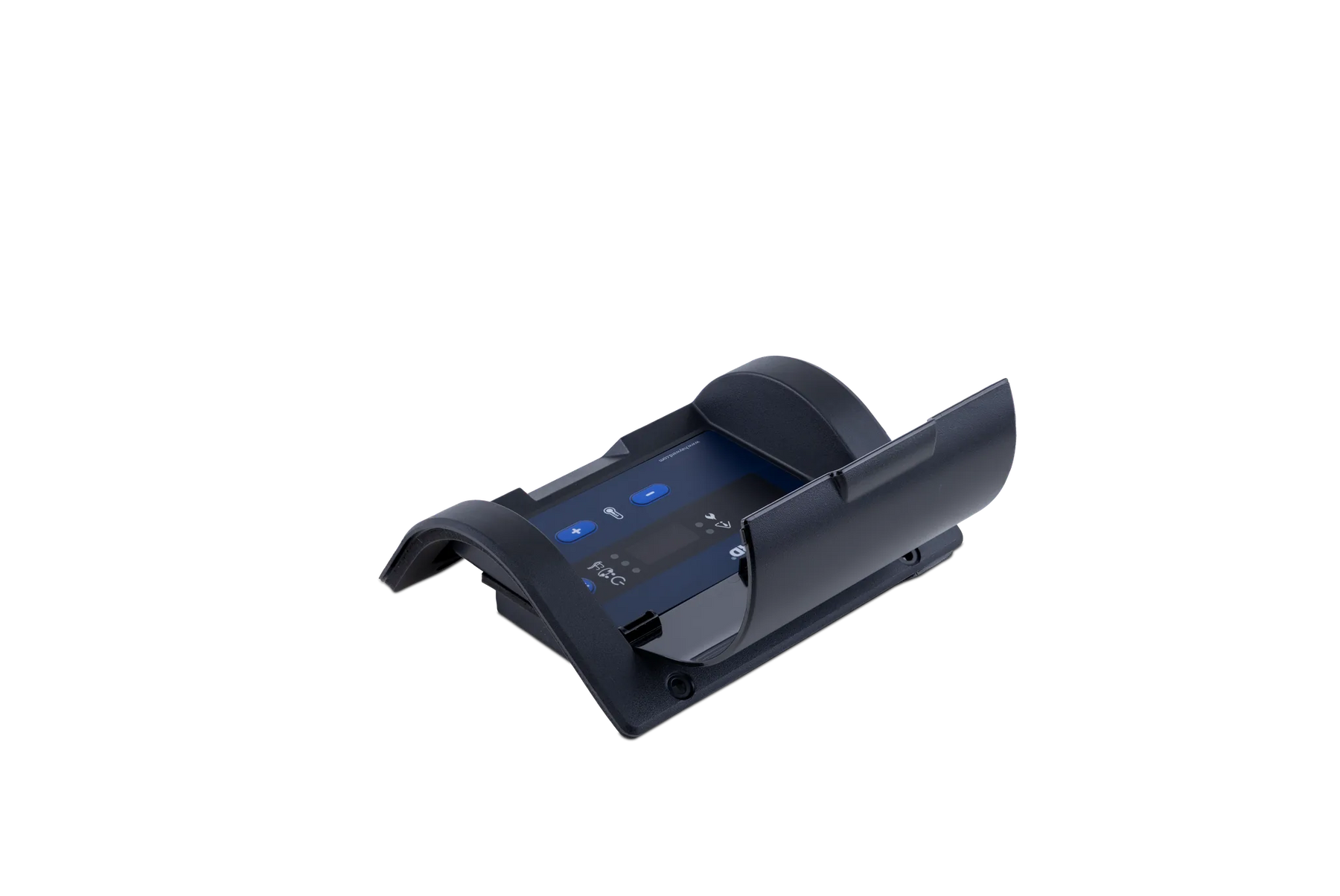

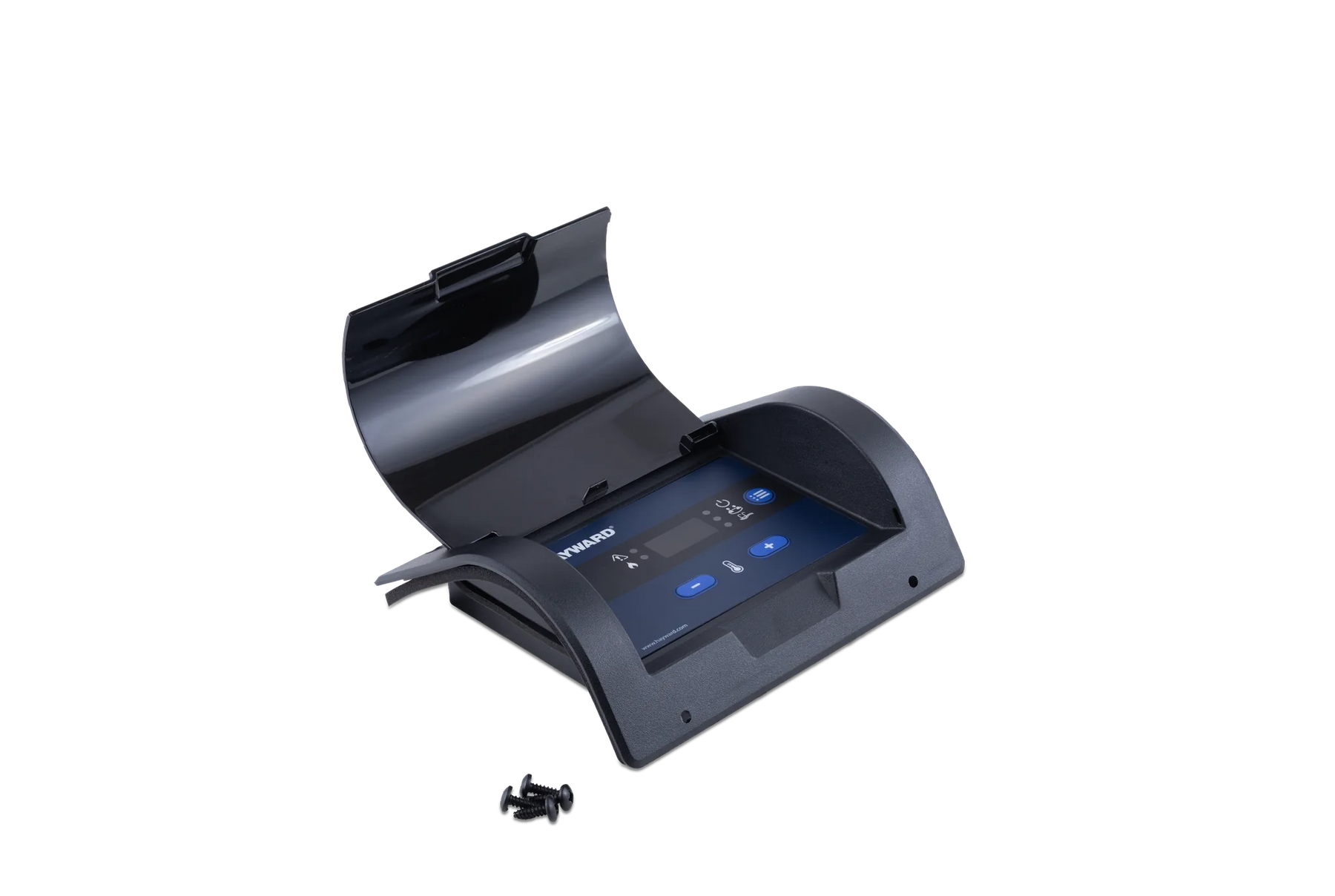

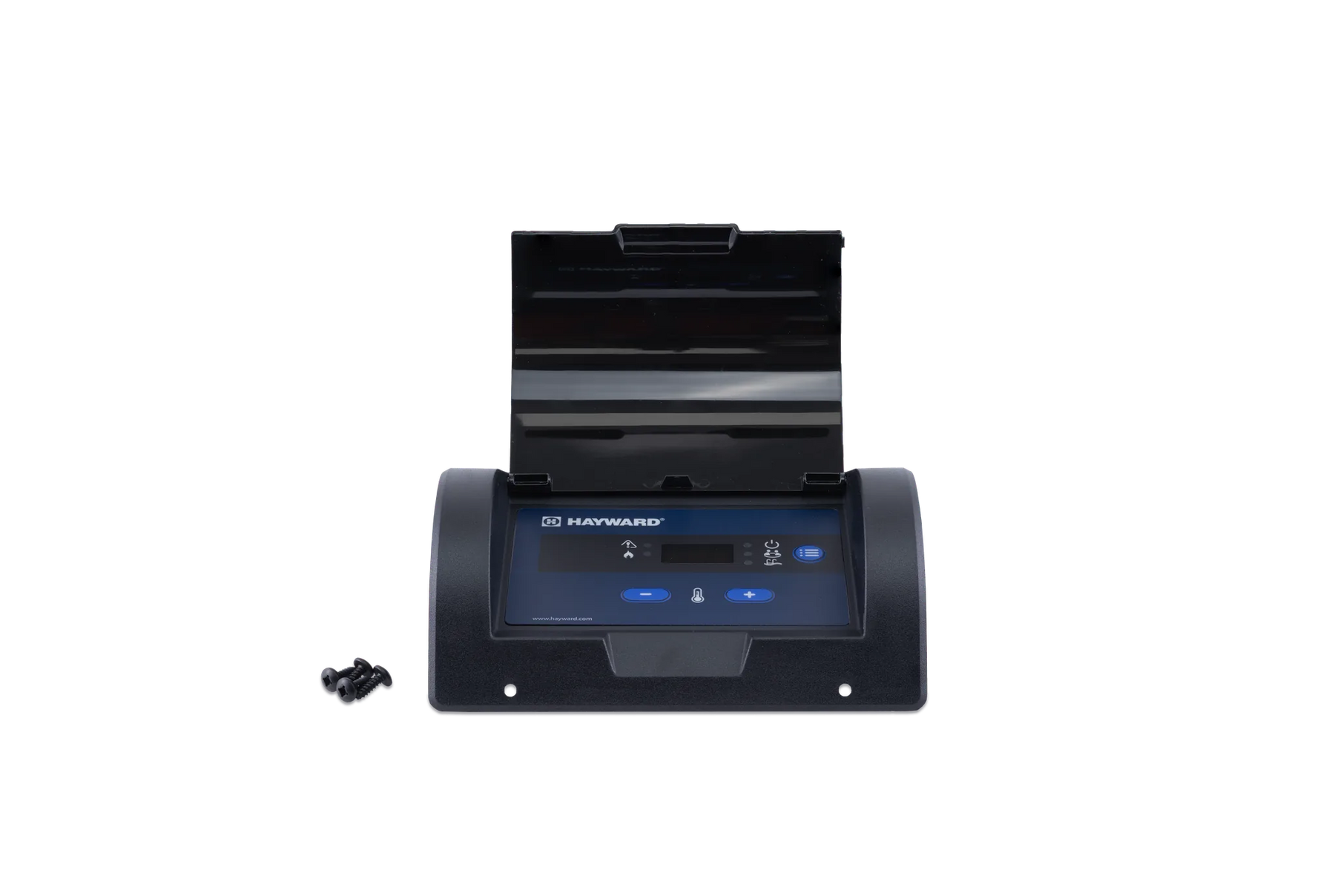

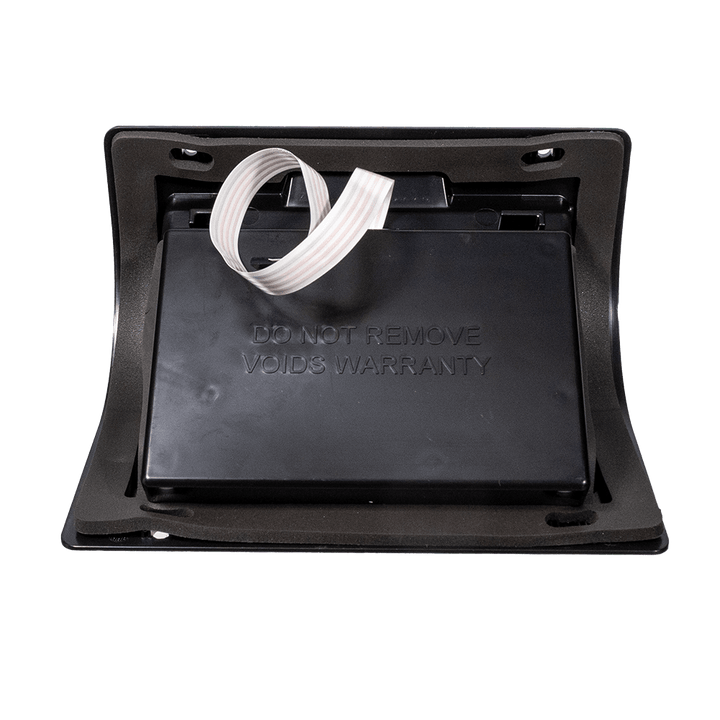

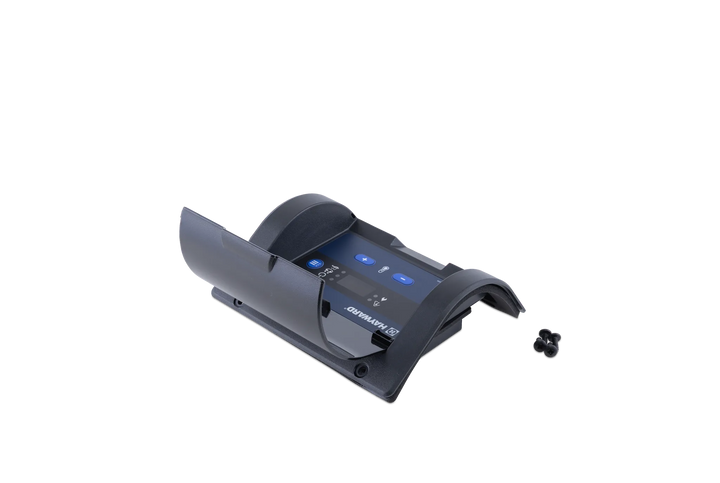

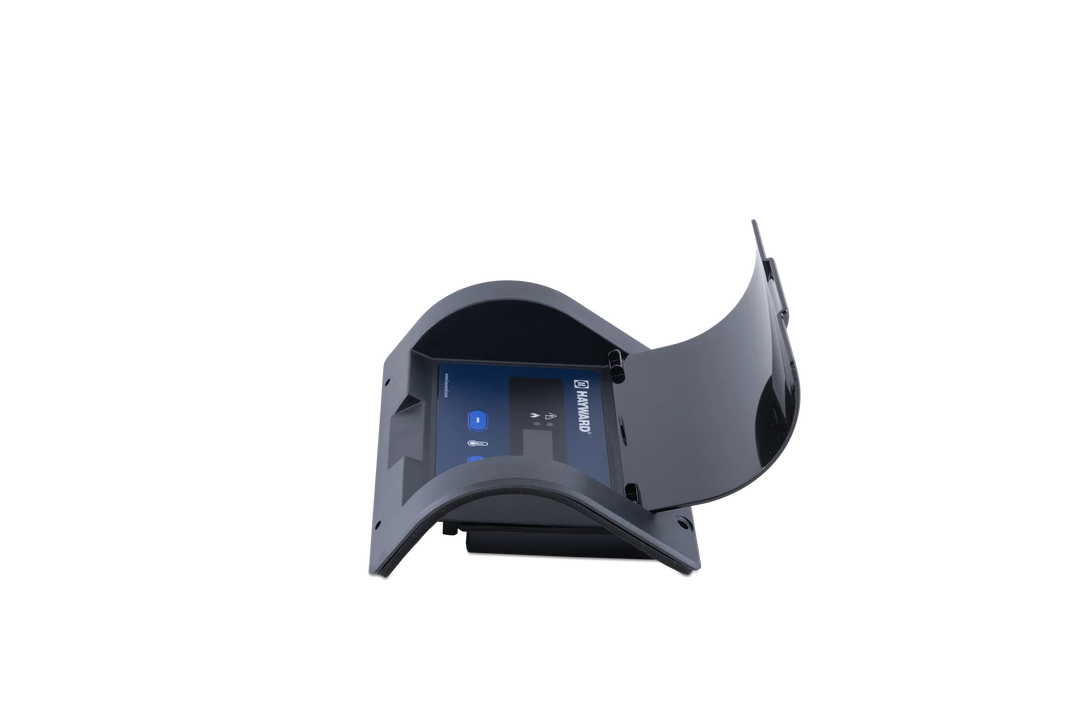

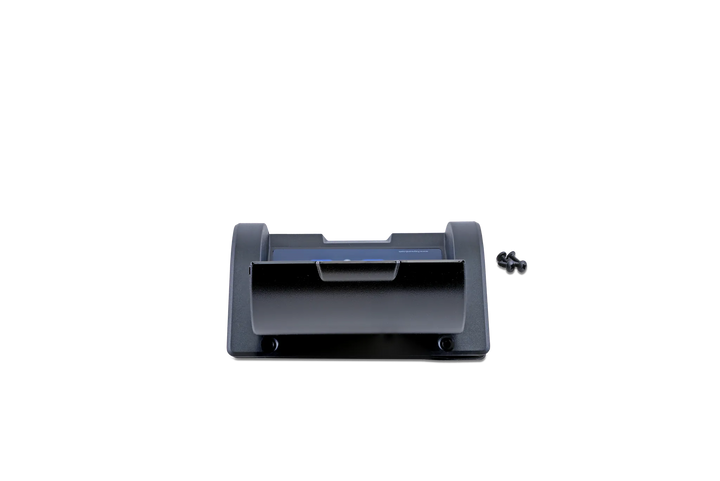

The Hayward Bezel and Keypad Assembly (FDXLBKP1932) is the OEM replacement control interface assembly for Hayward Universal H-Series Low NOx gas heaters.
IMPORTANT: LICENSED TECHNICIAN REQUIRED
Electrical control components must be installed or replaced by a qualified electrician or certified pool technician. Do not attempt to service this component without proper certification.

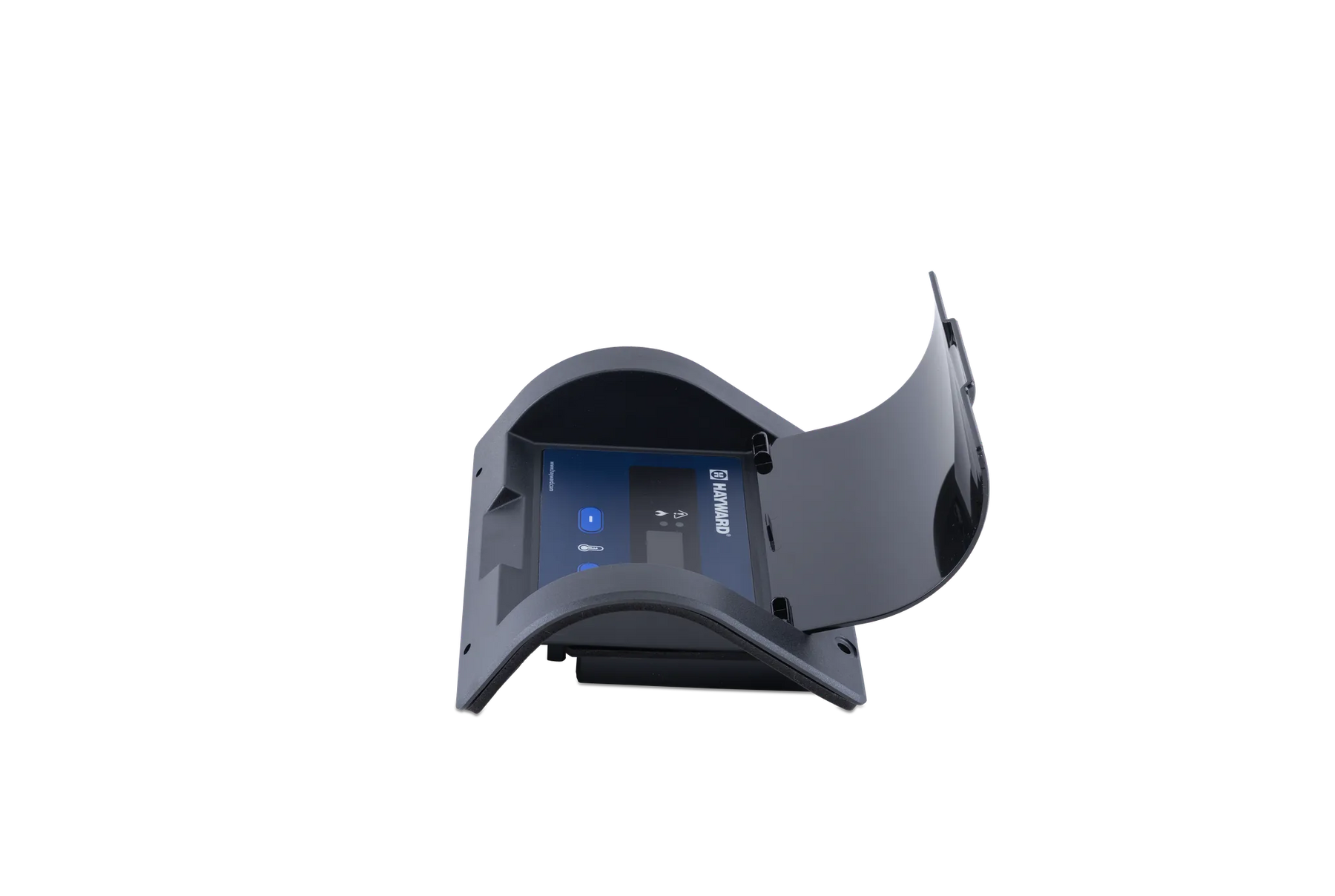

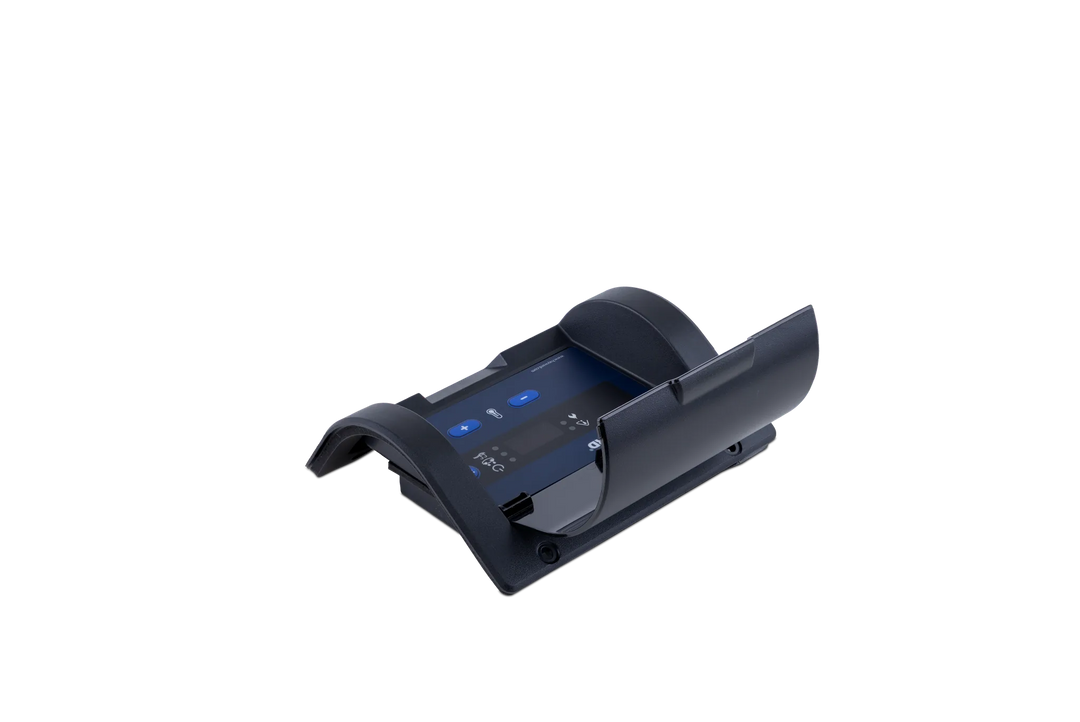

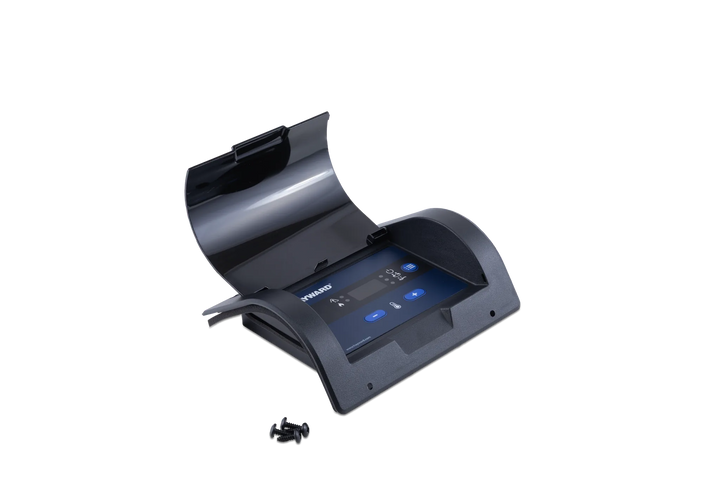

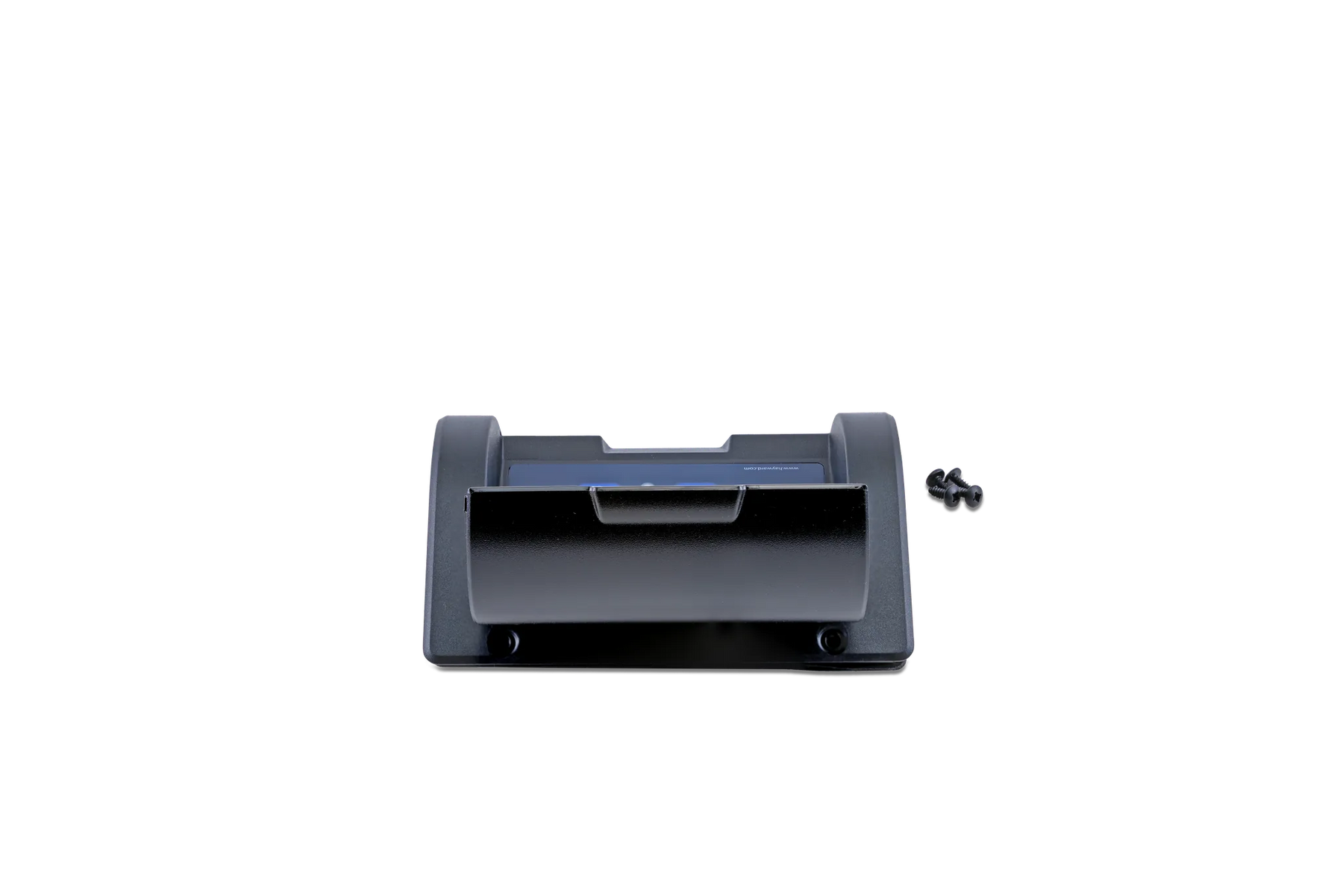

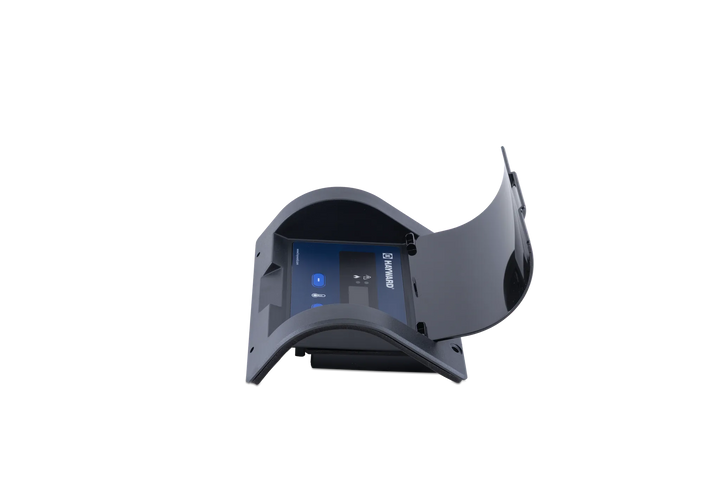

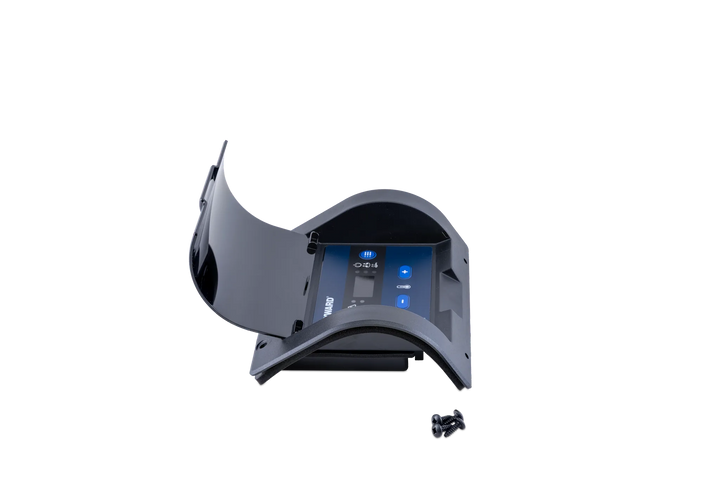

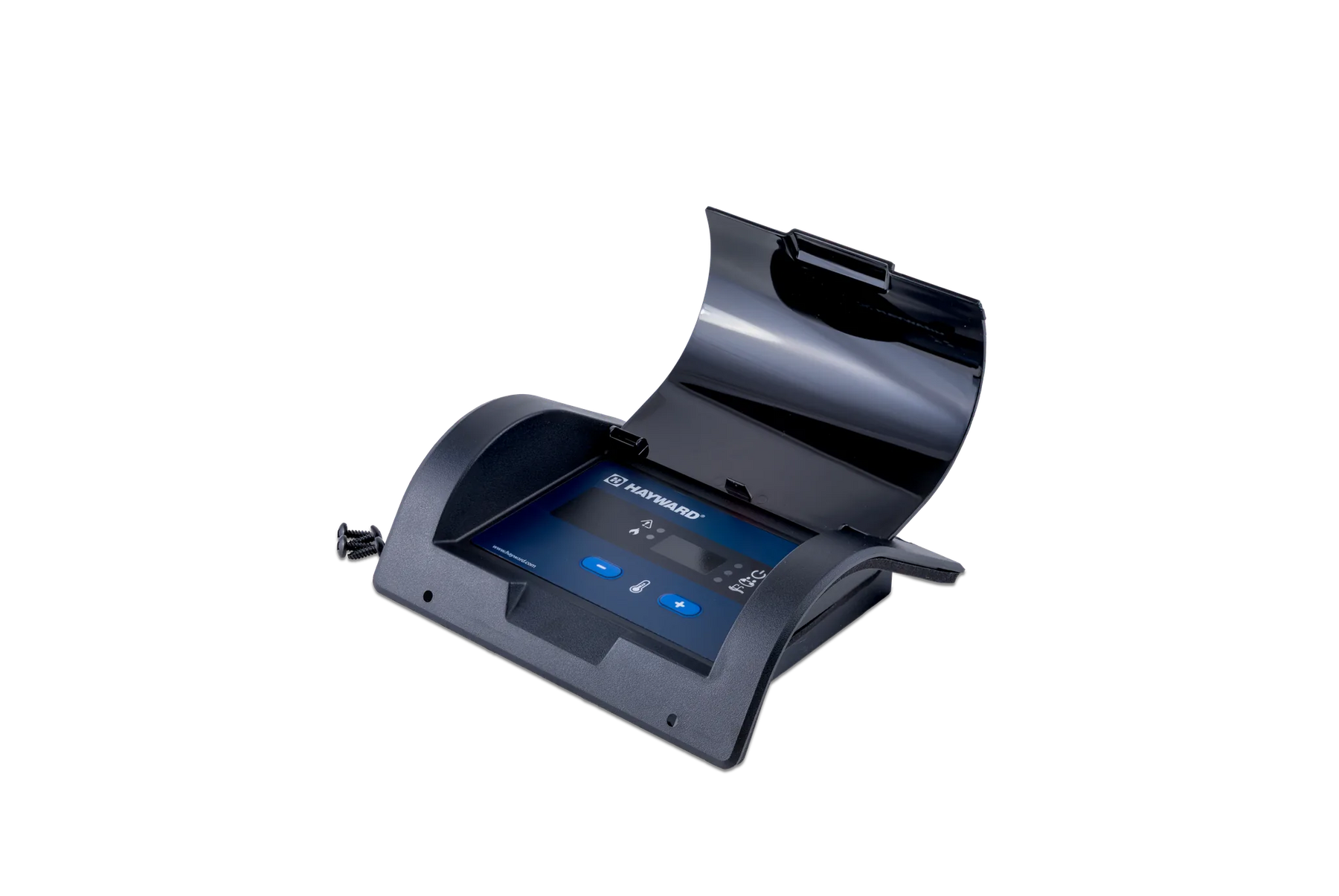

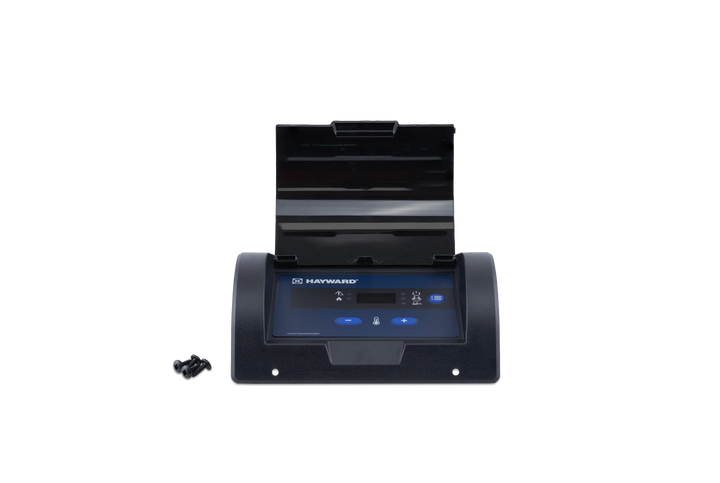

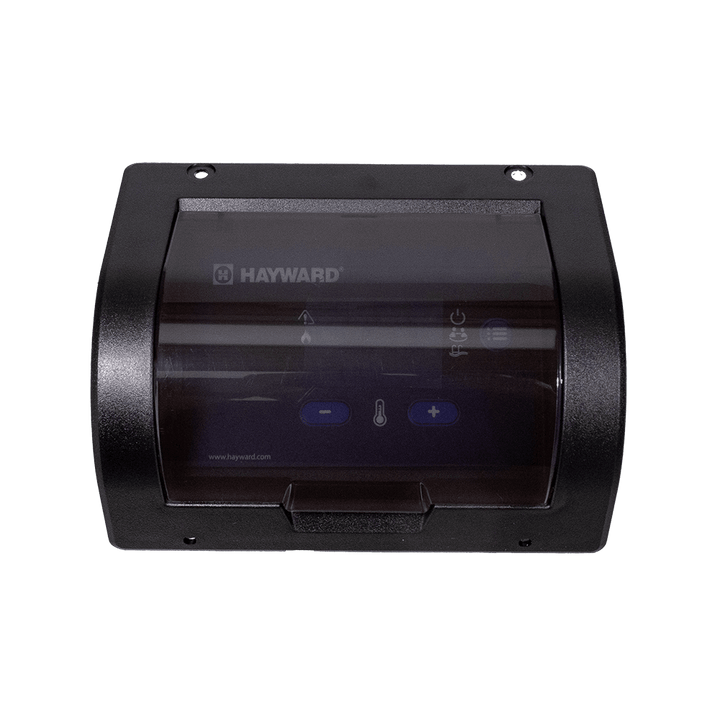

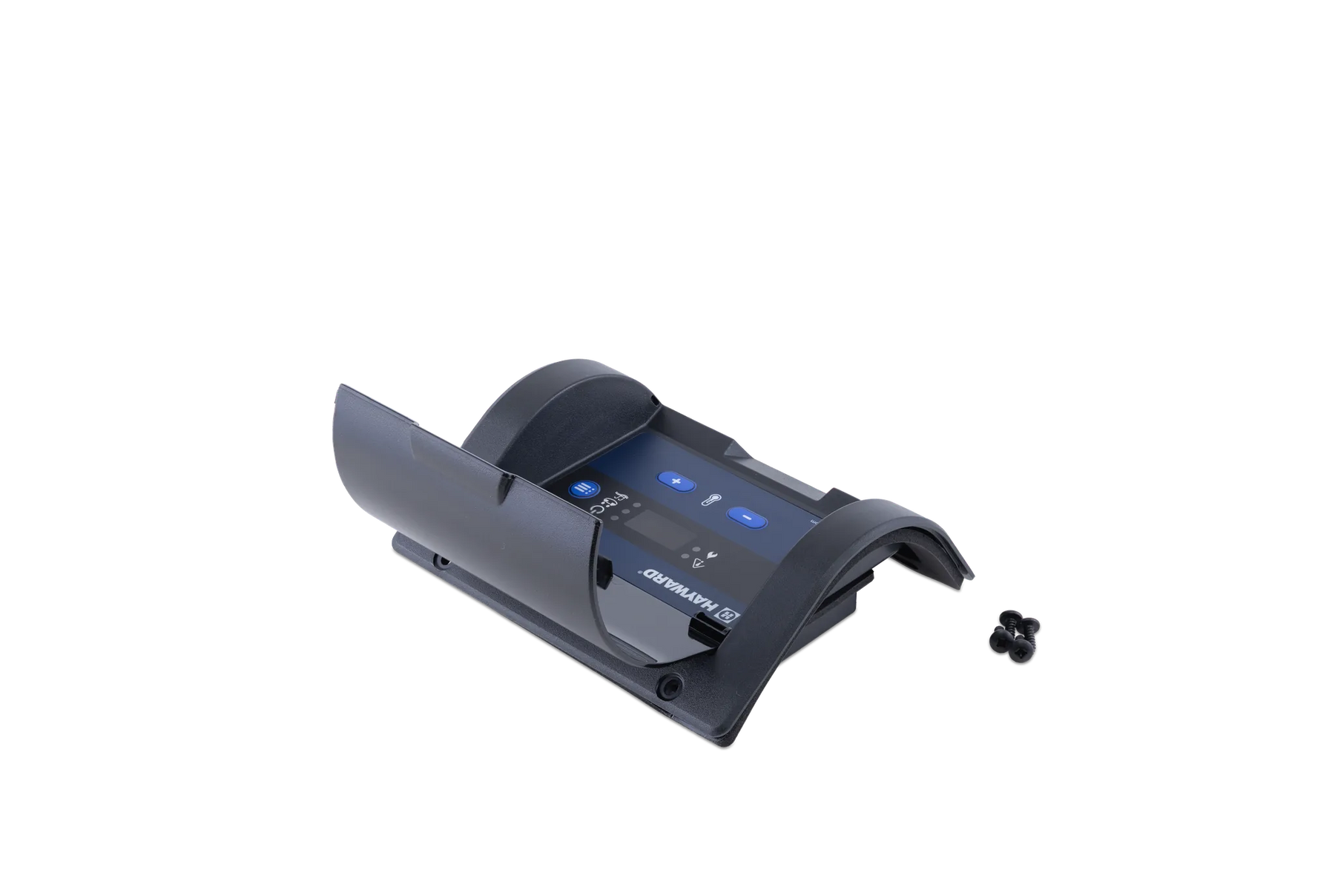

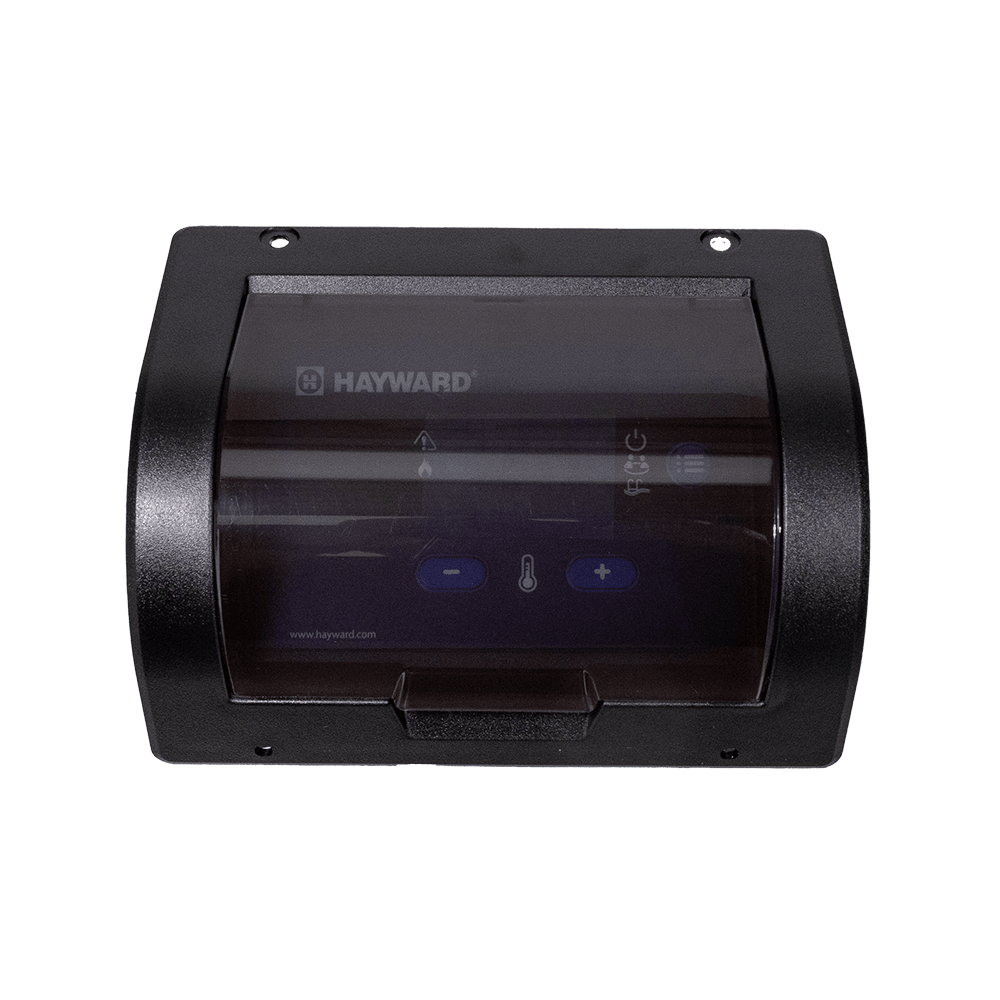

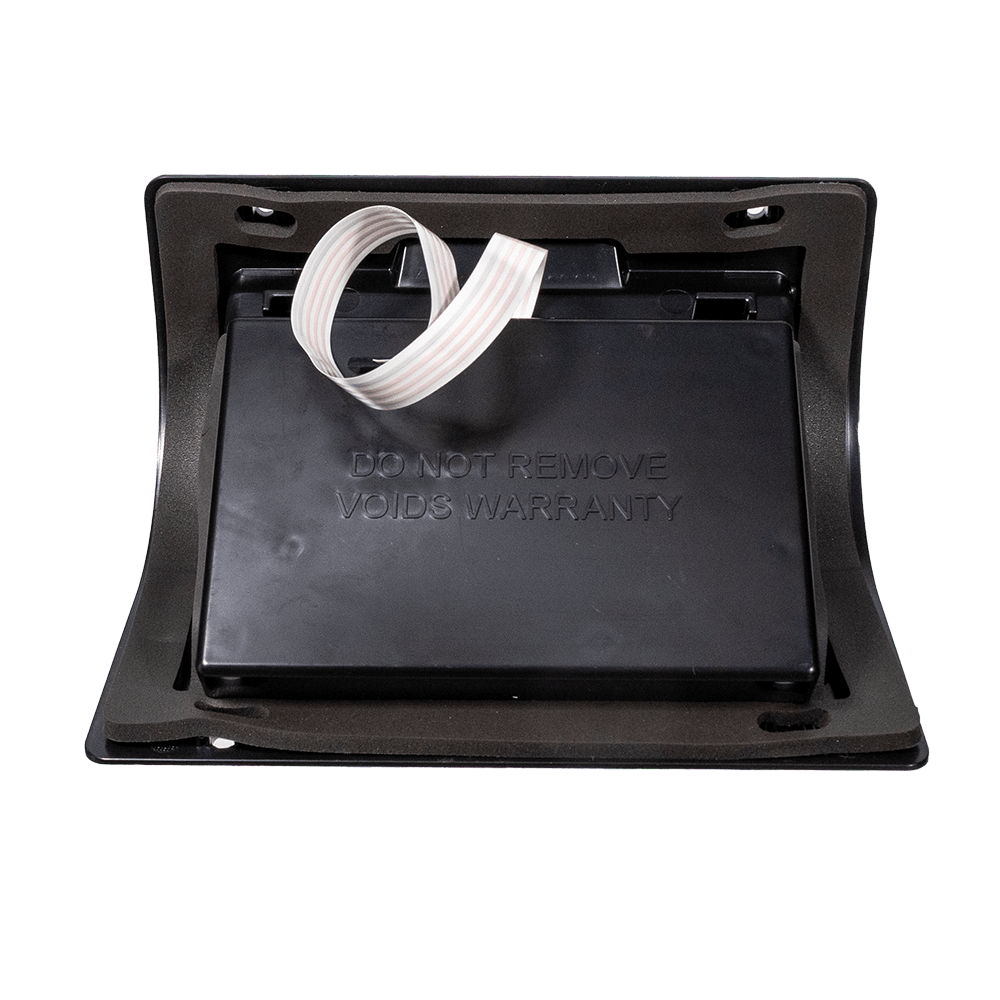

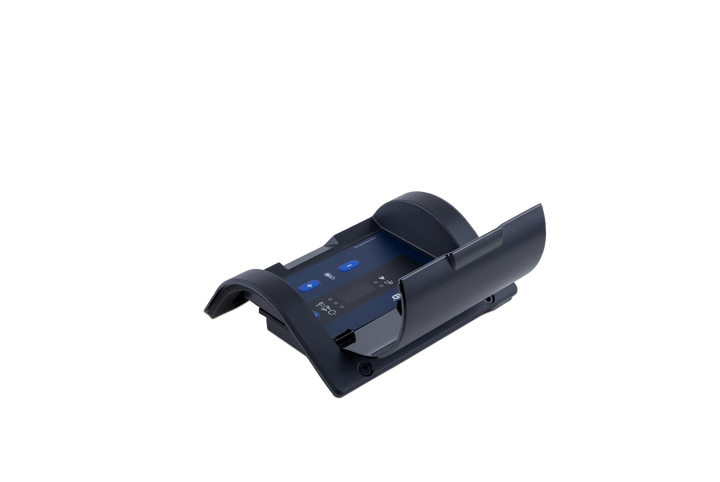

This assembly provides the front-panel control interface for the heater, housing the keypad and protective door that allow the operator to adjust temperature settings and monitor heater status. Replacing a damaged, cracked, or non-responsive bezel and keypad assembly restores full control functionality to the heater unit.
Specifications
| Hayward Part Number |
FDXLBKP1932 |
| UPC |
610377316040 |
| Equipment Line |
Hayward Universal H-Series Low NOx |
Compatible Models
This assembly is compatible with the following Hayward Universal H-Series Low NOx heater models:
| Brand |
Equipment Line |
Model / Part Number |
Notes |
| Hayward |
Universal H-Series Low NOx |
H150FDN, H150FDP |
150,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H200FDN, H200FDP |
200,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H250FDN, H250FDP |
250,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H300FDN, H300FDP |
300,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H350FDN, H350FDP |
350,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H400FDN, H400FDP |
400,000 BTU models |
| Hayward |
Universal H-Series Low NOx |
H500FDN, H500FDP |
500,000 BTU models |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip

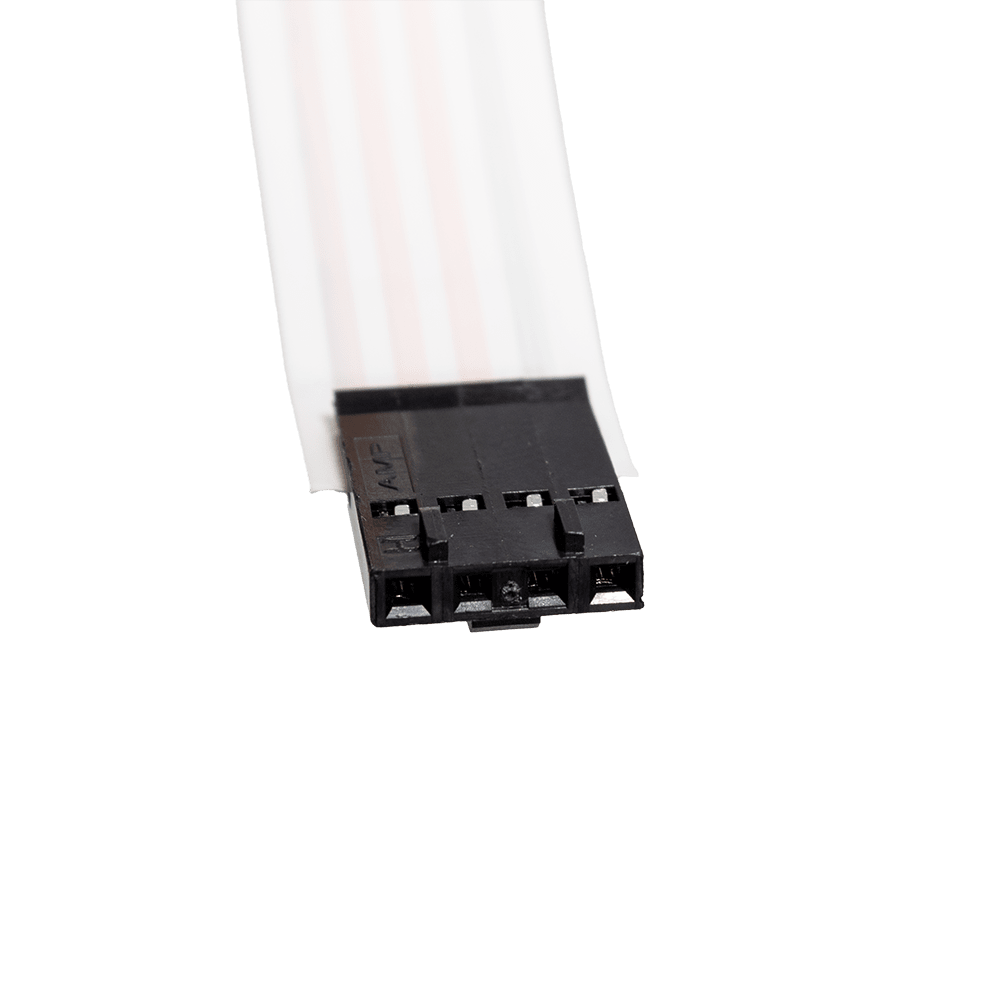

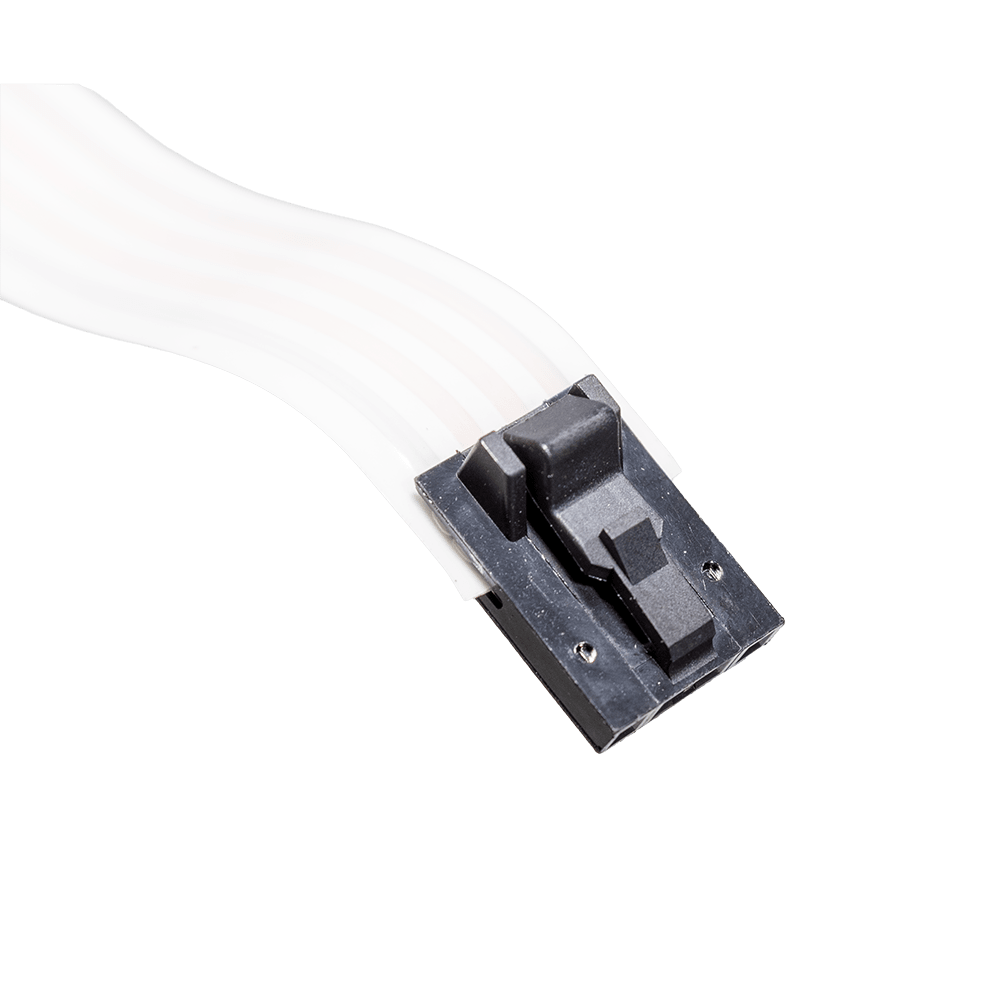

Before ordering, confirm your heater's model number on the rating label typically located on the inside of the heater cabinet door or on the unit's rear panel. The FDN suffix denotes a natural gas model and FDP denotes a propane model — both variants use this same bezel and keypad assembly. Have a certified pool or HVAC technician perform the replacement to ensure the control wiring harness is reconnected correctly and the heater is safely returned to service.
