Hayward Pressure Gauge with Dial for StarClear Plus, SwimClear, and ProSeries Filters | ECX271261
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- ECX271261
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

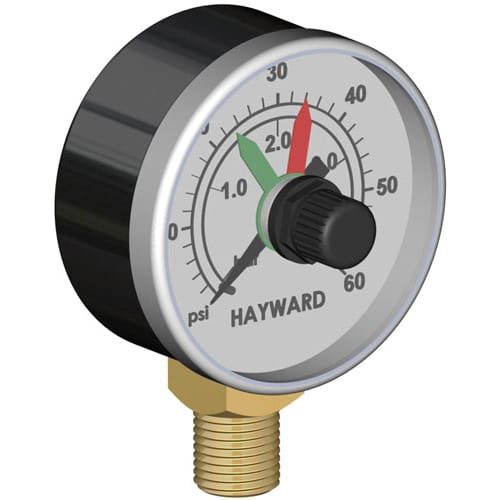

The Hayward Pressure Gauge with Dial (ECX271261) is the OEM replacement pressure gauge for Hayward StarClear Plus cartridge filters, SwimClear single-element cartridge filters, and ProSeries sand filters.
Mounted directly on the filter tank, this gauge gives you an at-a-glance reading of system operating pressure. Monitoring the pressure reading over time is the reliable method for determining when your filter needs cleaning or servicing — a rising pressure differential signals that the filter media has loaded and flow is being restricted.
Specifications
| Hayward Part Number | ECX271261 |
| UPC | 610377809719 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | 120 Sq.Ft. StarClear Plus Filter | W3C1200 |
| Hayward | StarClear Plus Cartridge Filter 120 Sq.Ft. | W3C12002 |
| Hayward | SwimClear Single Element Cartridge Filter 150 Sq.Ft. | W3C150S |
| Hayward | StarClear Plus Cartridge Filter 175 Sq.Ft. | W3C17502 |
| Hayward | ProSeries 27" Sand Filter - Top Mount | W3S270T2 |
| Hayward | ProSeries 30" Sand Filter - Top Mount | W3S310T2 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Note your filter's clean starting pressure when the system is first commissioned or immediately after a thorough cleaning. That baseline reading is your benchmark — most manufacturers recommend servicing the filter when pressure climbs 8–10 PSI above that clean-start figure. Replacing a faulty or unreadable gauge with this OEM part restores an accurate baseline and takes the guesswork out of your maintenance schedule.
