Hayward Cartridge Element for SwimClear Cartridge Filter | CX880XRE
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- CX880XRE
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

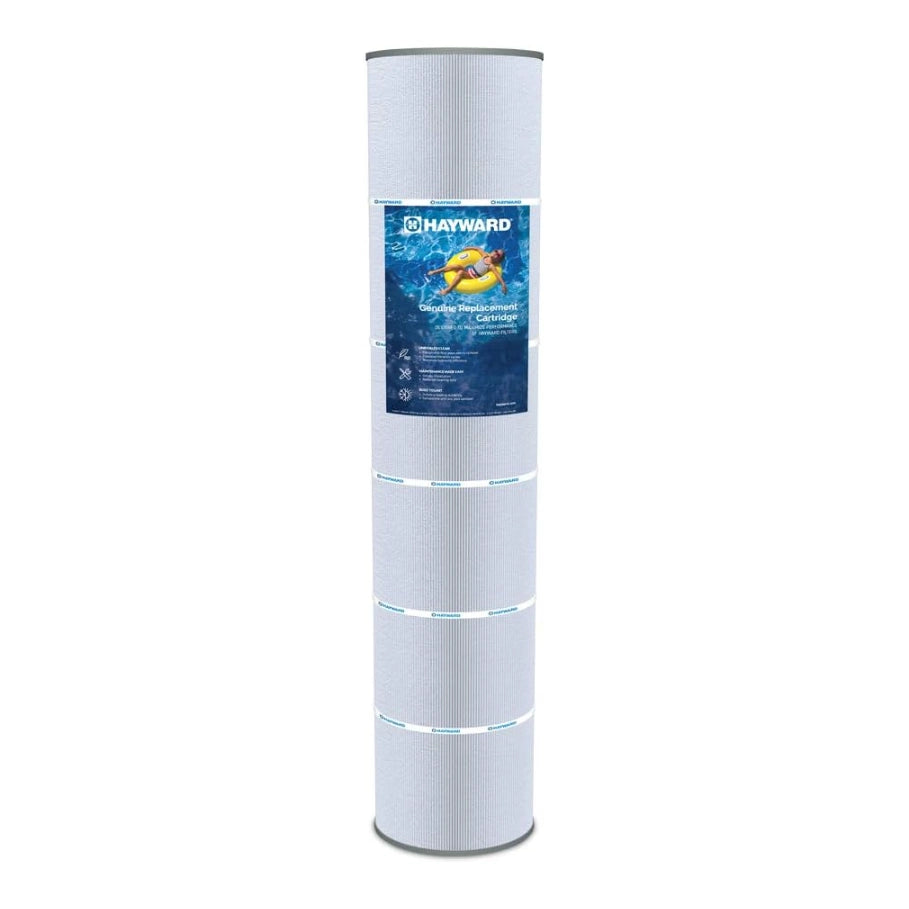

The Hayward Cartridge Element (CX880XRE) is the OEM replacement filter cartridge element for the Hayward SwimClear Multi-Element Cartridge Filter series, including the C4000, C4020, C4025, and C4030 models.
IMPORTANT: THE SWIMCLEAR FILTER USES MULTIPLE CARTRIDGE ELEMENTS
The SwimClear cartridge filter is a multi-element design — it takes more than one CX880XRE element to fill the filter housing. If you need a complete set, Hayward offers a 4-pack option. The CX880XREPAK4 4-Pack is available on Poolaroo and is the most economical way to replace a full set at once.
The CX880XRE element installs directly into the SwimClear filter tank, providing the primary filtration surface that captures debris, particulates, and contaminants as pool water passes through. Hayward manufactures this element to the original fit and performance specification of the filter, ensuring full compatibility with the filter housing, manifold, and bypass controls.
Specifications
| Hayward Part Number | CX880XRE |
| Quantity | Each (1) |
| Length | 25 1/2" |
| Outer Diameter | 7" |
| Top Inner Diameter | 3" |
| Bottom Inner Diameter | 3" |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | SwimClear Multi-Element Cartridge Filter 425 Sq.Ft. (Open Line) | W3C4030 |
| Hayward | SwimClear | C4000 |
| Hayward | SwimClear | C4020 |
| Hayward | SwimClear | C4025 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your filter's manual or on the original cartridge before ordering.
Poolaroo Pro Tip
Before ordering, measure your existing element: the CX880XRE is 25 1/2" long with a 7" outer diameter. If your current cartridge measures differently, cross-check the part number molded into the end cap — it is the most reliable way to confirm the correct replacement. When it's time to clean, rinse the pleats with a garden hose working top-to-bottom; avoid pressure washers, which can damage the filter media. For a deeper clean after heavy use or algae treatments, soak the element overnight in a dedicated cartridge filter cleaner to break down embedded oils and sunscreen. Because the SwimClear is a multi-element filter, replacing all elements at the same time ensures balanced flow across every cartridge and extends the service life of the full set.
