Hayward 1-1/2" MPT x 1-1/2" Barbed Hose Fitting for Perflex DE Filters and ProSeries Sand Filters | SPX1105Z4
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX1105Z4
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

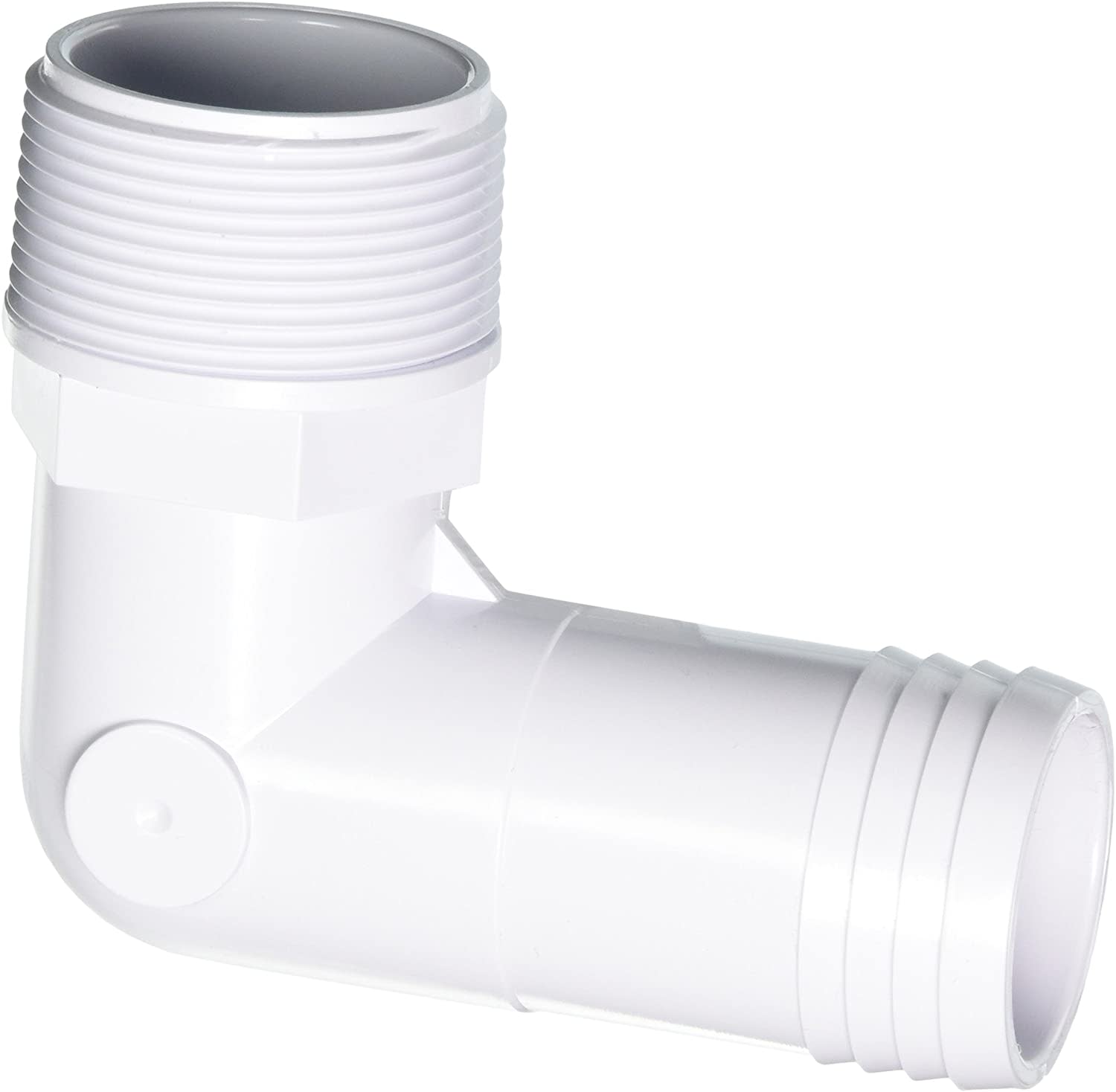

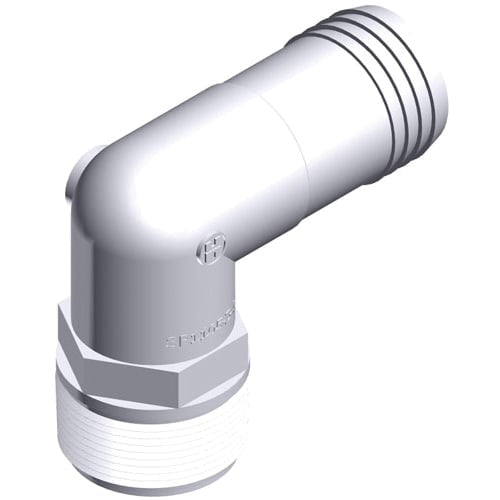

The Hayward 1-1/2" MPT x 1-1/2" Barbed Hose Fitting (SPX1105Z4) is the OEM replacement hose connection fitting for Hayward Perflex Extended-Cycle DE filters and ProSeries sand filters. It provides the threaded-to-barbed transition point that secures flexible hose connections at filter ports and associated equipment inlets.
Specifications
| Hayward Part Number | SPX1105Z4 |
| Connection Type | 1-1/2" Male Pipe Thread (MPT) × 1-1/2" Barbed Hose |
| UPC | 610377037884 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | Perflex Extended-Cycle DE Filter 20 Sq.Ft. (with Clamp) | W3EC40AC | Position v5 #40 |
| Hayward | Perflex Extended-Cycle DE Filter 27 Sq.Ft. | W3EC65A | Position v4 #32 |
| Hayward | Perflex Extended-Cycle DE Filter 40 Sq.Ft. | W3EC75A | Position v4 #32 |
| Hayward | ProSeries 16" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S166T | Position v1 #14 |
| Hayward | ProSeries 23" Sand Filter - Top Mount (1-1/2" VariFlo Valve Included) | W3S200 | Position v2 #29 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before installing this fitting, inspect the mating threads on the filter port for any cracks or cross-threading. Apply thread sealant tape (PTFE) to the MPT threads and hand-tighten first, then snug with a wrench — avoid over-torquing, which can stress the filter housing. Confirm the barbed end matches your hose's inside diameter before finalising the connection.
