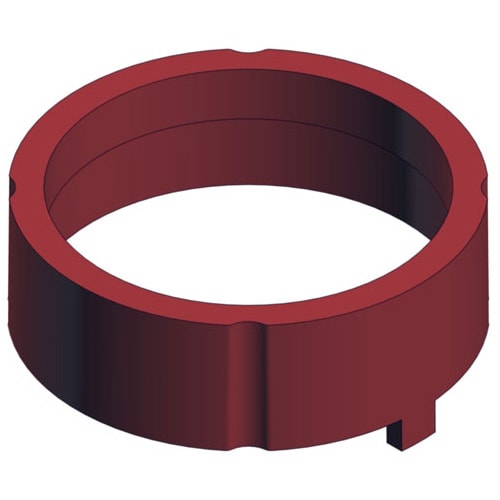

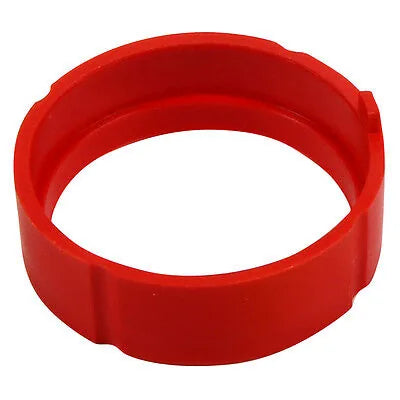

Hayward Cone Gear Bushing for Navigator Pro, PoolVac XL and Wanda The Whale Suction Cleaners | AXV306

The Hayward Cone Gear Bushing (AXV306) is the OEM replacement bushing for the drive gear assembly in Hayward's Navigator Pro and PoolVac XL automatic suction cleaners, as well as the Wanda The Whale above ground cleaner.

This bushing supports the cone gear within the cleaner's drive train, maintaining proper gear alignment and engagement to sustain consistent directional movement across the pool floor and walls. Replacing a worn or cracked bushing restores smooth gear operation and prevents accelerated wear on the surrounding gear components.

Specifications

Fits Into

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

When servicing the drive gear assembly, inspect the cone gear itself and the adjacent gear components for wear at the same time. A failed bushing often indicates the surrounding gears have also experienced abnormal stress — replacing worn gears alongside the bushing avoids a repeat teardown shortly after.
