Hayward Filter Head with Vent Valve (Platinum) for Perflex Extended-Cycle DE Filters W3EC40AC W3EC50AC | ECX5000BP
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- ECX5000BP
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

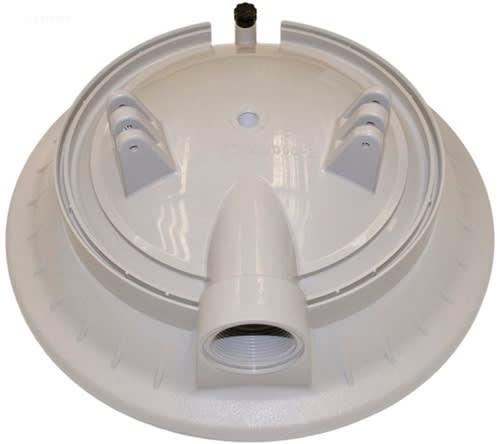

The Hayward Filter Head with Vent Valve in Platinum (ECX5000BP) is the OEM replacement filter head assembly for the Perflex Extended-Cycle DE Filter lines W3EC40AC and W3EC50AC.
This filter head serves as the top closure and primary access point for the Perflex filter tank, incorporating an integrated vent valve that allows trapped air to be released from the filter vessel during startup and backwash cycles. Replacing a cracked, warped, or leaking filter head restores a proper pressure seal and ensures the vent valve operates correctly to purge air from the system.
Specifications
| Hayward Part Number | ECX5000BP |
| Color / Finish | Platinum |
| Includes | Filter head with integrated vent valve |
| UPC | 610377025355 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Perflex Extended-Cycle DE Filter 20 Sq.Ft. (with Clamp) | W3EC40AC |
| Hayward | Perflex Extended-Cycle DE Filter 25 Sq.Ft. (with Clamp) | W3EC50AC |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When fitting the replacement filter head, inspect the tank-to-head O-ring or gasket sealing surface for any scoring or debris before reassembly. A clean, undamaged mating surface is essential for a leak-free seal at operating pressure. If the existing O-ring or gasket shows any cracking or deformation, replace it at the same time to avoid a repeat service call.
