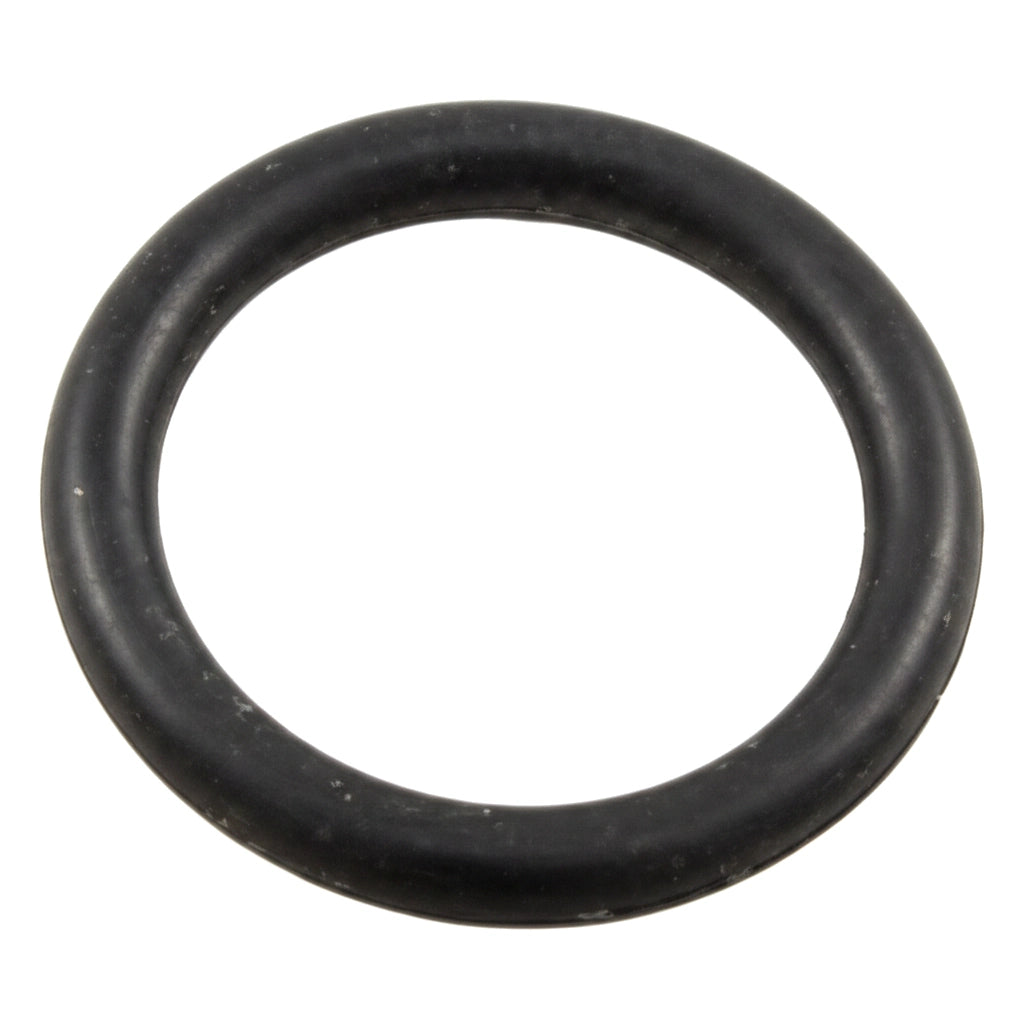

Hayward O-Ring for ProSeries Sand Filters W3S200 W3S210S W3S310S | SX200Z5
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX200Z5
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item
The Hayward O-Ring (SX200Z5) is the OEM replacement sealing O-ring for Hayward ProSeries sand filters, maintaining a watertight seal at the filter's connection points to prevent leaks and maintain operating pressure.
IMPORTANT: LUBRICATION REQUIRED — SOLD SEPARATELY
Always lubricate this O-ring with a silicone-based lubricant before installation. Browse our Pool Plumbing Lubricants for a compatible silicone lubricant.
This O-ring seats at a critical junction on the ProSeries filter body, providing a pressure-rated seal that keeps water contained within the filtration circuit. Replacing a worn, cracked, or flattened O-ring restores the filter's ability to maintain system pressure and prevents water loss at the seal point.
Specifications
| Hayward Part Number | SX200Z5 |
| UPC | 610377054867 |
| Channel | Open Line |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProSeries 23" Sand Filter — Top Mount (1½" VariFlo Valve Included) | W3S200 |
| Hayward | ProSeries 21" Sand Filter — Side Mount (1½" VariFlo Valve Included) | W3S210S |
| Hayward | ProSeries 30" Sand Filter — Side Mount (Valve Not Included) | W3S310S |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before installing the SX200Z5, clean the O-ring seat with a lint-free cloth to remove any grit or old lubricant residue — even a small particle trapped under the O-ring can cause a slow leak under pressure. Apply a thin, even coat of silicone-based lubricant (never petroleum-based products such as Vaseline, which degrade rubber O-rings over time) before seating the ring. Browse Pool Plumbing Lubricants for a compatible option. Inspect the O-ring seat on the filter body for nicks or corrosion before reassembling — a damaged seat will cause the new O-ring to fail prematurely regardless of lubricant.
