Hayward Housing Cap Screw for Super Pump High Efficiency, Super Pump XE, and Super Pump VS Pumps | SPX1600Z4
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX1600Z4
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

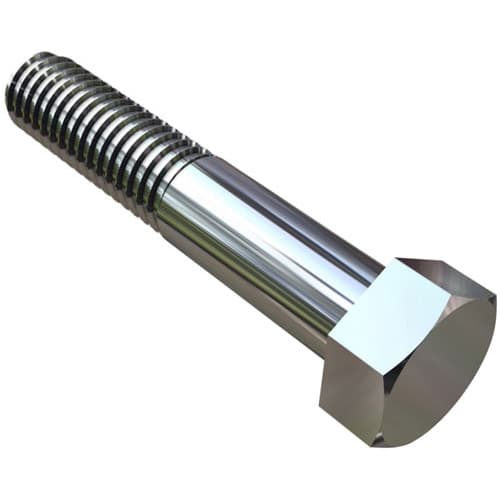

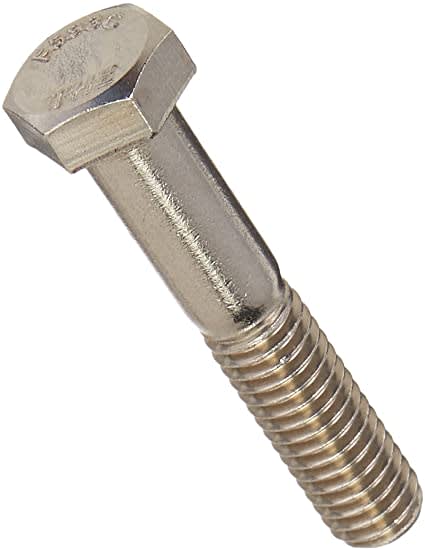

The Hayward Housing Cap Screw (SPX1600Z4) is the OEM replacement fastener for the pump housing on Hayward Super Pump High Efficiency, Super Pump XE, and Super Pump VS pump models.
This cap screw secures the pump housing to the motor bracket assembly, maintaining the sealed, pressure-bearing connection between the wet end and the motor end of the pump. Replacing a worn, stripped, or damaged housing cap screw restores proper clamping force and prevents housing misalignment or leaks at the joint.
Specifications
| Hayward Part Number | SPX1600Z4 |
| Part Type | Housing Cap Screw |
| UPC | 610377040174 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Super Pump High Efficiency Pump, 0.85 HP (Open Line) | W3SP2605X7 |
| Hayward | Super Pump High Efficiency Pump, 1.1 HP (Open Line) | W3SP2607X10 |
| Hayward | Super Pump XE Pump, 1.65 HP (Open Line) | W3SP2610X15XE |
| Hayward | Super Pump XE Pump, 2.25 HP (Open Line) | W3SP2615X20XE |
| Hayward | Super Pump VS 615, 1.65 HP Pump w/ OmniX (Open Line) | W3VSP26615 |
| Hayward | Super Pump VS 620, 2.25 HP Pump w/ OmniX (Open Line) | W3VSP26620 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When reassembling the pump housing, tighten all housing cap screws evenly in a cross-pattern to distribute clamping load uniformly across the housing flange. Uneven torque can distort the mating surfaces and cause a slow leak even with a new O-ring in place. If you are replacing one screw, inspect the remaining screws for corrosion or thread damage and replace the full set as needed to maintain consistent clamping.
