Hayward Main Turbine Bearings 2-Pack for Navigator Pro, PoolVac XL, and Wanda The Whale Suction Cleaners | AXV055P
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- AXV055P
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

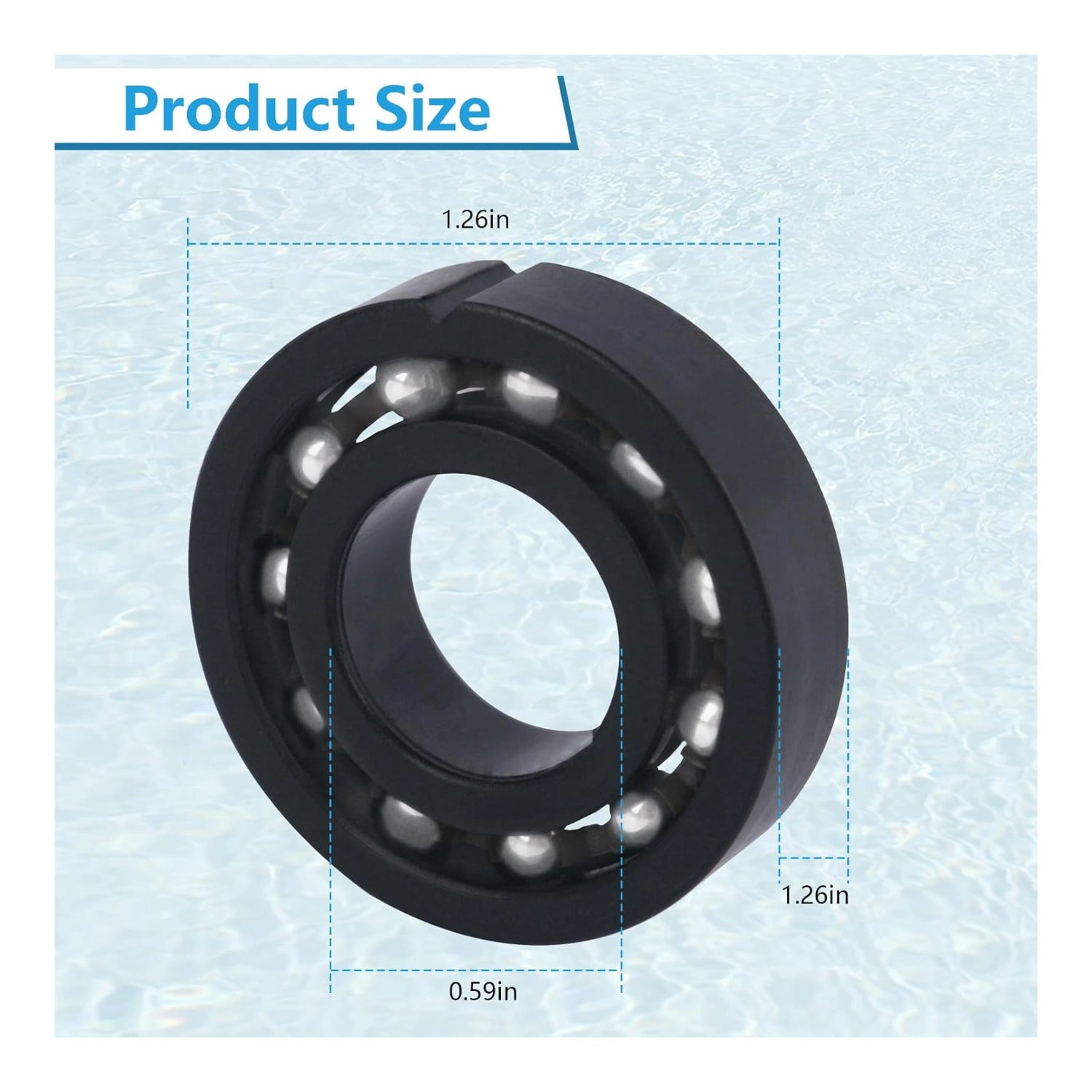

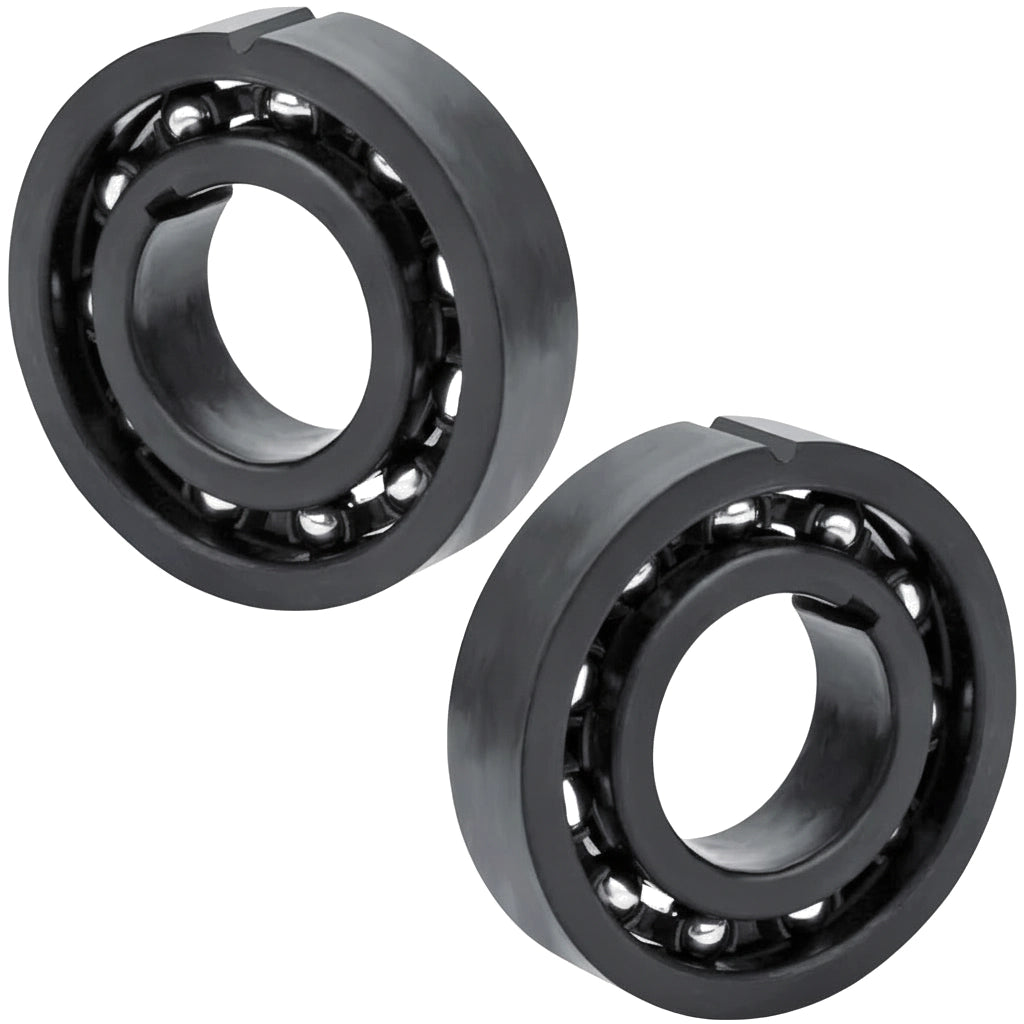

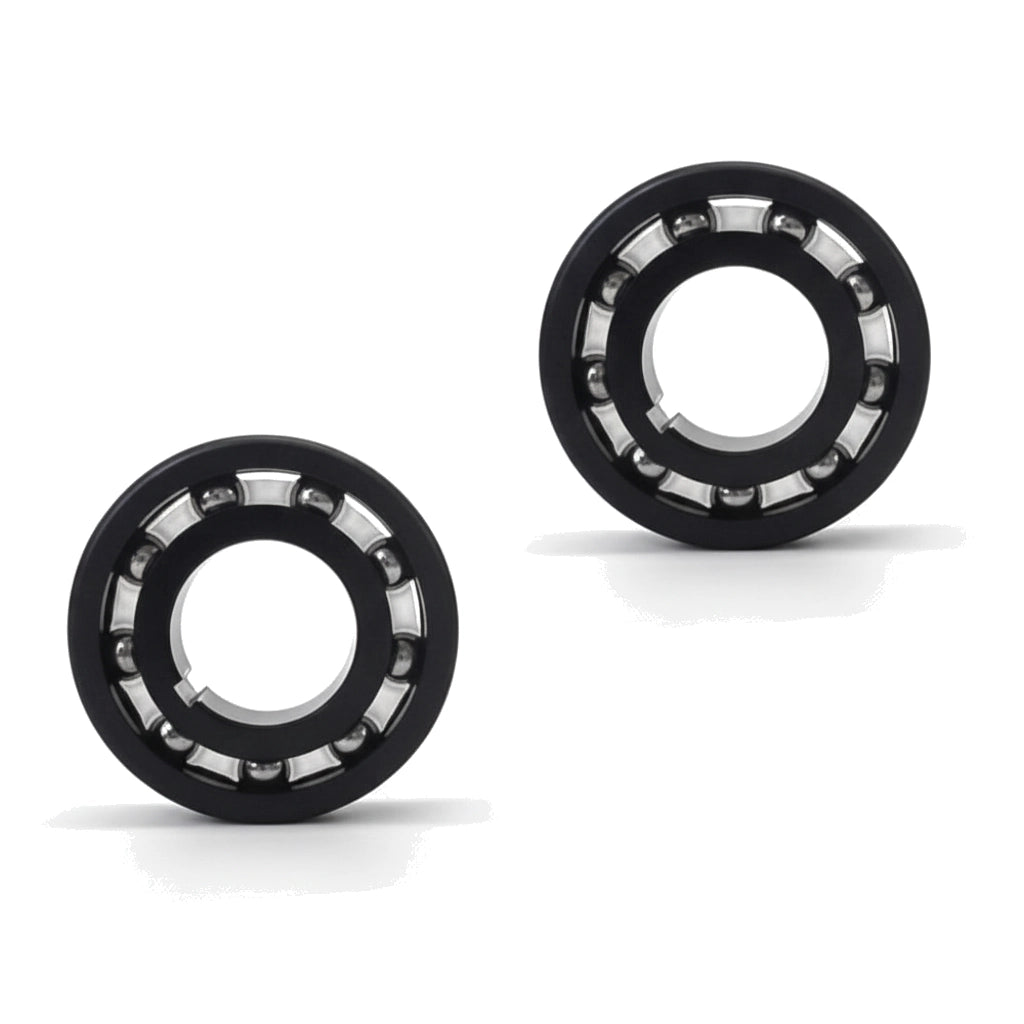

The Hayward Main Turbine Bearings (AXV055P) are the OEM replacement bearings for the Navigator Pro and PoolVac XL automatic suction cleaners, sold as a pack of two.
The main turbine bearings support the turbine shaft inside the cleaner's drive assembly, allowing the turbine to spin freely as water flows through the unit. Worn or seized bearings reduce turbine speed, causing the cleaner to lose drive power and move erratically across the pool surface. Replacing them in a matched pair restores consistent turbine rotation and full cleaning performance.
Specifications
| Hayward Part Number | AXV055P |
| Pack Quantity | 2 bearings |
| UPC | 610377212397 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Headbox - Navigator Pro - Concrete Pools (Open Line) | 925ADHBX |
| Hayward | PoolVac XL Automatic Suction Cleaner - Concrete Pools | W32025ADC |
| Hayward | PoolVac XL Automatic Suction Cleaner - Vinyl Pools | W32025ADV |
| Hayward | Above Ground Suction Cleaner – Wanda The Whale | W3900 |
| Hayward | Navigator Pro Automatic Suction Cleaner - Concrete Pools | W3925ADC |
| Hayward | Navigator Pro Automatic Suction Cleaner - Vinyl Pools | W3925ADV |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When the turbine bearings wear out, inspect the turbine itself for scoring or surface damage at the same time. Replacing bearings into a damaged turbine housing shortens the life of the new bearings significantly. If the cleaner has been running rough for an extended period, replacing both the bearings and the turbine together in a single service call is the more cost-effective approach.
