Hayward Universal A-Frame Kit for PoolVac XL, Navigator Pro, and Wanda the Whale Suction Cleaners | AXV621D
Hayward

Hayward Universal A-Frame Kit for PoolVac XL, Navigator Pro, and Wanda the Whale Suction Cleaners | AXV621D

$56.99
/
$9.99 flat shipping on orders under $100.
Genuine Hayward OEM Part Guaranteed Authentic
Hayward Authorized Dealer Full Manufacturer Warranty Support
No Hassle Returns 30 Days Paid Returns
SKU:
AXV621D

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

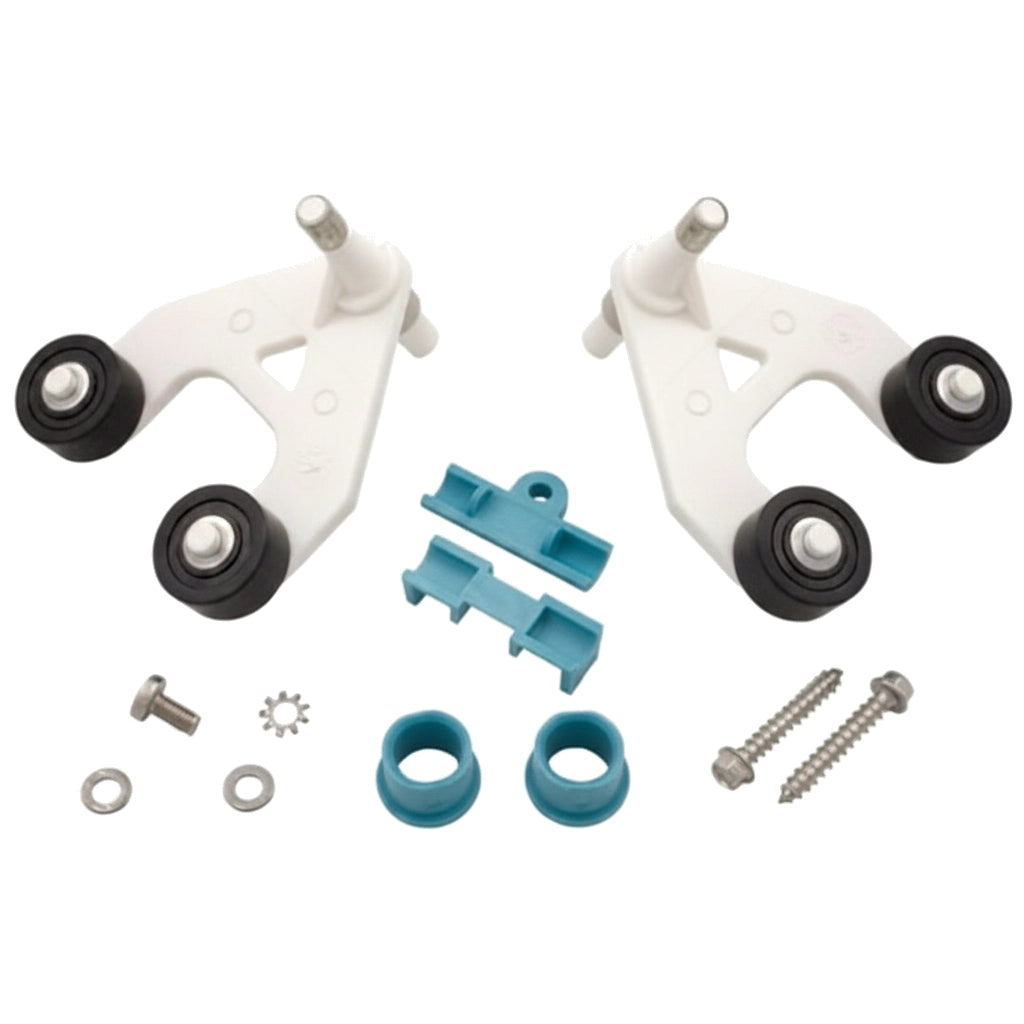

The Hayward Universal A-Frame Kit (AXV621D) is the OEM replacement A-frame assembly for Hayward's automatic suction cleaner line, including PoolVac XL, Navigator Pro, and Wanda the Whale models.

IMPORTANT: KIT INCLUDES MULTIPLE COMPONENTS
This is a complete kit, not a single individual part. Review the contents against your cleaner's parts diagram before ordering to confirm you are not duplicating components already in good condition.

The A-frame assembly forms the central structural chassis of Hayward suction-side pool cleaners, providing the mounting framework for the drive train and directional components. Replacing a worn or damaged A-frame restores the cleaner's structural integrity and ensures proper alignment of moving parts for consistent pool coverage. This universal kit is designed to update most existing PoolVac and Navigator cleaner models.

Specifications

Hayward Part Number AXV621D
UPC 610377912594
Kit Yes — complete kit
Channel Open Line

Fits Into

Brand Equipment Line Model / Part Number
Hayward Navigator Pro Headbox — Concrete Pools 925ADHBX
Hayward PoolVac XL Automatic Suction Cleaner — Concrete Pools W32025ADC
Hayward PoolVac XL Automatic Suction Cleaner — Vinyl Pools W32025ADV
Hayward Wanda the Whale Above Ground Suction Cleaner W3900
Hayward Navigator Pro Automatic Suction Cleaner — Concrete Pools W3925ADC
Hayward Navigator Pro Automatic Suction Cleaner — Vinyl Pools W3925ADV

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

Before installing the new A-frame, inspect all connecting drive components — turbine, gears, and wheel assemblies — for wear. A damaged A-frame often transmits stress to adjacent parts over time, so replacing worn drive components at the same service is the most efficient approach to restoring full cleaner performance.
