Hayward PSV Valve Key Assembly for PSV Series Diverter Valves | PSXVDE
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- PSXVDE
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

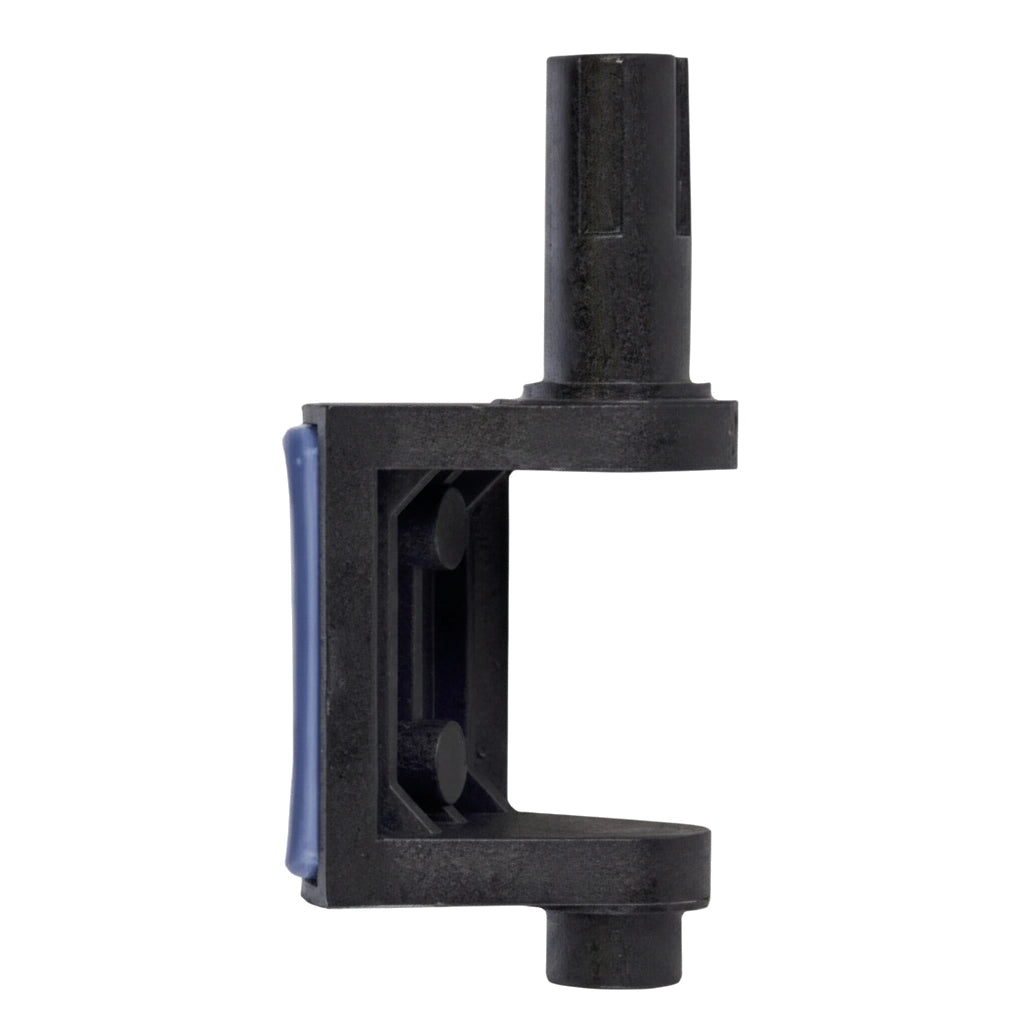

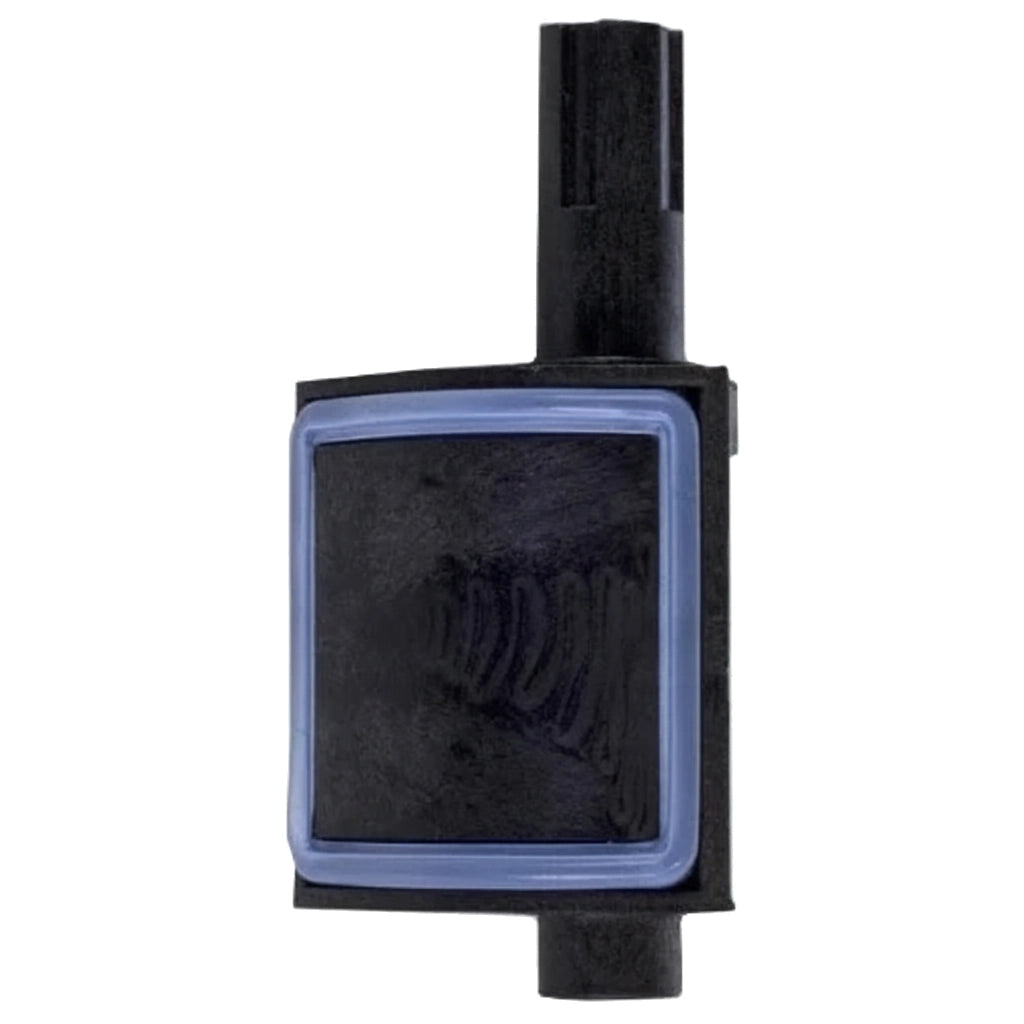

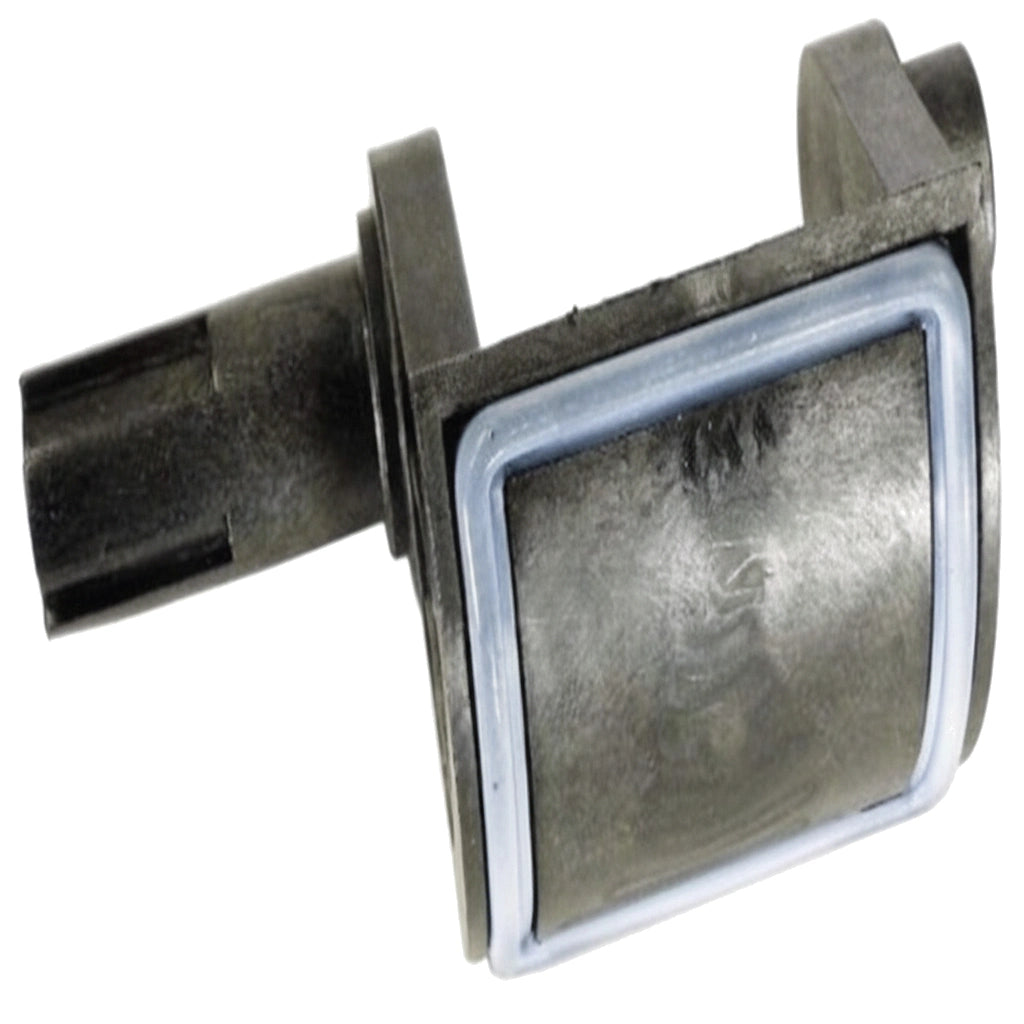

The Hayward PSV Valve Key Assembly (PSXVDE) is the OEM replacement key assembly for Hayward's PSV Series two-port and three-port diverter valves in both PVC and CPVC configurations.
The key assembly is the handle and stem mechanism that controls the internal diverter rotor, allowing you to redirect water flow between ports. Replacing a worn, cracked, or damaged key assembly restores positive manual control of the valve's flow path.
Specifications
| Hayward Part Number | PSXVDE |
| UPC | 610377757485 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Two Port 1.5" x 2" CPVC Diverter Valve | PSV2S |
| Hayward | Two Port 2" x 2.5" CPVC Diverter Valve | PSV2S2 |
| Hayward | Two Port 2" x 2.5" PVC Diverter Valve | PSV2S2DGR |
| Hayward | Two Port 1.5" x 2" PVC Diverter Valve | PSV2SDGR |
| Hayward | Three Port 1.5" x 2" CPVC Diverter Valve | PSV3S |
| Hayward | Three Port 2" x 2.5" CPVC Diverter Valve | PSV3S2 |
| Hayward | Three Port 2" x 2.5" PVC Diverter Valve | PSV3S2DGR |
| Hayward | Three Port 1.5" x 2" PVC Diverter Valve | PSV3SDGR |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
The PSV Series covers both two-port and three-port configurations in two pipe sizes (1.5" × 2" and 2" × 2.5") across PVC and CPVC materials — all sharing this same key assembly. Before ordering, confirm your valve's model number (typically printed on the valve body) to ensure you are matching the correct valve series rather than a different Hayward diverter line.
