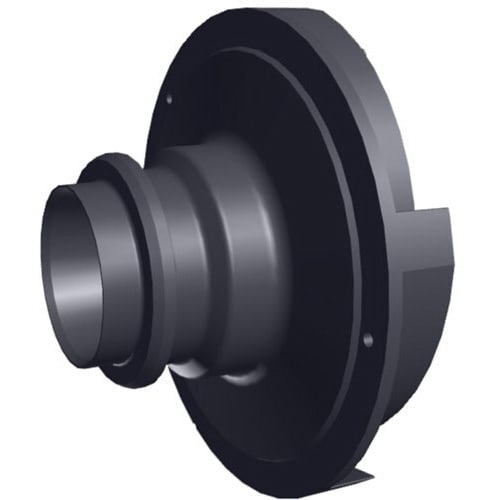

Hayward Pump Diffuser | SPX3200B3
Hayward Pump Diffuser | SPX3200B3
Hayward Pump Diffuser | SPX3200B3
Hayward Pump Diffuser | SPX3200B3
Hayward

Hayward Diffuser for TriStar VS, TriStar VS-C, TriStar XE, and TriStar VS 815/820 Pumps | SPX3200B3

$62.99
/
$9.99 flat shipping on orders under $100.
Genuine Hayward OEM Part Guaranteed Authentic
Hayward Authorized Dealer Full Manufacturer Warranty Support
No Hassle Returns 30 Days Paid Returns
SKU:
SPX3200B3

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

The Hayward Diffuser (SPX3200B3) is the OEM replacement diffuser for Hayward TriStar VS, TriStar VS-C, TriStar XE, and TriStar VS 815/820 variable-speed pumps.

The diffuser channels water flow from the impeller into the pump's volute, maintaining hydraulic efficiency and proper pressure output across the pump's speed range. Replacing a worn or cracked diffuser restores the pump to its designed flow characteristics.

Specifications

Hayward Part Number SPX3200B3
UPC 610377911924

Fits Into

Brand Equipment Line Model / Part Number
Hayward HCP 2500 Series TriStar VS-C Pump, 2.7 HP HCP2500VSP
Hayward TriStar VS Pump, 1.85 HP W3SP3202VSP
Hayward TriStar VS Pump, 2.7 HP W3SP3206VSP
Hayward TriStar XE Pump, 1.85 HP W3SP3210X15XE
Hayward TriStar XE Pump, 2.25 HP W3SP3215X20XE
Hayward TriStar VS 815, 1.85 HP Pump w/ OmniX W3VSP32815
Hayward TriStar VS 820, 2.25 HP Pump w/ OmniX W3VSP32820

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

When servicing the pump's wet end, inspect the impeller and diffuser together — wear or debris damage to one often affects the other. Confirm the position reference (v2 #7 or v2 #9) against your pump's exploded diagram to ensure you are replacing the correct diffuser assembly for your specific TriStar model.
