Hayward Impeller Ring for TriStar VS, TriStar VS-C, and TriStar XE Pumps | SPX3021R
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX3021R
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

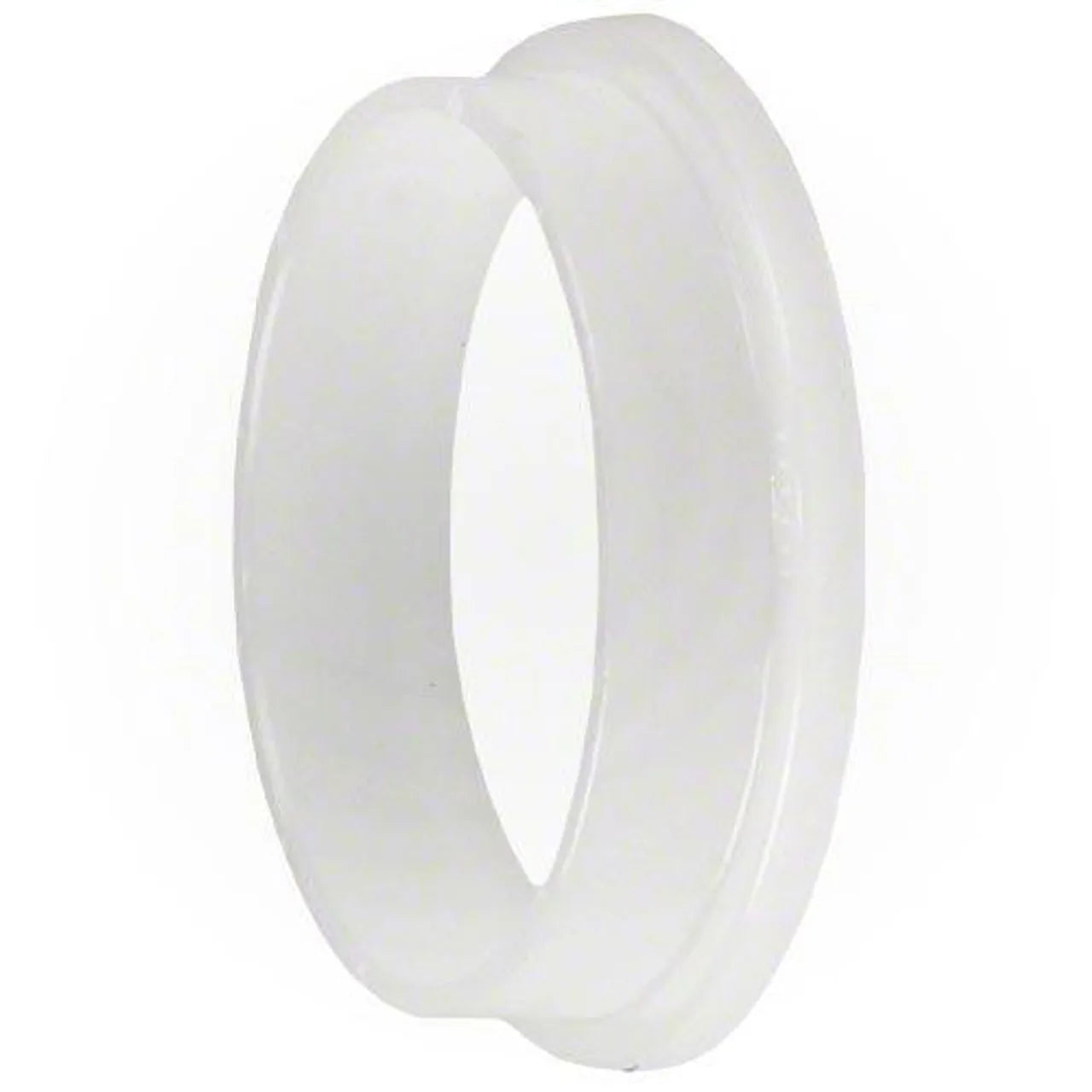

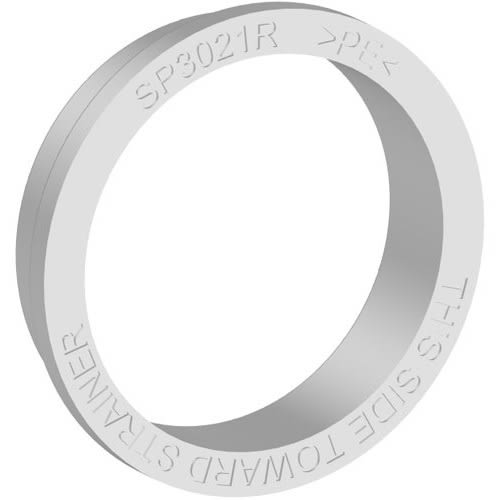

The Hayward Impeller Ring (SPX3021R) is the OEM replacement impeller ring for Hayward TriStar VS, TriStar VS-C, and TriStar XE variable-speed pumps.
This ring seats between the impeller and the pump housing, maintaining the precise clearance needed for efficient water transfer. When the ring wears or becomes damaged, pump output drops and the impeller can sustain accelerated wear — replacing it with the correct OEM part restores designed hydraulic performance.
Specifications
| Hayward Part Number | SPX3021R |
| UPC | 610377041393 |
| Dimensions | Outside Diameter (OD): 2-3/4" (2.75 inches) Inside Diameter (ID): 2-3/16" (2.1875 inches) Thickness / Height: Approximately 1.9" |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | HCP 2500 Series TriStar VS-C Pump, 2.7 HP | HCP2500VSP |
| Hayward | TriStar VS Pump, 1.85 HP | W3SP3202VSP |
| Hayward | TriStar VS Pump, 2.7 HP | W3SP3206VSP |
| Hayward | TriStar XE Pump, 1.85 HP | W3SP3210X15XE |
| Hayward | TriStar XE Pump, 2.25 HP | W3SP3215X20XE |
| Hayward | TriStar VS 815, 1.85 HP Pump w/ OmniX | W3VSP32815 |
| Hayward | TriStar VS 820, 2.25 HP Pump w/ OmniX | W3VSP32820 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the impeller ring, inspect the impeller itself for erosion or cracking before reassembly. Replacing a worn impeller ring against a damaged impeller will not restore full pump performance. Note that the position reference in the exploded diagram differs between TriStar VS/VS-C models (position #11) and TriStar XE and TriStar VS 815/820 models (position #9) — confirm your diagram version matches your specific pump model before ordering.
