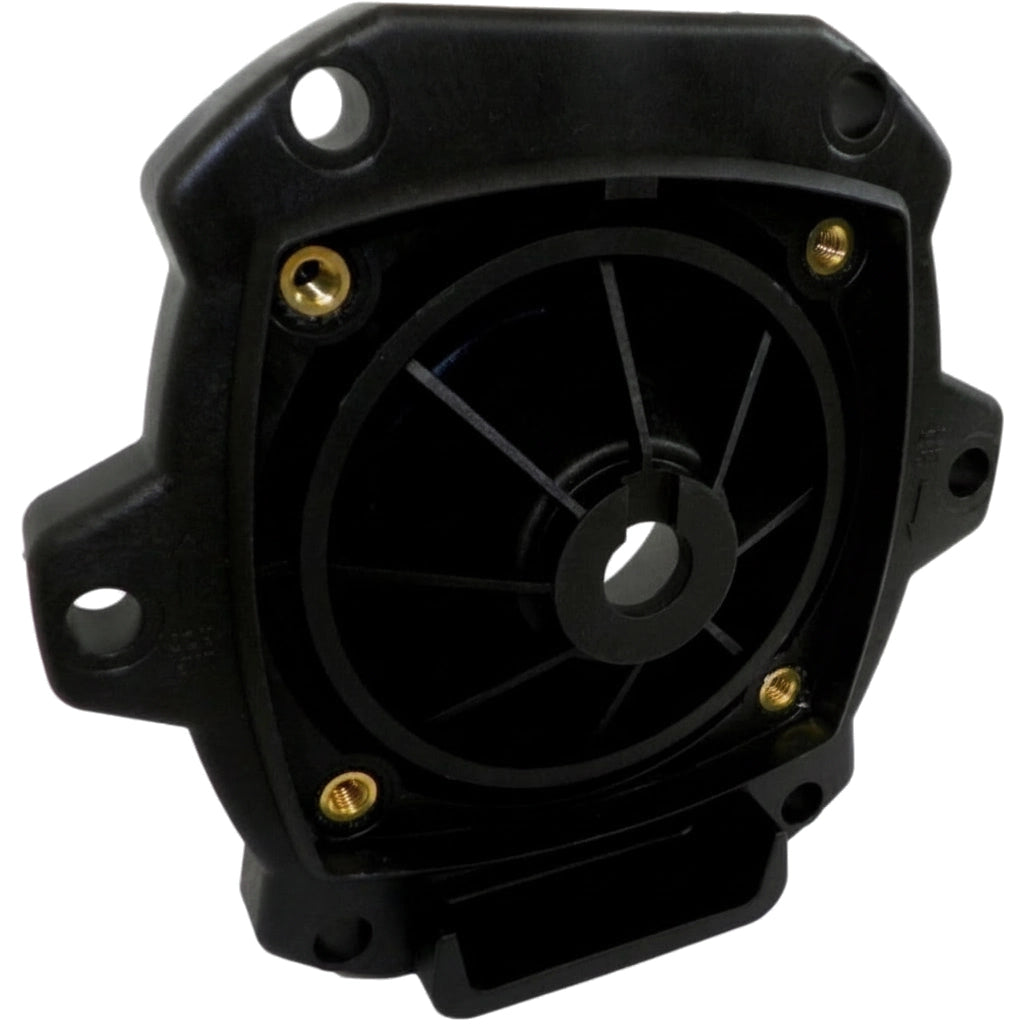

Hayward Seal Plate for TriStar VS, TriStar XE, and TriStar VS 815/820 Pumps | SPX3200E
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX3200E
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

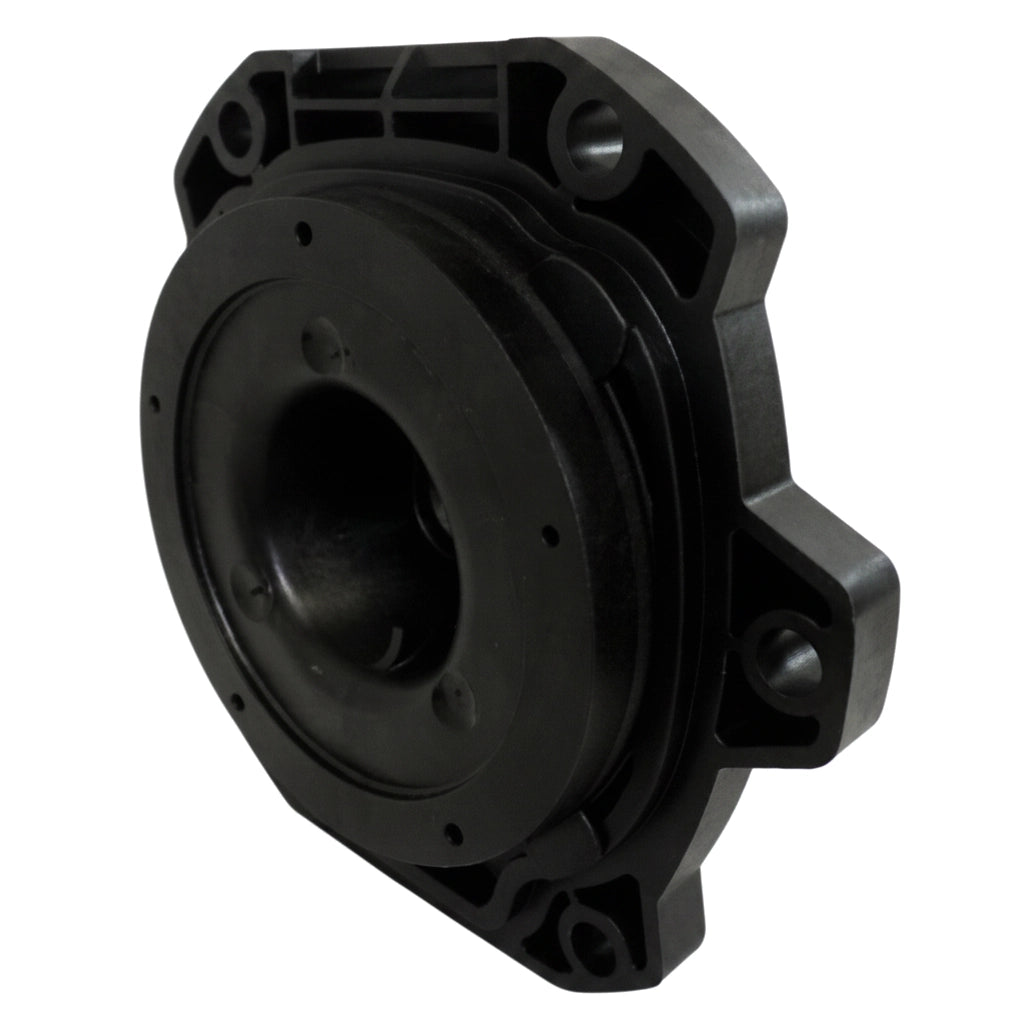

The Hayward Seal Plate (SPX3200E) is the OEM replacement seal plate for Hayward TriStar VS, TriStar XE, and TriStar VS 815/820 variable-speed pump models.
The seal plate sits between the pump's wet end and motor, providing the precision-machined mounting surface that locates and retains the mechanical shaft seal assembly. Replacing a cracked, warped, or damaged seal plate restores the correct sealing geometry and helps prevent water intrusion into the motor cavity.
Specifications
| Hayward Part Number | SPX3200E |
| UPC | 610377911955 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | HCP 2500 Series TriStar VS-C Pump, 2.7 HP | HCP2500VSP |
| Hayward | TriStar VS Pump, 1.85 HP | W3SP3202VSP |
| Hayward | TriStar VS Pump, 2.7 HP | W3SP3206VSP |
| Hayward | TriStar XE Pump, 1.85 HP | W3SP3210X15XE |
| Hayward | TriStar XE Pump, 2.25 HP | W3SP3215X20XE |
| Hayward | TriStar VS 815, 1.85 HP Pump w/ OmniX | W3VSP32815 |
| Hayward | TriStar VS 820, 2.25 HP Pump w/ OmniX | W3VSP32820 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the seal plate, inspect the mechanical shaft seal at the same time — both components are accessed together during disassembly, and replacing a worn seal alongside the plate avoids a second teardown. Have a licensed pool technician service the pump if you are not comfortable working on variable-speed motor assemblies.
