Hayward Union Connection Kit for TriStar and SwimClear Pumps and Filters | SPX3200UNKIT
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX3200UNKIT
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

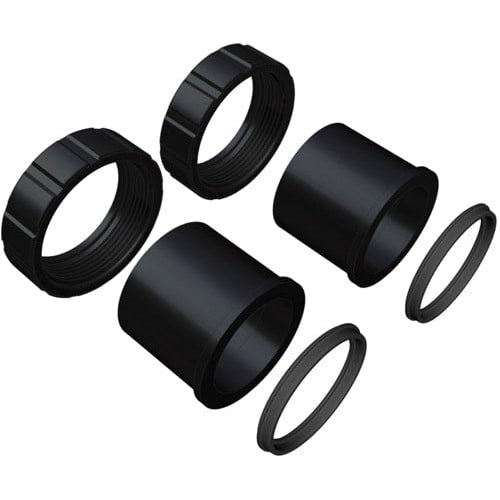

The Hayward Union Connection Kit (SPX3200UNKIT) is the OEM replacement union assembly — including the nut, connector, and gasket for two unions — for TriStar variable-speed pumps and SwimClear cartridge filters.
This three-piece kit (for two unions) provides the complete union connection hardware needed to service the plumbing interface on compatible TriStar and SwimClear equipment. The nut, connector, and gasket work together to form a watertight, serviceable union joint that allows the pump or filter to be disconnected from the plumbing without cutting pipe.
Specifications
| Hayward Part Number | SPX3200UNKIT |
| Contents | Union nut, union connector, gasket x2 (two unions) |
| UPC | 610377912068 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | HCP 2500 Series TriStar VS-C Pump, 2.7 HP | HCP2500VSP |
| Hayward | SwimClear Single Element Cartridge Filter 150 Sq.Ft. | W3C150S |
| Hayward | SwimClear Multi-Element Cartridge Filter 325 Sq.Ft. | W3C3030 |
| Hayward | SwimClear Multi-Element Cartridge Filter 425 Sq.Ft. | W3C4030 |
| Hayward | SwimClear Multi-Element Cartridge Filter 525 Sq.Ft. | W3C5030 |
| Hayward | TriStar VS Pump, 1.85 HP | W3SP3202VSP |
| Hayward | TriStar VS Pump, 2.7 HP | W3SP3206VSP |
| Hayward | TriStar XE Pump, 1.85 HP | W3SP3210X15XE |
| Hayward | TriStar XE Pump, 2.25 HP | W3SP3215X20XE |
| Hayward | TriStar VS 815, 1.85 HP Pump w/ OmniX | W3VSP32815 |
| Hayward | TriStar VS 820, 2.25 HP Pump w/ OmniX | W3VSP32820 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing this union kit, inspect the gasket seat on both the equipment and the mating union half for wear, cracking, or mineral scale before reassembling. A clean, undamaged seating surface is essential for a leak-free joint. Hand-tighten the union nut until snug, then apply only moderate additional force — overtightening can distort the gasket and cause weeping leaks at start-up.
