Hayward Drain Cap and Gasket for ProSeries Sand Filters | SX180HG
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX180HG
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

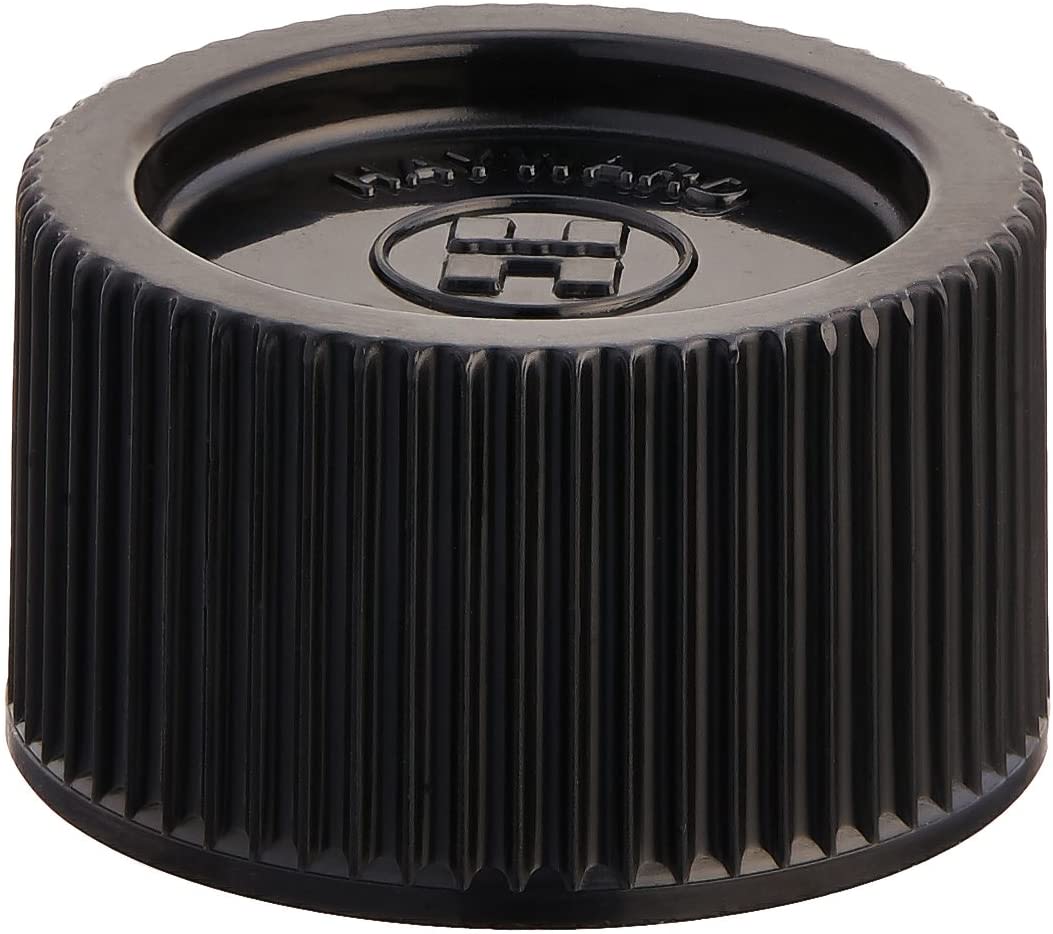

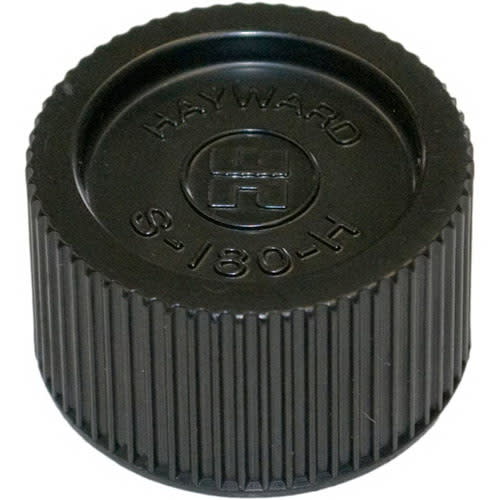

The Hayward Drain Cap and Gasket (SX180HG) is the OEM replacement drain cap and gasket for Hayward ProSeries sand filters, covering both top-mount and side-mount models across the 16" through 30" tank range.
This cap and gasket assembly seals the drain port at the base of the filter tank, allowing the filter to be depressurized and drained for maintenance, sand replacement, or winterization without leaking at the drain opening.
Specifications
| Hayward Part Number | SX180HG |
| UPC | 610377614474 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProSeries 16" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S166T |
| Hayward | ProSeries 18" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S180T |
| Hayward | ProSeries 21" Sand Filter - Side Mount (1½" VariFlo Valve Included) | W3S210S |
| Hayward | ProSeries 21" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S210T |
| Hayward | ProSeries 22" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S220T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S244T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S244T2 |
| Hayward | ProSeries 27" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S270T |
| Hayward | ProSeries 27" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S270T2 |
| Hayward | ProSeries 30" Sand Filter - Side Mount (Valve Not Included) | W3S310S |
| Hayward | ProSeries 30" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S310T2 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before reinstalling the drain cap, inspect the gasket for any flattening, cracking, or distortion — a compromised gasket is the most common cause of drain port weeping even after the cap is hand-tightened. Replace the cap and gasket together (as this assembly provides) rather than reusing an old gasket with a new cap. Hand-tighten only; over-torquing the plastic cap can crack the tank fitting.
