Hayward Manual Air Relief for ProSeries Sand Filters W3S200 W3S210S W3S310S | SX200G
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX200G
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

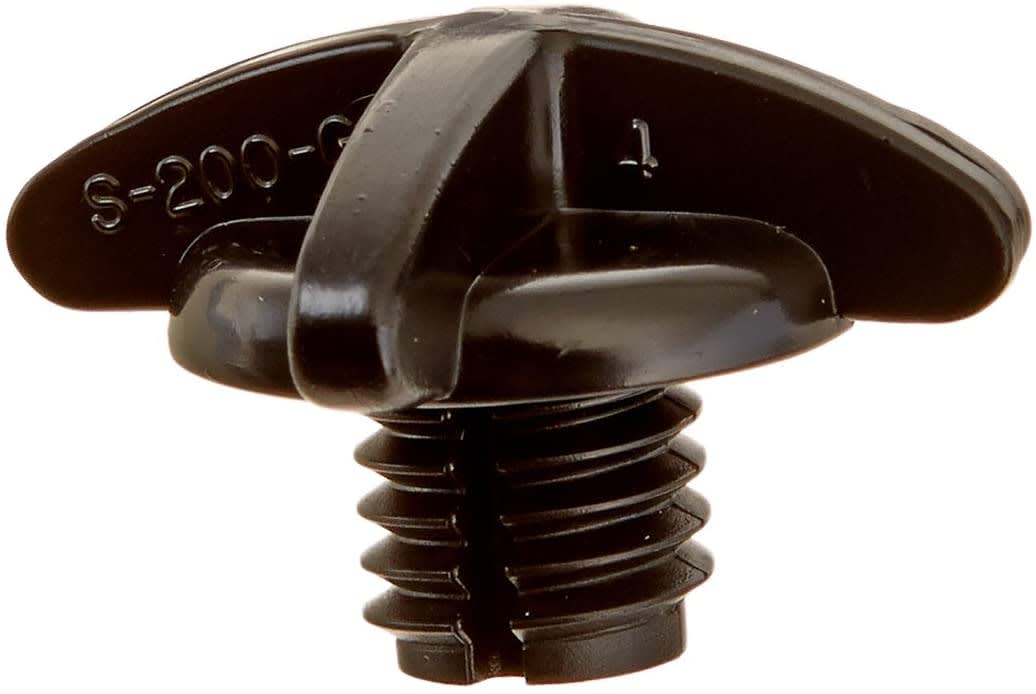

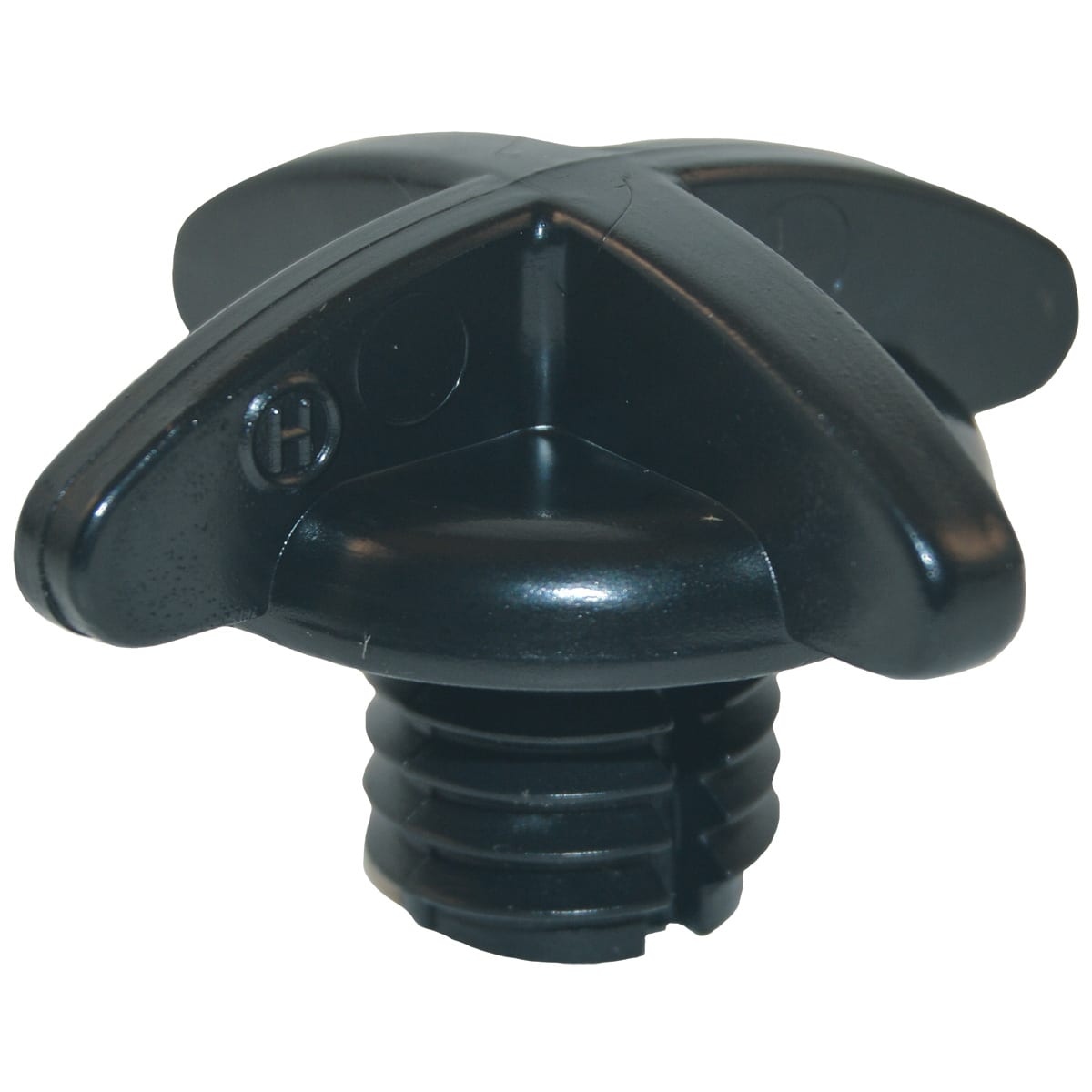

The Hayward Manual Air Relief (SX200G) is the OEM replacement air relief assembly for Hayward ProSeries sand filters, restoring the filter's ability to purge trapped air from the tank before and during operation.
Air accumulation inside a pressurized filter tank reduces filtration efficiency and can cause erratic pressure gauge readings. The manual air relief valve provides a controlled release point at the top of the filter body, allowing trapped air to vent safely before the system reaches operating pressure.
Specifications
| Hayward Part Number | SX200G |
| UPC | 610377054706 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProSeries 23" Sand Filter - Top Mount (1 1⁄2" VariFlo Valve Included) | W3S200 |
| Hayward | ProSeries 21" Sand Filter - Side Mount (1 1/2" VariFlo Valve Included) | W3S210S |
| Hayward | ProSeries 30" Sand Filter - Side Mount (Valve Not Included) | W3S310S |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Always open the manual air relief before starting your pump after a filter cleaning or when the system has been shut down for an extended period. Release air until water flows steadily from the valve, then close it. Inspect the relief valve O-ring or seat for wear whenever the filter tank is open — a compromised seal here is a common source of slow leaks at the top of the filter body.
