Hayward Seal Assembly for Super Pump High Efficiency and Super Pump XE Pumps | SPX1600Z2
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX1600Z2
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

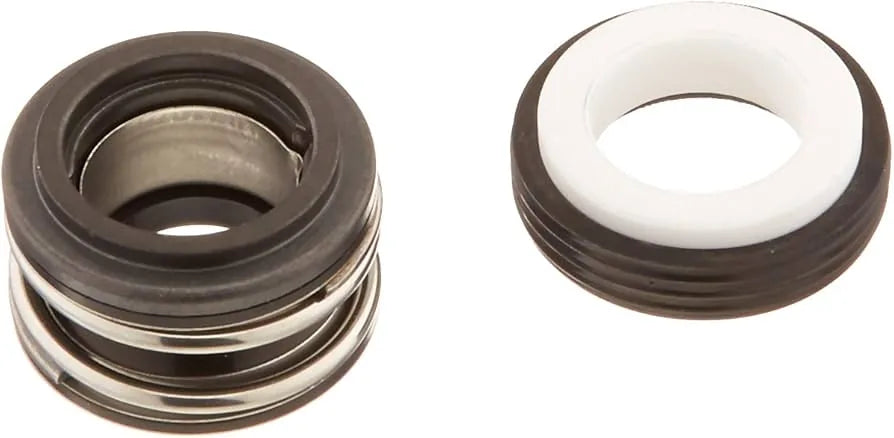

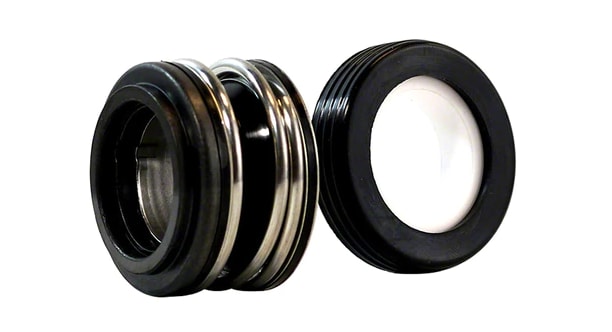

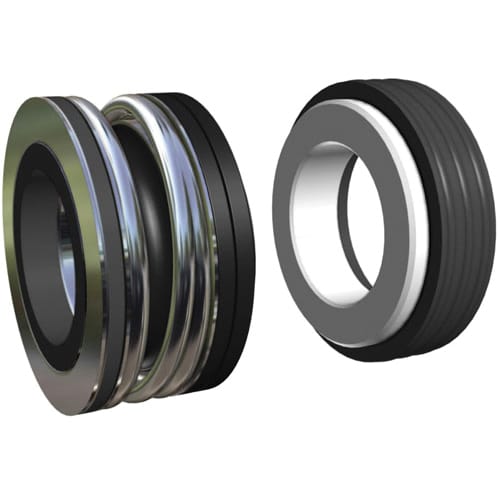

The Hayward Seal Assembly (SPX1600Z2) is the OEM replacement shaft seal for the Super Pump High Efficiency and Super Pump XE pump families, including variable speed models equipped with OmniX controls.
The shaft seal prevents water from migrating along the motor shaft into the motor housing. Replacing a worn or leaking seal at first sign of moisture around the pump motor mount protects the motor from water intrusion damage and restores a dry, secure pump assembly.
Specifications
| Hayward Part Number | SPX1600Z2 |
| Part Type | Shaft Seal Assembly |
| UPC | 610377040167 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Super Pump High Efficiency Pump, 0.85 HP (Open Line) | W3SP2605X7 |
| Hayward | Super Pump High Efficiency Pump, 1.1 HP (Open Line) | W3SP2607X10 |
| Hayward | Super Pump XE Pump, 1.65 HP (Open Line) | W3SP2610X15XE |
| Hayward | Super Pump XE Pump, 2.25 HP (Open Line) | W3SP2615X20XE |
| Hayward | Super Pump VS 615, 1.65 HP Pump w/ OmniX (Open Line) | W3VSP26615 |
| Hayward | Super Pump VS 620, 2.25 HP Pump w/ OmniX (Open Line) | W3VSP26620 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the shaft seal, inspect the seal plate and motor bracket for scoring or mineral deposits before installing the new assembly. Even a minor groove in the seal seat can cause a new seal to weep within a season. Clean the mating surfaces thoroughly and confirm the impeller is torqued to spec before closing up the pump wet end.
