Hayward Float Valve Assembly for SkimMaster 1070 and 1071 Series Skimmers | SP1070FV
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SP1070FV
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

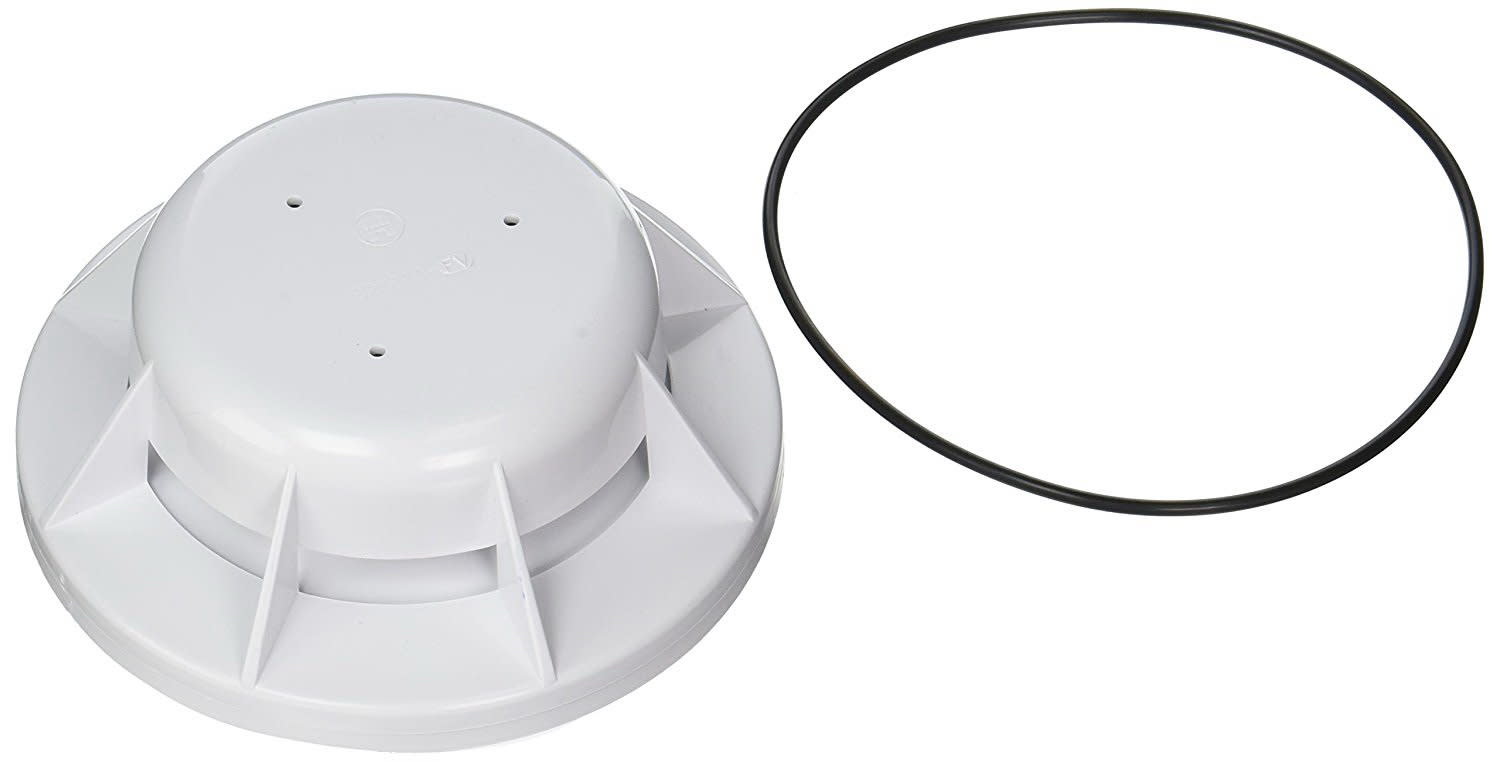

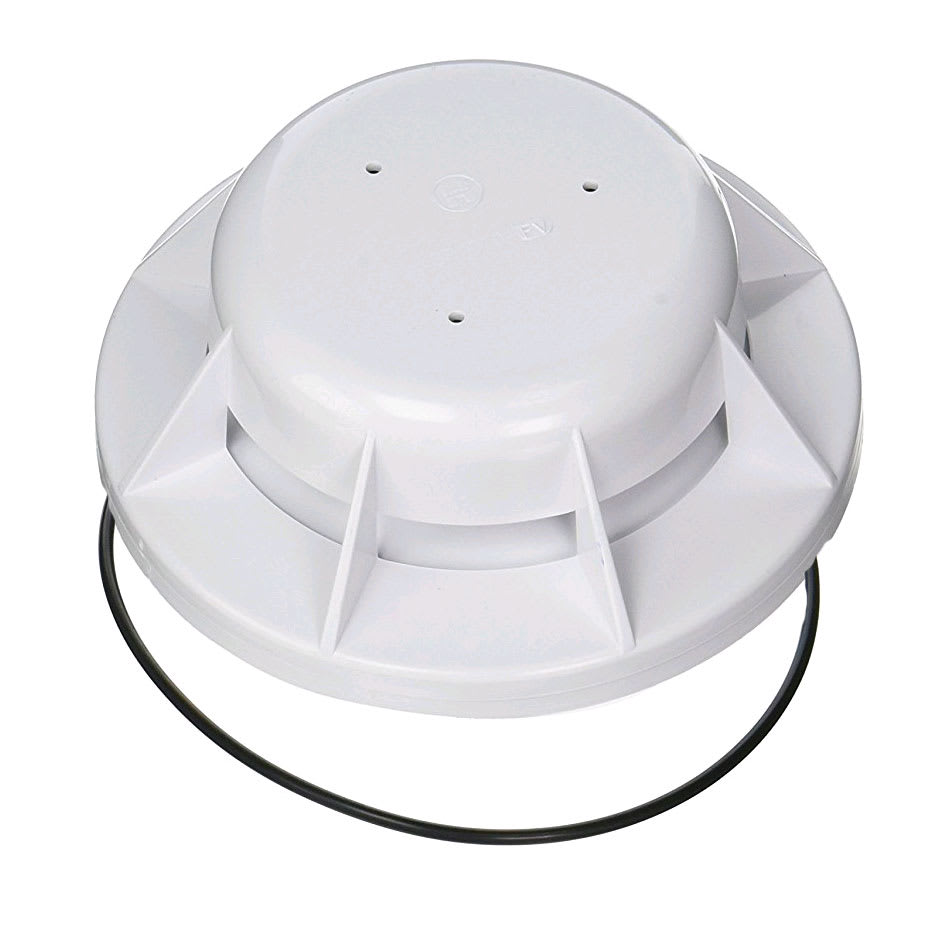

The Hayward Float Valve Assembly (SP1070FV) is the OEM replacement float valve for the SkimMaster 1070 and 1071 Series in-ground pool skimmers.
The float valve assembly controls the equalizer port inside the skimmer body, automatically opening to draw water from the pool floor when surface water flow drops — protecting the pump from running dry.
Specifications
| Hayward Part Number | SP1070FV |
| UPC | 610377046022 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat, NSF-50 | HCWG1072C | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 1½″ FIP – 4.5″ Throat | SP1071T2 | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat | SP1072S2 | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat – Tan | SP1072S210 | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat – Tan (incl. Float) | SP1072S210FVA | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat, Black | SP1072S2BLK | Position v1 #5 |
| Hayward | Standard Skimmer – Dark Gray | SP1072S2DGR | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ x 2½″ Socket – 4.5″ Throat | SP1072S2FVA | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ SKT x 2½″ SPIG – 4.5″ Throat, Gray | SP1072S2GR | Position v1 #5 |
| Hayward | Standard Square Cover Skimmer – White | SP1072S2SQ | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ FIP – 4.5″ Throat (incl. 1 Port) | SP1072T1 | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ FIP – 4.5″ Throat | SP1072T2 | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ FIP – 4.5″ Throat – Tan | SP1072T210FVA | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer – 2″ FIP – 4.5″ Throat – White | SP1072T2FVA | Position v1 #5 |
| Hayward | SkimMaster Square Skimmer – 2″ FIP – 4.5″ Throat | SP1072T2SQ | Position v1 #5 |
| Hayward | SkimMaster Round Skimmer 2″ Socket with Overflow Port, NSF-50 | WG10712SFVE | Position v1 #5 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before ordering, confirm your skimmer model number — it is typically molded into the inside of the skimmer body near the throat. Several 1072 Series variants ship from the factory with a float valve assembly already included (models with "FVA" in the SKU suffix). If your skimmer is one of those and the float valve has simply failed, SP1070FV is the correct service replacement. Inspect the float and seat for cracks or mineral buildup at your next filter service; a properly seating float valve is the first line of defence against pump cavitation when water levels drop.
