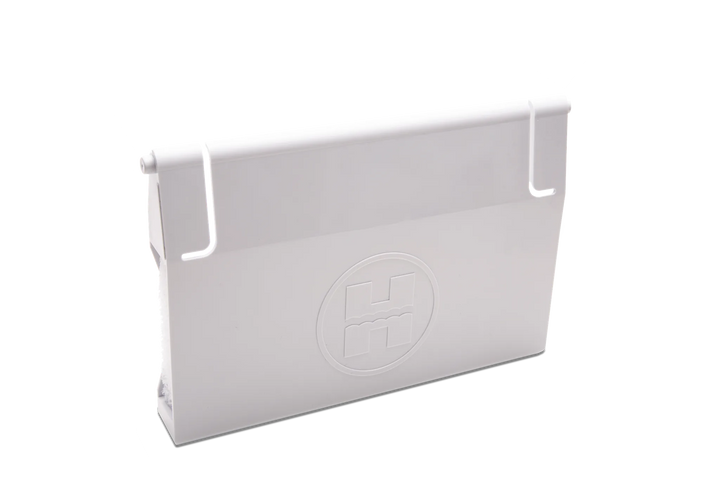

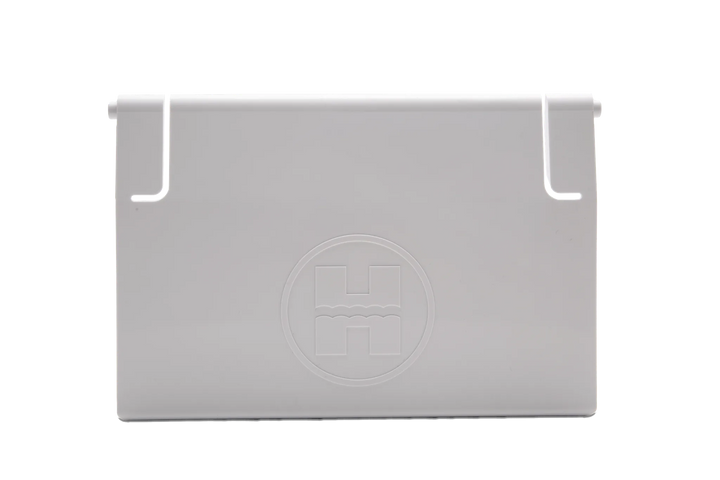

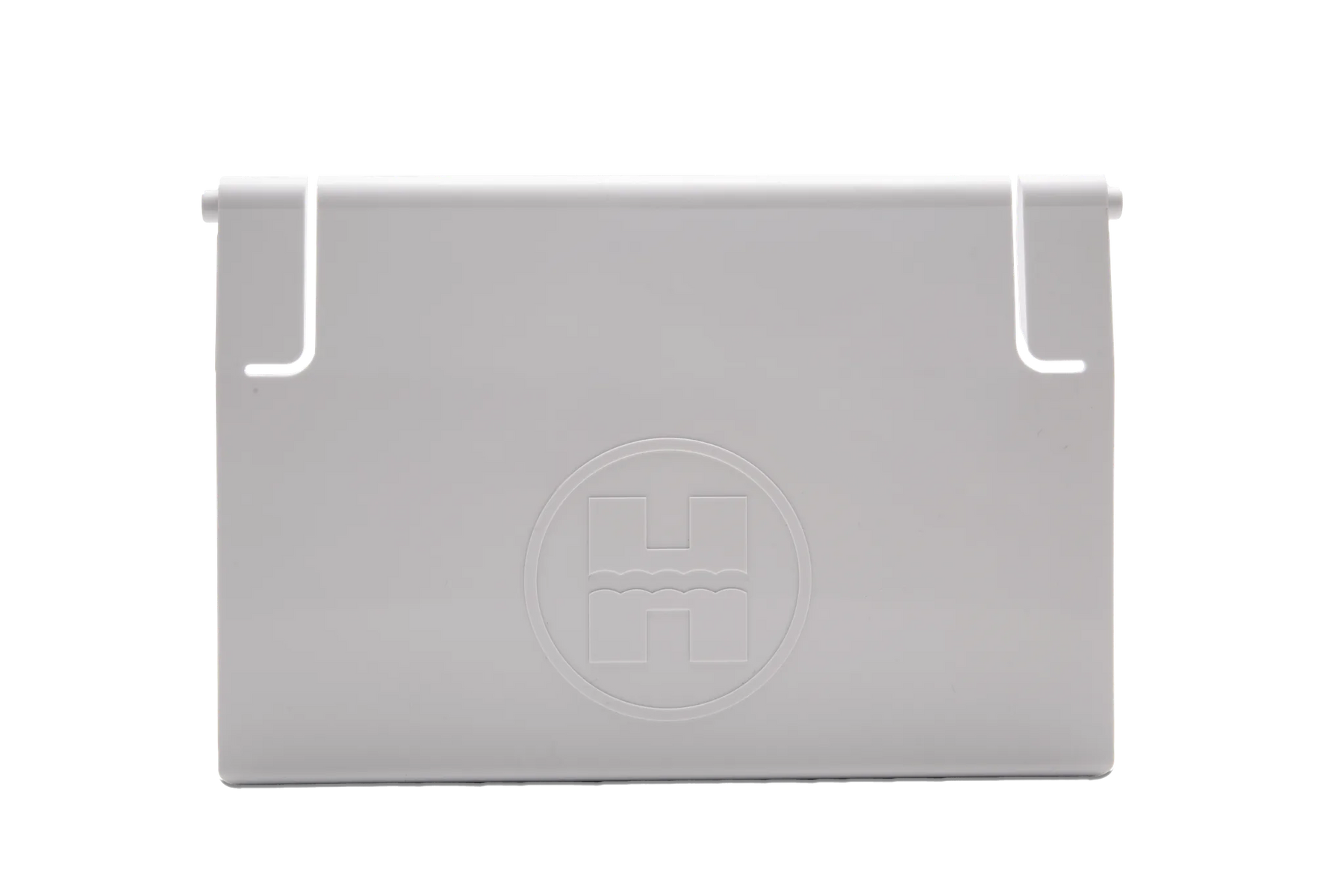

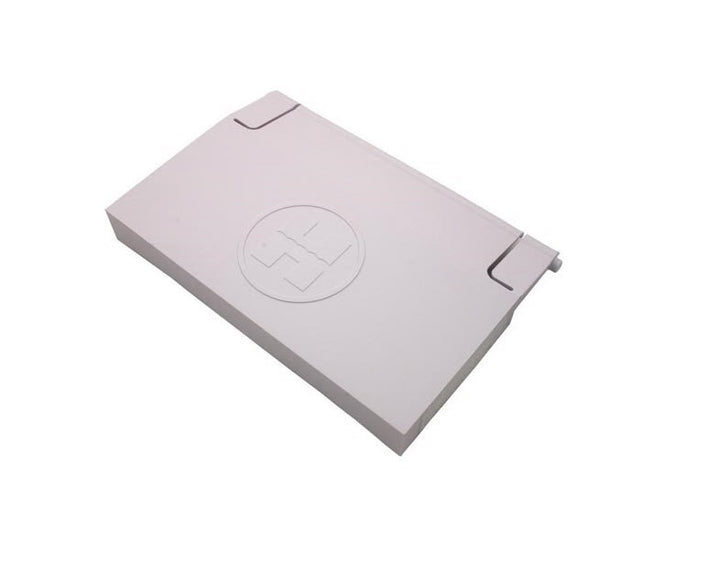

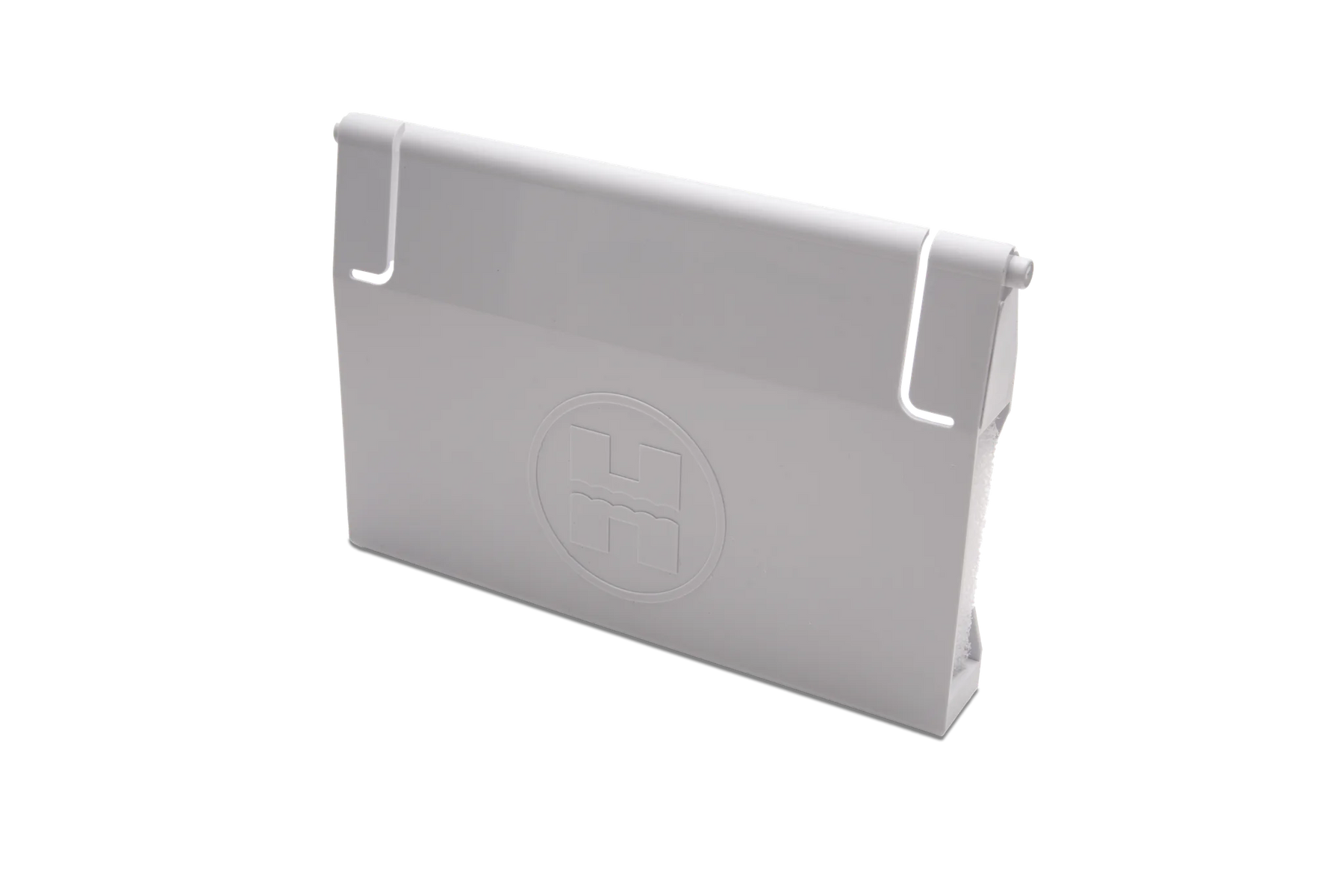

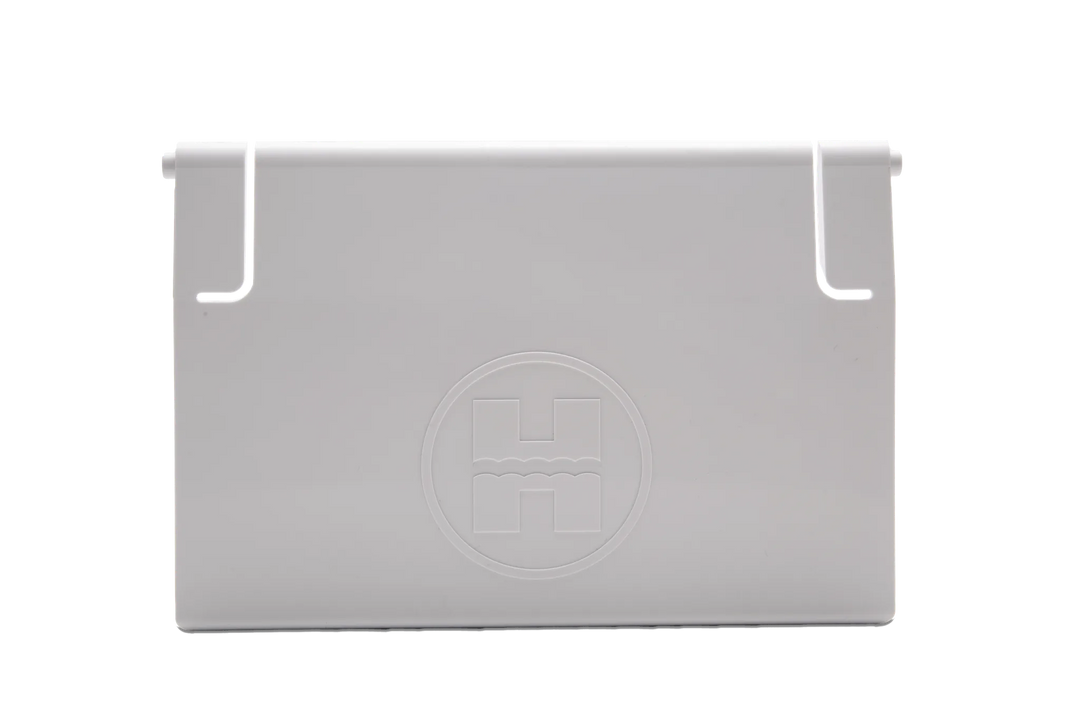

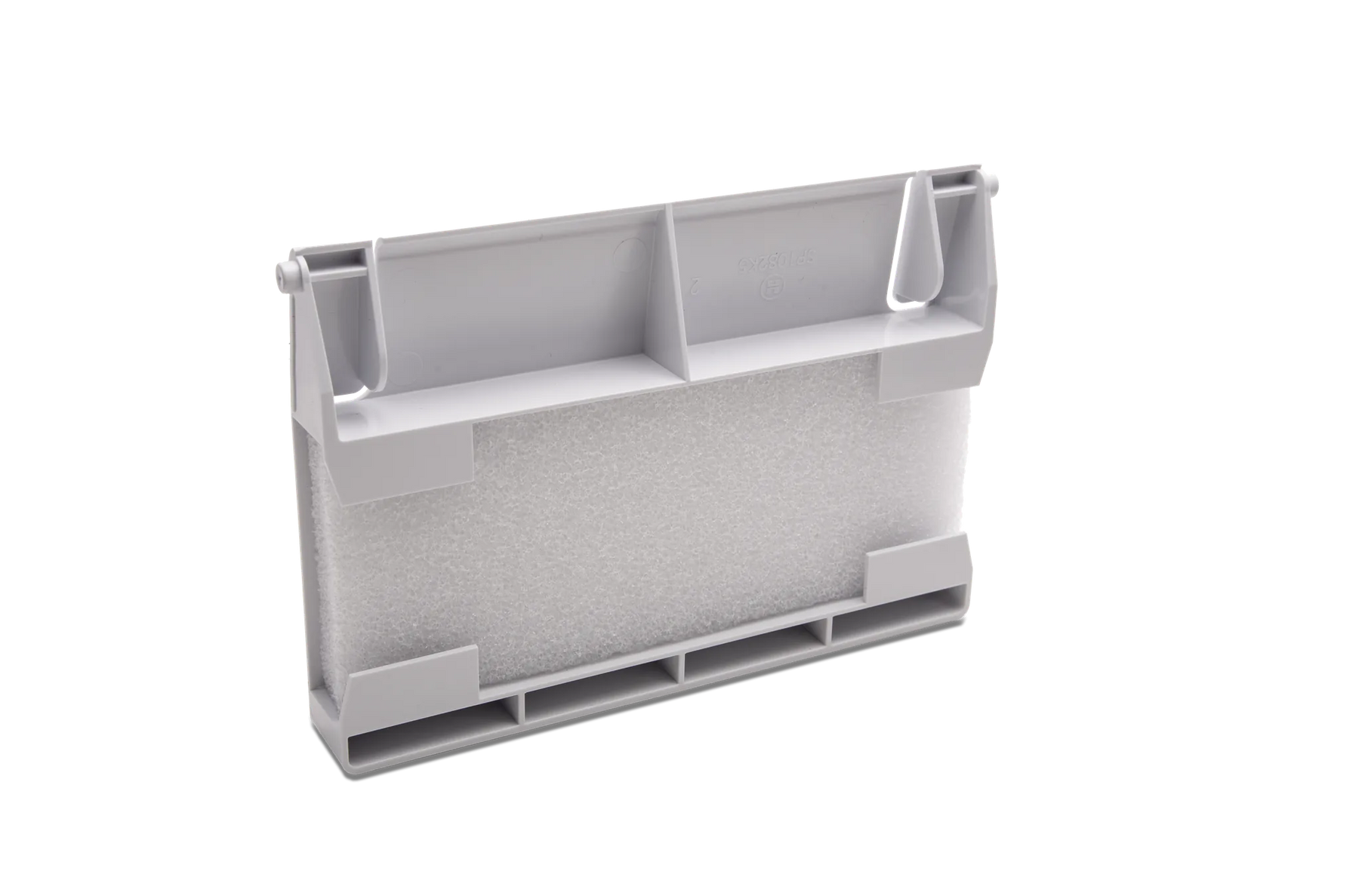

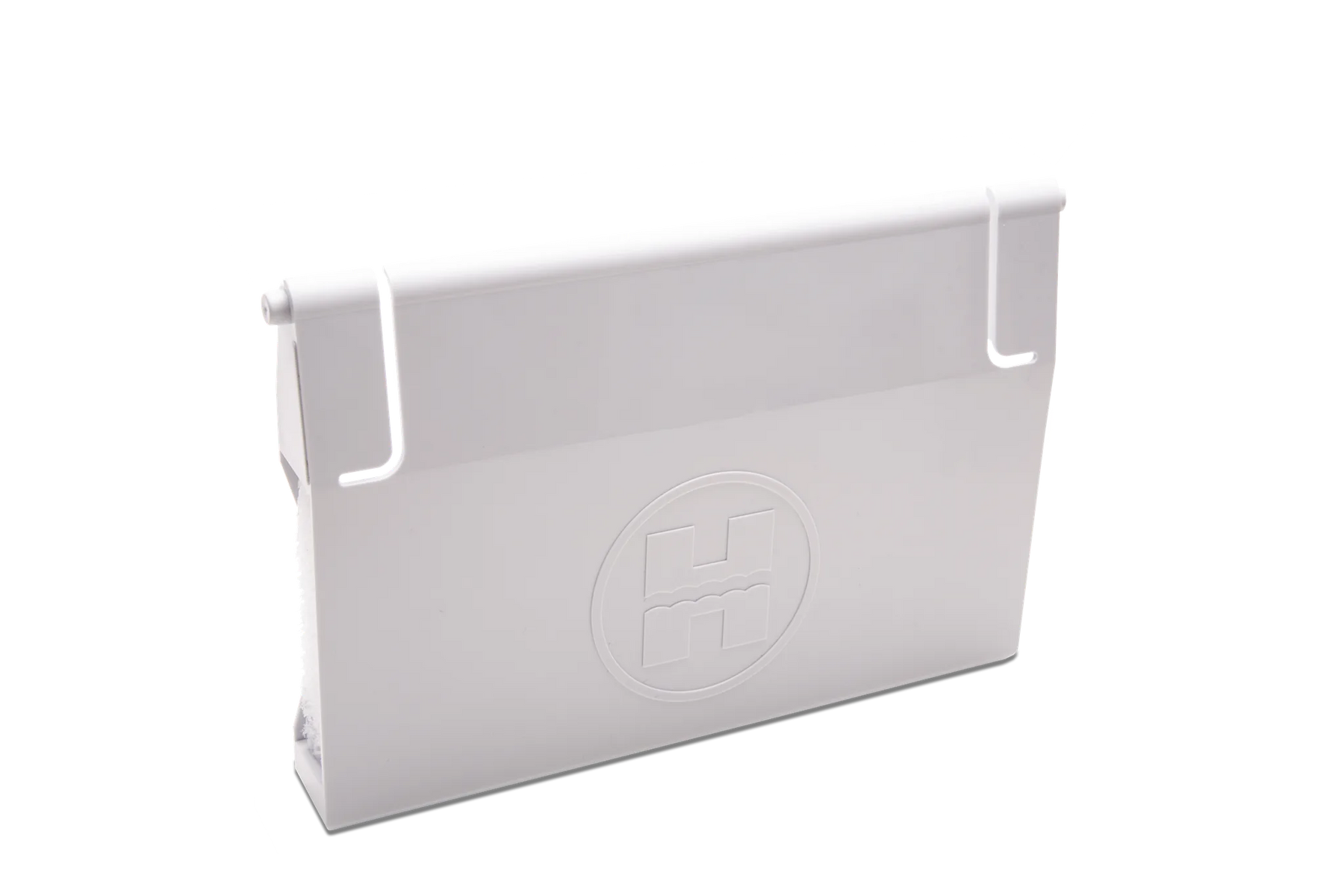

The Hayward Weir (SPX1082K) is the OEM replacement weir door for Hayward's Auto-Skim skimmer lines, spanning the SP1082, SP1084, and SP1085 series for both concrete and vinyl/fiberglass pool applications.

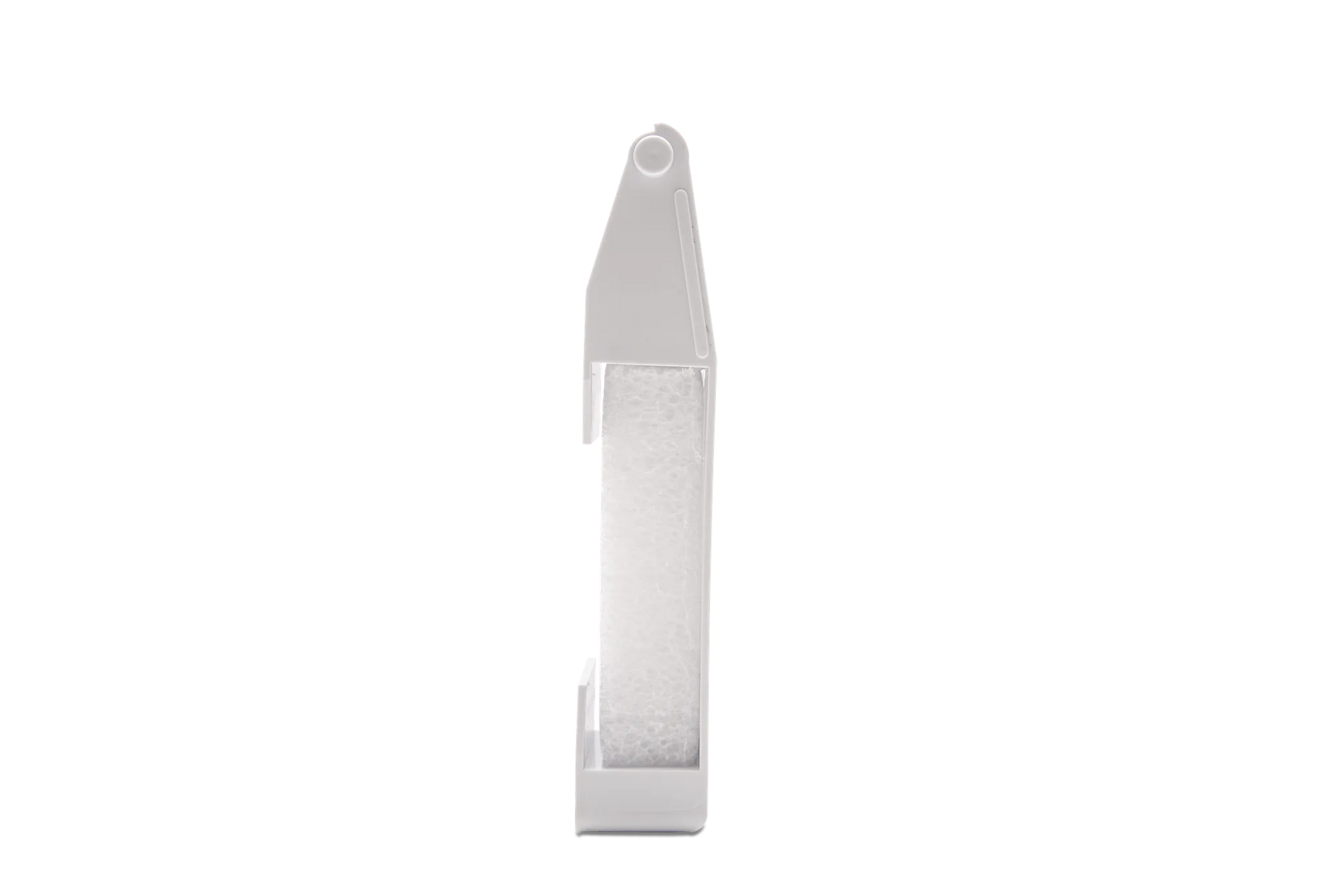

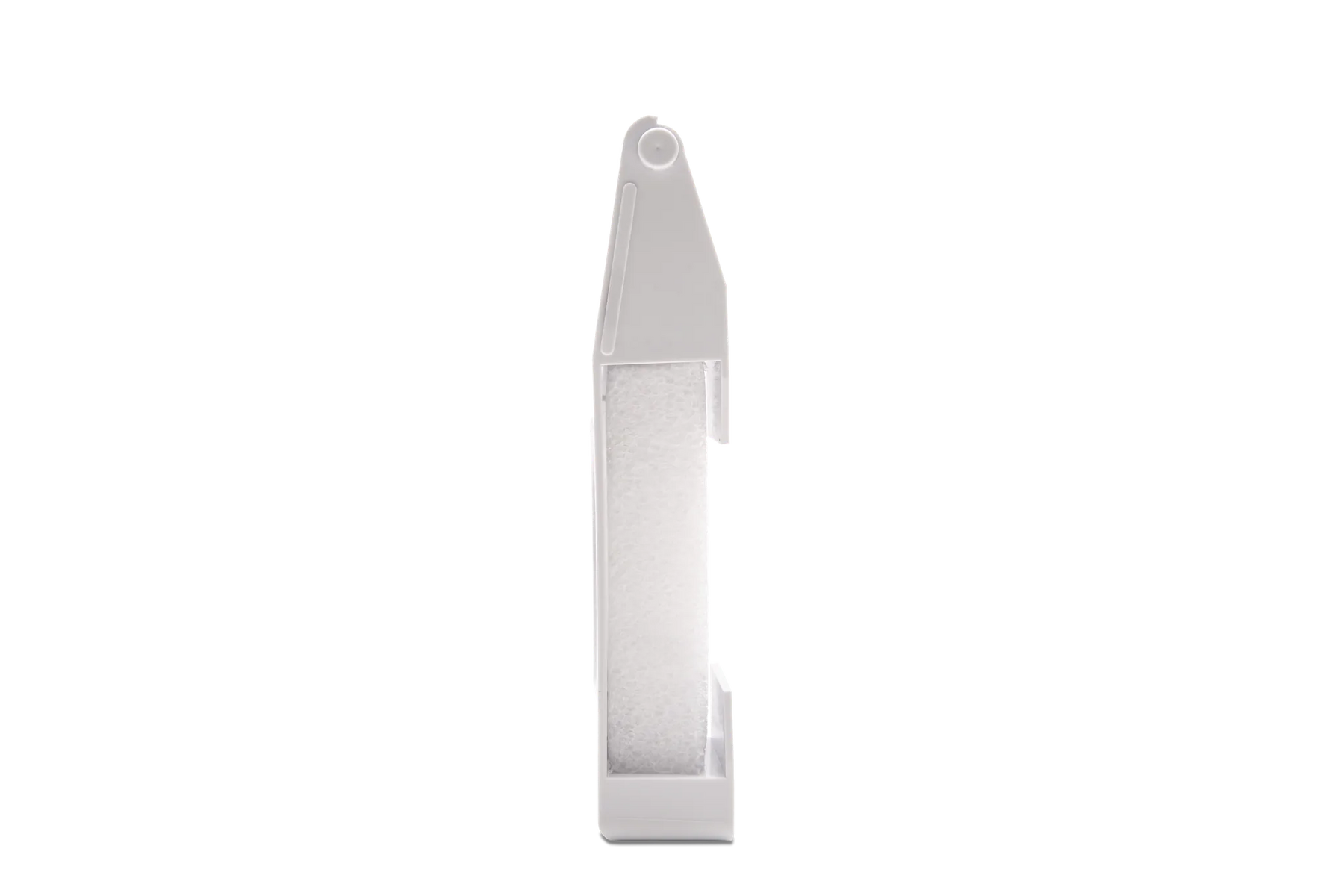

The weir is the hinged floating door at the skimmer throat that regulates water flow into the skimmer body. It allows surface debris to pass through during normal pump operation while preventing debris from flowing back into the pool when the pump shuts off. A worn, warped, or cracked weir compromises skimmer efficiency and debris retention.
| Hayward Part Number | SPX1082K |
| UPC | 610377036979 |
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | 2" FIP Auto-Skim Skimmer for Concrete with Square Lid - White | SP1082 | — |
| Hayward | 1½" FIP Auto-Skim Skimmer for Concrete with Square Lid - White | SP10821 | — |
| Hayward | 1½" FIP Auto-Skim Skimmer for Concrete with Round Lid - White | SP10821R | — |
| Hayward | 2" FIP Auto-Skim Square Skimmer for Concrete - Dark Gray | SP1082DGR | — |
| Hayward | 2" FIP Auto-Skim Skimmer for Concrete with Round Lid - White | SP1082RC | — |
| Hayward | 2" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - White | SP1084 | — |
| Hayward | 1½" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - White | SP10841 | — |
| Hayward | 1½" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - White (incl. Outside Mount) | SP10841OM | — |
| Hayward | 1½" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - Dark Gray (incl. Outside Mount) | SP10841OMDGR | — |
| Hayward | 1½" FIP Auto-Skim Round Skimmer for Vinyl/Fiberglass - Dark Gray (incl. Outside Mount) | SP10841OMRDGR | — |
| Hayward | 1½" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - White (incl. Main Drain & Accessory Pack) | SP10841OMTE | — |
| Hayward | 1½" FIP Auto-Skim Round Skimmer for Vinyl/Fiberglass - White | SP10841R | — |
| Hayward | 2" FIP Auto-Skim Square Skimmer for Vinyl/Fiberglass - Dark Gray | SP1084DGR | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 12.25" Throat (incl. Outside Mount) | SP10851OM | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 9.25" Throat | SP10852 | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 9.25" Throat (incl. Outside Mount) | SP10852OM | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 9.25" Throat - Dark Gray (incl. Outside Mount) | SP10852OMDGR | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 9.25" Throat - Dark Gray (incl. Outside Mount, No Drain) | SP10852OMNDDGR | — |
| Hayward | Auto-Skim Wide Track Square Skimmer - 1½" FIP - 9.25" Throat - Dark Gray (incl. Outside Mount & Drain) | SP10852OMTEDGR | — |
| Hayward | 2" SKT Auto-Skim Skimmer for Concrete with Square Lid - White, NSF-50 | WG1082SFVE | — |
| ...and additional compatible models. Verify your model number with your equipment manual before ordering. | |||
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Inspect the weir each spring when reopening the pool. UV exposure and cold-weather cycling cause the hinge tabs to become brittle over time — a weir that doesn't swing freely will pass less surface debris into the skimmer and reduce overall skimming efficiency. Replace at the first sign of cracking or stiff movement to keep your skimmer operating at full effectiveness.
