Hayward Seal Assembly for TriStar XE, TriStar VS and HCP 2500 Series Pumps | SPX3200SA
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX3200SA
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

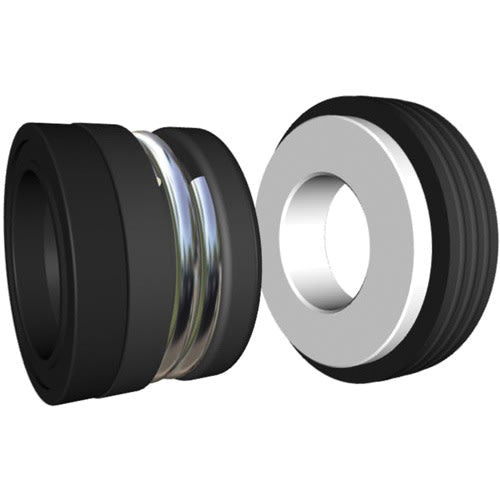

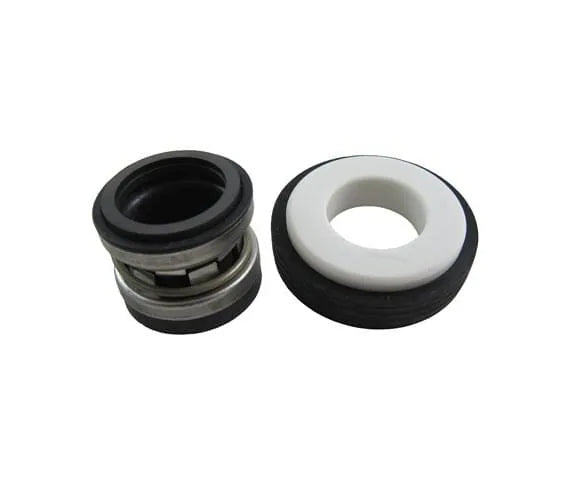

The Hayward Seal Assembly (SPX3200SA) is the OEM replacement shaft seal for TriStar and TriStar VS series pumps, restoring the watertight integrity between the pump's rotating shaft and the wet end housing.
The shaft seal prevents water from migrating along the motor shaft into the motor housing. When this seal wears or fails, water leaks at the seal plate area. Replacing the seal assembly with this OEM part returns the pump to factory-specification sealing performance.
Specifications
| Hayward Part Number | SPX3200SA |
| UPC | 610377013123 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | HCP 2500 Series TriStar VS-C Pump, 2.7 HP | HCP2500VSP |
| Hayward | TriStar XE Pump, 1.85 HP | W3SP3210X15XE |
| Hayward | TriStar XE Pump, 2.25 HP | W3SP3215X20XE |
| Hayward | TriStar VS 815, 1.85 HP Pump w/ OmniX | W3VSP32815 |
| Hayward | TriStar VS 820, 2.25 HP Pump w/ OmniX | W3VSP32820 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the shaft seal, inspect the seal plate and motor bracket for scoring or mineral deposits before installing the new assembly. Even minor surface damage at the seal face can cause the replacement seal to fail prematurely. Always replace the shaft seal with the pump fully isolated from power and the system depressurised.
