Hayward Vari-Flo Valve Assembly for ProGrid DE Filters 36, 48, 60 Sq Ft | SP0710XR50
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SP0710XR50
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

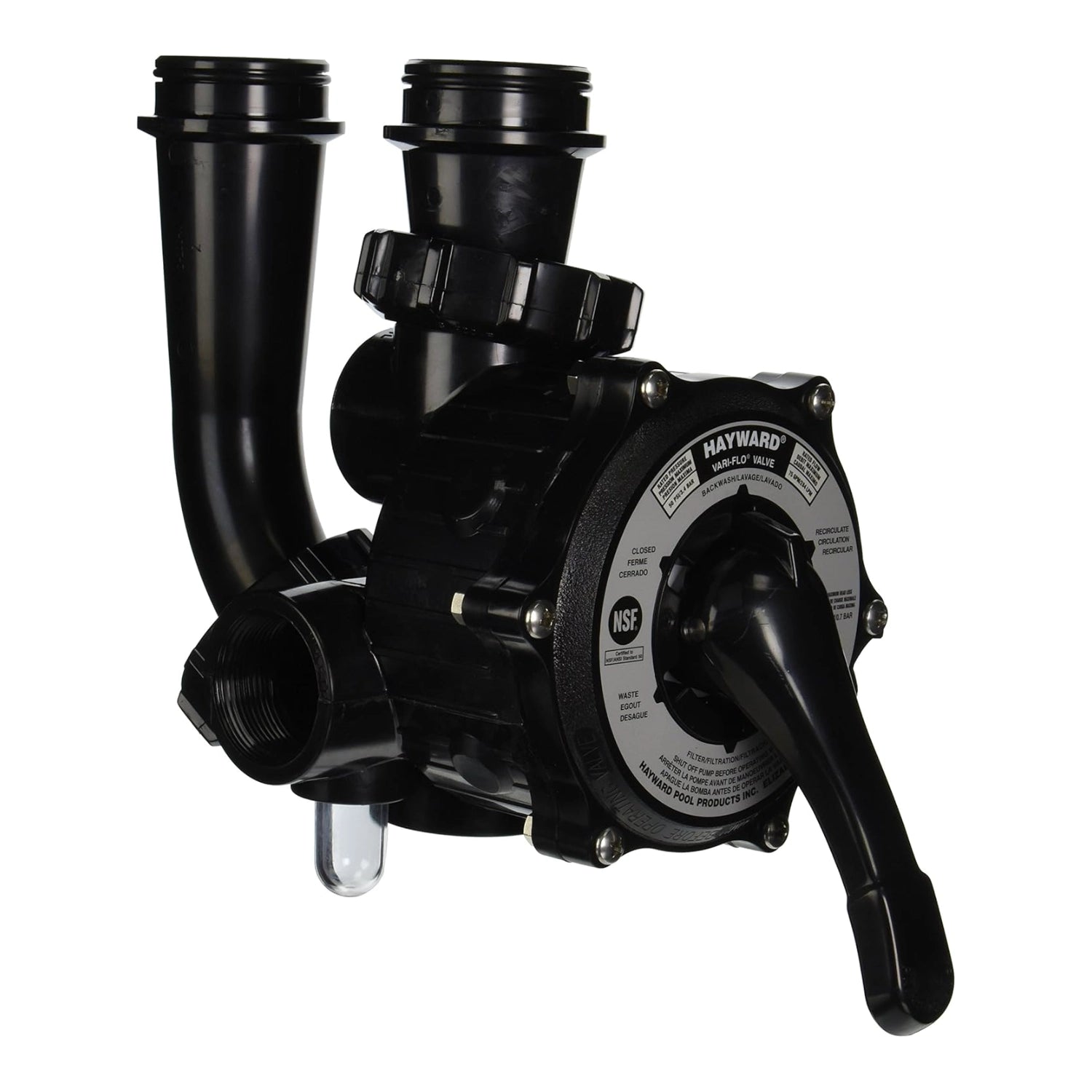

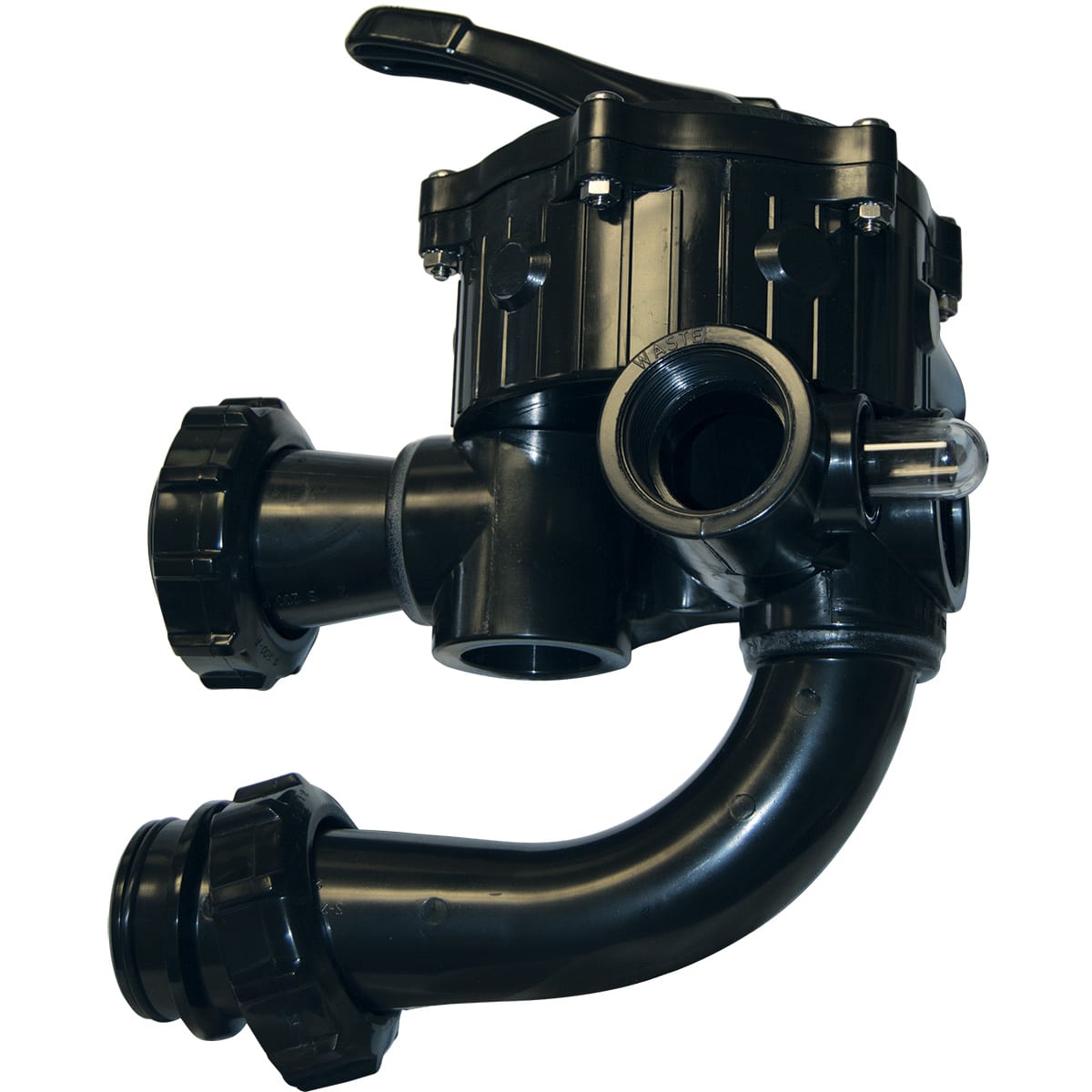

The Hayward Vari-Flo Valve Assembly (SP0710XR50) is the OEM replacement six-position control valve, 1-1/2" NPT, reverse configuration, for Hayward ProGrid DE filter systems.
This valve directs water flow through the filter's Filter, Backwash, Rinse, Waste, Recirculate, and Closed positions, allowing the filter to be cleaned and serviced without disturbing the system's plumbing connections. A built-in manual air relief valve provides quick-turn air bleed-off during startup and after service.
Specifications
| Hayward Part Number | SP0710XR50 |
| Configuration | Reverse |
| Connection Size | 1-1/2" NPT |
| UPC | 610377044479 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProGrid DE Filter 36 Sq.Ft. (Open Line) | W3DE3620 |
| Hayward | ProGrid DE Filter 48 Sq.Ft. (Open Line) | W3DE4820 |
| Hayward | ProGrid DE Filter 60 Sq.Ft. (Open Line) | W3DE6020 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Confirm that your filter requires the reverse-configuration valve before ordering — Hayward also offers a standard (non-reverse) Vari-Flo valve assembly that is not interchangeable with this part. Matching the correct configuration to your filter ensures the handle and position indicator align correctly with your plumbing layout.
Operating Manual
Product Documentation
Operating Manual
Full operating instructions, maintenance schedules, and troubleshooting guidance for this product.
Operating manuals are provided by the manufacturer and are subject to change. Always refer to the current manual for your specific model.
