Hayward Vari-Flo Control Valve Assembly 2" for ProSeries Sand Filters W3S270T2 W3S310T2 | SP071621

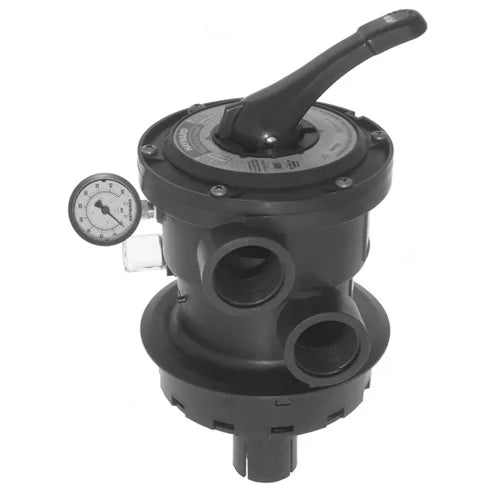

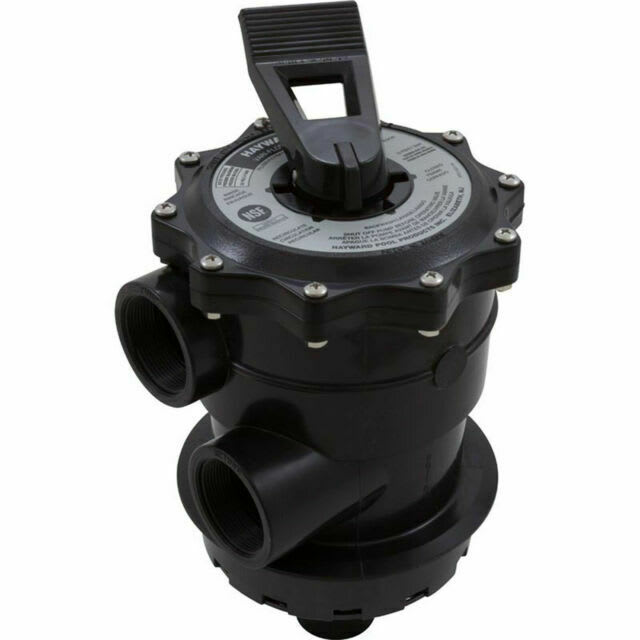

The Hayward Vari-Flo Control Valve Assembly 2" (SP071621) is the OEM replacement multiport valve for Hayward ProSeries top-mount sand filters.

This six-position valve controls all primary filter functions — Filter, Backwash, Rinse, Recirculate, Waste, and Closed — through a single rotating handle. The 2" internal flow path delivers smooth, unrestricted water passage through each operating position. The flange clamp design allows 360° rotation of the valve body, giving flexibility when connecting to existing plumbing layouts.

Specifications

Fits Into

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

Before installing the replacement valve, inspect the valve body O-rings and the top-mount flange gasket. These seals are the most common source of leaks after a valve swap and are inexpensive to replace at the same time. Confirm the valve is in the "Filter" position before restarting the pump — starting under a closed or Waste position can create pressure spikes in the filter tank.
