Hayward Open Lower Body White for Navigator Pro and PoolVac XL Automatic Suction Cleaners | AXV230DWH

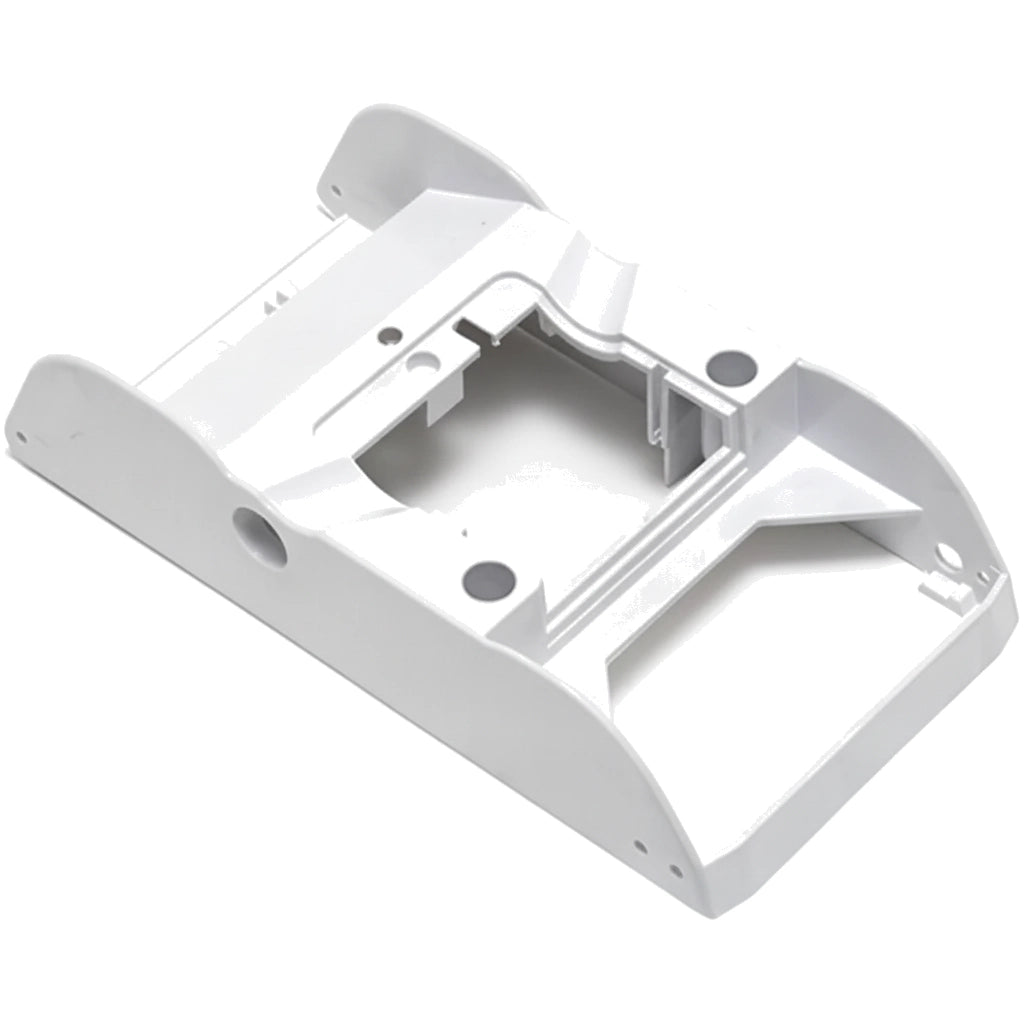

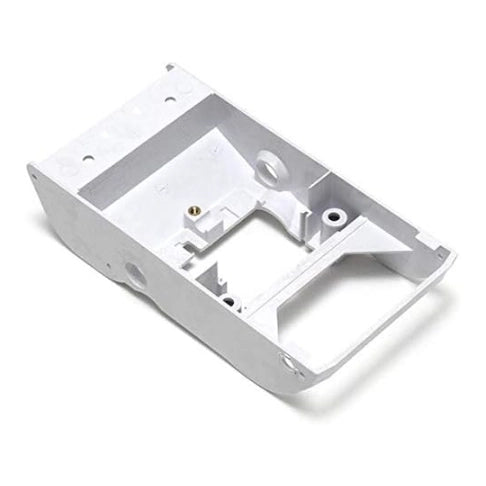

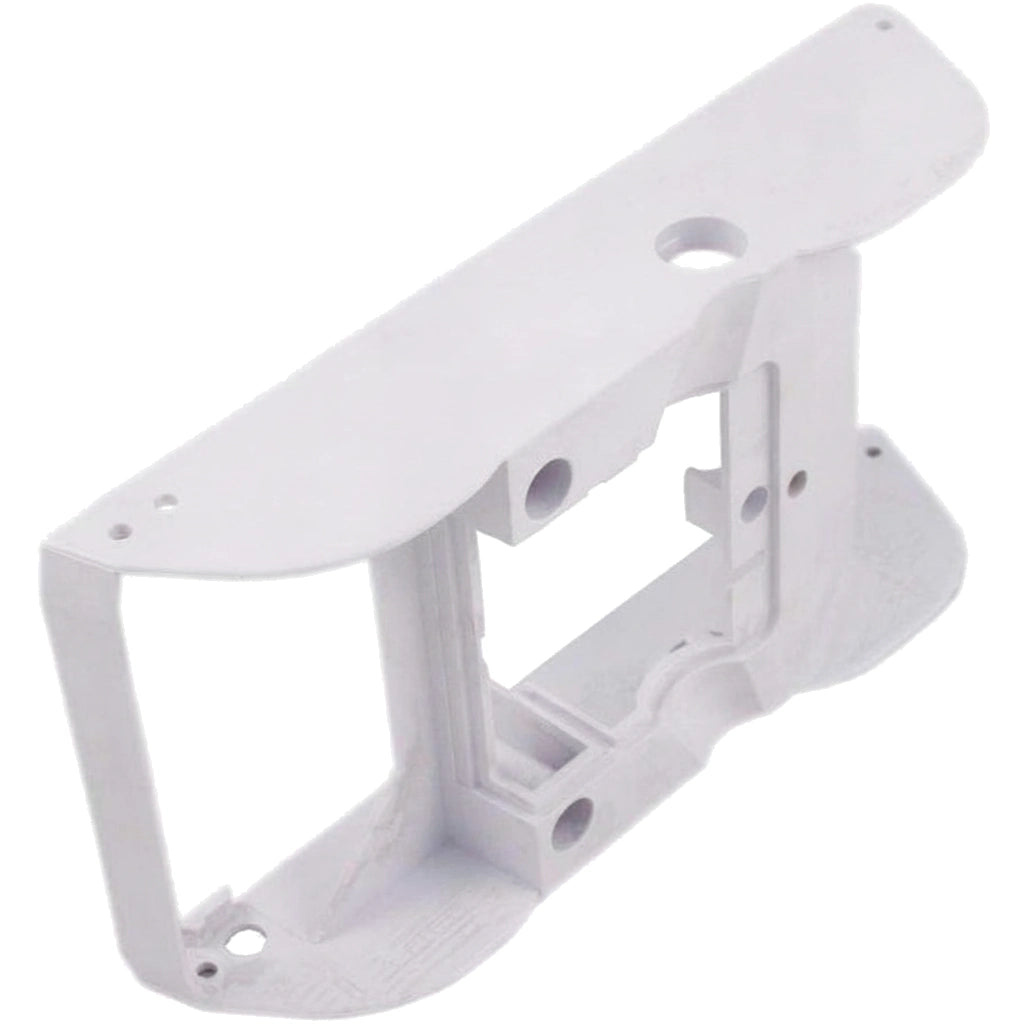

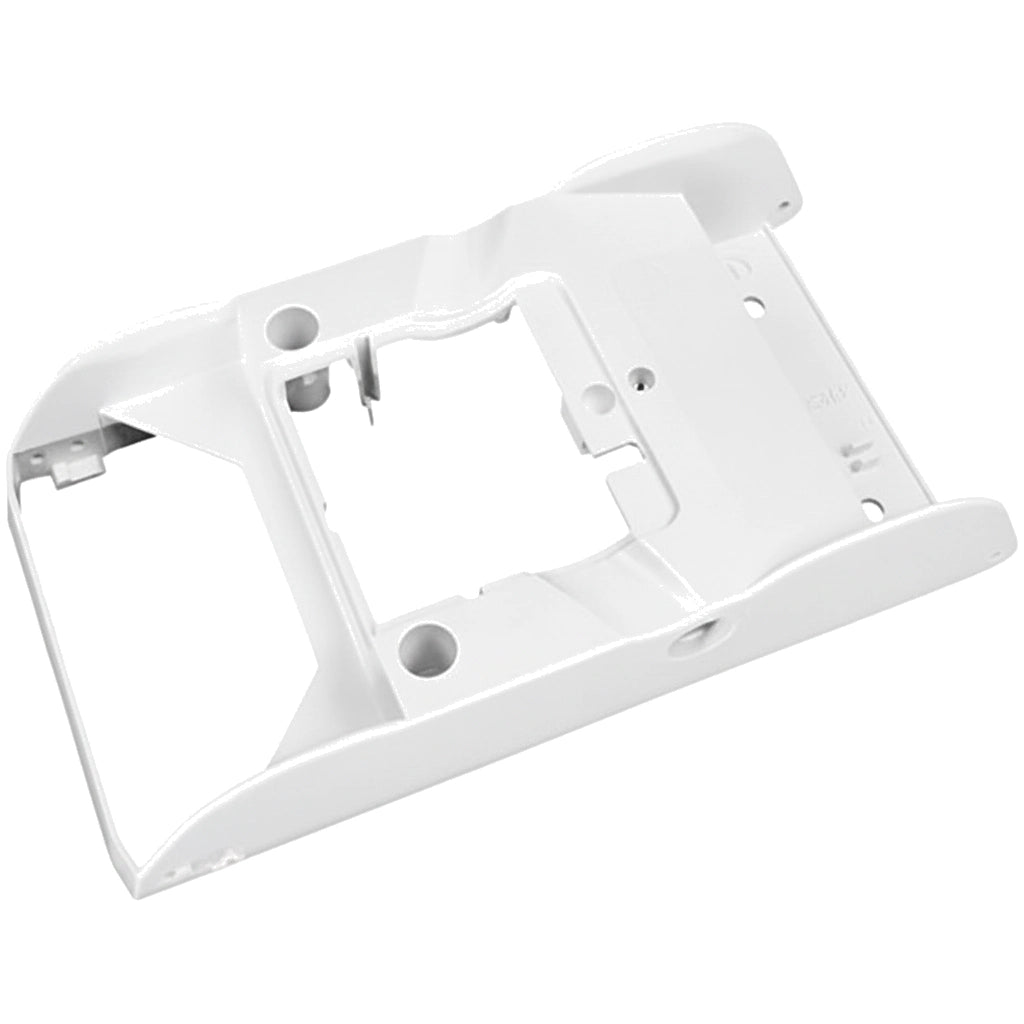

The Hayward Open Lower Body in White (AXV230DWH) is the OEM replacement lower body housing for the Navigator Pro and PoolVac XL automatic suction pool cleaners. This is the white-finish version — confirm the color of your existing lower body before ordering.

The lower body forms the main structural chassis of the cleaner's drive unit, housing the internal turbine and gear mechanism that powers the cleaner across the pool floor. Replacing a cracked, warped, or worn lower body restores the sealed operating environment the drive system requires to maintain consistent suction and directional movement.

Specifications

Fits Into

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

Before installing the new lower body, inspect the internal turbine, gear assembly, and all O-rings housed within the lower body cavity. Component wear that caused the original housing failure may have affected these parts as well. Replacing worn internals at the same time avoids a second disassembly shortly after the repair.
