Hayward Cartridge Element for XStream Cartridge Filter | CCX1000RE
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- CCX1000RE
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

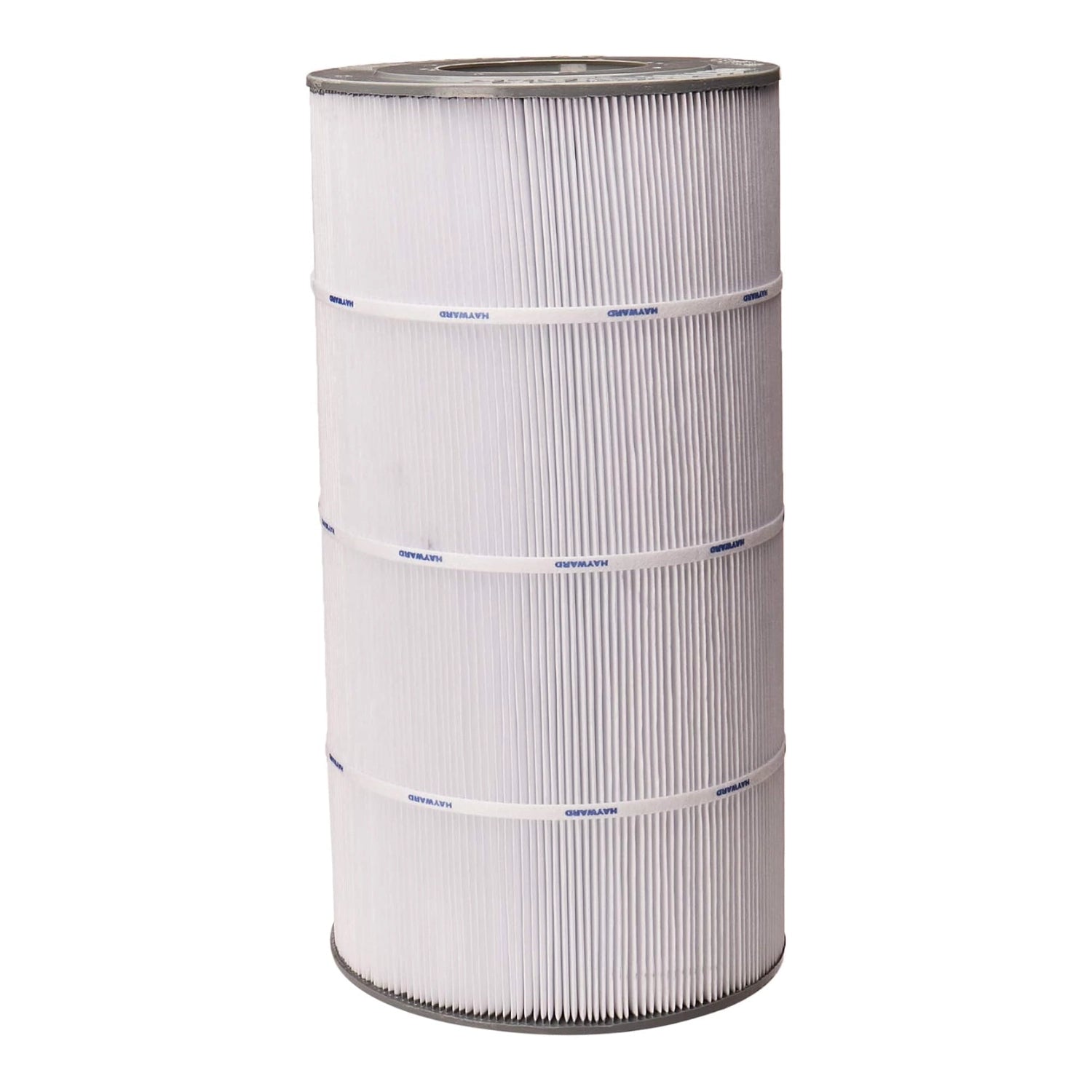

The Hayward Cartridge Element (CCX1000RE) is the OEM replacement filter cartridge element for the XStream Cartridge Filter — delivering 100 sq ft of filtration area in a single element designed specifically for Hayward XStream 100 and XStream 150 filter systems.
What It Does
The CCX1000RE seats directly inside the XStream filter tank and captures fine particulate from pool water as it passes through the pleated filter media. Replacing this element at the end of its service life restores the filter to its original flow rate, pressure performance, and water-clarity ratings. One element services the full filter — no additional elements required for this model.
Specifications
| Hayward Part Number | CCX1000RE |
| Quantity | Each (1) |
| Filter Area | 100 sq ft |
| Length | 17 3/8" |
| Outer Diameter | 8 15/16" |
| Top Inner Diameter | 4" |
| Bottom Inner Diameter | 4" |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | XStream Cartridge Filter | CC1000 |
| Hayward | XStream 100 Cartridge Filter System | CC10080S |
| Hayward | XStream 100 Cartridge Filter System | CC10080STL |
| Hayward | XStream 100 Cartridge Filter System | CC100922S |
| Hayward | XStream 100 Cartridge Filter System | CC10092S |
| Hayward | XStream 100 Cartridge Filter System | CC10092STL |
| Hayward | XStream 150 Cartridge Filter System | CC15080X5S |
| Hayward | XStream 150 Cartridge Filter System | CC150932S |
| Hayward | XStream 150 Cartridge Filter System | CC15093STL |
| Hayward | XStream 150 Cartridge Filter System | W3CC15093S |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your filter's manual or on the original cartridge before ordering.
Poolaroo Pro Tip
Before ordering, hold a tape measure against your existing element and confirm it matches the dimensions above — 17 3/8" long with an 8 15/16" outer diameter. When it's time to clean, rinse the pleats with a garden hose (never a pressure washer — high pressure damages the media) working top to bottom between each pleat fold. For stubborn sunscreen or body-oil buildup, soak the element overnight in a cartridge filter cleaner solution before the final rinse. Keeping a spare CCX1000RE on hand means zero downtime when your cleaning cycle comes around.
