Hayward Cartridge Element 4-Pack for SwimClear Cartridge Filter | CX1280XREPAK4
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- CX1280XREPAK4
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

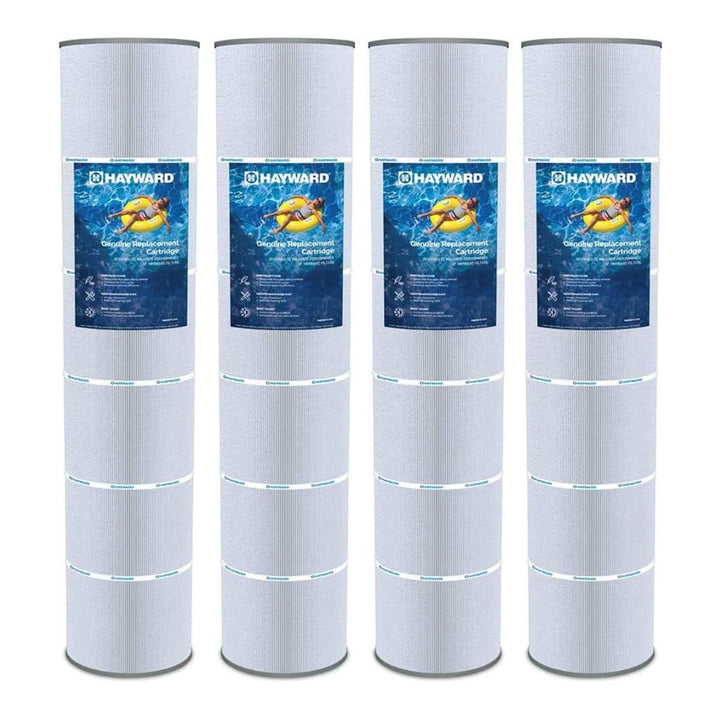

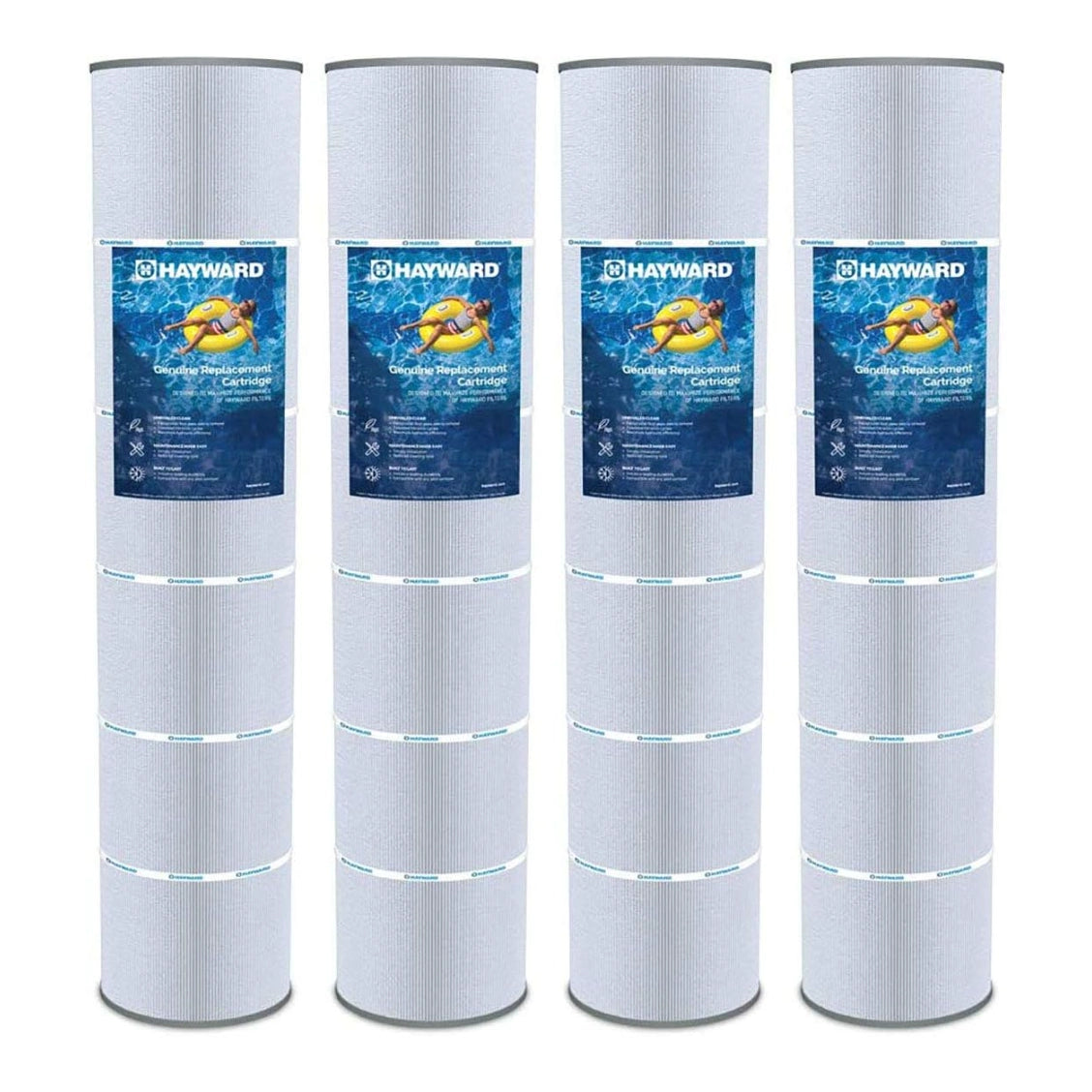

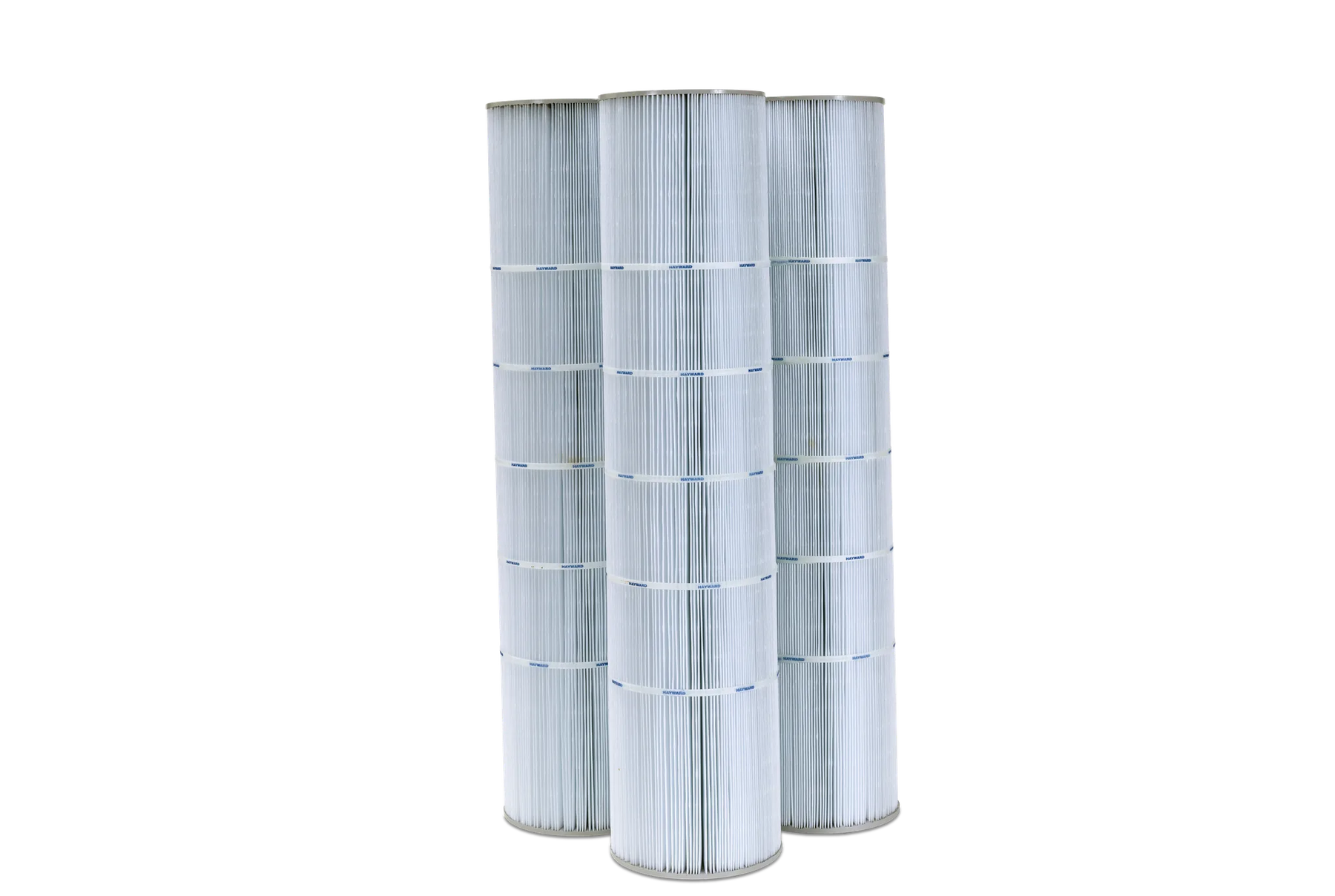

The Hayward Cartridge Element 4-Pack (CX1280XREPAK4) is the OEM replacement filter element set for the Hayward SwimClear multi-element cartridge filter, delivering 525 sq ft of total filtration area across all four cartridges.
IMPORTANT: THIS FILTER REQUIRES 4 CARTRIDGES
The Hayward SwimClear 525 sq ft filter (C5000, C5020, C5025, W3C5030) uses a bank of four cartridge elements — all four must be replaced together to maintain balanced flow and full filtration performance. This listing supplies the complete set of 4. If you need a single replacement element, look for part number CX1280XRE.
Each element in this set slots into one of the four positions inside the SwimClear filter tank, working together to deliver high-capacity filtration for large residential pools. Replacing all four cartridges at the same time ensures even pressure distribution across the element bank, maximises filtration cycle length, and restores the filter to its rated 525 sq ft performance.
Specifications
| Hayward Part Number | CX1280XREPAK4 |
| Quantity | 4-Pack (4 cartridges) |
| Filter Area | 525 sq ft (total) |
| Length | 32 13/16" |
| Outer Diameter | 7" |
| Top Inner Diameter | 3" |
| Bottom Inner Diameter | 3" |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | SwimClear Multi-Element Cartridge Filter 525 Sq.Ft. (Open Line) | W3C5030 |
| Hayward | SwimClear | C5000 |
| Hayward | SwimClear | C5020 |
| Hayward | SwimClear | C5025 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your filter's manual or on the original cartridge before ordering.
Poolaroo Pro Tip
Before ordering, pull one of your existing elements and measure its length and outer diameter — confirm they match 32 13/16" × 7" to make sure you have the 525 sq ft SwimClear configuration and not a different SwimClear variant. When it's time to clean, rinse each cartridge with a garden hose working top-to-bottom between the pleats — never use a pressure washer, which can damage the filtration media. For a deeper clean after a heavy bather load or algae event, soak the elements overnight in a dedicated cartridge filter cleaner to dissolve embedded oils and sunscreen before reinstalling. Because this filter runs four elements in parallel, always replace the full set at once: mixing old and new cartridges creates uneven resistance across the element bank, reducing both flow and filtration efficiency.
