Hayward Filter Head with Clamp System for SwimClear Cartridge Filters and ProGrid DE Filters | DEX4820BTC

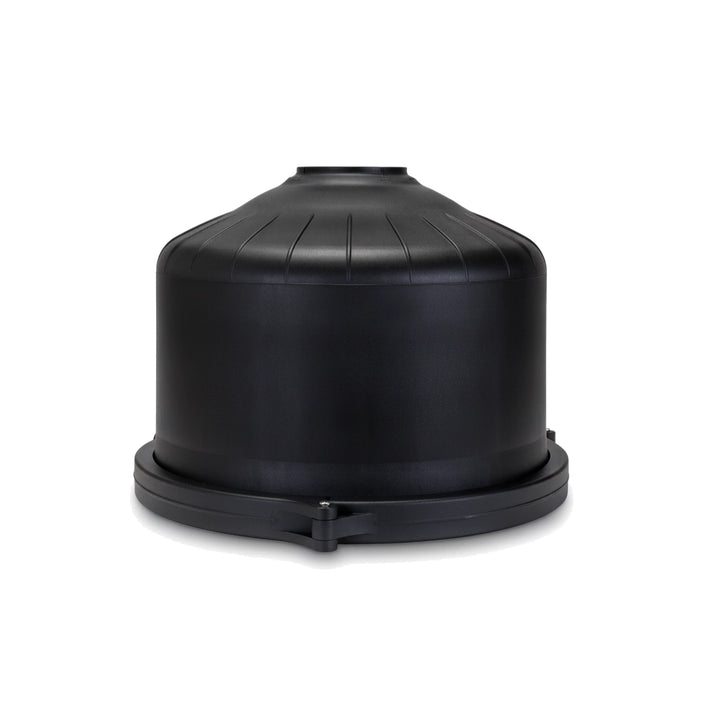

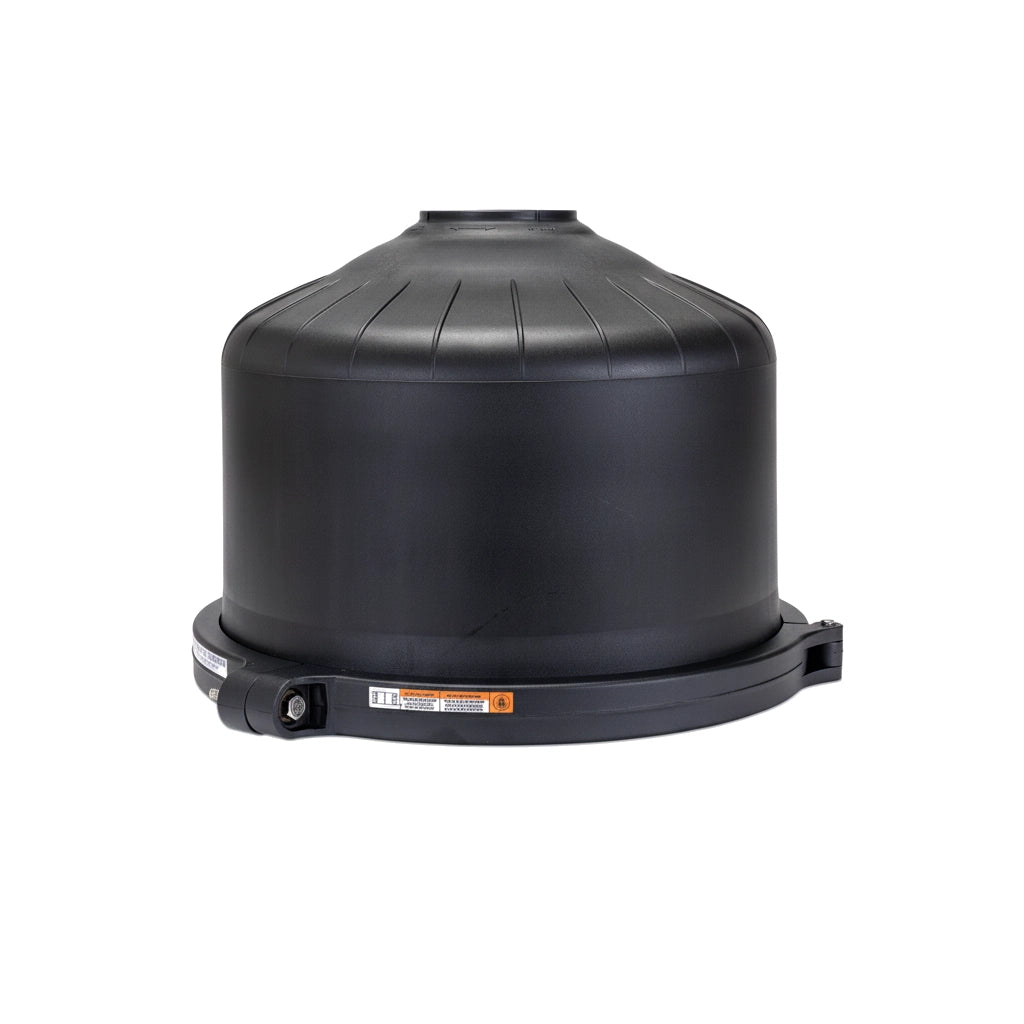

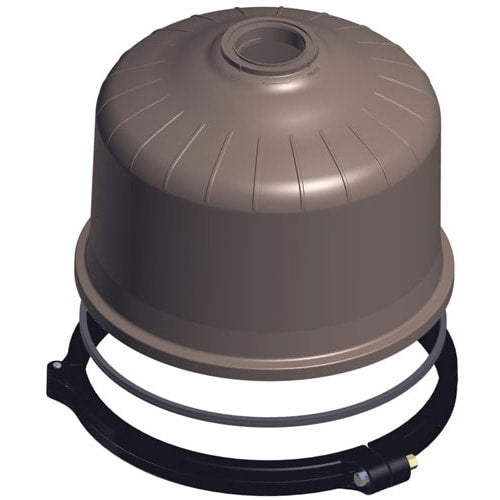

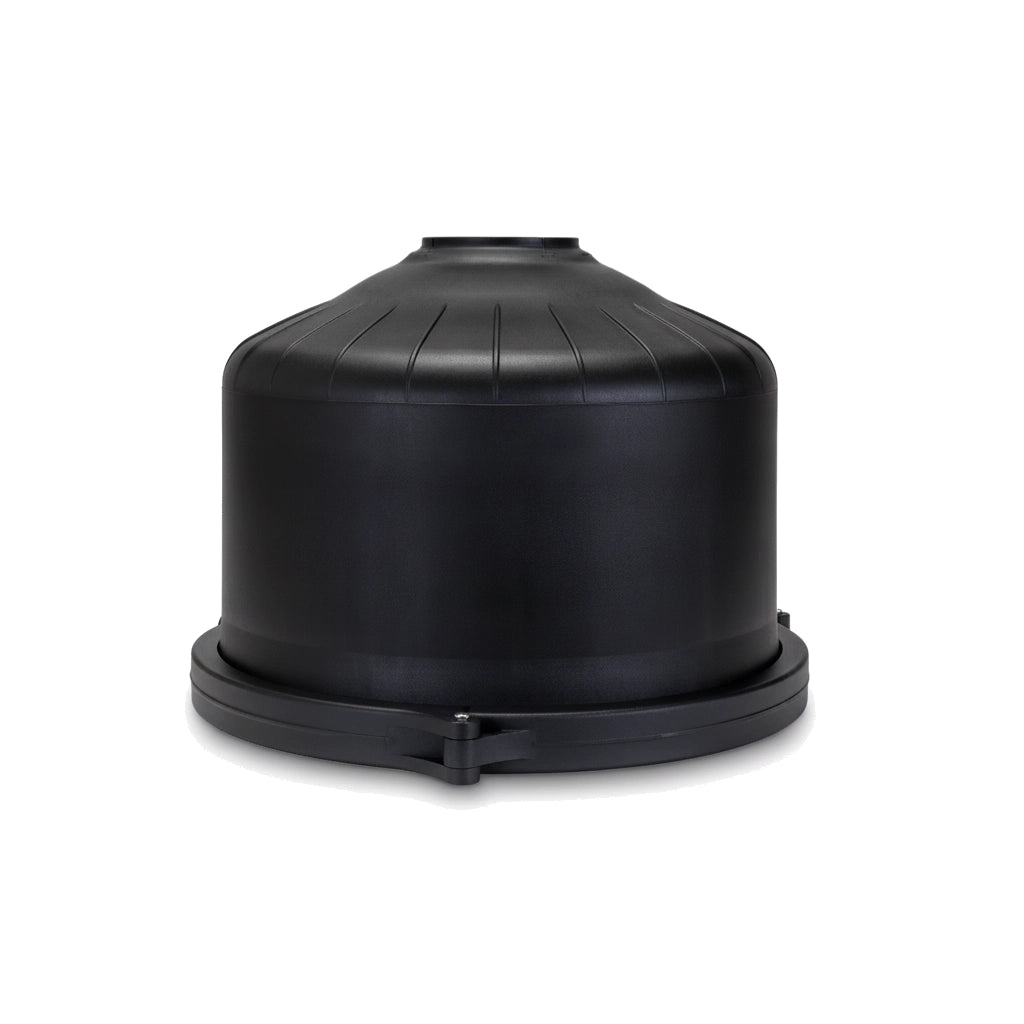

The Hayward Filter Head with Clamp System (DEX4820BTC) is the OEM replacement top head assembly for Hayward SwimClear Multi-Element Cartridge Filters and ProGrid DE Filters. This complete assembly includes the integrated clamp system that secures the filter head to the tank body, maintaining a pressure-tight seal during operation.

The filter head forms the upper pressure boundary of the filter tank, housing the air relief assembly port, pressure gauge port, and the plumbing connections that direct water flow through the filter media. Replacing the head and clamp together as a matched assembly restores the original structural integrity and sealing performance of the filter.

Specifications

Fits Into

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

When installing the replacement filter head, inspect the tank O-ring seated in the head groove before reassembly. A worn or flat O-ring is the most common cause of leaks at this joint — replace it at the same time to avoid pulling the filter apart a second time. Torque the clamp hardware evenly around the circumference to seat the head uniformly and avoid stress fractures on the tank flange.
