Hayward Pressure Gauge with Dial for SwimClear Cartridge Filters, ProGrid DE Filters, and Perflex DE Filters | ECX2712B1
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- ECX2712B1
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

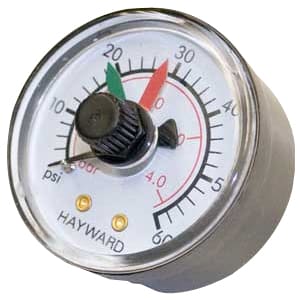

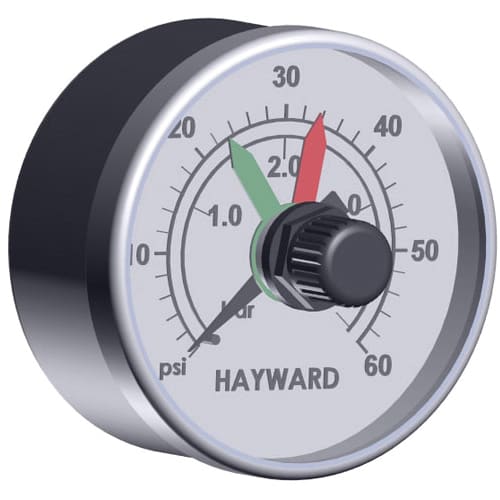

The Hayward Pressure Gauge with Dial (ECX2712B1) is the OEM replacement pressure gauge for Hayward SwimClear Multi-Element Cartridge Filters, ProGrid DE Filters, and Perflex Extended-Cycle DE Filters. Monitoring filter pressure is the primary way to determine when cleaning or backwashing is required, and this gauge keeps that reading accurate and clearly visible.
Specifications
| Hayward Part Number | ECX2712B1 |
| UPC | 610377809702 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | SwimClear Multi-Element Cartridge Filter 325 Sq.Ft. | W3C3030 |
| Hayward | SwimClear Multi-Element Cartridge Filter 425 Sq.Ft. | W3C4030 |
| Hayward | SwimClear Multi-Element Cartridge Filter 525 Sq.Ft. | W3C5030 |
| Hayward | ProGrid DE Filter 36 Sq.Ft. | W3DE3620 |
| Hayward | ProGrid DE Filter 48 Sq.Ft. | W3DE4820 |
| Hayward | ProGrid DE Filter 60 Sq.Ft. | W3DE6020 |
| Hayward | Perflex Extended-Cycle DE Filter 27 Sq.Ft. | W3EC65A |
| Hayward | Perflex Extended-Cycle DE Filter 40 Sq.Ft. | W3EC75A |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
A cracked lens, fogged dial face, or needle that no longer returns to zero are reliable signs a gauge needs replacement — don't wait for a complete failure. When servicing your filter, take the opportunity to check that the gauge port and any sealing threads or O-ring seat are clean and free of debris before threading the new gauge in. Hand-tighten only; over-torquing a gauge body into a plastic filter head can crack the housing.
