Hayward Valve Clamp for ProSeries Sand Filters | GMX600NM
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- GMX600NM
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

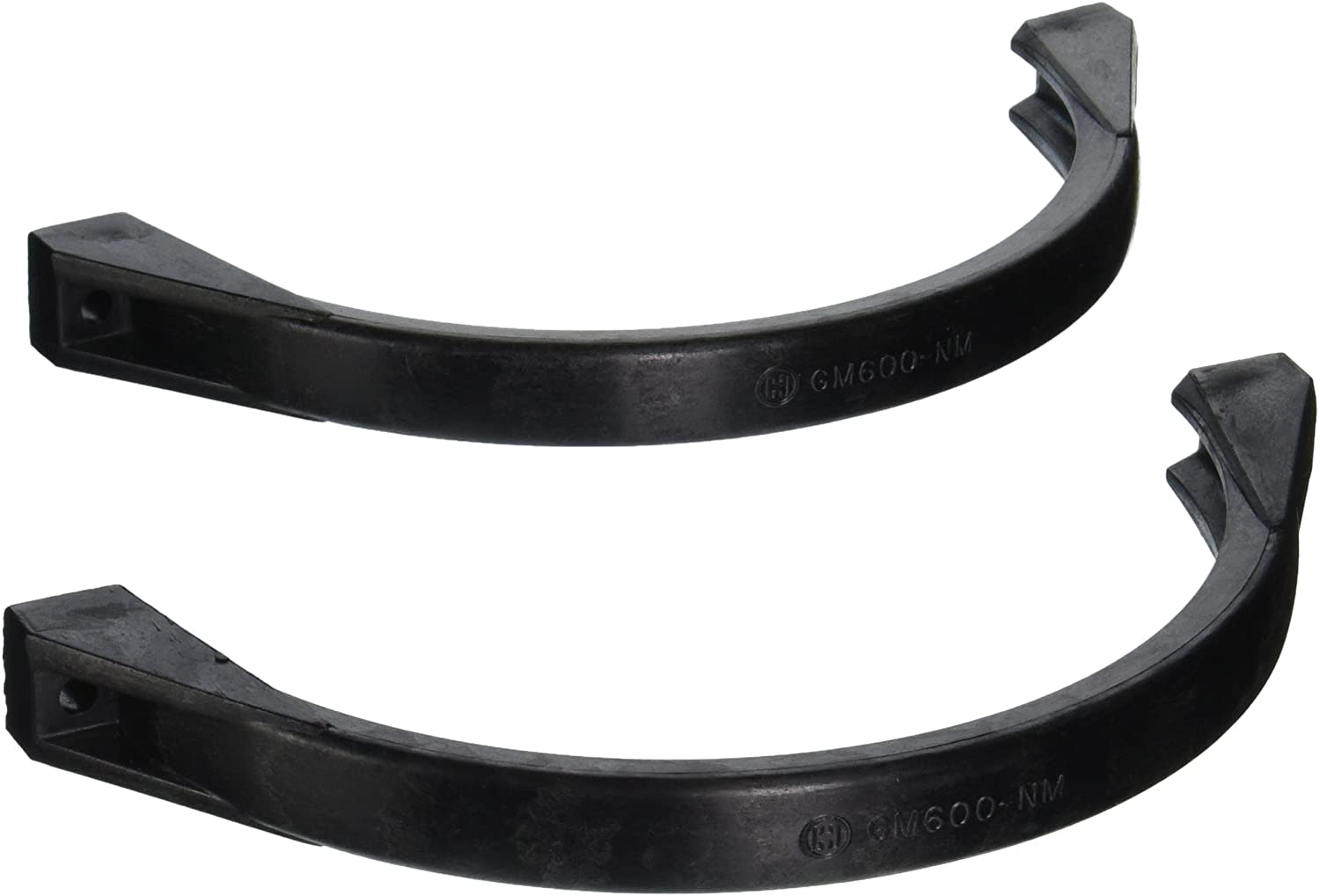

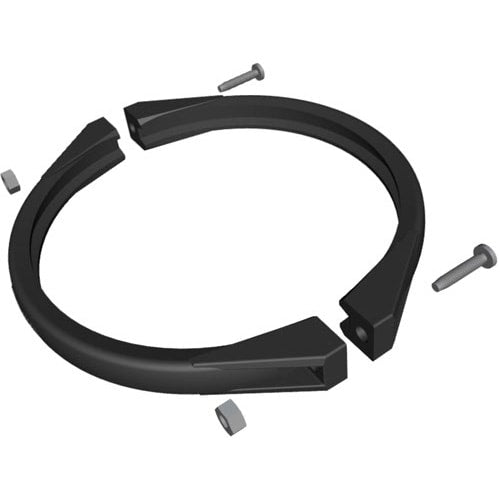

The Hayward Valve Clamp (GMX600NM) is the OEM replacement clamp that secures the multiport control valve to the filter tank on Hayward ProSeries sand filters.
This clamp maintains the sealed connection between the VariFlo or VariFlo XL multiport valve and the filter body. A worn or cracked clamp can allow water to bypass the valve seal, resulting in leaks at the valve-to-tank joint. Replacing it restores a proper, pressure-tight fit.
Specifications
| Hayward Part Number | GMX600NM |
| UPC | 610377027205 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProSeries 16" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S166T |
| Hayward | ProSeries 18" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S180T |
| Hayward | ProSeries 21" Sand Filter - Side Mount (1½" VariFlo Valve Included) | W3S210S |
| Hayward | ProSeries 21" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S210T |
| Hayward | ProSeries 22" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S220T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S244T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S244T2 |
| Hayward | ProSeries 27" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S270T |
| Hayward | ProSeries 27" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S270T2 |
| Hayward | ProSeries 30" Sand Filter - Side Mount (Valve Not Included) | W3S310S |
| Hayward | ProSeries 30" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S310T2 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the valve clamp, inspect the valve-to-tank O-ring or gasket at the same time. If the clamp has failed, the sealing surface may show wear or compression set — addressing both components during the same service visit avoids a repeat teardown.
