Hayward Turbine Kit 6-Vane for AquaNaut and The PoolCleaner Suction Cleaners | PVXH038SA
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- PVXH038SA
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

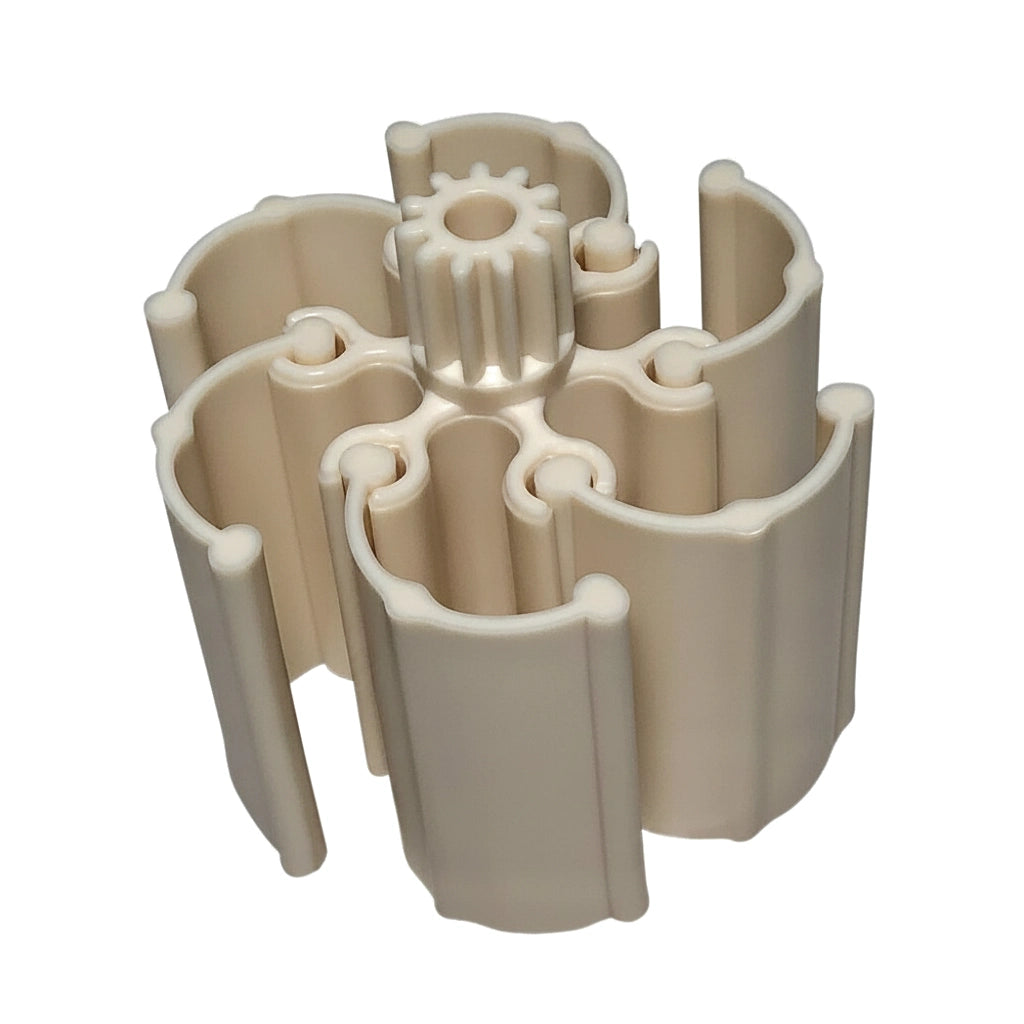

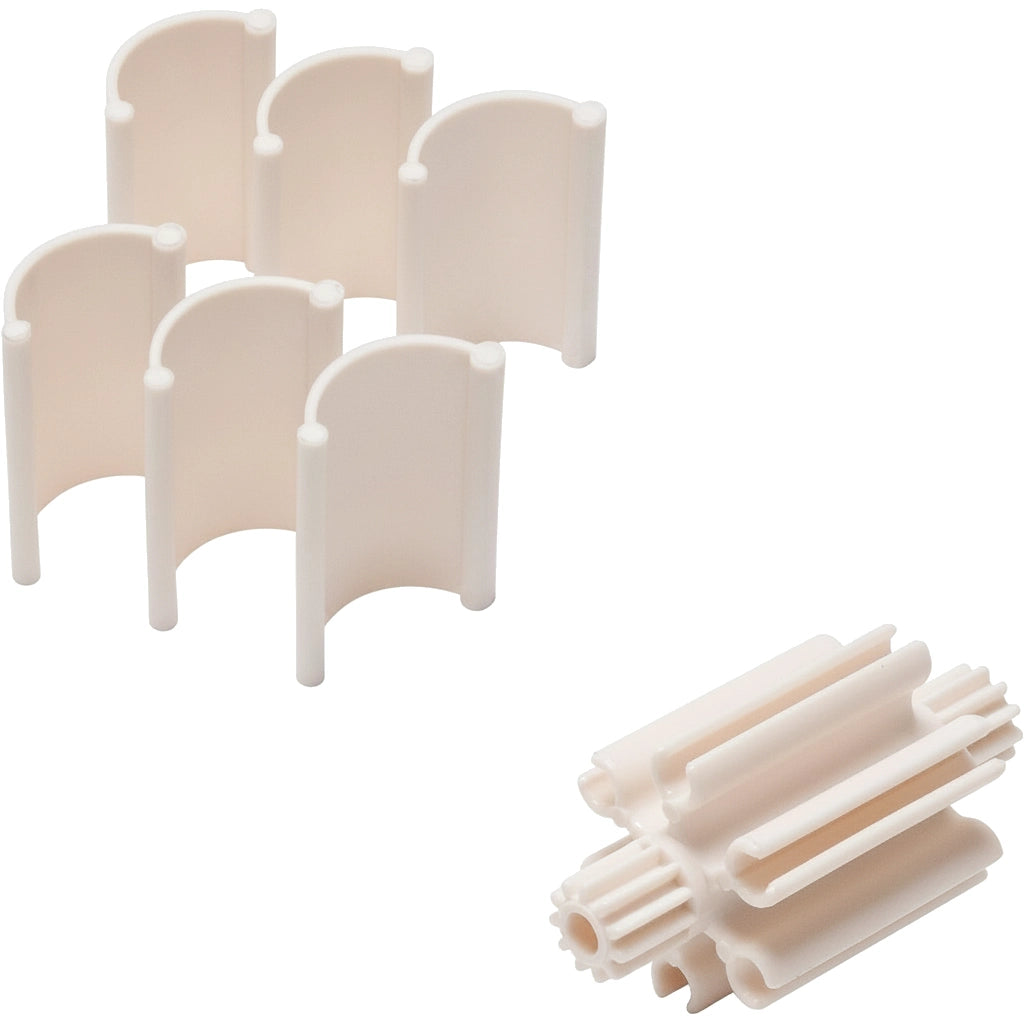

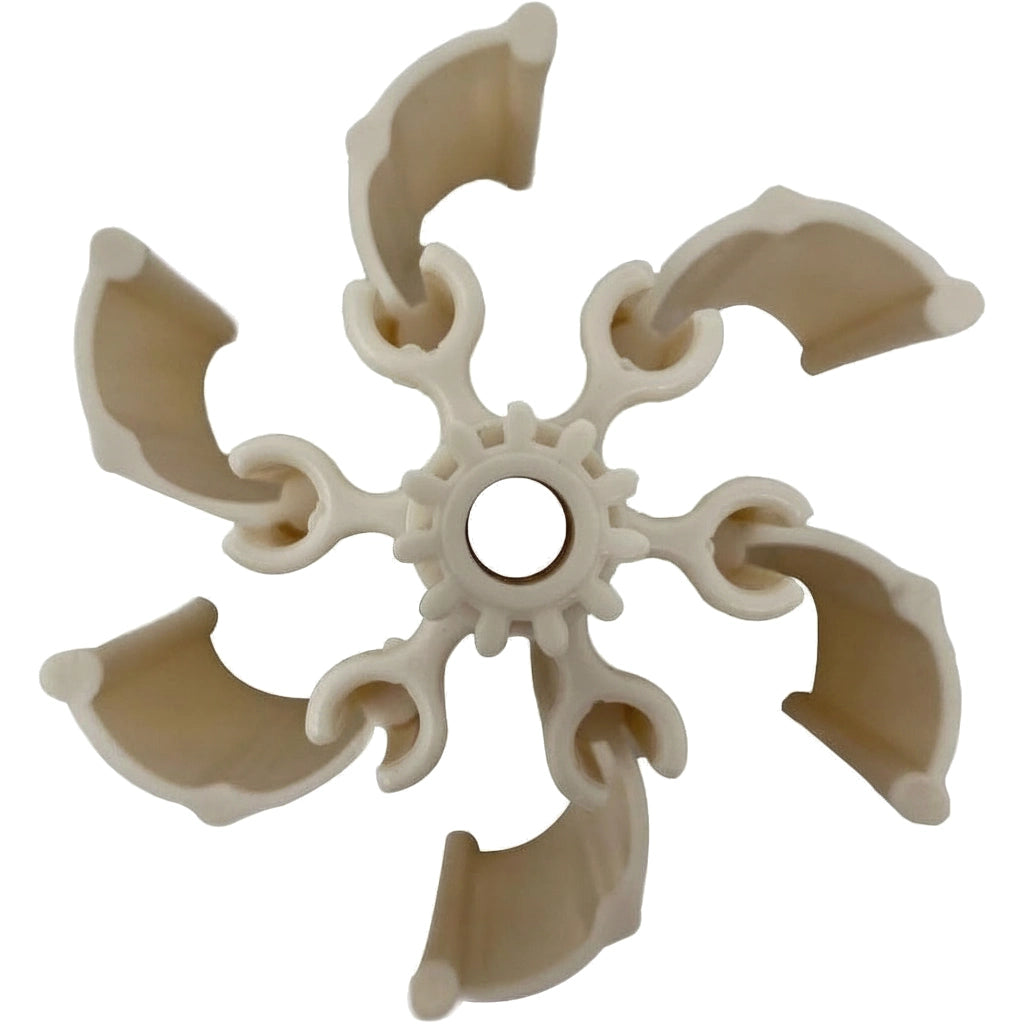

The Hayward Turbine Kit 6-Vane (PVXH038SA) is the OEM replacement turbine assembly for Hayward AquaNaut and The PoolCleaner suction-side automatic pool cleaners.
The turbine converts water flow from the pool's suction line into mechanical rotation, driving the cleaner's internal gear train to power wheel movement and directional travel across the pool floor and walls. Replacing a worn or damaged turbine restores the cleaner's drive performance and consistent pool coverage.
Specifications
| Hayward Part Number | PVXH038SA |
| Vane Count | 6 |
| UPC | 610377289436 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | AquaNaut 200 - 2-Wheel Drive, Pools up to 16' x 32' | W3PHS21CST | v2 #8 |
| Hayward | AquaNaut 400 - 4-Wheel Drive, Pools up to 20' x 40' | W3PHS41CST | v2 #8 |
| Hayward | The PoolCleaner 2-Wheel Suction Cleaner, Limited Edition Gray | W3PVS20GST | v2 #2 |
| Hayward | The PoolCleaner 2-Wheel Suction Cleaner, White | W3PVS20JST | v2 #2 |
| Hayward | The PoolCleaner 4-Wheel Suction Cleaner, Limited Edition Gray | W3PVS40GST | v2 #2 |
| Hayward | The PoolCleaner 4-Wheel Suction Cleaner, White | W3PVS40JST | v2 #2 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
The position labels in the compatibility table (v2 #2, v2 #8) refer to the part's location in the version 2 exploded diagram for each cleaner. If you have an earlier version of the AquaNaut or The PoolCleaner, cross-check the diagram in your cleaner's manual before ordering to confirm this turbine kit is the correct fit for your unit's revision.
