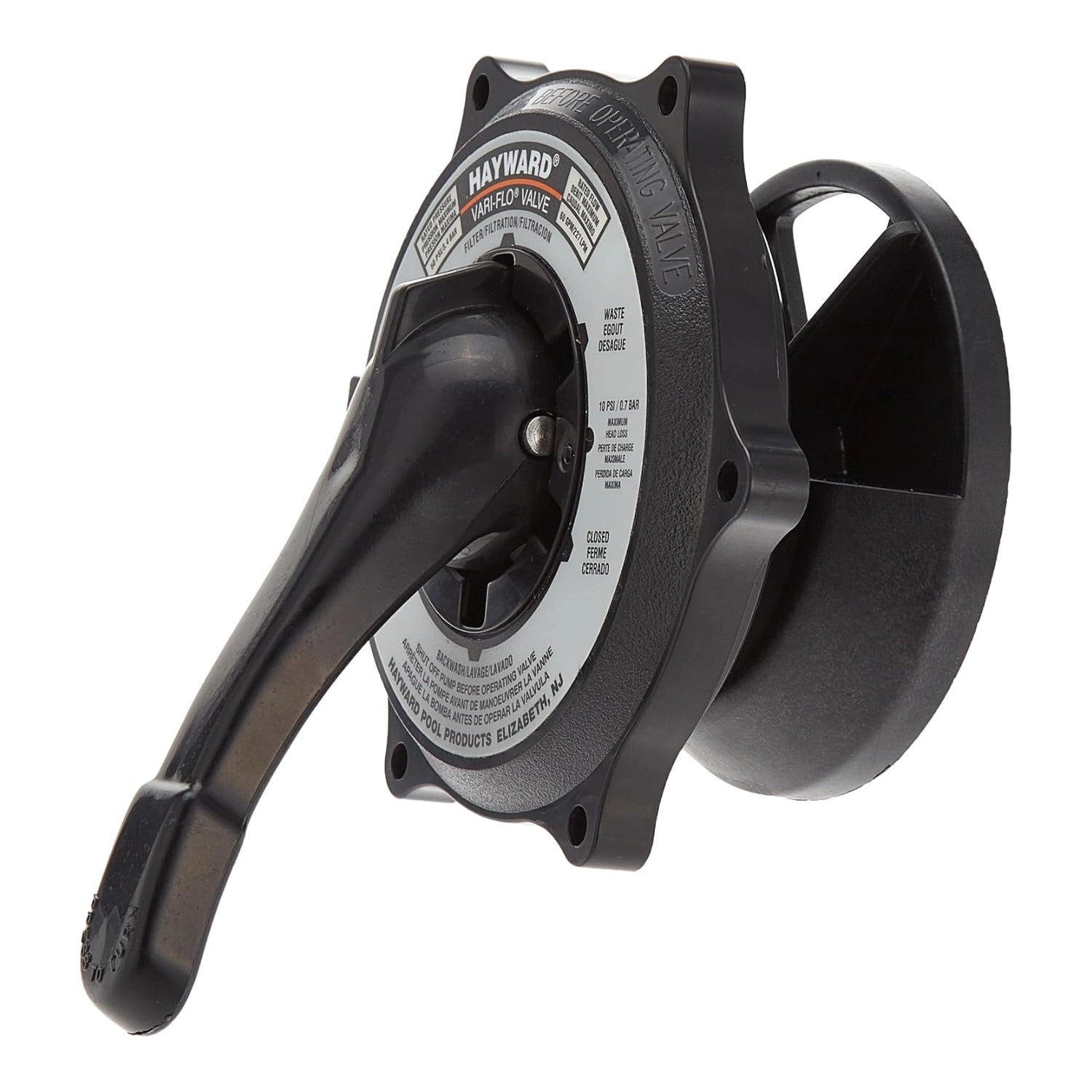

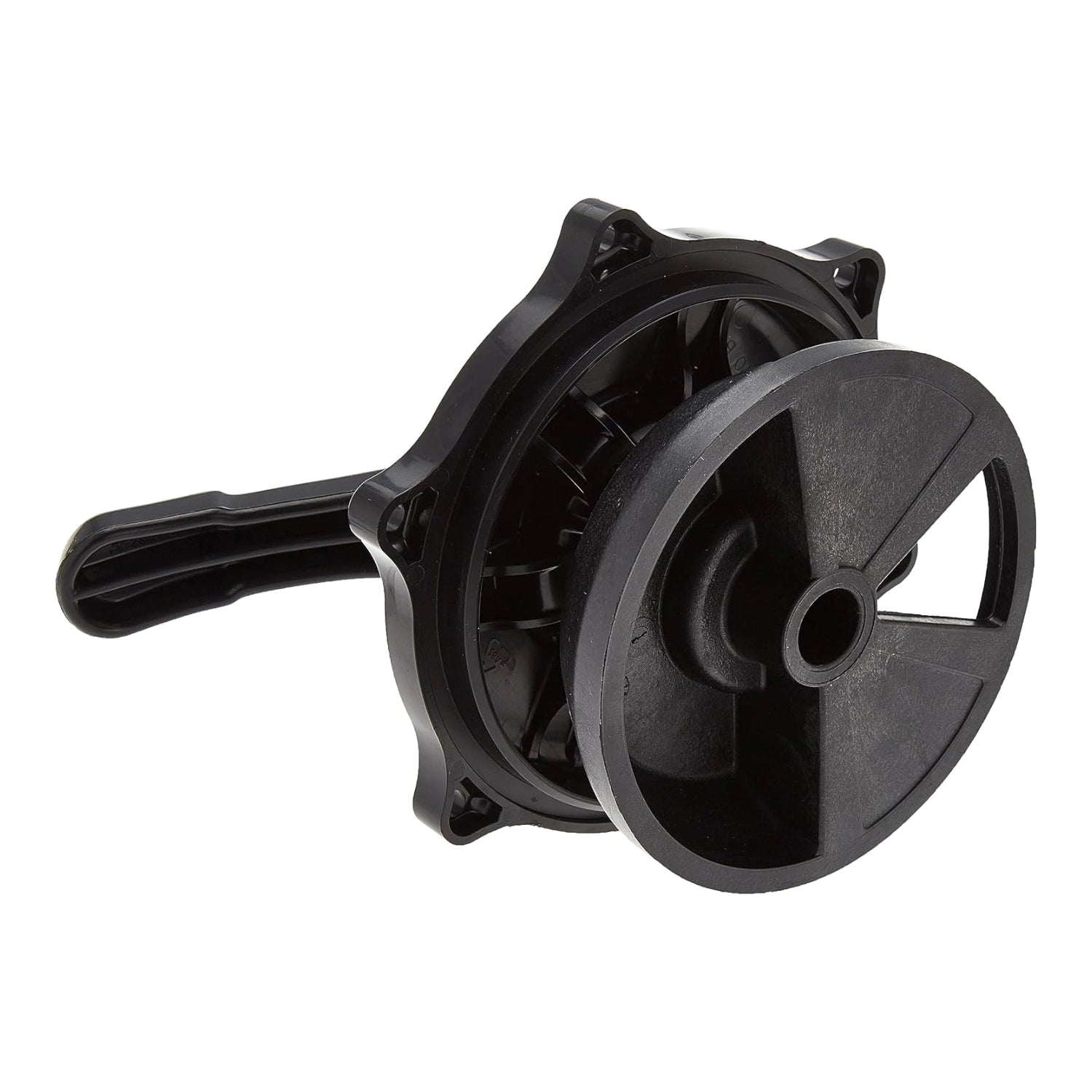

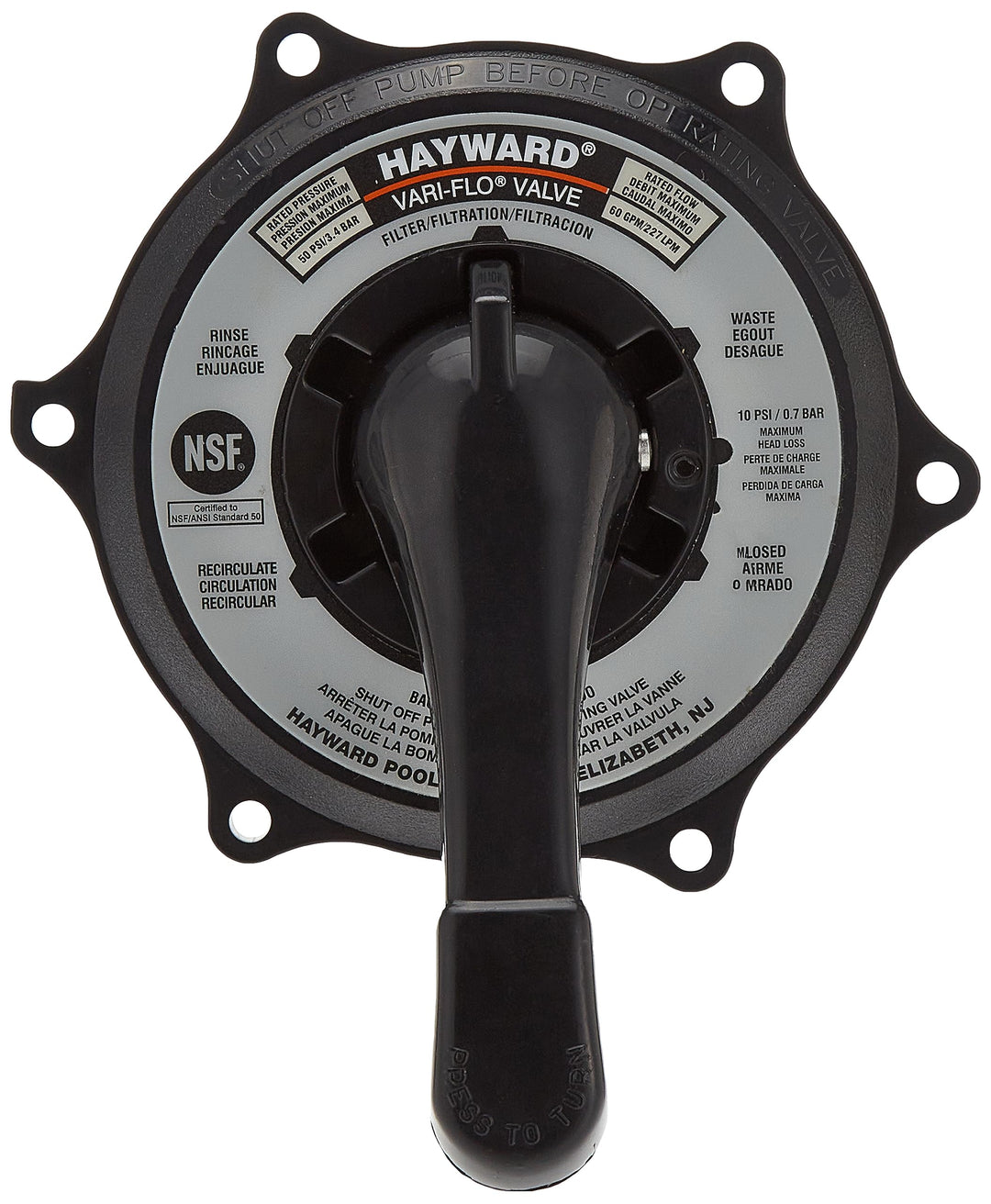

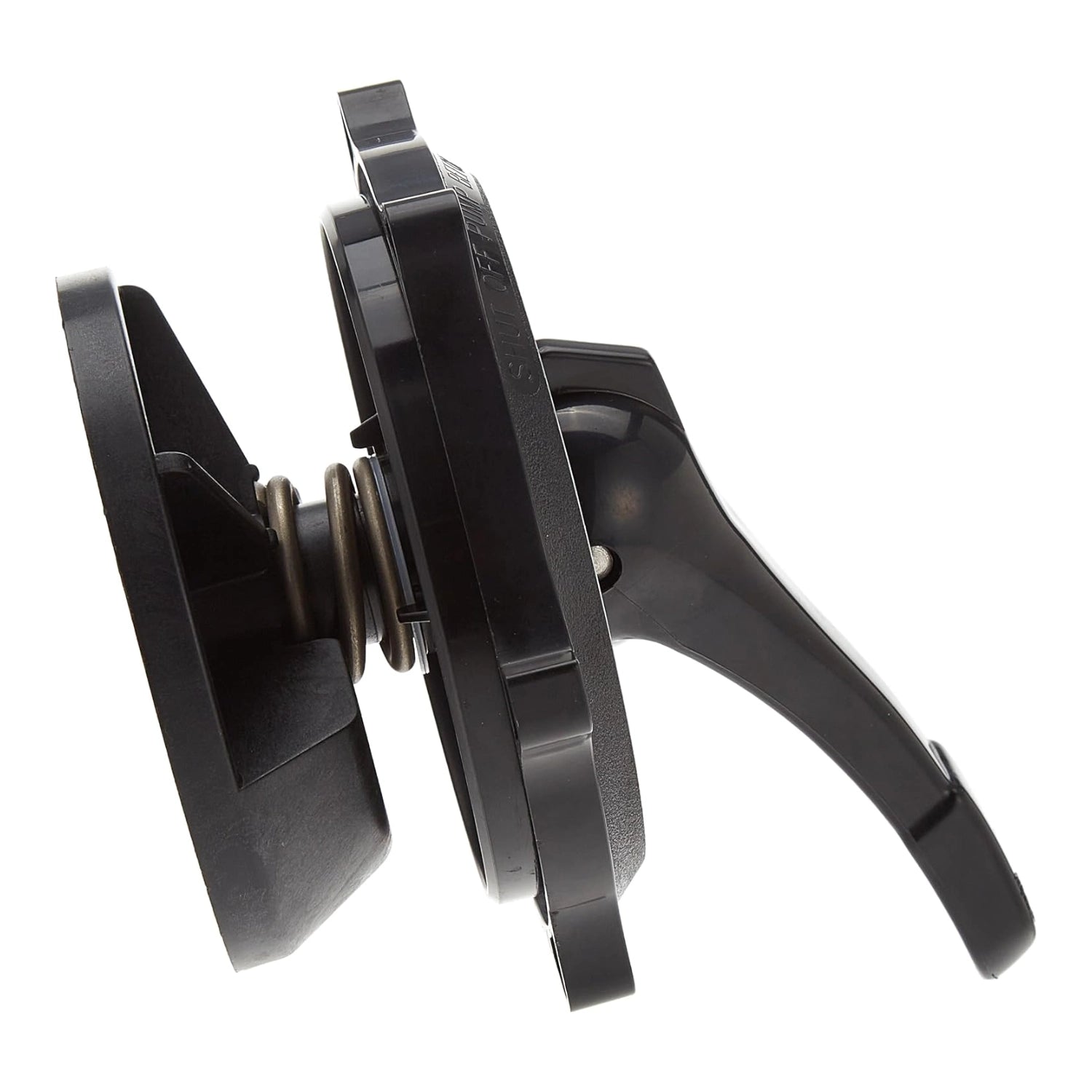

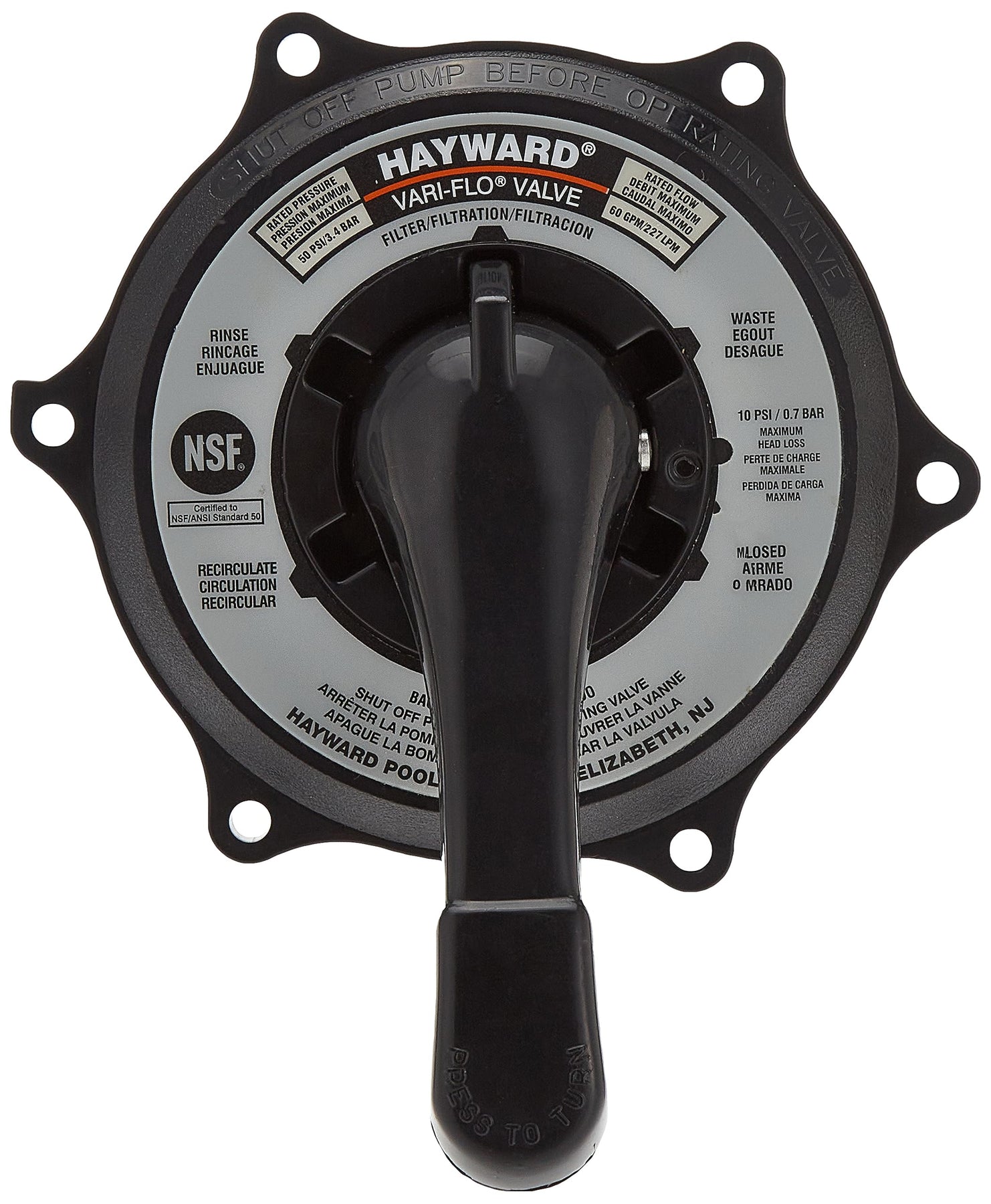

The Hayward Key Cover and Handle Assembly (SPX0710XBA17) is the OEM replacement handle and cover unit for Hayward VariFlo side-mount and thread-mount multiport valves.
This assembly provides the external handle grip and protective cover that operate the valve's internal rotor, allowing the user to select filter positions — Filter, Backwash, Rinse, Waste, Recirculate, and Closed — on compatible VariFlo valves. Replacing a cracked cover or worn handle restores secure, positive position selection and protects the internal key mechanism from debris and UV damage.
This Does Not Include The Cover O-Ring. Maximum Head Loss 10 PSI / 0.7 BAR
Specifications
| Hayward Part Number |
SPX0710XBA17 |
| UPC |
610377034883 |
| Channel |
Open Line |
Fits Into
| Brand |
Equipment Line |
Model / Part Number |
| Hayward |
VariFlo Side Mount Valve Assembly – 1 1⁄2" FIP (Open Line) |
SP0710XALL |
| Hayward |
VariFlo Valve Assembly – 1 ½" NPT (Open Line) |
SP0710XR50 |
| Hayward |
VariFlo Thread Mount Valve – 1 1/2" FIP (Open Line) |
SP07121 |
| Hayward |
|
SP0712 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the handle assembly, inspect the valve's internal rotor and rotor gasket for wear at the same time — a stiff or cracking handle is often accompanied by a worn rotor that prevents the valve from sealing cleanly between positions. Addressing both components in one service visit avoids a second teardown.
