Hayward Motor Mounting Plate for Super Pump and Super Pump VS Pumps | SPX1600F5
Hayward

Hayward Motor Mounting Plate for Super Pump and Super Pump VS Pumps | SPX1600F5

$63.99
/
$9.99 flat shipping on orders under $100.
Genuine Hayward OEM Part Guaranteed Authentic
Hayward Authorized Dealer Full Manufacturer Warranty Support
No Hassle Returns 30 Days Paid Returns
SKU:
SPX1600F5

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

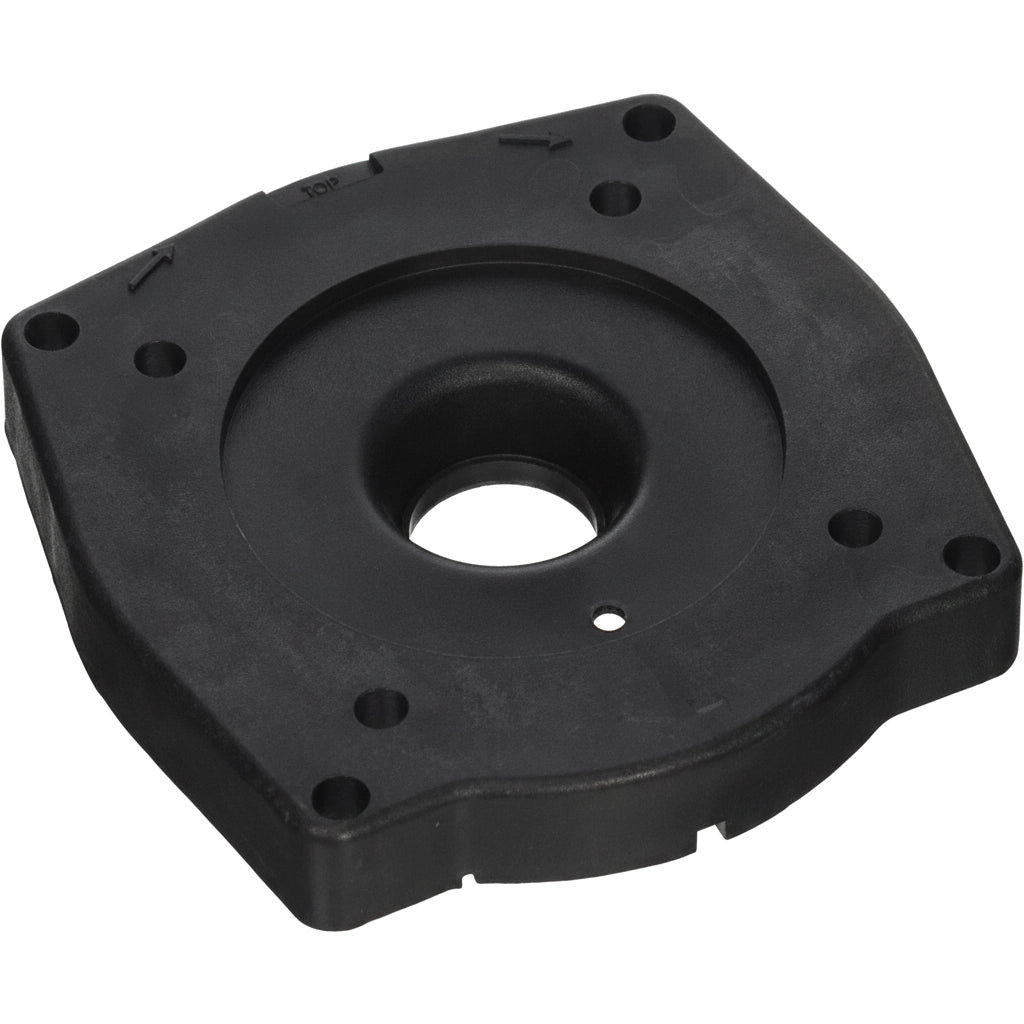

The Hayward Motor Mounting Plate (SPX1600F5) is the OEM replacement motor mounting plate for the Super Pump High Efficiency, Super Pump XE, and Super Pump VS pump families.

The motor mounting plate secures the motor assembly to the pump body, maintaining precise alignment between the motor shaft and pump internals. Replacing a damaged or corroded mounting plate restores the structural integrity of the motor-to-pump connection and protects against vibration and misalignment during operation.

Specifications

Hayward Part Number SPX1600F5
UPC 610377888097

Fits Into

Brand Equipment Line Model / Part Number Notes
Hayward Super Pump High Efficiency Pump, 0.85 HP W3SP2605X7 Position v1 #14
Hayward Super Pump High Efficiency Pump, 1.1 HP W3SP2607X10 Position v1 #14
Hayward Super Pump XE Pump, 1.65 HP W3SP2610X15XE Position v1 #17
Hayward Super Pump XE Pump, 2.25 HP W3SP2615X20XE Position v1 #17
Hayward Super Pump VS 615, 1.65 HP w/ OmniX W3VSP26615 Position v1 #17
Hayward Super Pump VS 620, 2.25 HP w/ OmniX W3VSP26620 Position v1 #17

Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

When replacing the motor mounting plate, inspect the motor bracket and all fastener points for corrosion or elongation before reassembly. A distorted or corroded mounting surface will not seat the new plate correctly, which can cause vibration and premature wear on the shaft seal. Confirm the position diagram reference in your pump's exploded parts diagram to ensure this plate matches your specific pump revision before ordering.
