Hayward Pipe Plug with Gasket for Automatic Chlorine and Bromine Feeders CL100 CL200 CL2002S CL220 CL220ABG CL220BR | SPX1700FGV
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX1700FGV
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

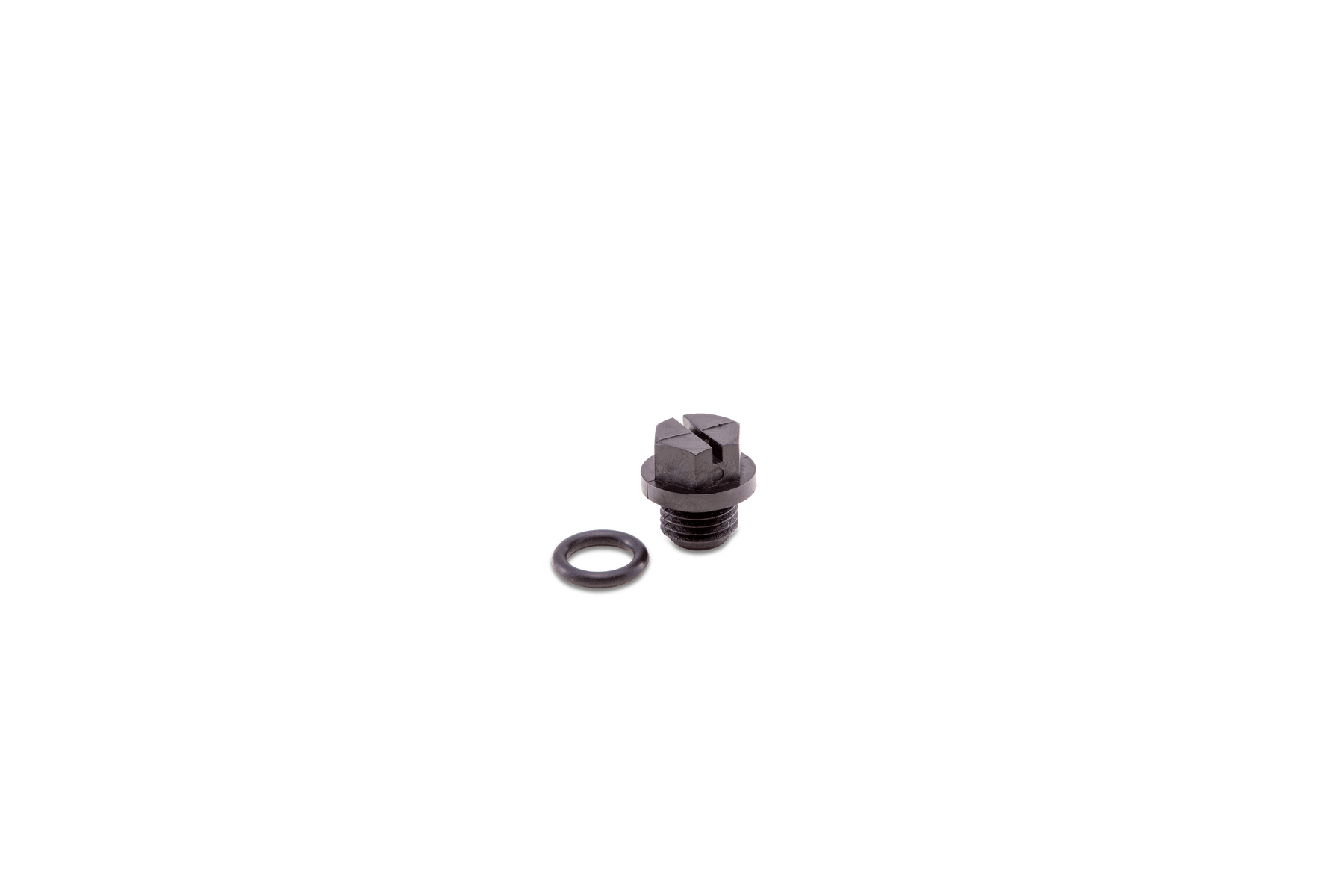

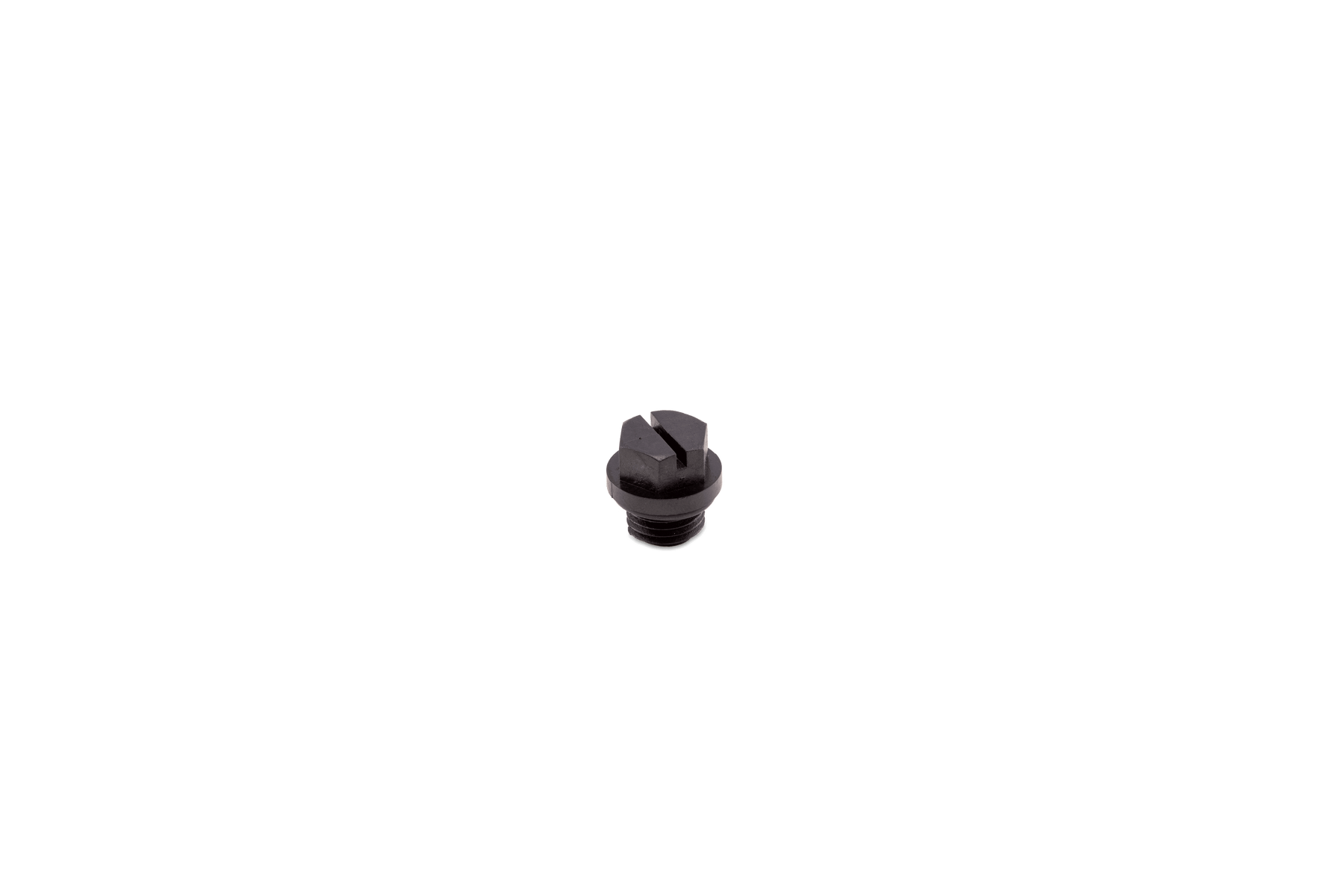

The Hayward Pipe Plug with Gasket (SPX1700FGV) is the OEM replacement pipe plug and gasket kit for Hayward's automatic in-line and off-line chlorine and bromine feeder models.
IMPORTANT: KIT INCLUDES PLUG AND GASKET
This part ships as a kit containing the pipe plug and gasket together. Both components are included in a single purchase.
The pipe plug with gasket seals an unused port on compatible Hayward automatic chlorine and bromine feeders, preventing leaks and maintaining system pressure integrity. Replacing a worn, cracked, or leaking plug and gasket restores a proper watertight seal at that feeder port.
Specifications
| Hayward Part Number | SPX1700FGV |
| UPC | 610377040679 |
| Contents | Pipe plug and gasket (kit) |
| Channel | Open Line |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | Automatic Chlorine Feeder, 15.75", In-Line | CL100 | Position #5 |
| Hayward | Automatic Chlorine Feeder, 9 lbs, In-Line (incl. Mounting Base) | CL200 | Position #8 |
| Hayward | Automatic Chlorine Feeder, 9 lbs, In-Line (incl. 2" Inlet and Outlet Ports) | CL2002S | Position #8 |
| Hayward | Automatic Chlorine Feeder, 15.5", Off-Line | CL220 | — |
| Hayward | Automatic Chlorine Feeder, 9 lbs, Off-Line (ABG) | CL220ABG | — |
| Hayward | Automatic Bromine Feeder, 9 lbs, Off-Line | CL220BR | — |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When installing the replacement plug, hand-tighten the plug firmly against the seated gasket before applying any tool torque. Over-tightening can distort the gasket and create a new leak path rather than eliminate one. Inspect the port threads on the feeder body for any chemical deposits or damage before seating the new plug — a corroded thread will compromise even a fresh gasket seal.
