Hayward 1-1/2 HP Impeller with Screw for TriStar XE and TriStar VS Pumps | SPX3215C
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SPX3215C
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

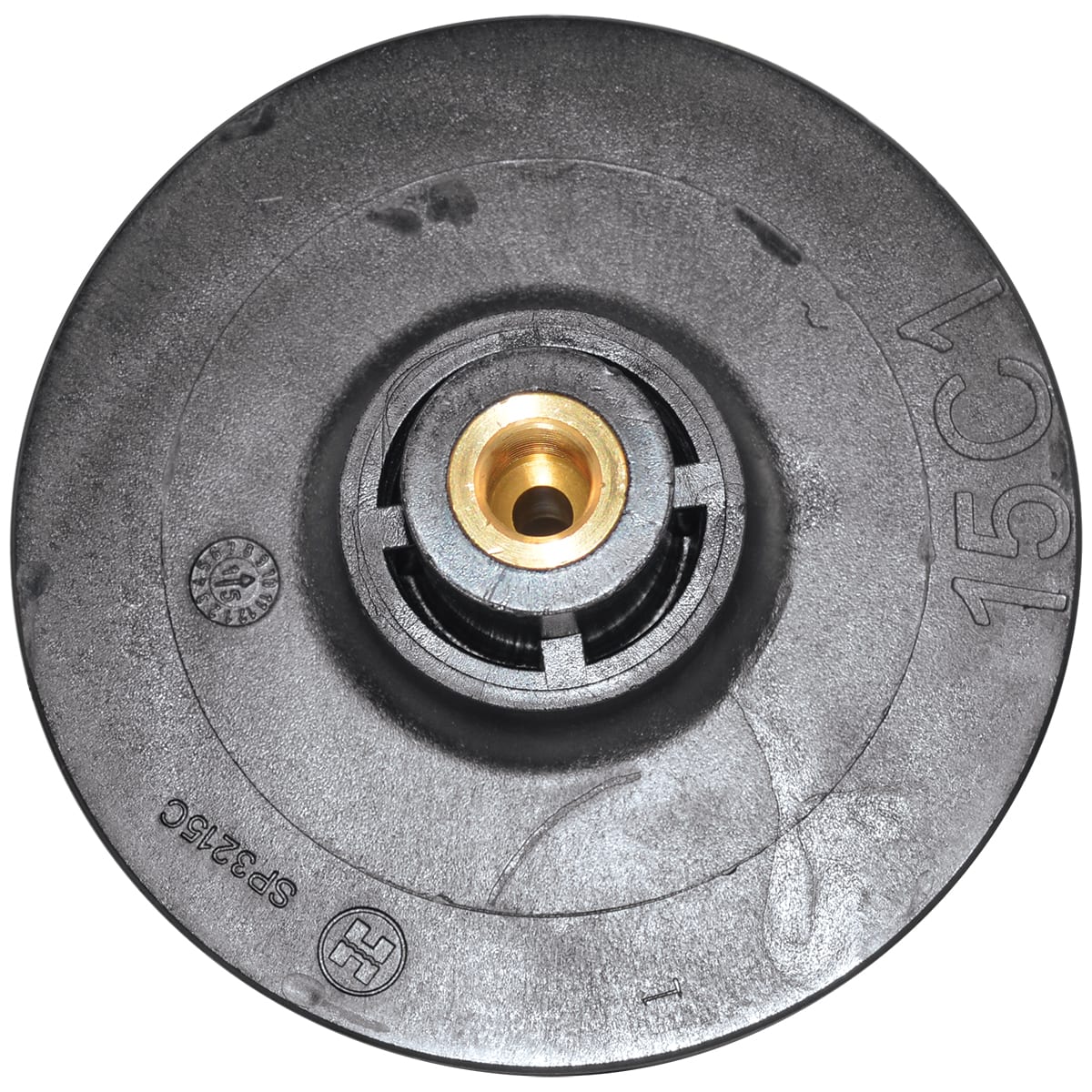

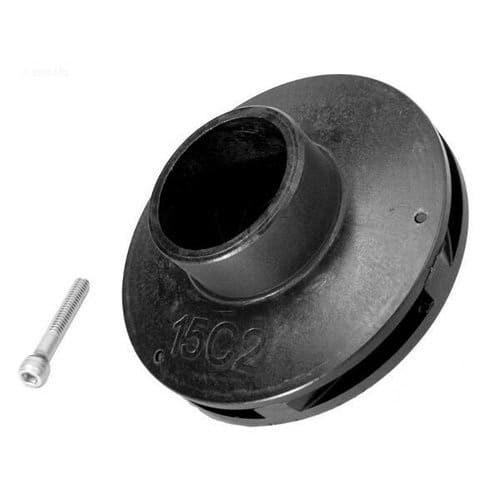

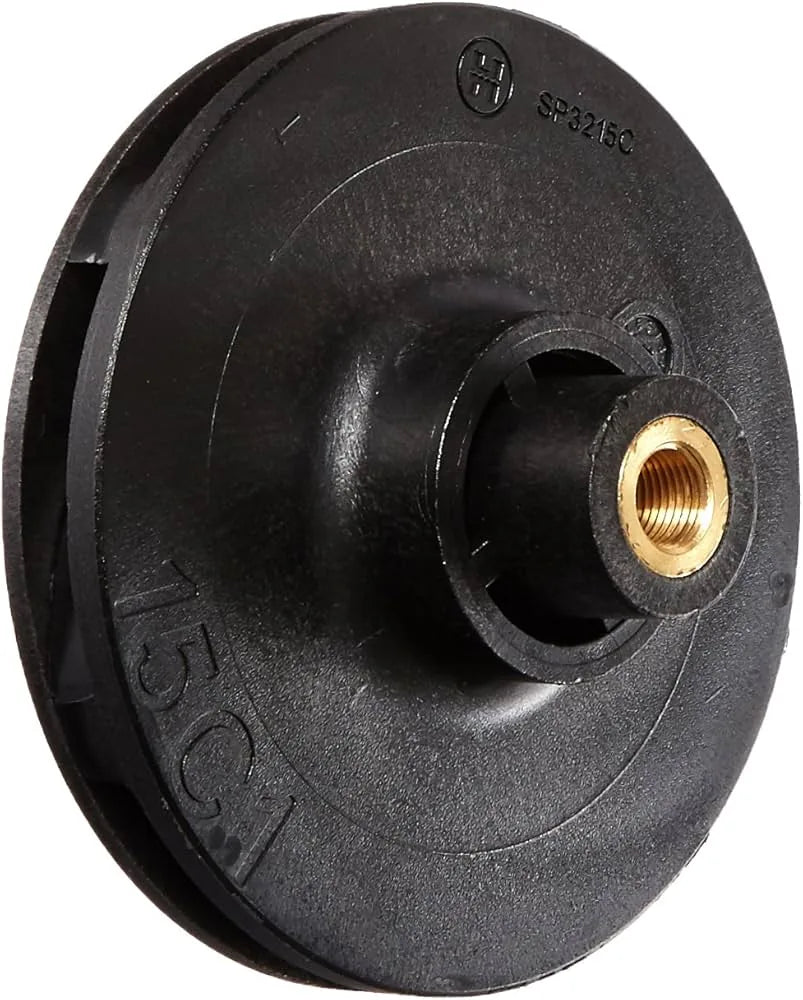

The Hayward 1-1/2 HP Impeller with Screw (SPX3215C) is the OEM replacement impeller for Hayward TriStar XE and TriStar VS variable-speed pump models. This single impeller and retaining screw assembly restores full hydraulic performance to the pump when the original impeller is worn, cracked, or damaged.
Specifications
| Hayward Part Number | SPX3215C |
| HP Rating | 1-1/2 HP |
| Includes | Impeller and retaining screw |
| UPC | 610377912112 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | TriStar XE Pump, 1.85 HP (Open Line) | W3SP3210X15XE | Position v2 #10 |
| Hayward | TriStar XE Pump, 2.25 HP (Open Line) | W3SP3215X20XE | Position v2 #10 |
| Hayward | TriStar VS 815, 1.85 HP Pump w/ OmniX (Open Line) | W3VSP32815 | Position v2 #10 |
| Hayward | TriStar VS 820, 2.25 HP Pump w/ OmniX (Open Line) | W3VSP32820 | Position v2 #10 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before installing the replacement impeller, inspect the pump's diffuser and shaft seal for wear — these components are subject to the same service interval and replacing them together avoids a repeat teardown. Confirm the HP rating on your existing impeller matches SPX3215C before ordering; installing an impeller rated for a different HP than your motor can reduce flow performance or cause motor overload.
