Hayward Heavy Duty Clamp for ProSeries Sand Filters W3S210S W3S310S | SX310N
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX310N
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

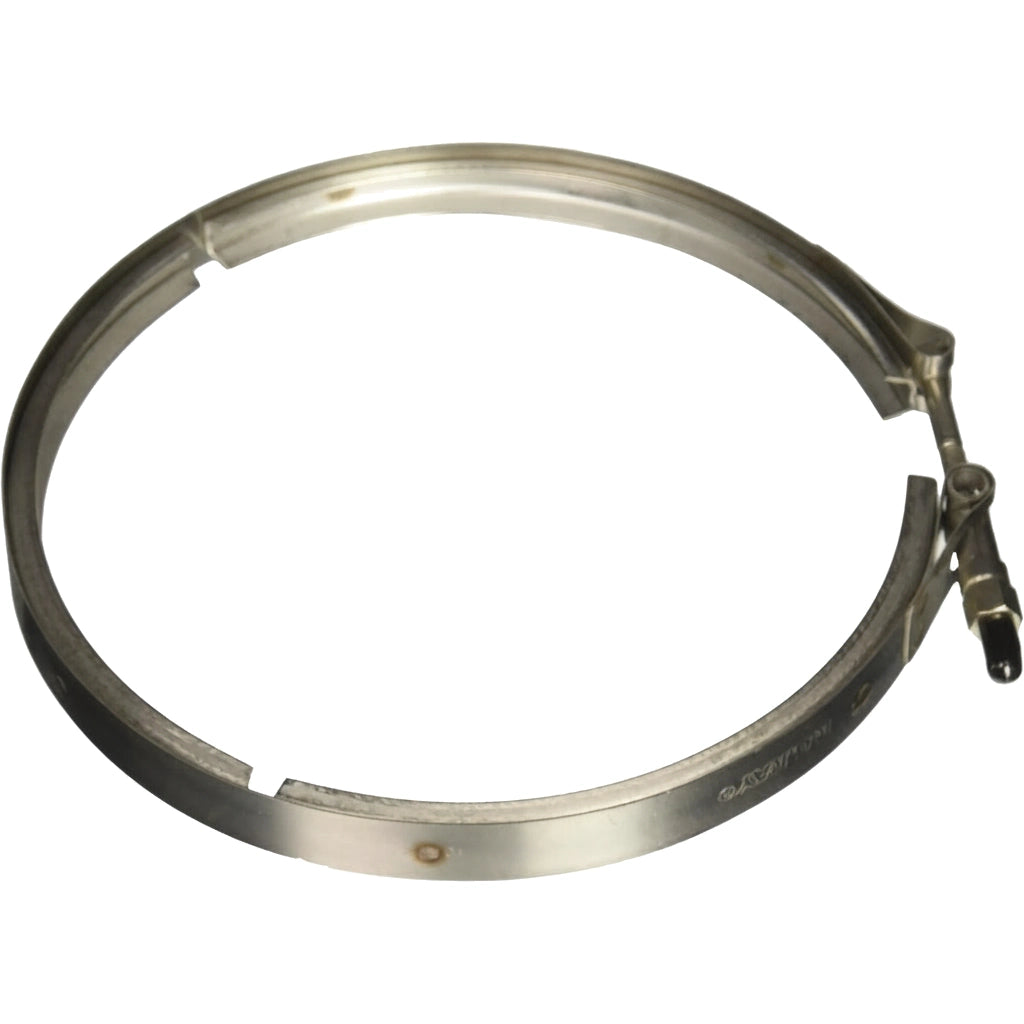

The Hayward Heavy Duty Clamp (SX310N) is the OEM replacement filter clamp for Hayward ProSeries sand filters, securing the multiport valve to the filter tank with a one-piece stainless steel construction.
What It Does
This clamp wraps the joint between the multiport valve and the filter tank, compressing the connection to maintain a pressure-tight seal during filter operation. The one-piece stainless steel band with captive T-bolt eliminates the flex and potential leak points associated with two-piece plastic clamp designs.
Specifications
| Hayward Part Number | SX310N |
| UPC | 610377055369 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | ProSeries 21" Sand Filter - Side Mount (1 1/2" VariFlo Valve Included) | W3S210S | Position v1 #5 |
| Hayward | ProSeries 30" Sand Filter - Side Mount (Valve Not Included) | W3S310S | Position v1 #5 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Before installing the new clamp, inspect the mating surfaces of the valve and filter tank collar for cracks or deformation that could prevent the clamp from seating evenly. Tighten the T-bolt nut until the clamp ends are snug and the joint is fully compressed — over-tightening can distort the band and compromise the seal. Slide the rubber protective cap over the exposed bolt end after tightening to prevent corrosion on the thread.
