Automatic Off-Line Chlorine Feeder | CL220EF
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- CL220EF
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

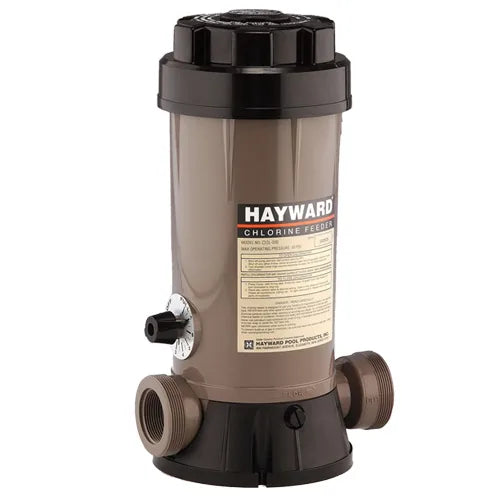

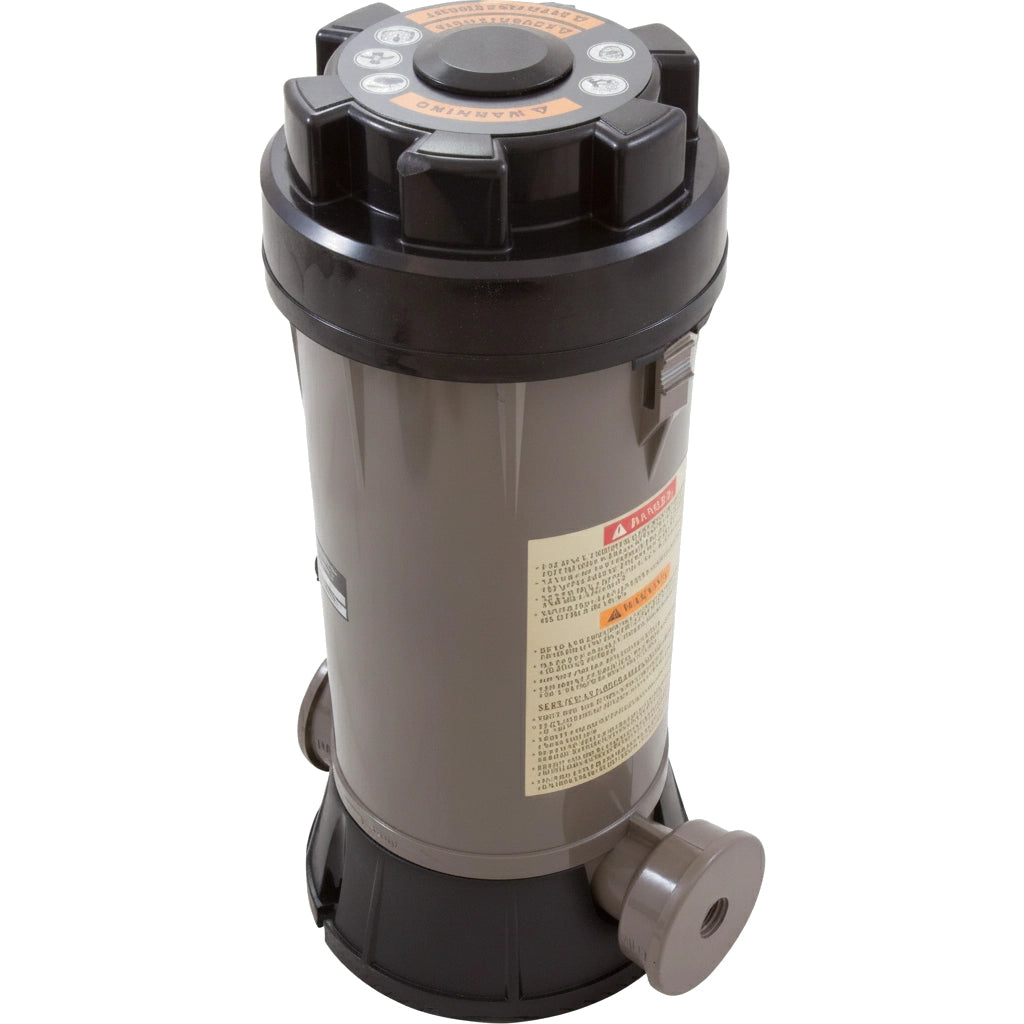

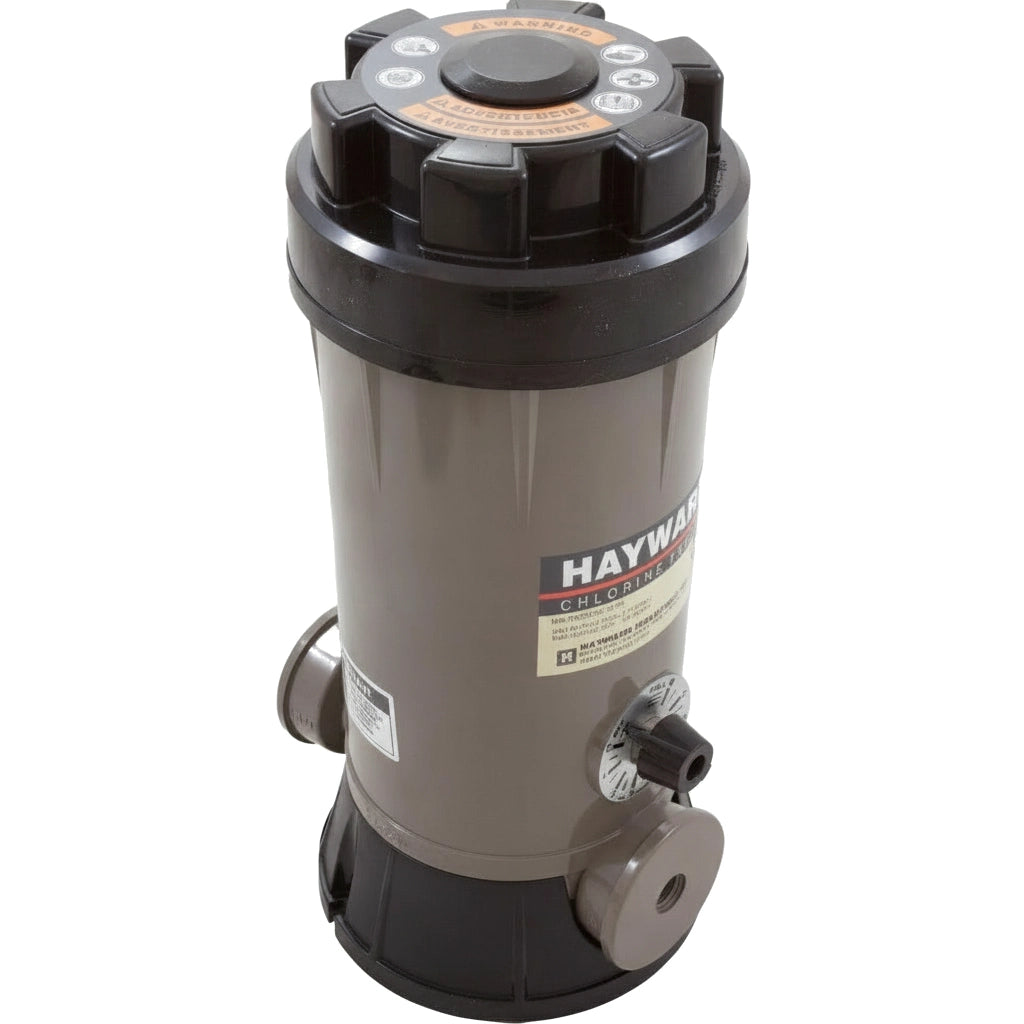

The Hayward CL220EF is an off-line automatic chlorine feeder that delivers dependable, dial-controlled tablet chlorination for in-ground pools — without cutting into your existing plumbing. Holding up to 9 lbs of slow-dissolving Trichlor tablets, it taps into your return line with saddle clamps and meters sanitizer at an adjustable rate you set.
IMPORTANT: TRICHLOR TABLETS ONLY
Use only slow-dissolving Trichlor tablets. NEVER use fast-dissolving tablets or Calcium Hypochlorite, and NEVER mix chemicals in this feeder — doing so can cause a dangerous reaction.
Key Features
- Adjustable dial control valve lets you fine-tune the chlorine feed rate to your pool's demand.

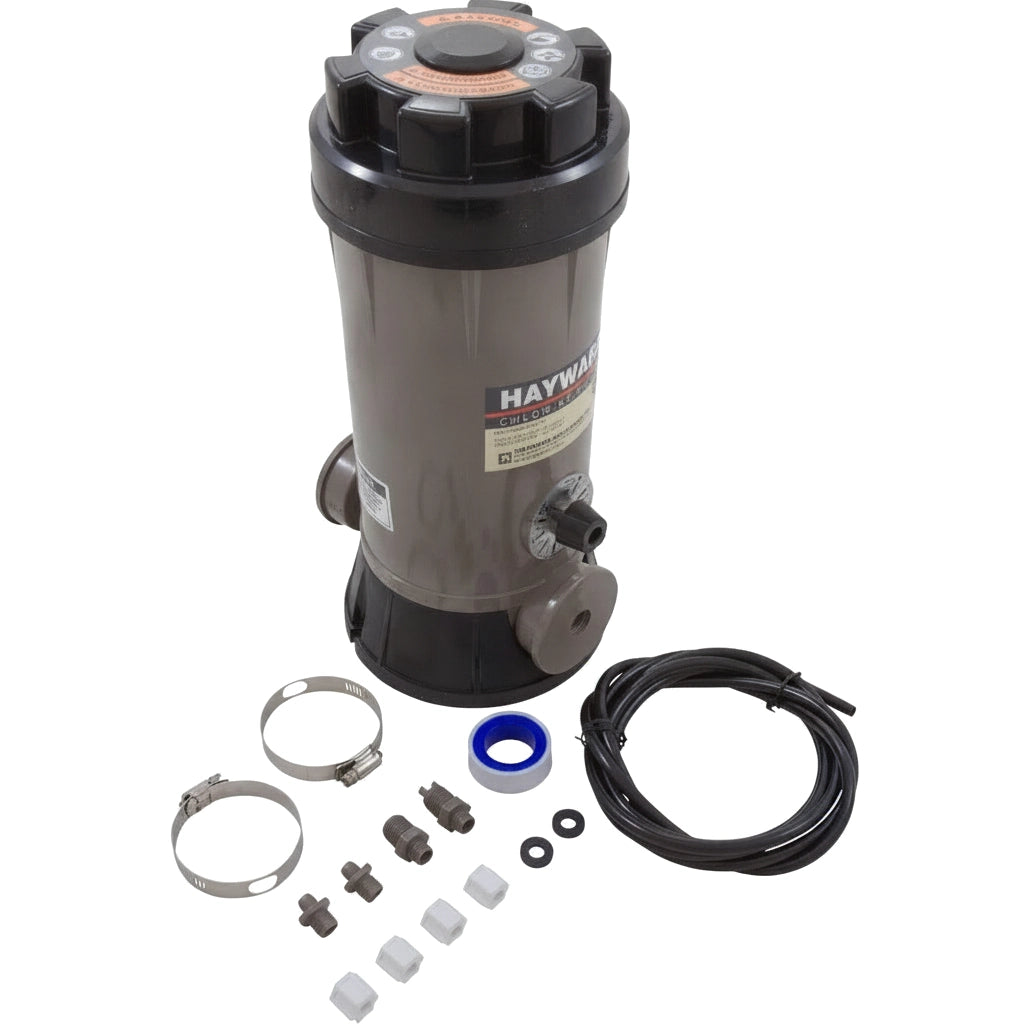

- Off-line, no-cut installation using saddle-clamp taps and 8 ft of included feed tubing (CLX220J) — fits 1-1/2 in. or 2 in. pipe.
- Included check valve (CLX220CV) installs in the feeder outlet port to help guard against chlorinated water backing up toward your equipment.
- Durable ABS body with a long-life X-Ring (Viton) seal and Easy-Lok threaded cover for simple, secure lid removal.
- Unique finger-release catch adds extra cover security.
Specifications
| Hayward Model | CL220EF |
| Feeder Type | Off-Line (saddle-clamp taps, no pipe cutting) |
| Chemical Type | Slow-dissolving Trichlor tablets only |
| Tablet Capacity | 9 lbs |
| Pool Type | In-Ground |
| Saddle Fitting Compatibility | 1-1/2 in. or 2 in. pipe O.D. |
| Tap Hole Size | 3/8 in. at inlet and outlet |
| Included | CLX220CV check valve; 8 ft feed tubing (CLX220J) |
| Cover O-Ring | CLX200K |
| Max System Pressure | Do not exceed 50 PSI |
| Material | ABS |
| Parts Warranty | 1-year |
Application
Install on the return line after the heater (or after the filter if no heater is present) — never before heating equipment. Maintain a chlorine residual of approximately 1.0–1.5 ppm, checking daily and adjusting the dial valve as needed.
Compatibility Note
Never install this feeder directly into copper plumbing, as pipe damage may occur. If your system has brass or bronze backwash valves, consult your dealer.
Poolaroo Pro Tip
When servicing the cover O-ring (CLX200K), lubricate it with a non-petroleum lubricant only, such as Hayward Jack's Lube #327 — petroleum products will degrade the seal. Before winter, drain all water, remove every tablet and tablet fragment, rinse thoroughly, and replace the cover and drain plug before freezing temperatures arrive.
Operating Manual
Product Documentation
Operating Manual
Full operating instructions, maintenance schedules, and troubleshooting guidance for this product.
Operating manuals are provided by the manufacturer and are subject to change. Always refer to the current manual for your specific model.
