Hayward Large Gear Drive for AquaNaut and The PoolCleaner 2-Wheel & 4-Wheel Suction Cleaners | PVXH007
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- PVXH007
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

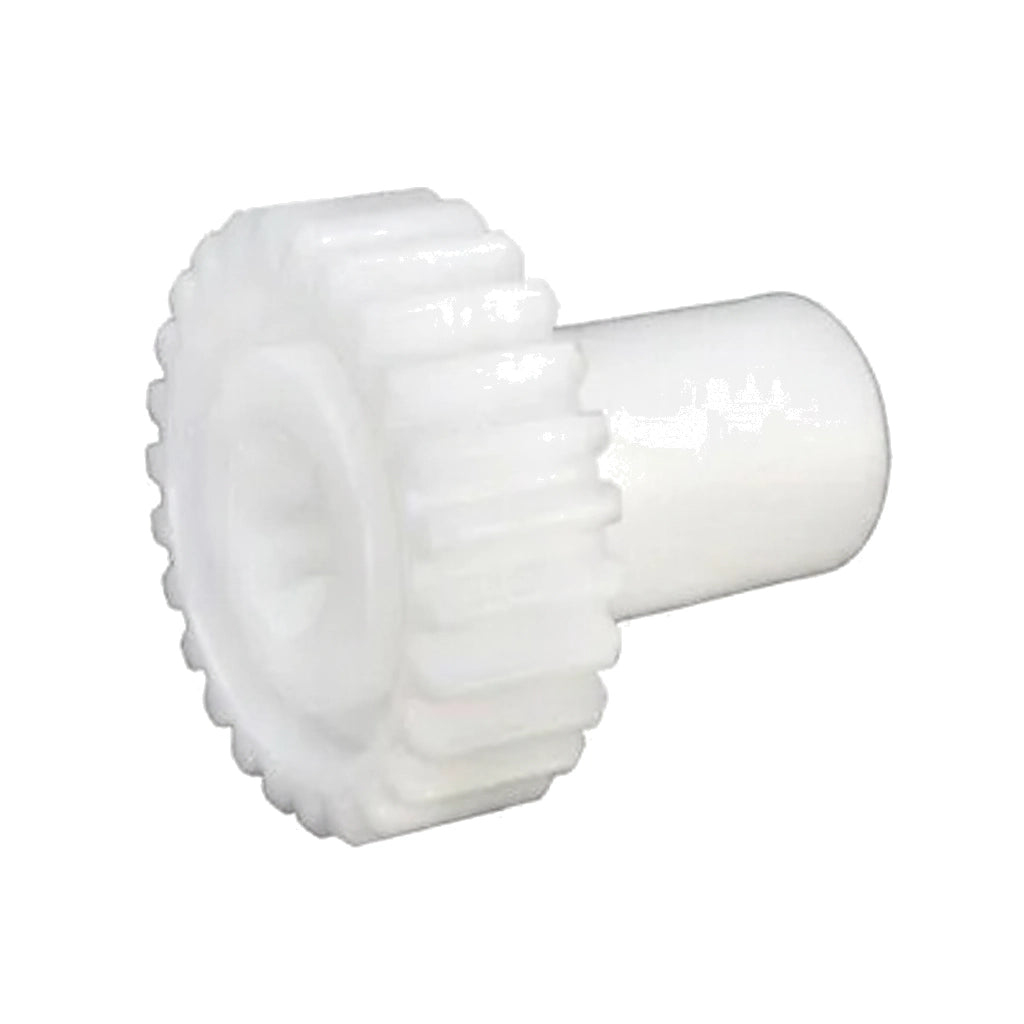

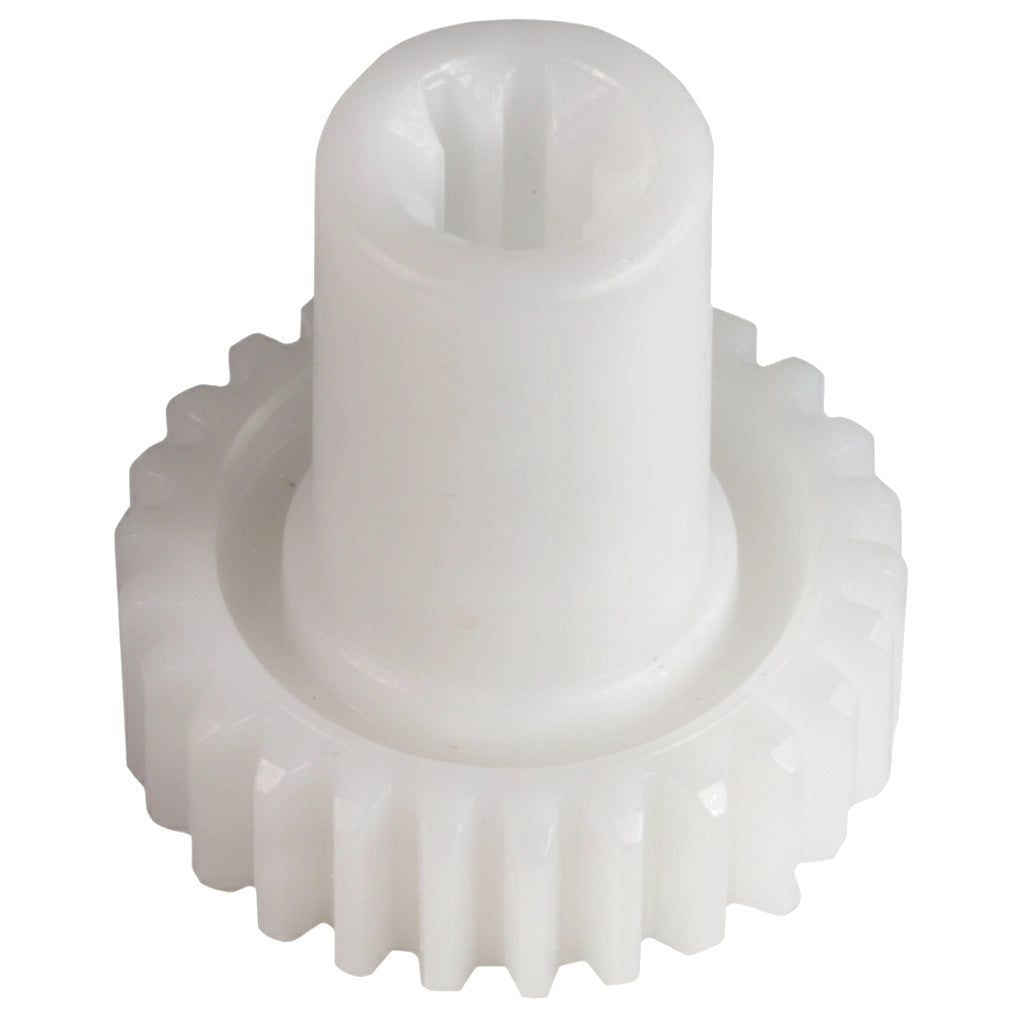

The Hayward Large Gear Drive (PVXH007) is the OEM replacement drive gear for Hayward AquaNaut and The PoolCleaner suction-side cleaners in both 2-wheel and 4-wheel configurations.
This gear transfers drive force within the cleaner's internal gear train, keeping the wheels turning at the correct rate and direction for consistent pool coverage. Replacing a worn or broken drive gear restores proper wheel engagement and forward/reverse movement to the cleaner.
Specifications
| Hayward Part Number | PVXH007 |
| UPC | 610377289733 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | AquaNaut 200 – 2-Wheel Drive, Pools up to 16' x 32' | W3PHS21CST | v2 position #5 |
| Hayward | AquaNaut 400 – 4-Wheel Drive, Pools up to 20' x 40' | W3PHS41CST | v2 position #5 |
| Hayward | The PoolCleaner 2-Wheel Suction Cleaner, Limited Edition Gray | W3PVS20GST | v2 position #7 |
| Hayward | The PoolCleaner 2-Wheel Suction Cleaner, White | W3PVS20JST | v2 position #7 |
| Hayward | The PoolCleaner 4-Wheel Suction Cleaner, Limited Edition Gray | W3PVS40GST | v2 position #7 |
| Hayward | The PoolCleaner 4-Wheel Suction Cleaner, White | W3PVS40JST | v2 position #7 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the drive gear, inspect all adjacent gears in the gear train at the same time. A worn drive gear often accelerates wear on the gears it meshes with, and replacing only the failed component while leaving worn neighbours in place shortens the service life of the new gear. Confirm the position reference (v2 position #5 for AquaNaut models, v2 position #7 for The PoolCleaner models) against your cleaner's exploded diagram before disassembly to ensure you are targeting the correct gear.
