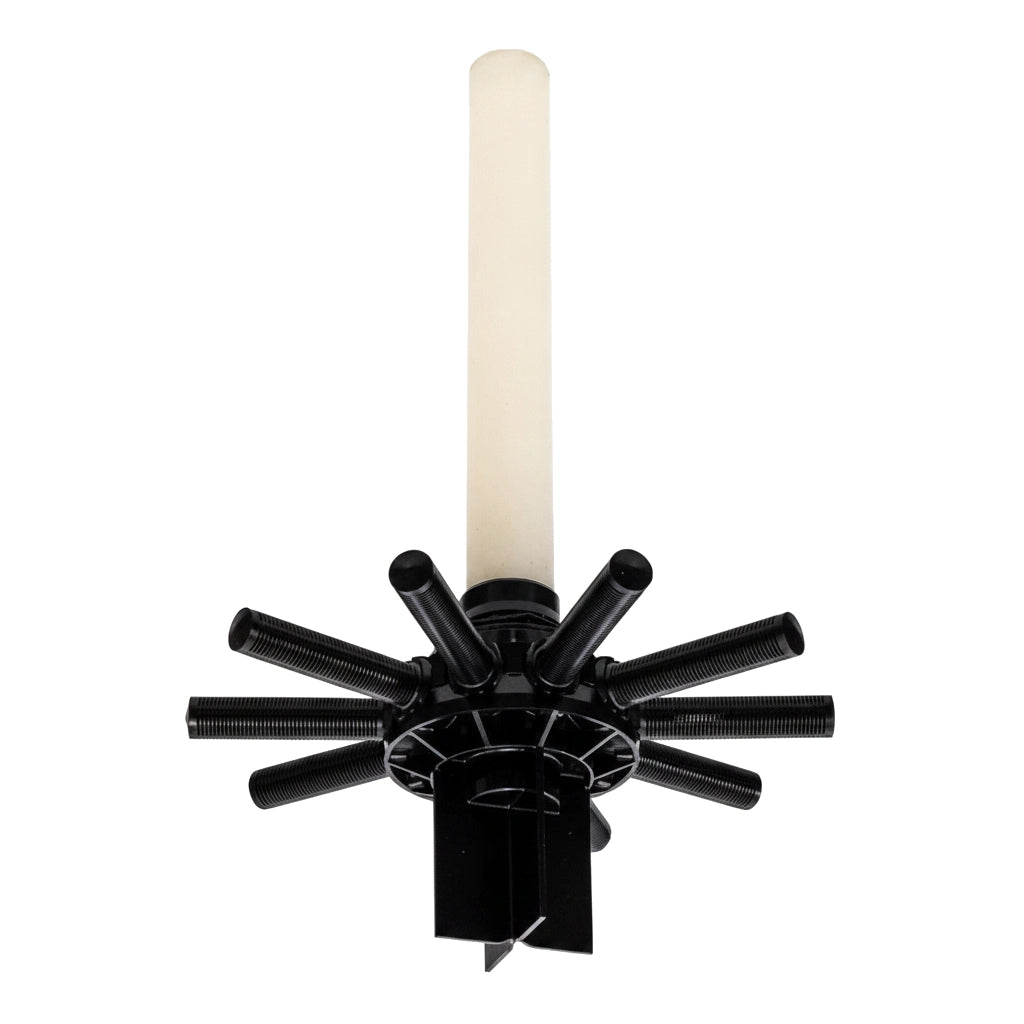

Hayward Folding Lateral Assembly 18" for ProSeries Sand Filters W3S180T W3S210T W3S220T W3S244T W3S244T2 W3S270T | SX180DAS
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX180DAS
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

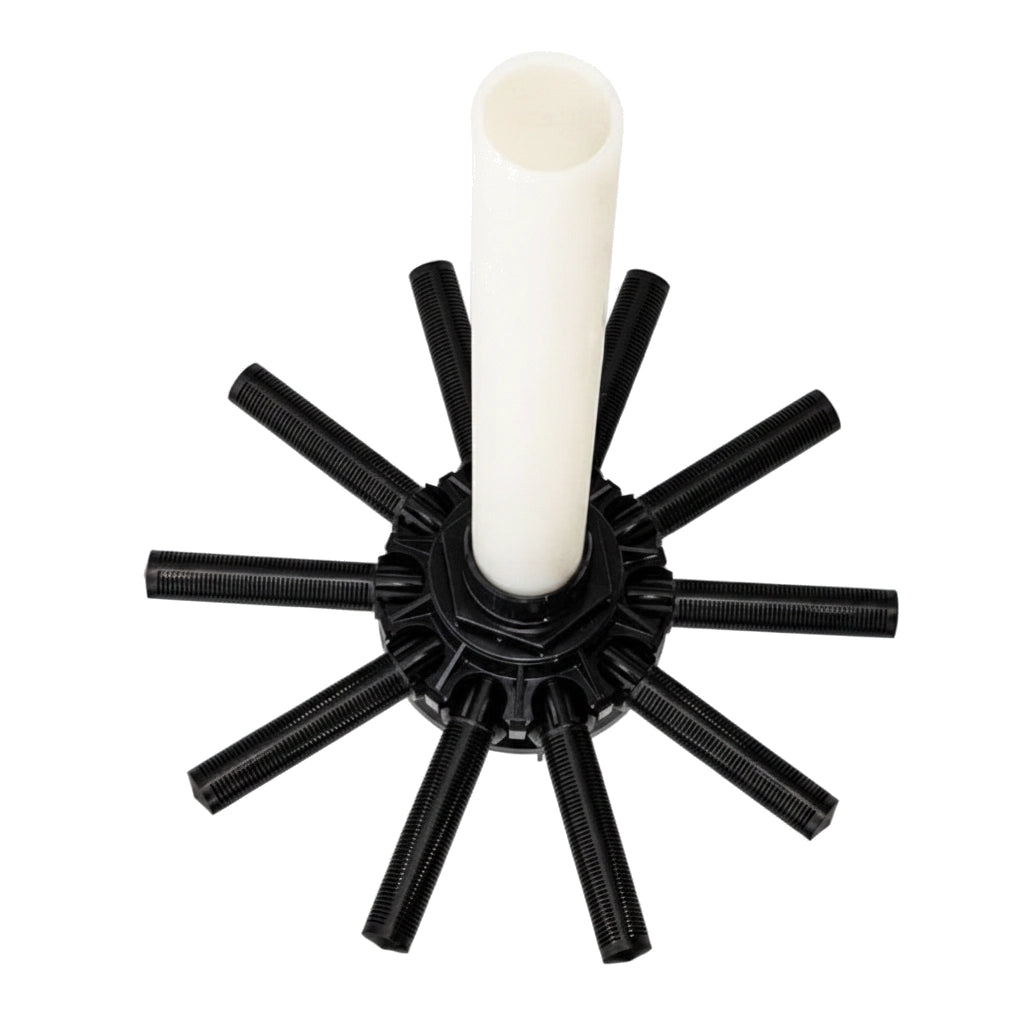

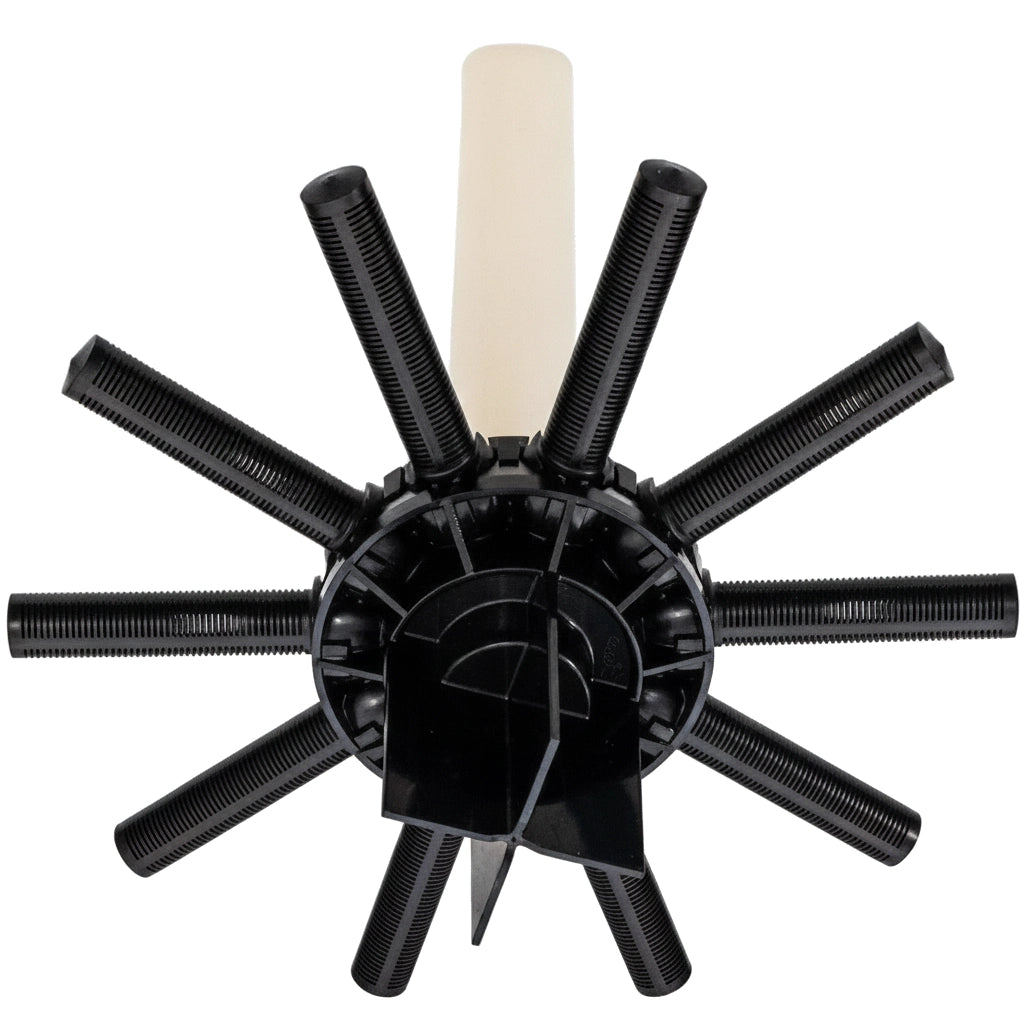

The Hayward Folding Lateral Assembly 18" (SX180DAS) is the OEM replacement lateral assembly for Hayward ProSeries top-mount sand filters ranging from 18" to 27" tank diameter.
The folding lateral assembly sits at the base of the filter tank and collects filtered water after it has passed through the sand bed, directing clean water back to the return line while preventing sand from passing through. When a lateral cracks or becomes blocked, water clarity and filter efficiency are directly affected — replacing this assembly restores proper filtration performance.
Specifications
| Hayward Part Number | SX180DAS |
| Size | 18" |
| UPC | 610377446976 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | ProSeries 18" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S180T | — |
| Hayward | ProSeries 21" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S210T | — |
| Hayward | ProSeries 22" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S220T | — |
| Hayward | ProSeries 24" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S244T | — |
| Hayward | ProSeries 24" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S244T2 | — |
| Hayward | ProSeries 27" Sand Filter - Top Mount (1½" VariFlo Valve Included) | W3S270T | — |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the lateral assembly, take the opportunity to inspect the standpipe and hub assembly for hairline cracks, and check that the underdrain manifold seats fully and evenly before adding fresh filter sand. Refilling sand over a misaligned lateral assembly is a common source of sand passing through to the pool.
