Hayward Folding Lateral Assembly for ProSeries Sand Filters W3S180T W3S210T W3S220T W3S244T W3S244T2 W3S270T | SX244DAS
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX244DAS
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

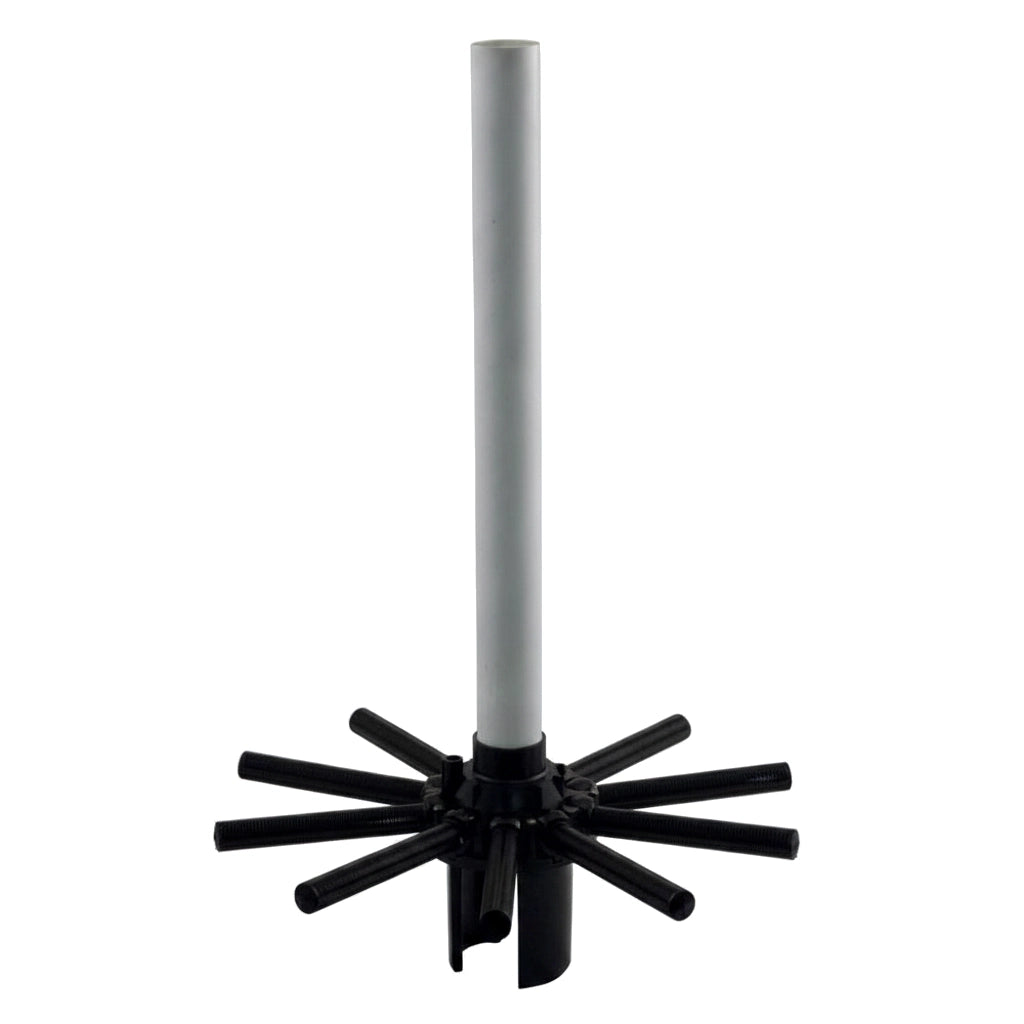

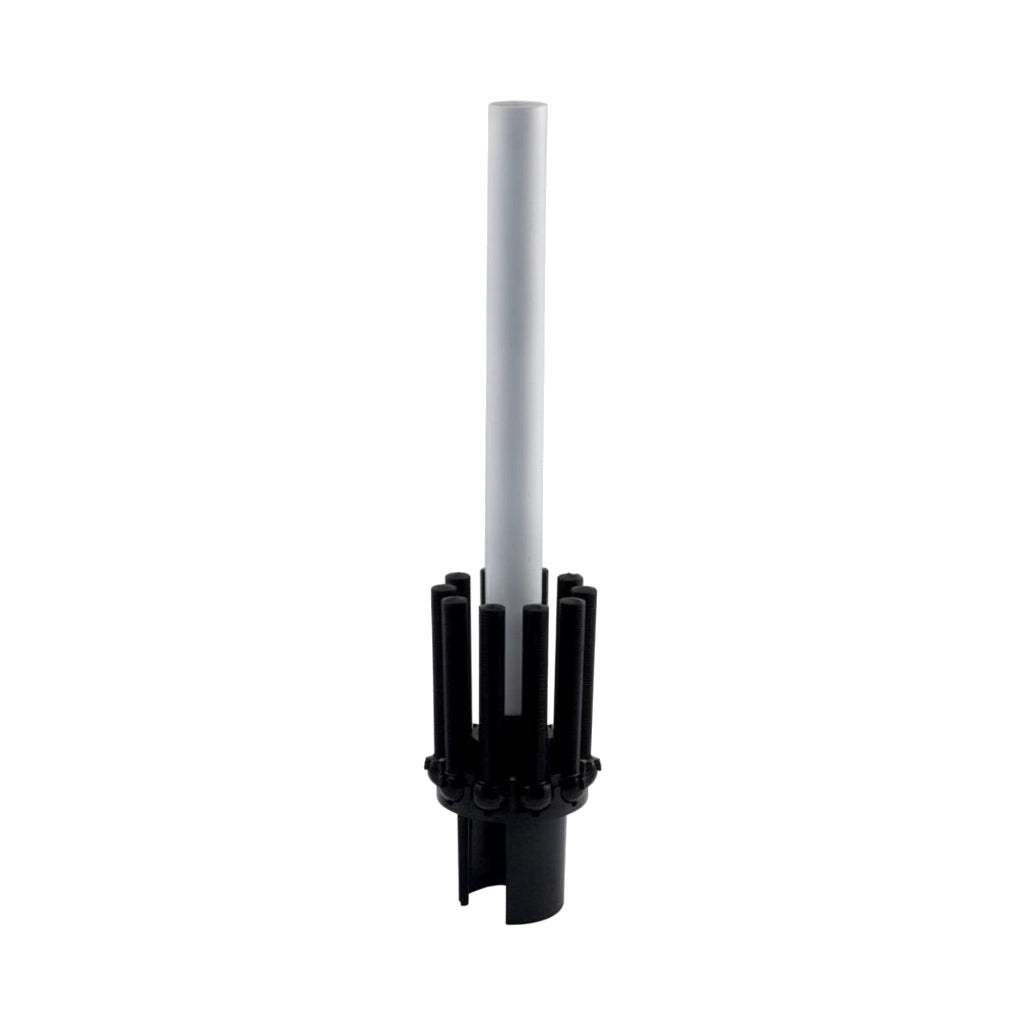

The Hayward Folding Lateral Assembly (SX244DAS) is the OEM replacement lateral assembly for Hayward ProSeries top-mount sand filters ranging from 18" to 27" in diameter.
The lateral assembly sits at the base of the filter tank and distributes water flow evenly through the filter sand bed. When laterals crack, clog, or break, sand bypasses the filtration media and passes directly into the pool — making this a critical service component for restoring proper filtration performance.
Specifications
| Hayward Part Number | SX244DAS |
| Description | Folding Lateral Assembly, 24" Wide |
| UPC | 610377447102 |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Hayward | ProSeries 18" Sand Filter — Top Mount (VariFlo XL Control Valve Included) | W3S180T | Position v1 #6 |
| Hayward | ProSeries 21" Sand Filter — Top Mount (VariFlo XL Control Valve Included) | W3S210T | Position v1 #6 |
| Hayward | ProSeries 22" Sand Filter — Top Mount (1½" VariFlo Valve Included) | W3S220T | Position v1 #6 |
| Hayward | ProSeries 24" Sand Filter — Top Mount (1½" VariFlo Valve Included) | W3S244T | Position v1 #6 |
| Hayward | ProSeries 24" Sand Filter — Top Mount (2" VariFlo Valve Included) | W3S244T2 | Position v1 #6 |
| Hayward | ProSeries 27" Sand Filter — Top Mount (1½" VariFlo Valve Included) | W3S270T | Position v1 #6 |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the lateral assembly, drain the filter tank completely and inspect the filter standpipe and hub for cracks before reinstalling. Sand that has already passed into the pool lines is a sign the laterals have been compromised for some time — backwash the system thoroughly after reassembly and run the filter on waste before returning to the normal filter cycle to clear any residual sand from the plumbing.
