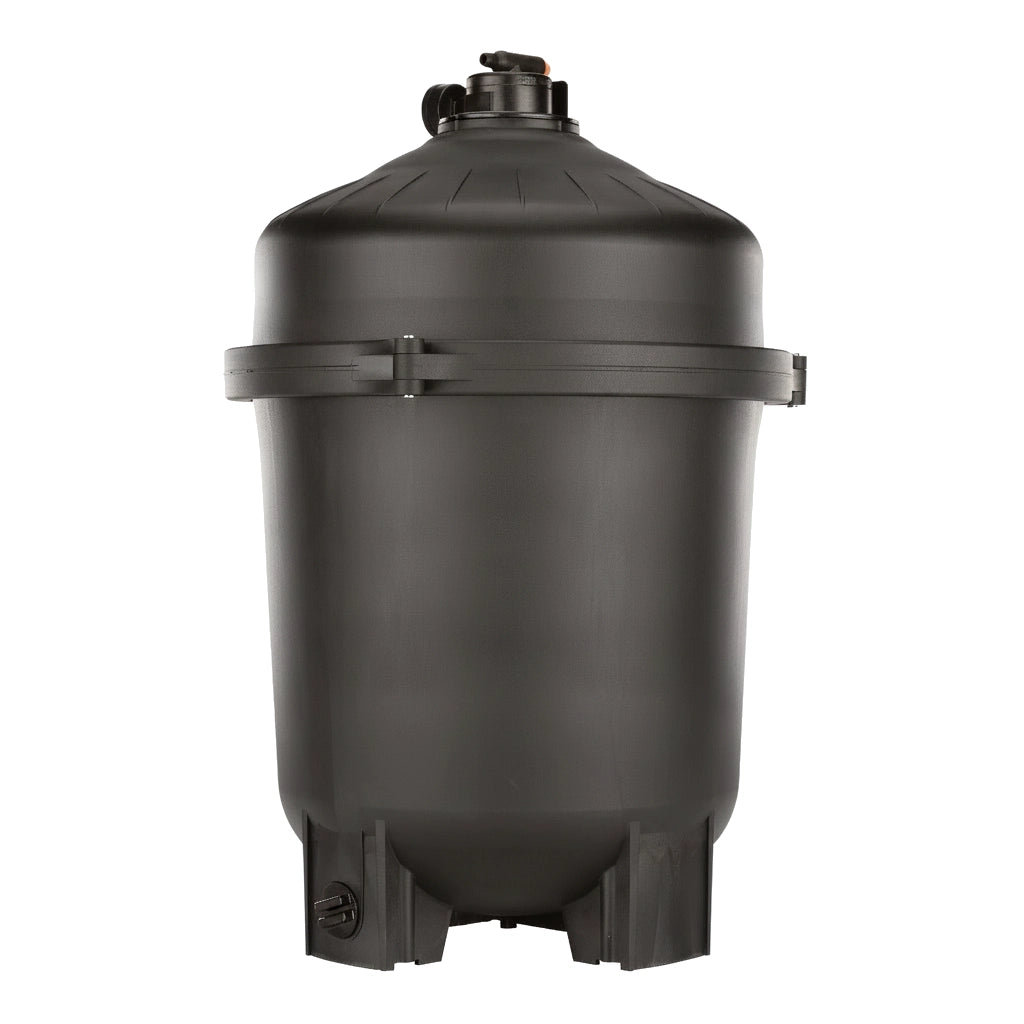

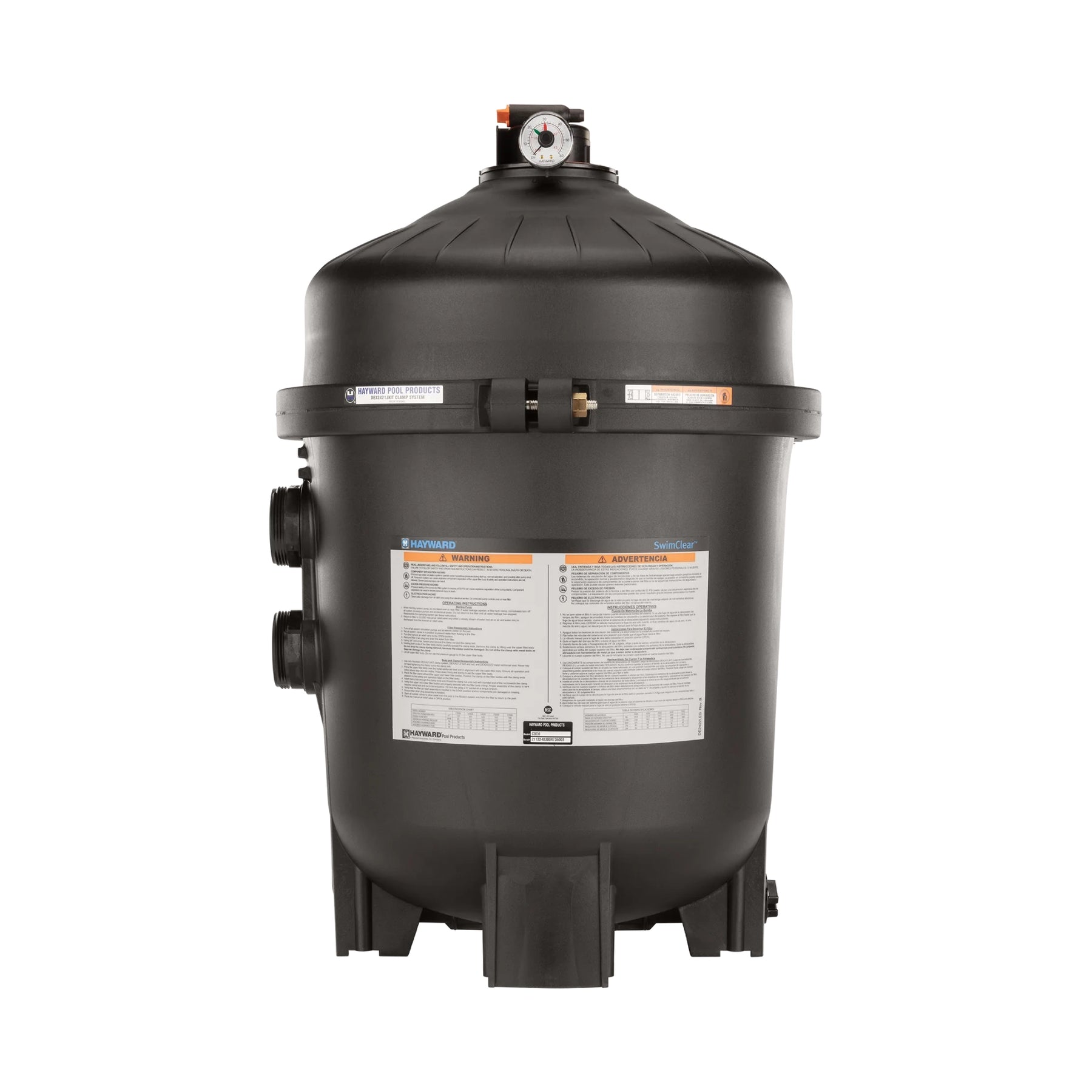

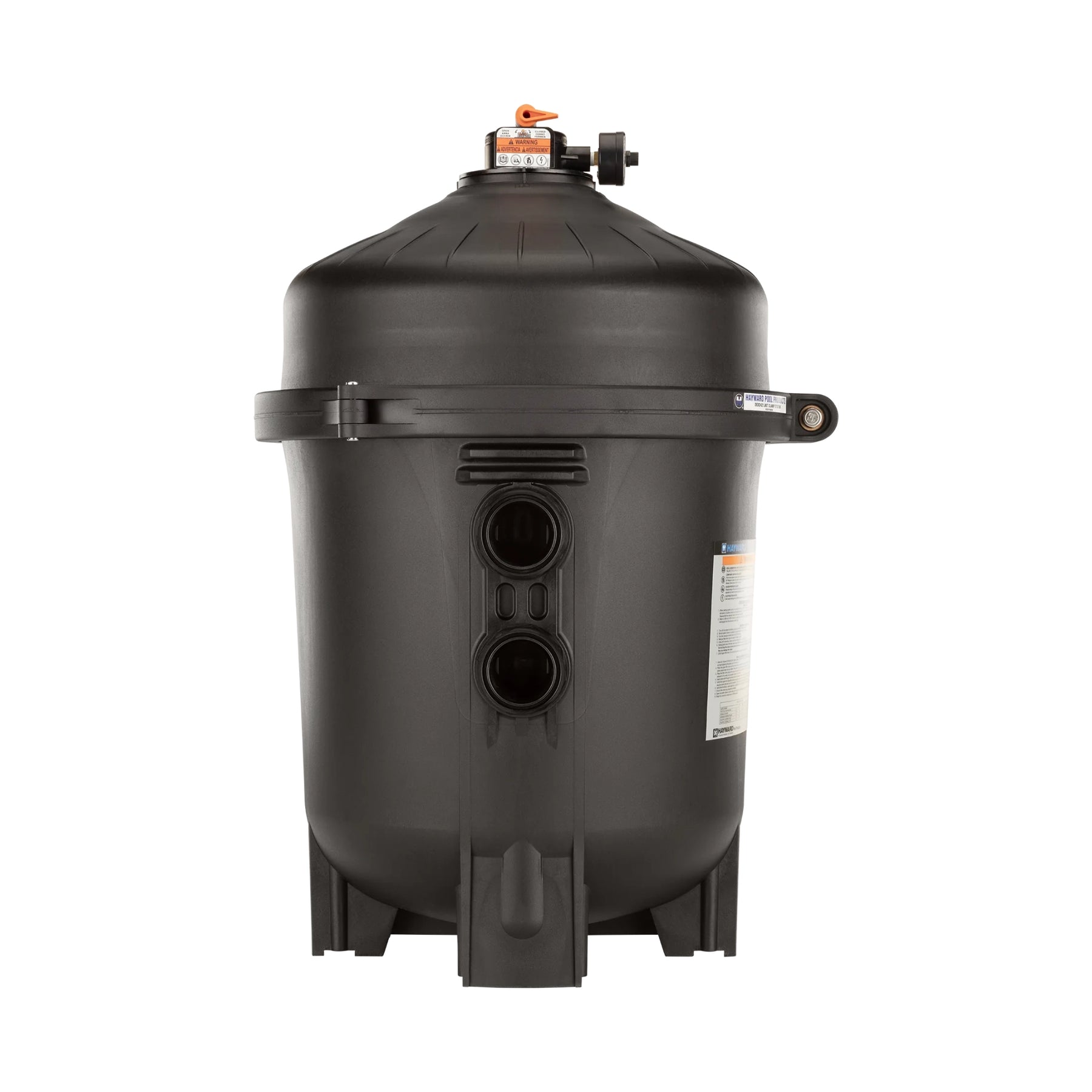

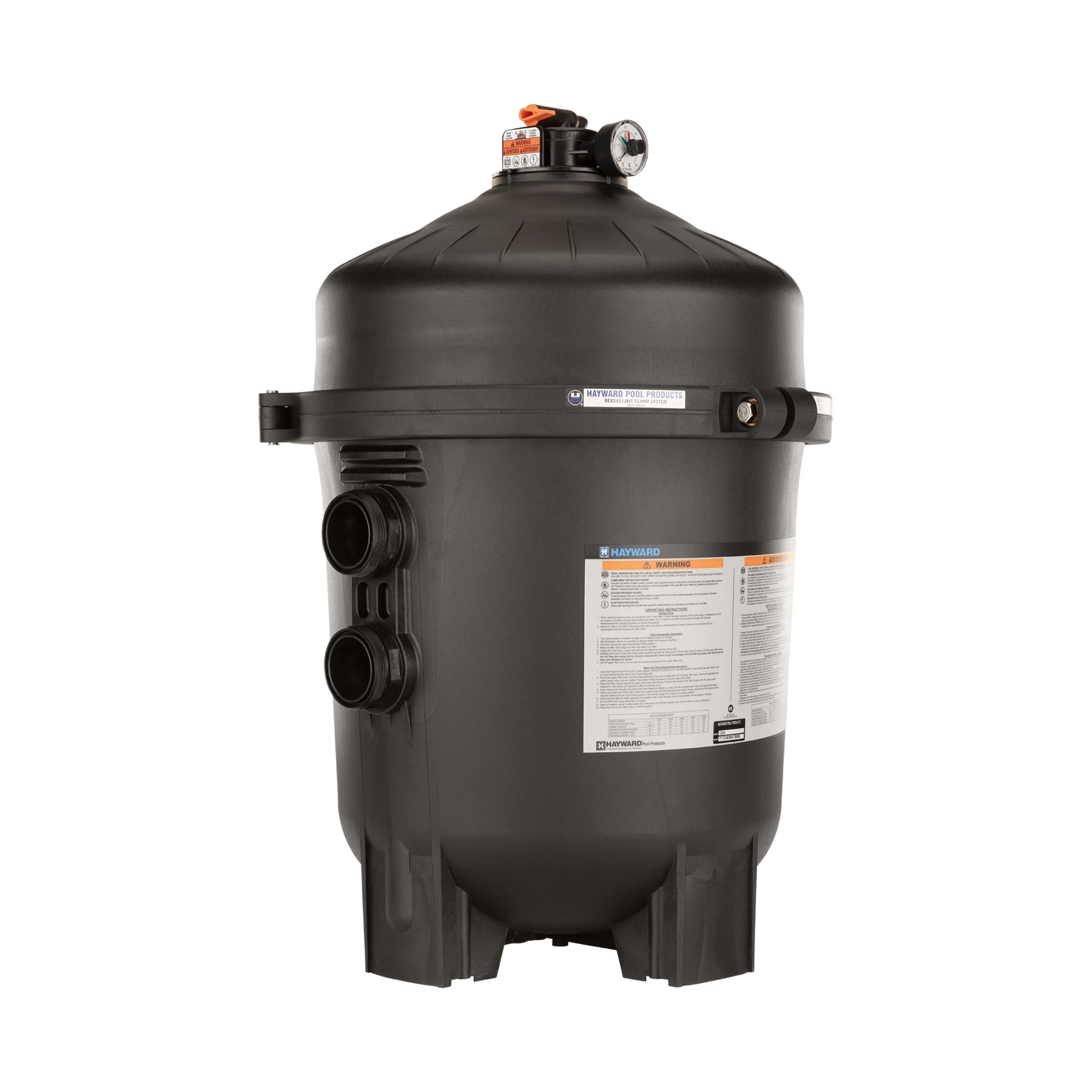

Hayward 325 SqFt SwimClear™ Cartridge Filter | W3C3030

SwimClear Multi Element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or back-washing, while the industry's lowest head loss reduces energy costs.

Utilizing a cluster of reusable cartridge elements, this SwimClear filter offers 325 square feet of heavy-duty dirt-holding capacity for extra-long filter cycles, up to an entire season without cleaning. SwimClear filters will provide years of trouble-free operation and crystal clear, sparkling water.

Features and Benefits

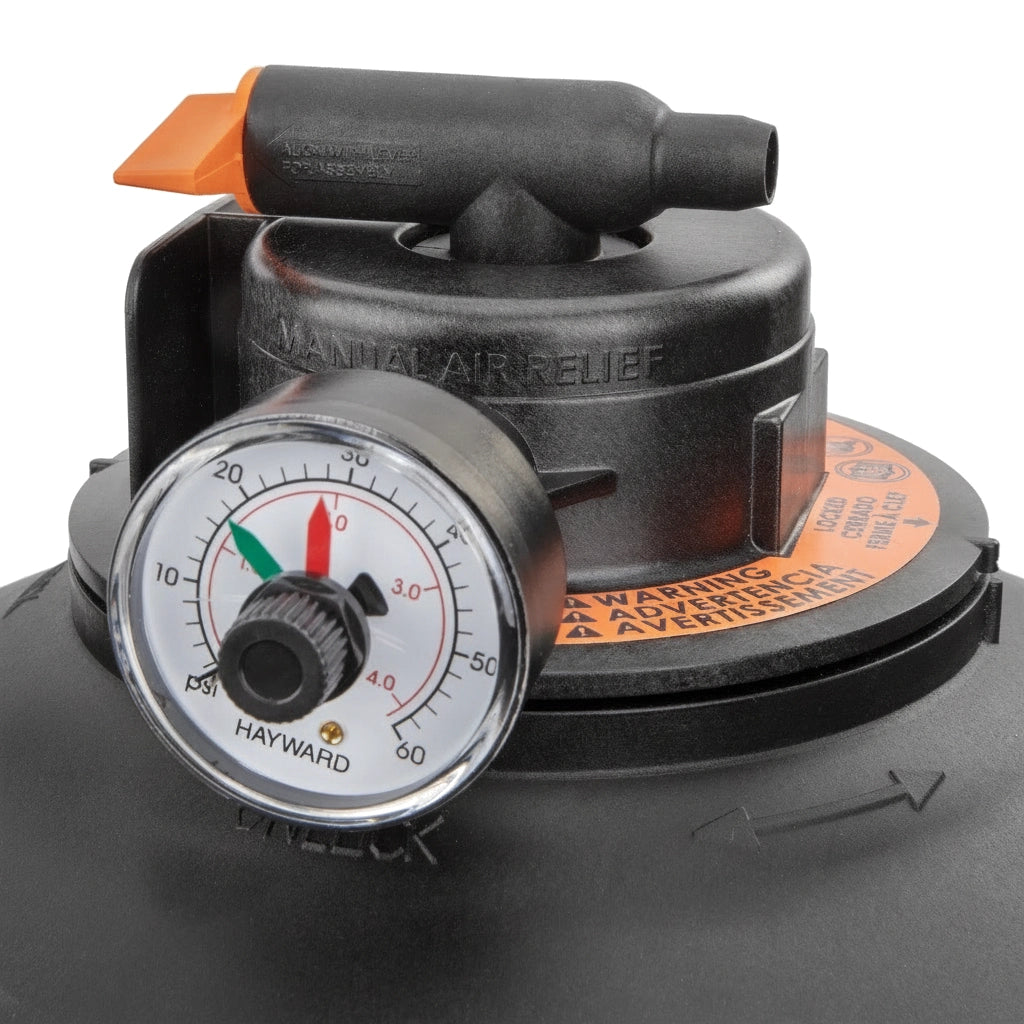

• High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
• Filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
• Self-aligned tank top and bottom make access to serving the Quad-Cluster™ cartridge elements fast and simple

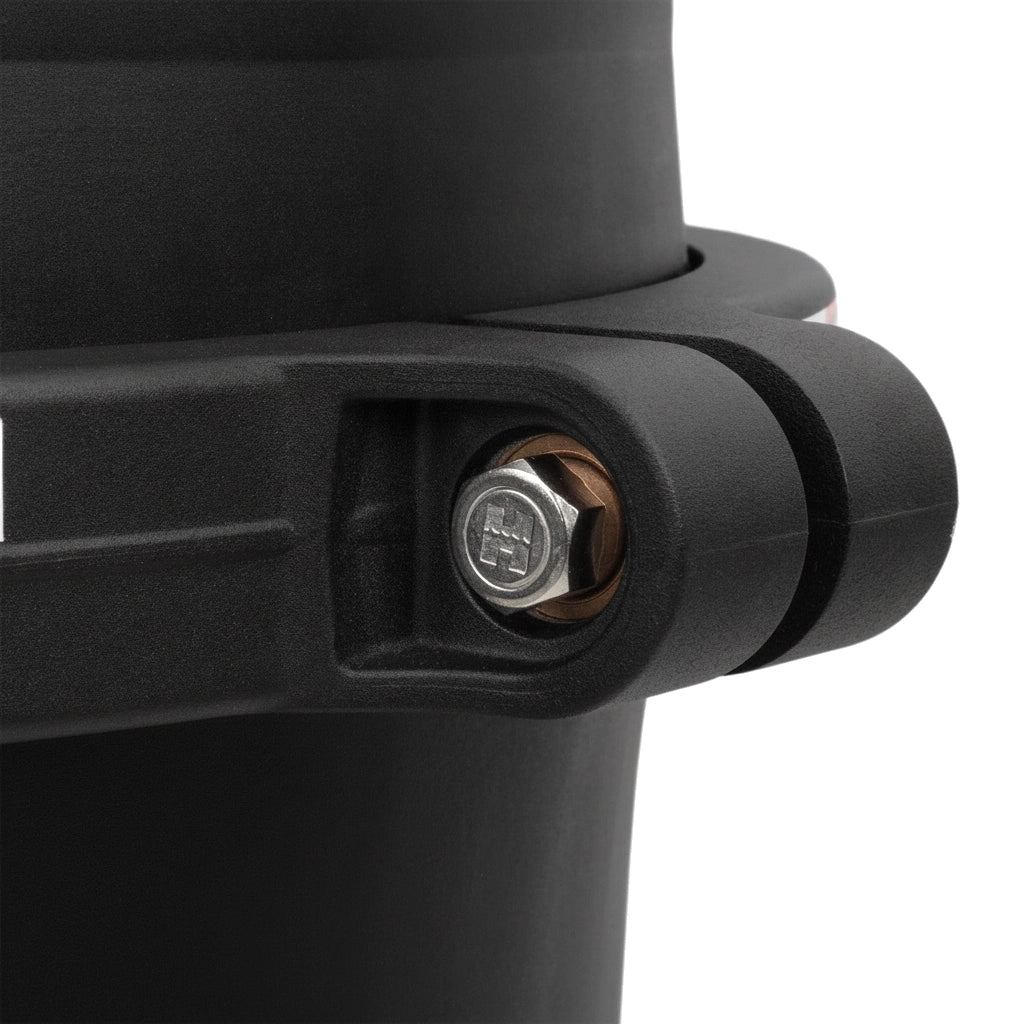

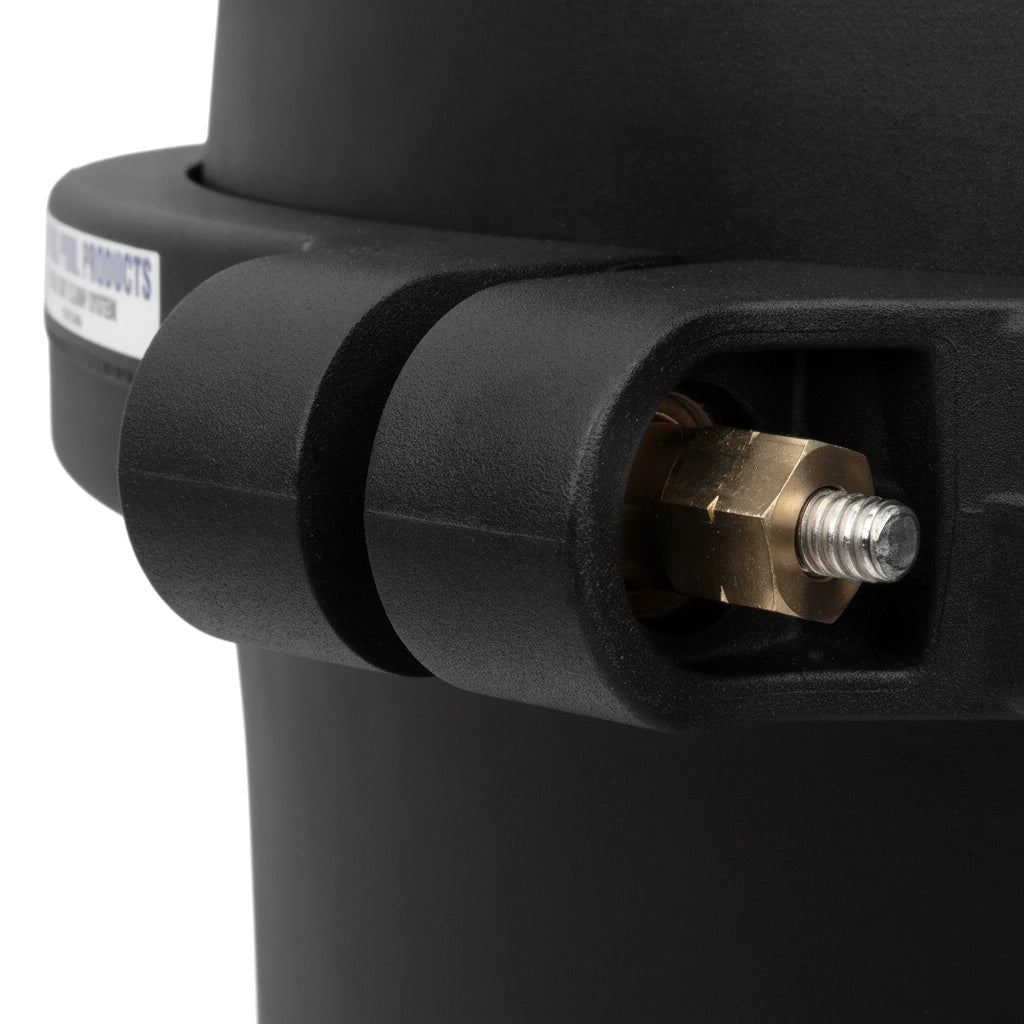

• Heavy-duty, tamper-proof, one-piece clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
• Top manifold configuration provides excellent filtration and hydraulic performance
  Non-corrosive top closure plate prevents elements from lifting and allowing unfiltered water to by-pass into pool or spa during operation
• Quad-Cluster of high-quality polyester cartridge elements provide 325 square feet of filter area for extra dirt-holding capacity and long filter cycles
• 2" full-flow internal piping and plumbing for less resistance to flow and maximum performance

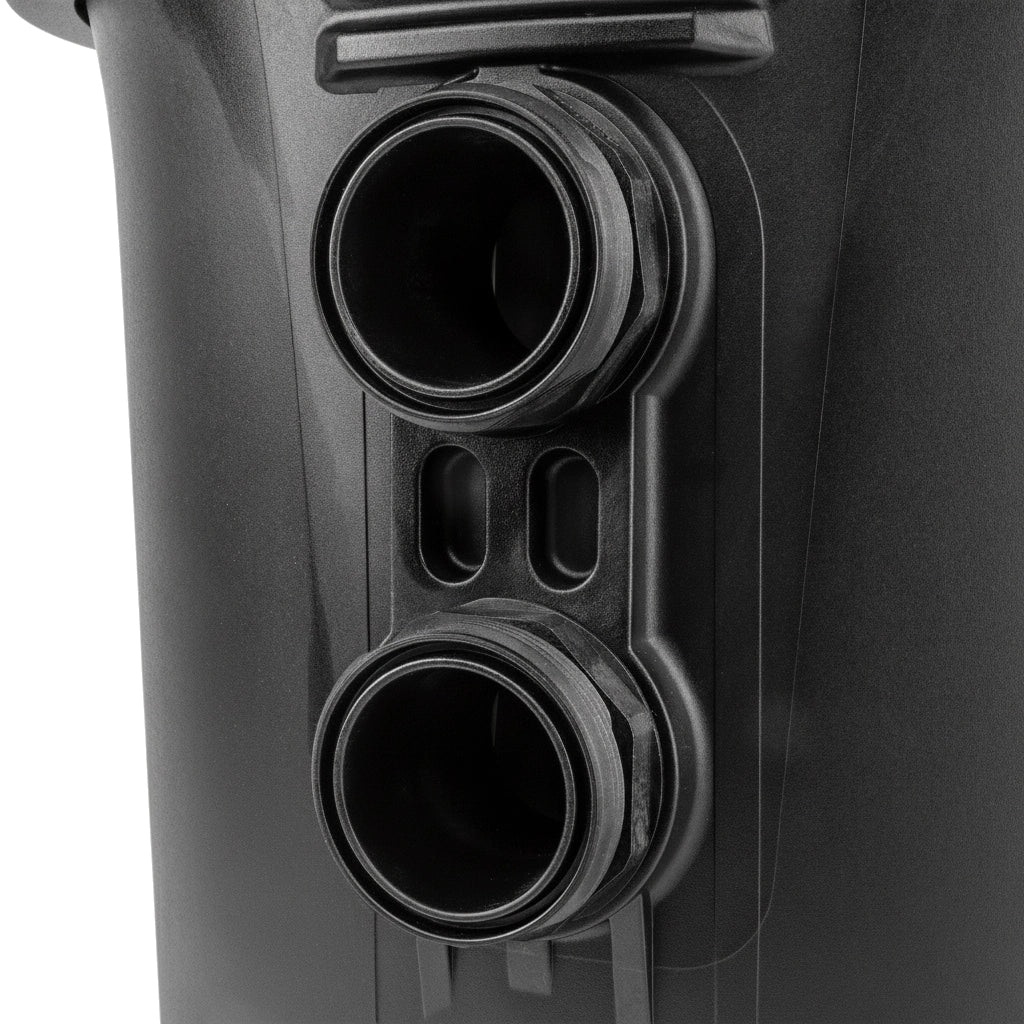

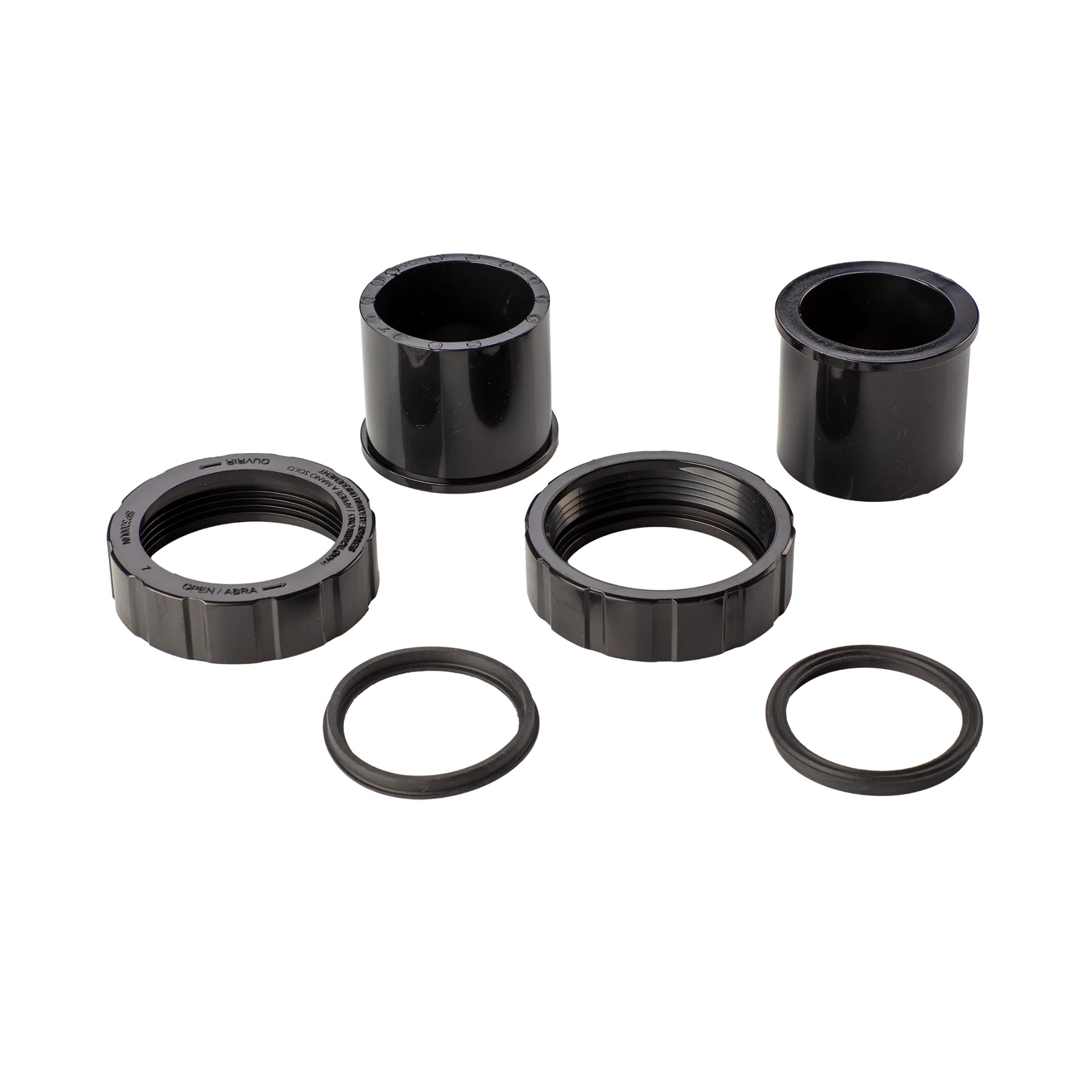

• PVC union coupling connection accepts 2" or 2 1/2" piping for plumbing versatility and hydraulic efficiency
• Full size 1 1/2" integral drain allows for quicker and easier flushing of tank

Specifications

• Residential Design Flow Rate: 150
• Drain Port Size: 1.5"
• Footprint: 26" x 26"
• Parts Warranty: 1 year
• Pool Type: In Ground
• Product Overall Dimensions: 34.5 " x 24 " x 24 "
• Turnover, 10 hours: 73,200 Gallons
• Turnover, 8 hours: 58,560 Gallons
• Valve not included
