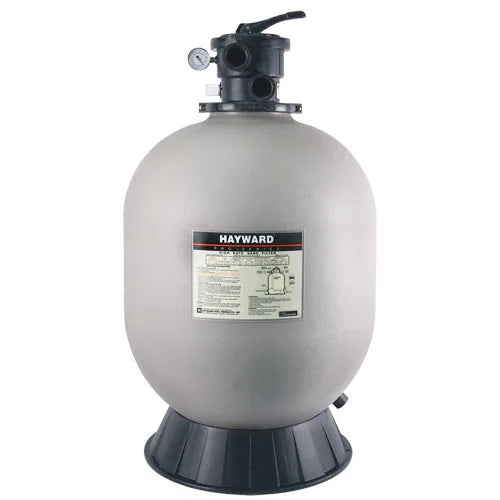

Hayward 27" Pro Series Top Mount Sand Filter with 1.5" Valve | W3S270T

ProSeries™ filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability.

ProSeries high-rate sand filters are molded of durable, corrosion-proof material for long-lasting performance. They feature attractive, unitized tank construction for years of trouble-free operation with only minimal care. ProSeries sets the standard for performance, value and dependability.

Features and Benefits

• Flange clamp design allows 360° rotation of valve to simplify plumbing
• Integral top diffuser ensures even distribution of water over the top of the sand media bed. Full-size internal piping provides smooth, free-flowing performance
• Large pressure sand/water drain for rapid winterizing or servicing
• Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all-weather performance
• 6- or 7-position Hayward® 2" VariFlo® control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when backwash cycle is completed
• Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability

Specifications

• Pool Type: In Ground
• Design Flow Rate: 74 gpm
• Effective Filtration Area: 3.7 sqft
• Footprint:  27-1/2 x 27-1/2"
• Warranty - Parts: 1 year
• Pressure Gauge: Yes
• Product Dimensions: 43 " x 27.5 " x 27.5 "
• Product Weight (without media/water): 68 lbs
• Sand Capacity: 500 lbs
• Tank Material: Polymeric Resin
• Turnover - 10 Hours: 44,400 GPM
• Turnover - 8 hours 35,520 GPM
• Valve Included: 1-1/2" VariFlow
• Vertical Clearance - Filters: 18"
