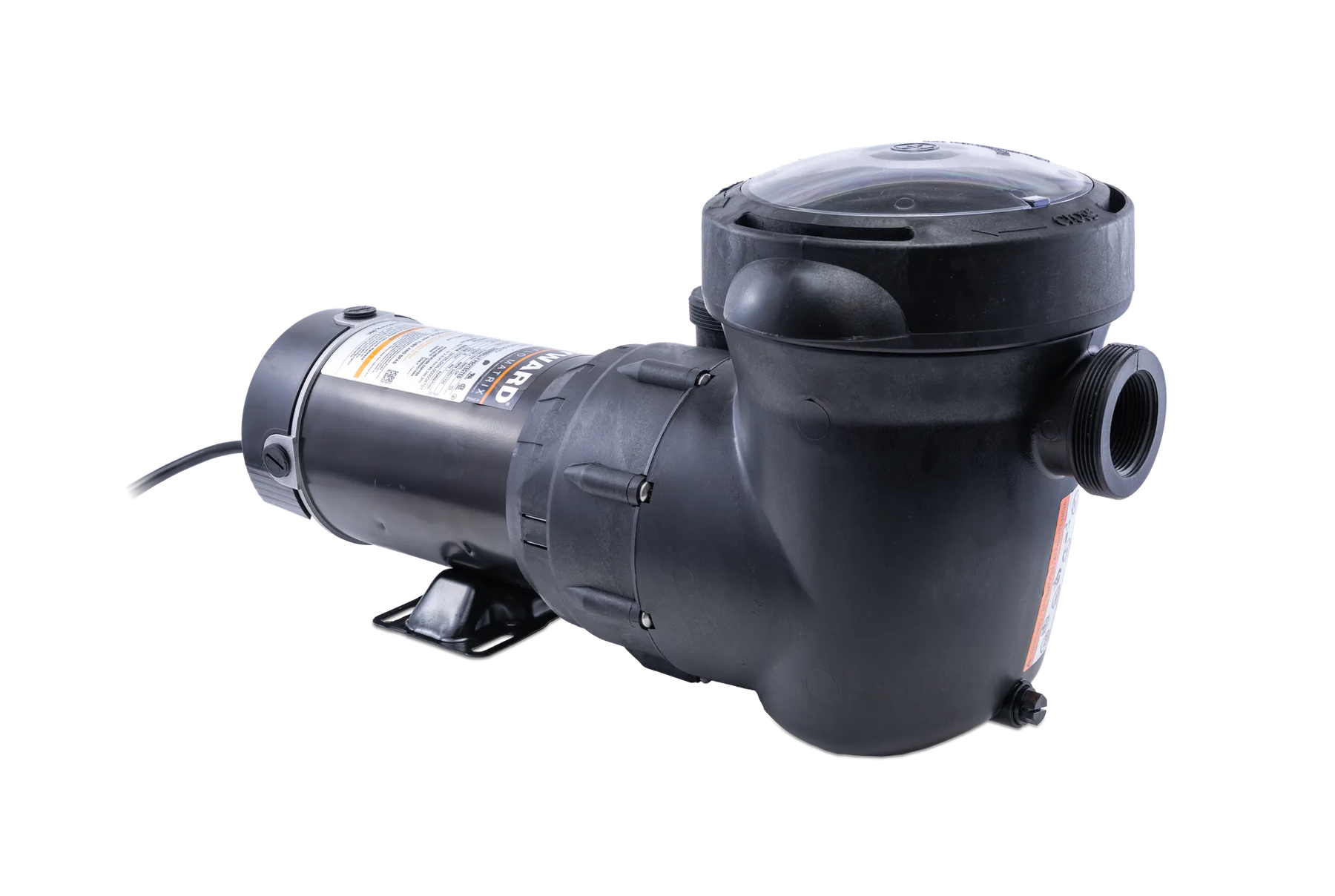

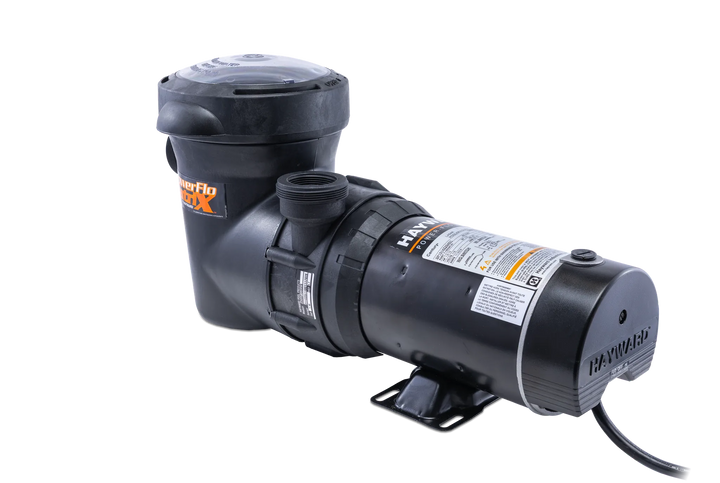

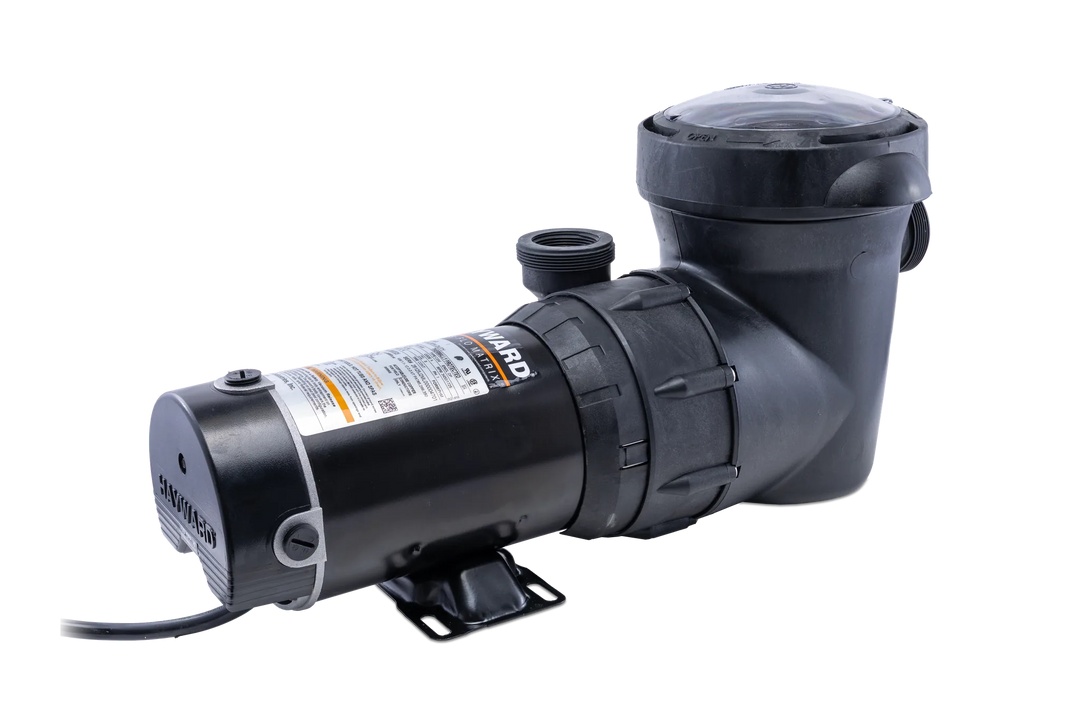

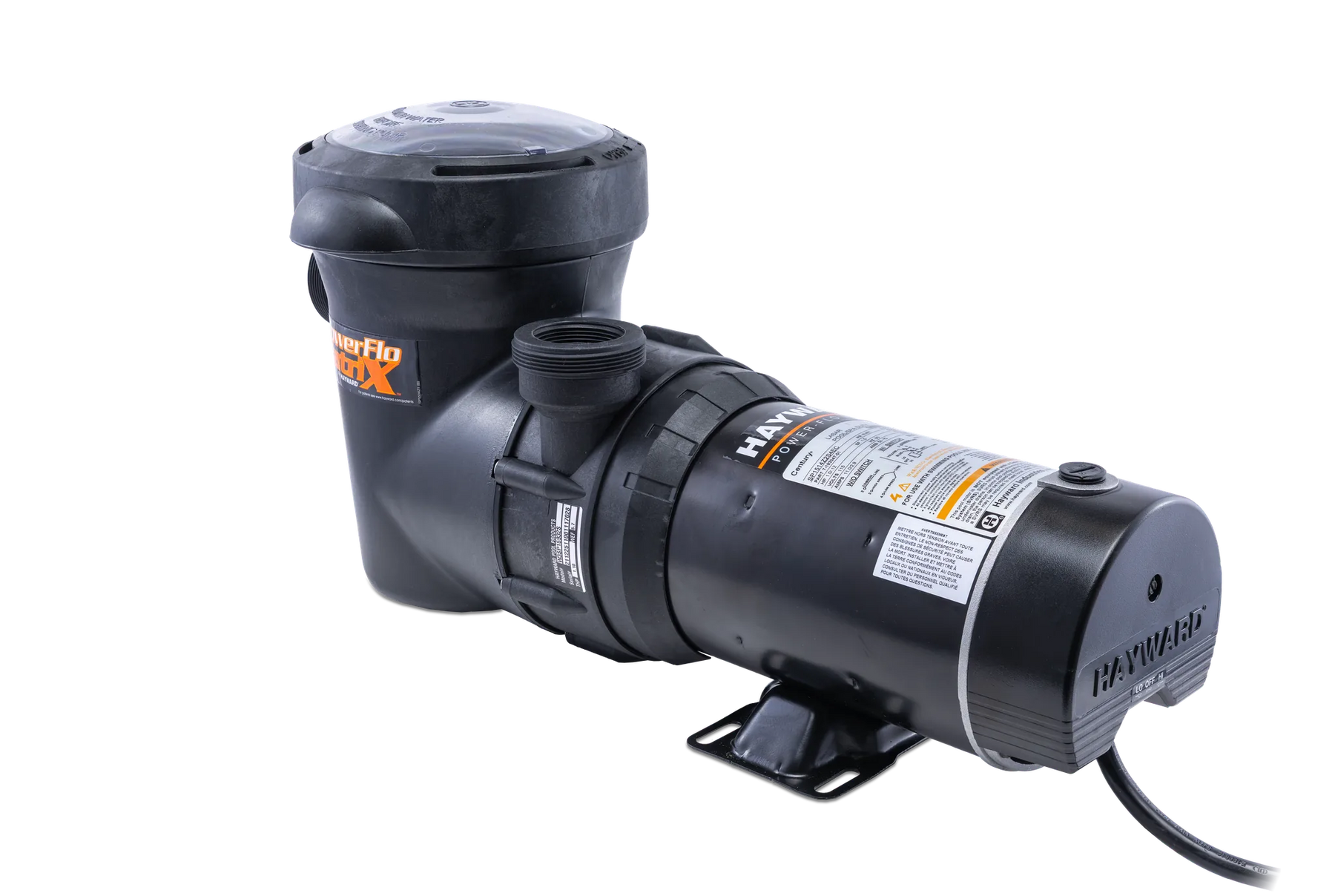

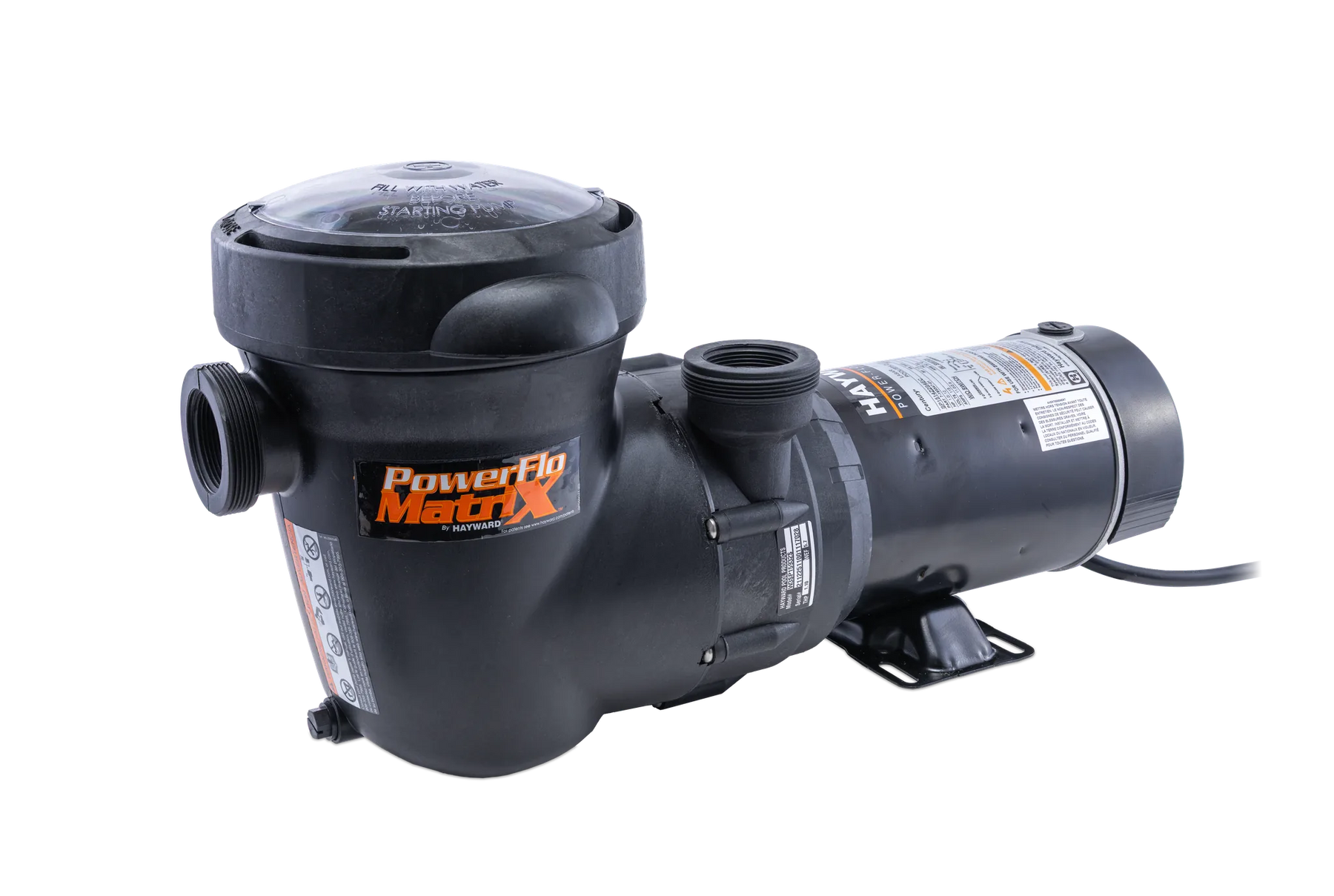

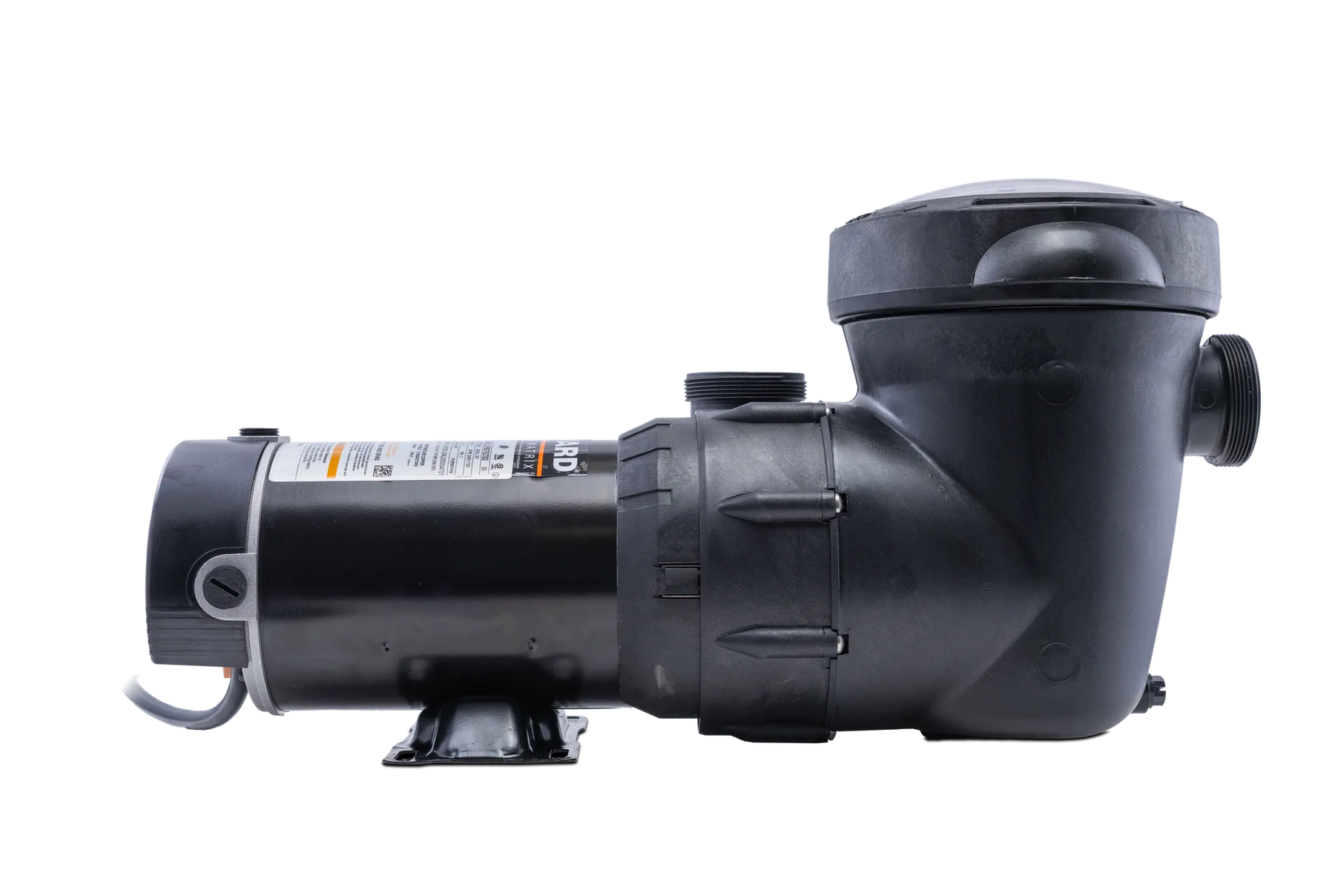

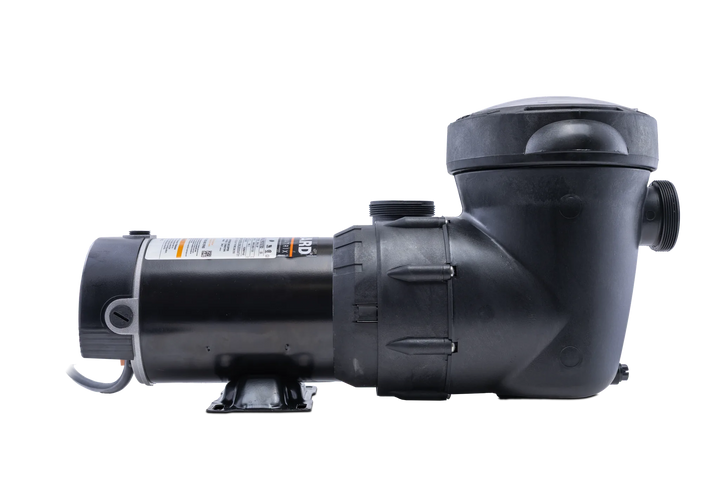

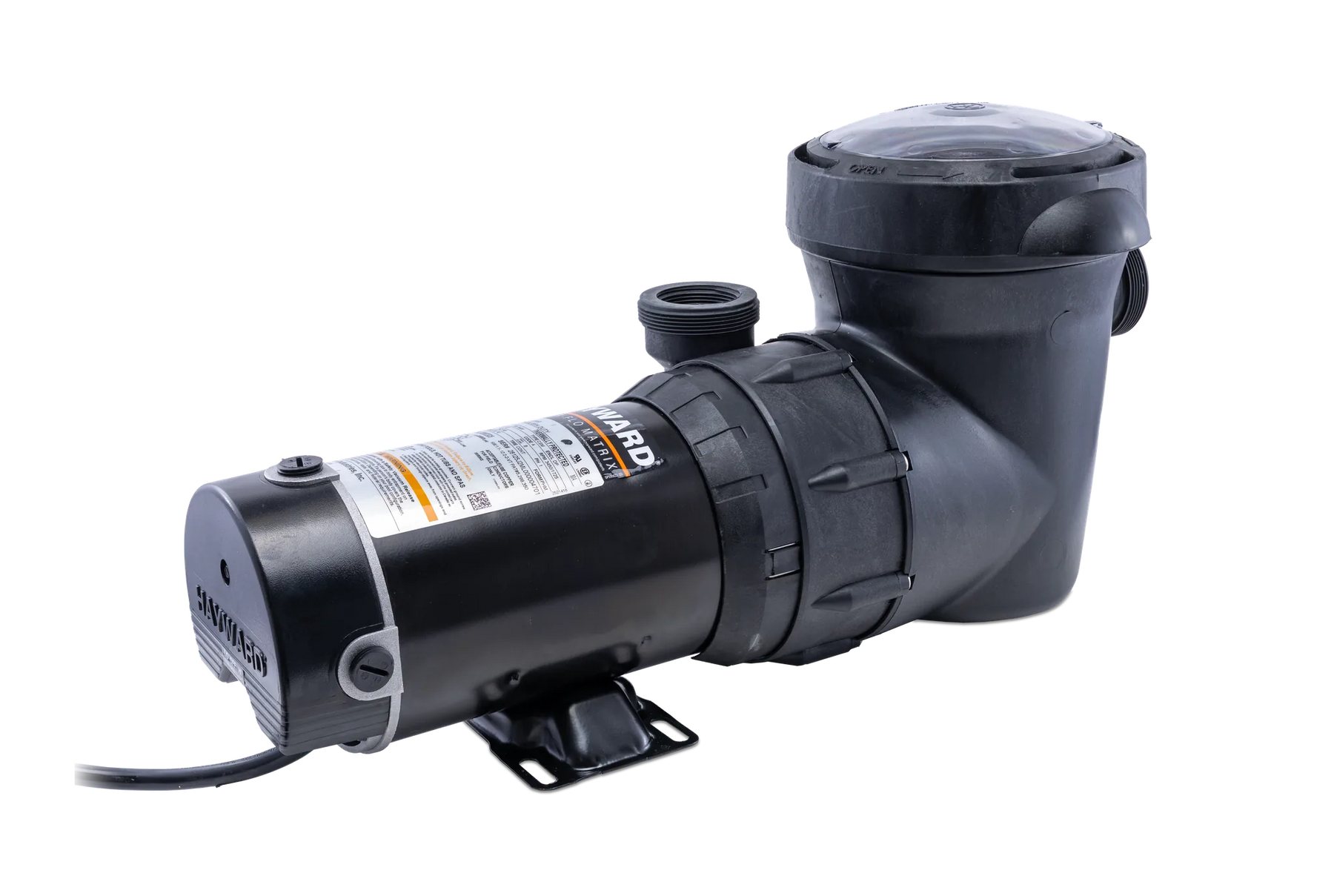

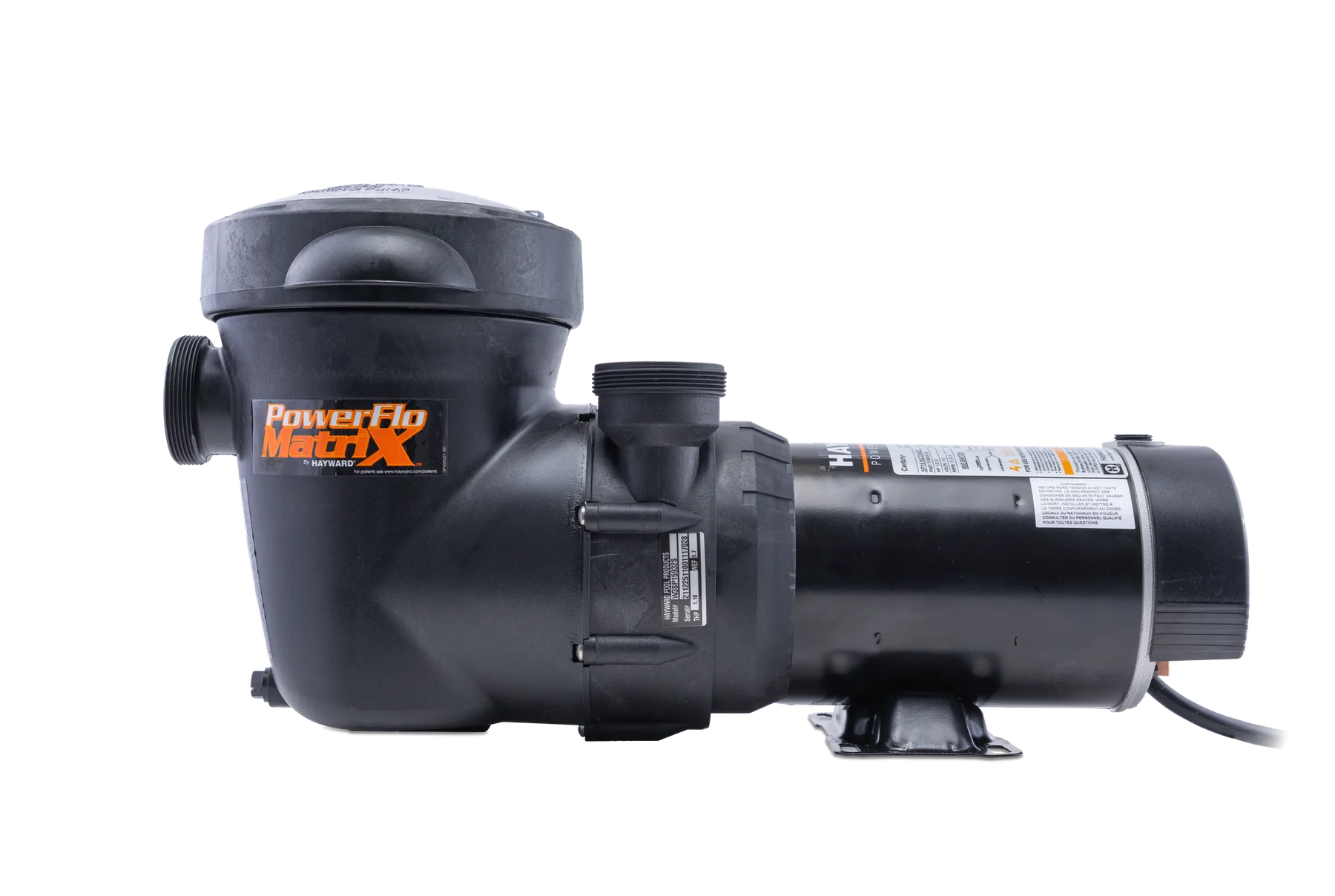

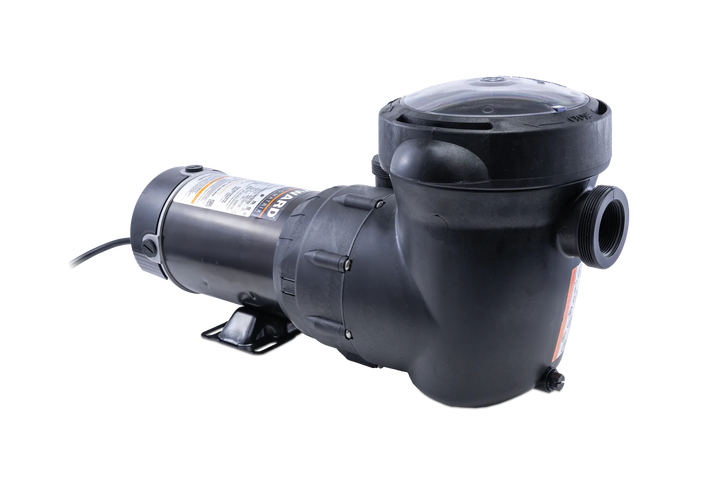

The Hayward PowerFlo Matrix Pump (W3SP15932S) delivers dependable, single-speed circulation for permanently-installed above-ground pools, with a push-button discharge that switches between vertical and horizontal orientation to match your equipment pad layout.
Unique Features & Technology
-
Convertible Discharge: A single push-button rotates the discharge port between vertical and horizontal orientation, simplifying pad layout without additional fittings.
-

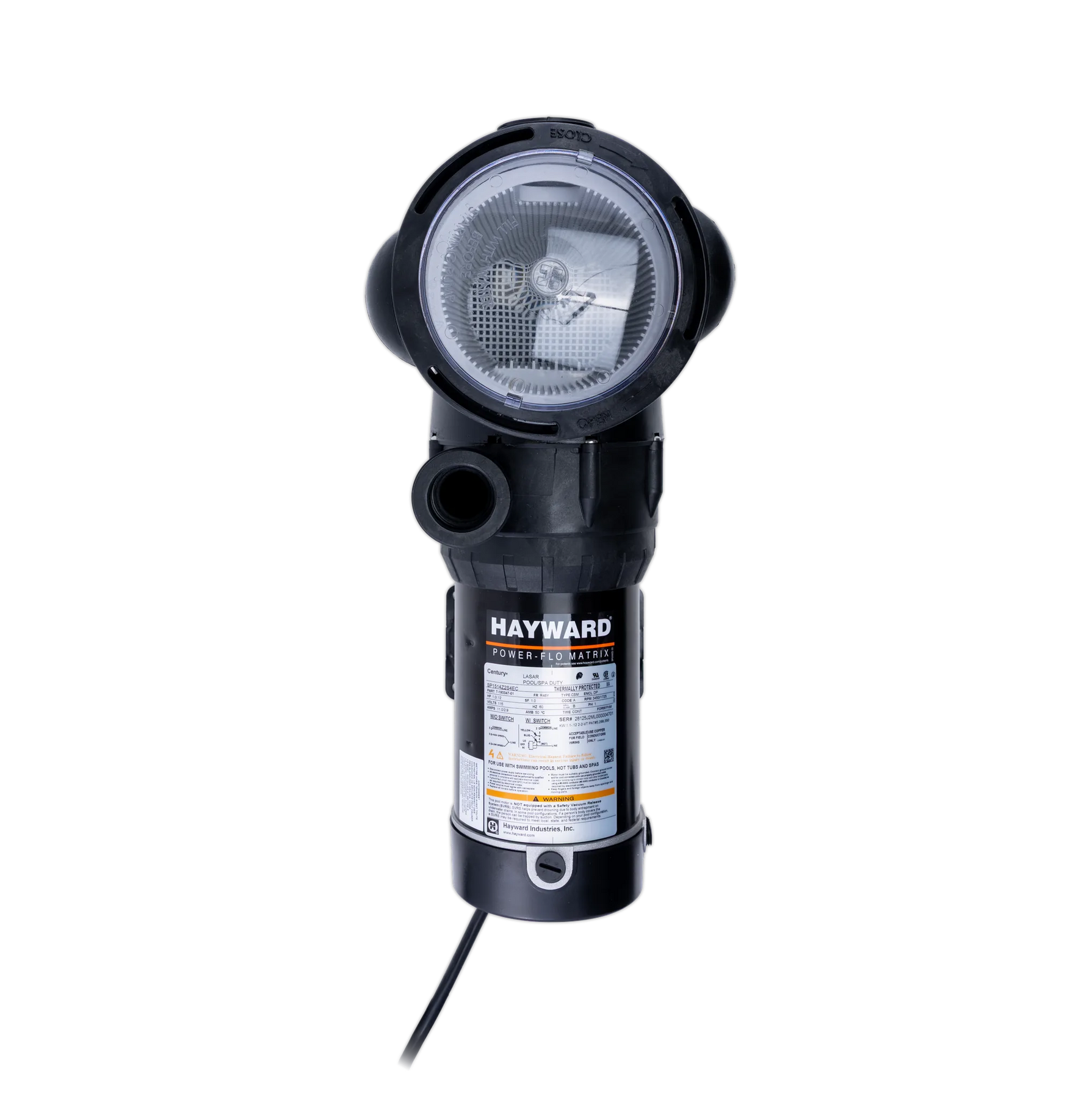

Strainer Basket: A strainer basket captures leaves and debris before they reach the pump and plumbing system.
-
C-Clip Strainer Access: A C-clip retainer lets you disengage the strainer housing quickly for basket cleaning and seasonal service.
-
Quick-Disconnect Plumbing: Quick-connect threaded intake and discharge ports simplify hook-up to existing above-ground plumbing.
-

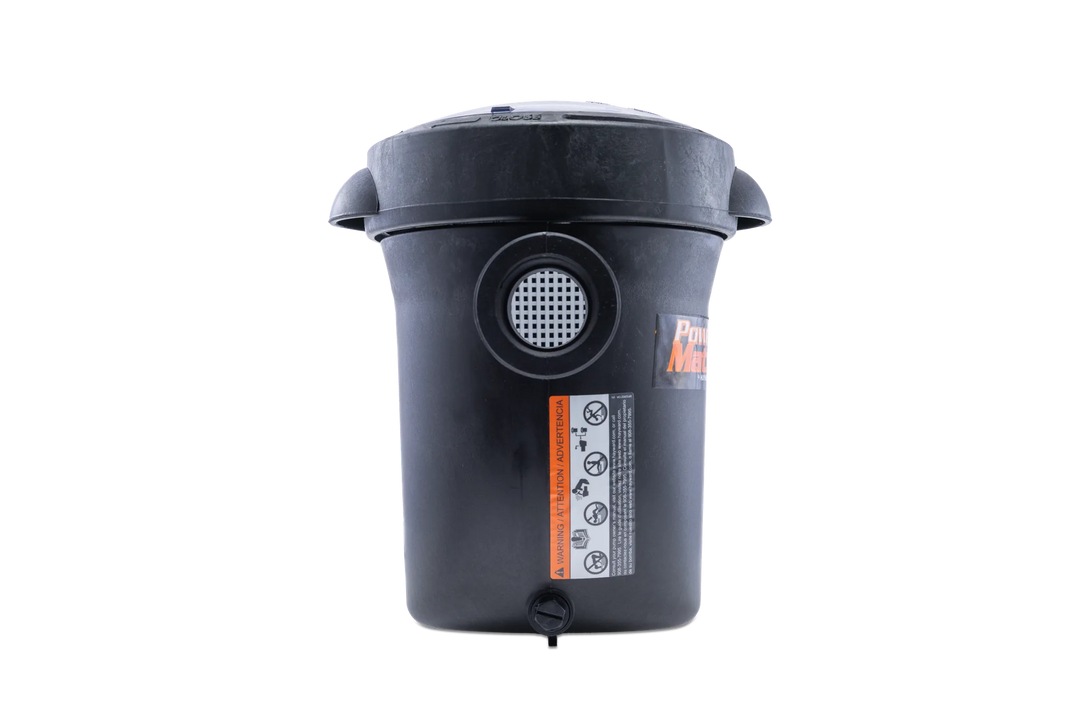

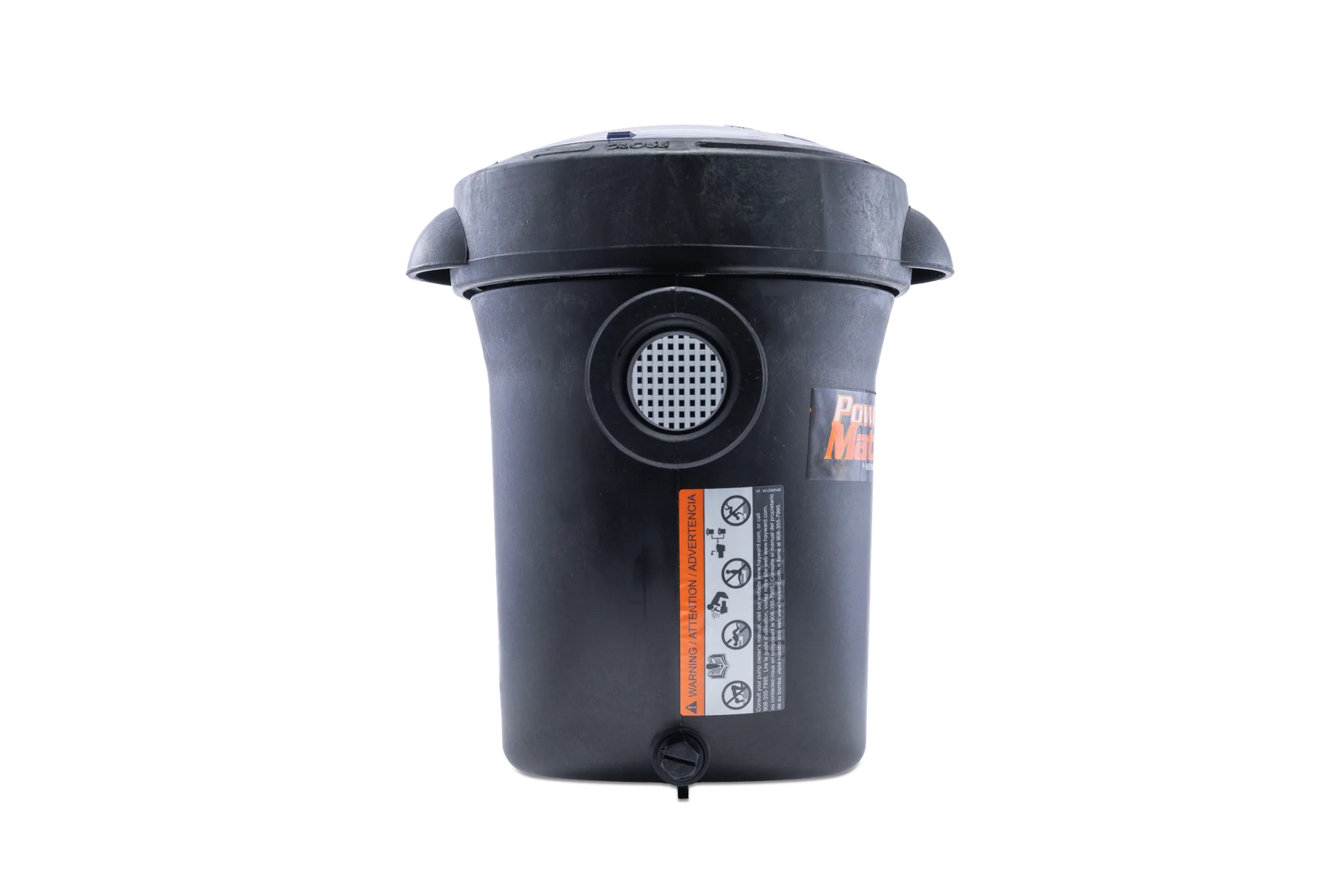

Integral Drain Plug: A built-in drain plug at the base of the strainer housing simplifies end-of-season winterization.
-

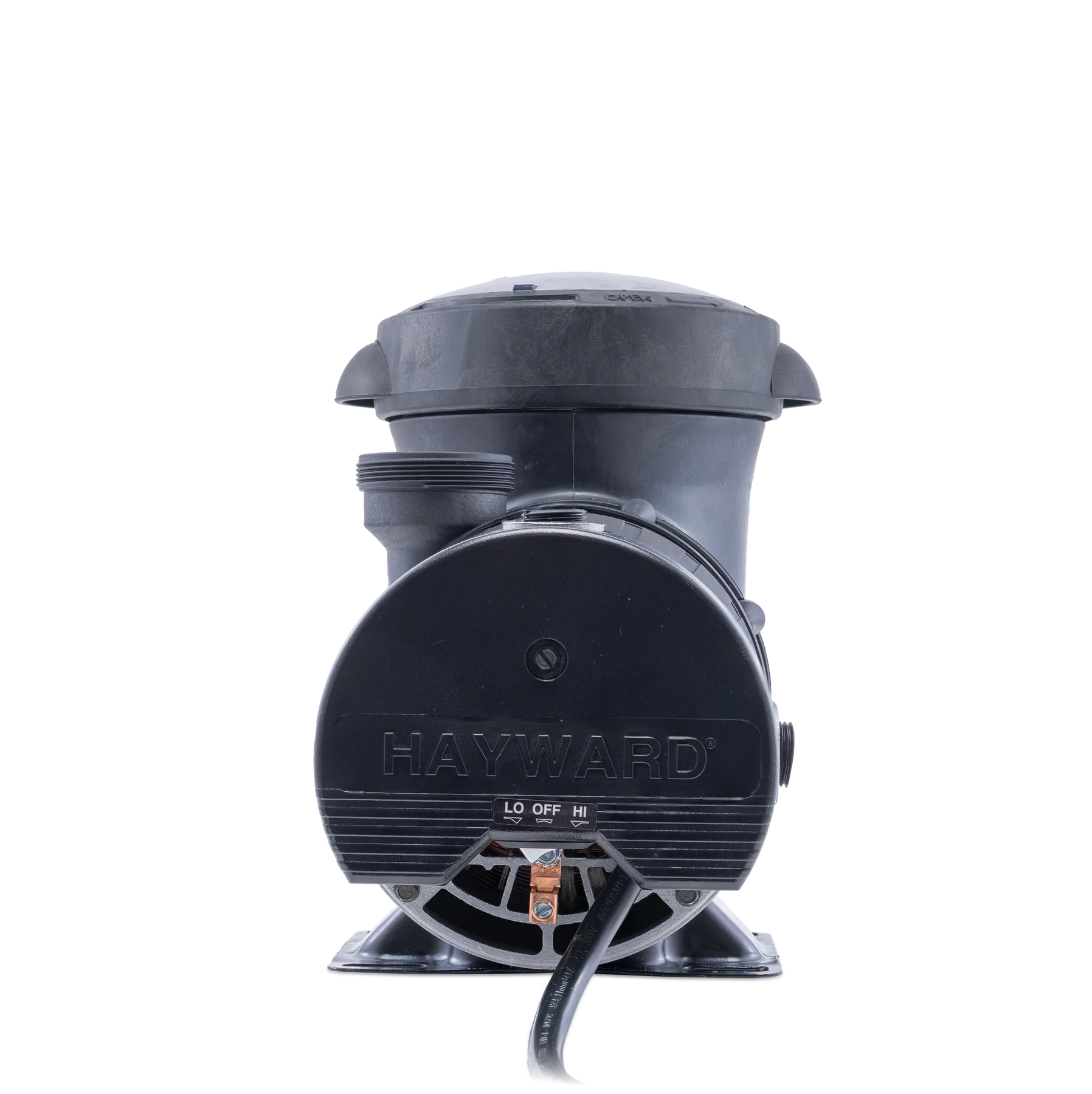

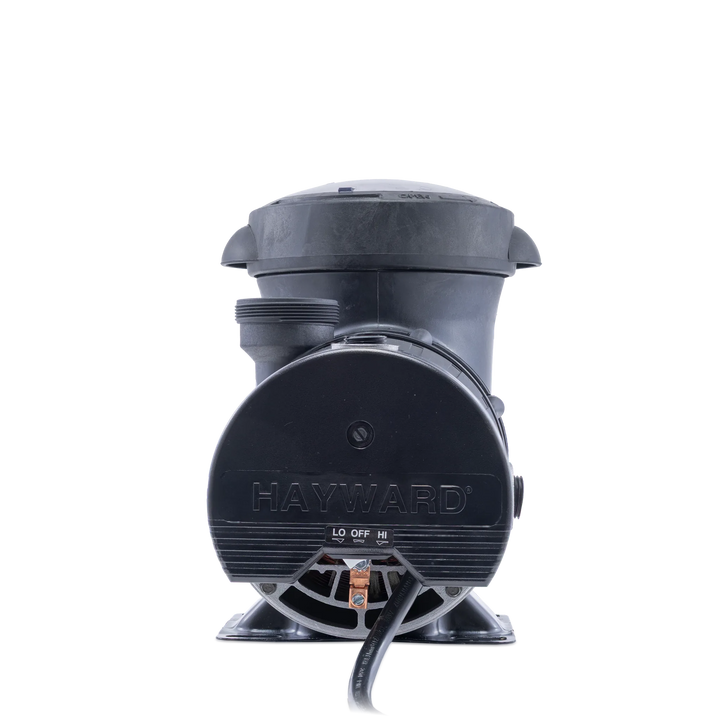

Rear-Mounted On/Off Switch: A protected, rear-mounted switch controls power at the pump.
This pump is DOE compliant and carries a WEF (Weighted Energy Factor) rating of 5.7.
Specifications
| Hayward Model |
W3SP15932S |
| Total HP |
1.0 HP |
| Motor Type |
ODP |
| Number of Speeds |
Single Speed |
| Voltage at 60 Hz |
115 |
| Phase |
Single Phase |
| WEF |
5.7 |
| DOE Compliant |
Yes |
| Pool Type |
Above Ground |
| Warranty - Parts |
1-year |
Pool Size & Application
Hayward engineers the PowerFlo Matrix specifically for permanently-installed above-ground swimming pools — it is not intended for storable or inflatable pools.
System Integration & Installation Notes
The PowerFlo Matrix connects to existing above-ground plumbing through quick-connect threaded intake and discharge ports; Hayward recommends union fittings at both connections for easier service and winter removal. Per Hayward's installation requirements, this pump must be powered through a dedicated, GFCI-protected circuit — never through an extension cord — and the strainer housing must be filled with water before startup to protect the mechanical shaft seal from dry-run damage. Installation and electrical connections should be completed by a qualified professional.
Common Replacement Parts
Keep this pump running smoothly with genuine Hayward wear parts: Strainer Basket (SPX5500F), Strainer Cover O-Ring (SPX5500H).
