Hayward Pressure Gauge for ProSeries Sand Filters and Perflex DE Filters | ECX270861
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- ECX270861
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

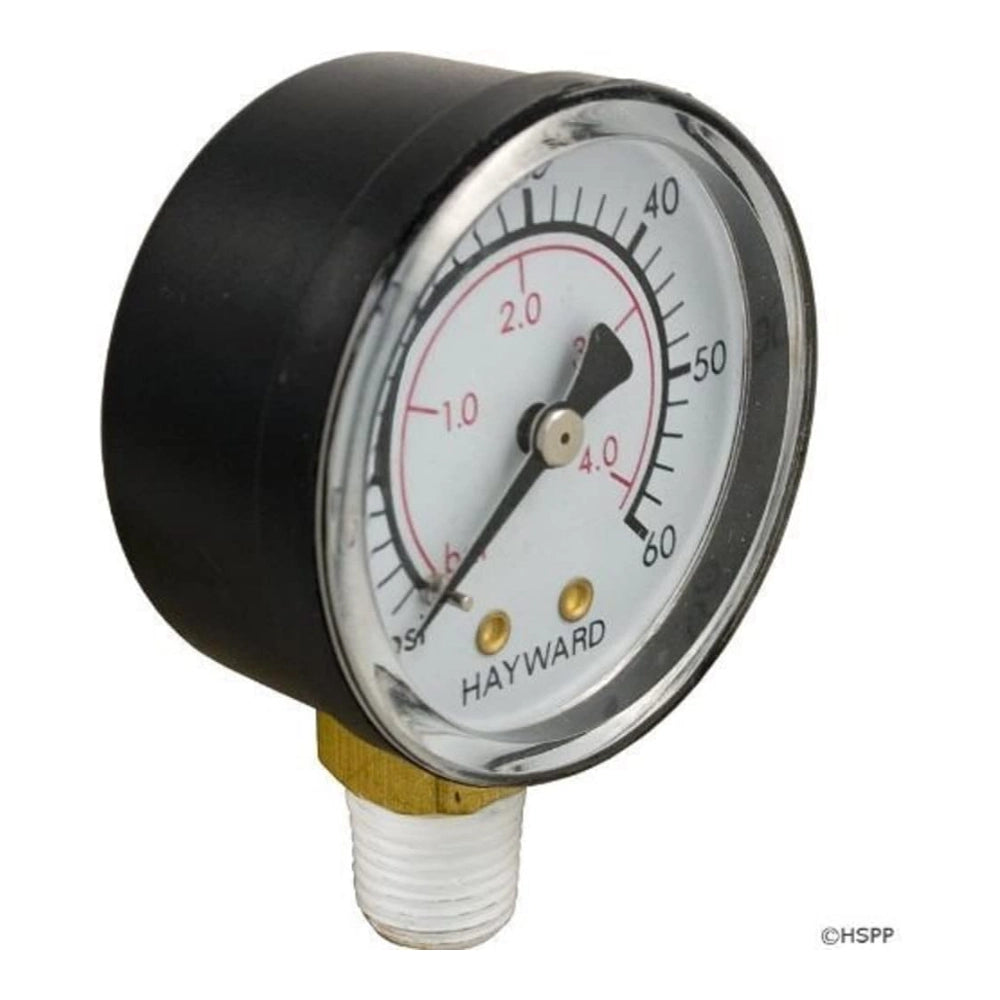

The Hayward Pressure Gauge (ECX270861) is the OEM replacement filter pressure gauge for Hayward ProSeries Sand Filters and Perflex Extended-Cycle DE Filters.
This gauge threads into the filter tank's air relief/gauge port and provides a direct visual readout of operating pressure inside the filter. Monitoring this reading is how you determine when the filter tank needs backwashing (sand filters) or element cleaning (DE filters).
Specifications
| Hayward Part Number | ECX270861 |
| UPC | 610377025041 |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | Perflex Extended-Cycle DE Filter 20 Sq.Ft. (with Clamp) | W3EC40AC |
| Hayward | ProSeries 16" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S166T |
| Hayward | ProSeries 18" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S180T |
| Hayward | ProSeries 23" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S200 |
| Hayward | ProSeries 21" Sand Filter - Side Mount (1 1/2" VariFlo Valve Included) | W3S210S |
| Hayward | ProSeries 21" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S210T |
| Hayward | ProSeries 22" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S220T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S244T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S244T2 |
| Hayward | ProSeries 27" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S270T |
| Hayward | ProSeries 30" Sand Filter - Side Mount (Valve Not Included) | W3S310S |
Additional Compatibility (non-W3 products)
This boxed pressure gauge is designed to use with Micro-Clear vertical grid, Perflex extended-cycle D.E. filter and Sand filter models EC30, EC40, EC40AC, I_PFPPTS, S160T, S200, S240, S245T, S190T and also compatible with Hayward Pro Series sand filter models S210S, S244S, S310S, S140T, S144T, S180T, S210T, S220T, S220T2, S230T, S244T, S244T2, S270T, S164T, S166T.
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Record your filter's clean, start-up pressure right after installing a new gauge — that number is your baseline. Track future readings against it rather than a single snapshot; a steady climb above baseline is the real signal that it's time to backwash a sand filter or clean the elements in a DE filter.
