Hayward Pivot/Ball Lateral for ProSeries Sand Filters | SX200QNRPAK10
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- SX200QNRPAK10
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

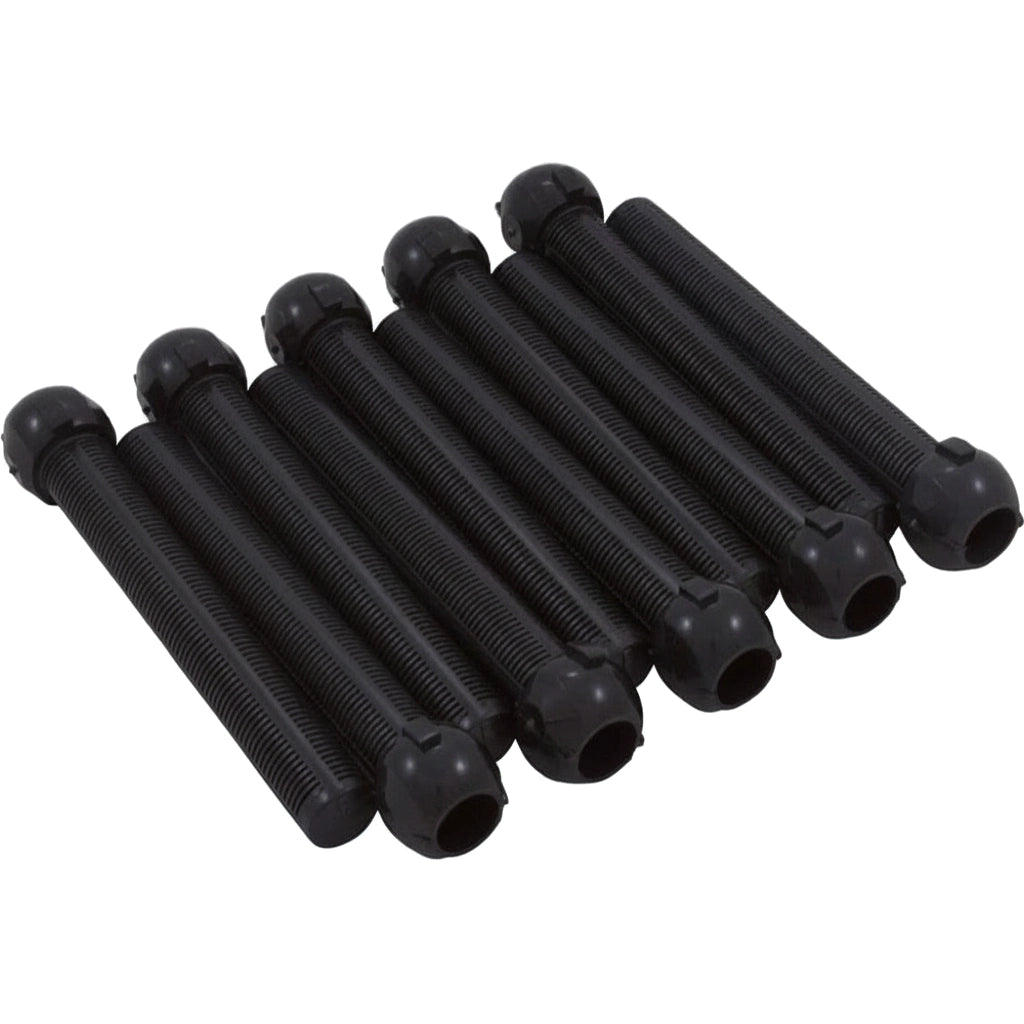

The Hayward Pivot/Ball Lateral (SX200QNRPAK10) is the OEM replacement filter lateral for Hayward ProSeries Sand Filters, sold as a set of 10.
IMPORTANT: SOLD AS A 10-PACK
This listing is for a complete set of 10 pivot/ball laterals. Most ProSeries sand filter tanks use a full set of laterals arranged around the base of the tank — check your filter's parts diagram to confirm how many your tank requires before ordering.

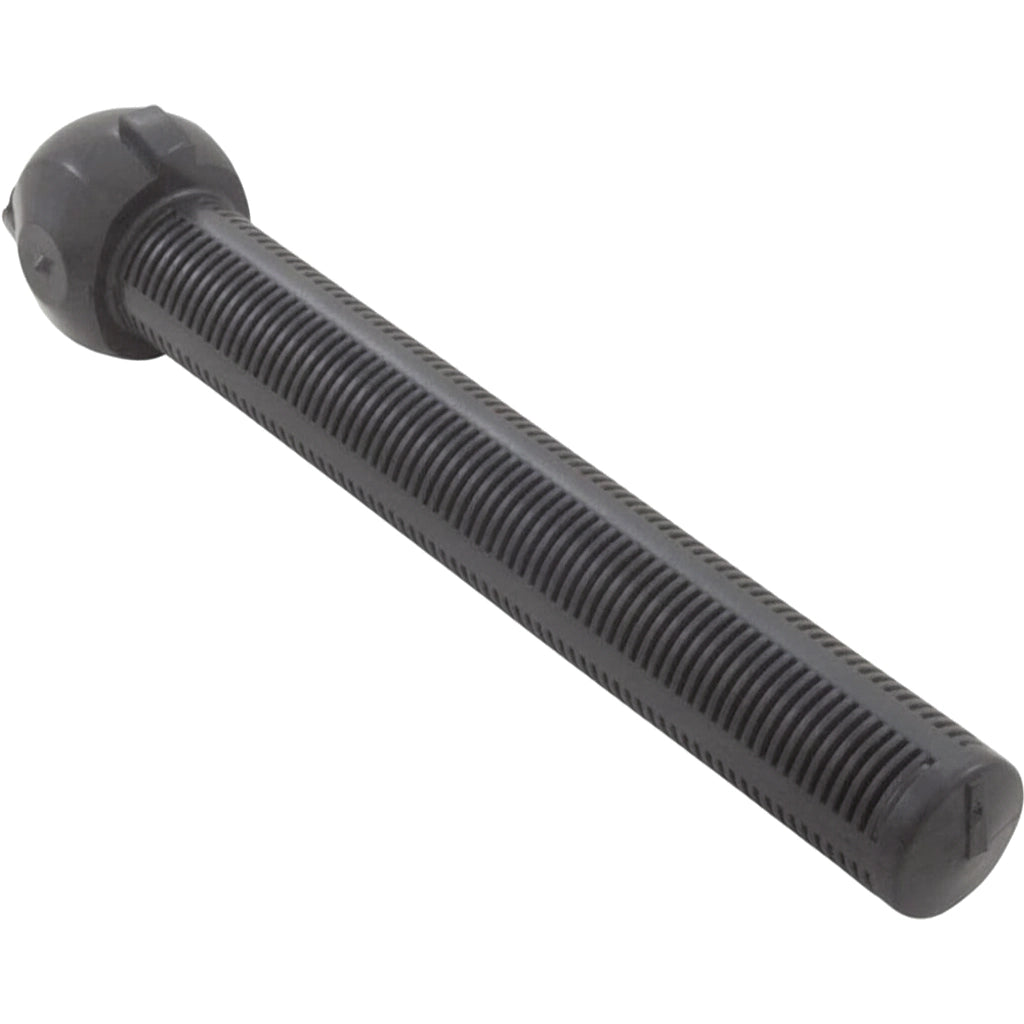

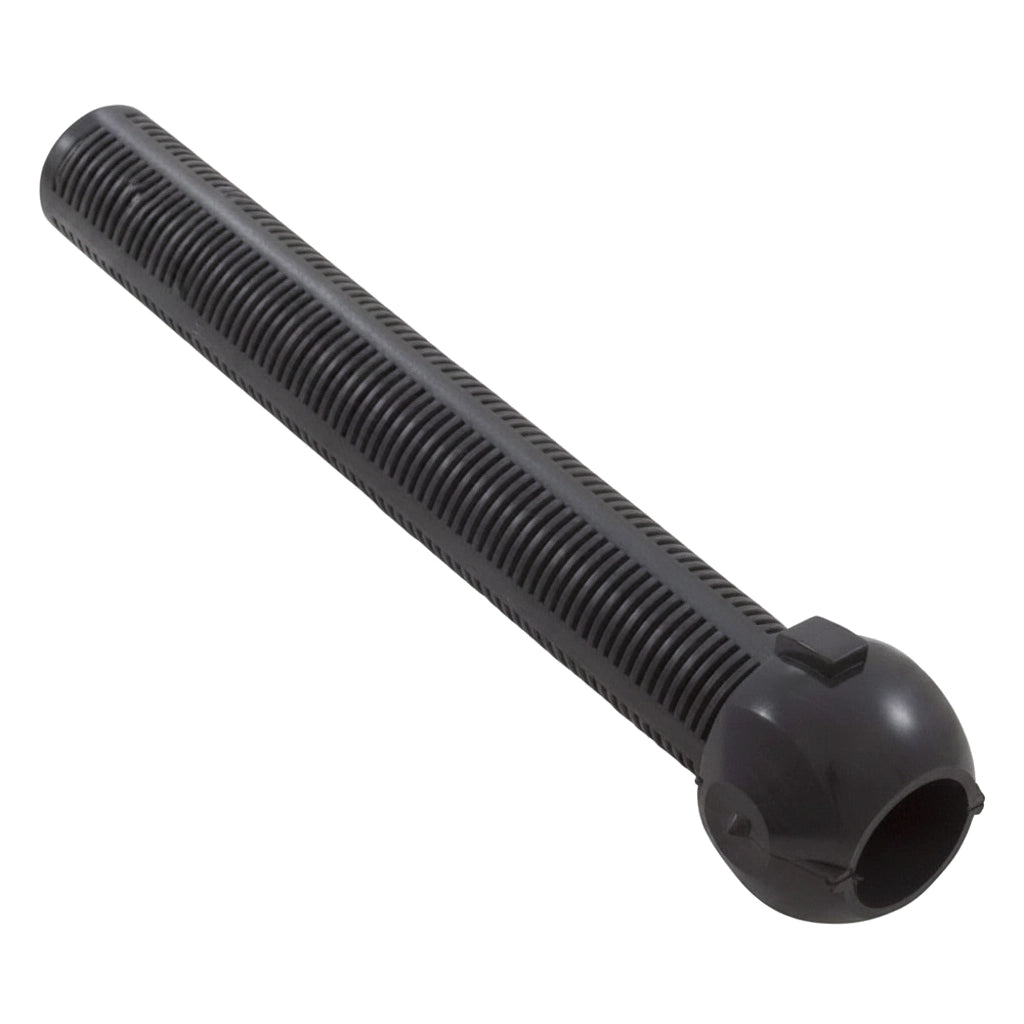

Each pivot/ball lateral sits at the base of the sand filter tank, collecting filtered water as it passes down through the sand bed and directing it to the tank's underdrain outlet, while its slotted design retains the sand media during both filtration and backwash cycles.
Specifications
| Hayward Part Number | SX200QNRPAK10 |
| Pack Quantity | 10 laterals |
Fits Into
| Brand | Equipment Line | Model / Part Number |
| Hayward | ProSeries 16" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S166T |
| Hayward | ProSeries 18" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S180T |
| Hayward | ProSeries 21" Sand Filter - Top Mount (VariFlo XL Control Valve Included) | W3S210T |
| Hayward | ProSeries 22" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S220T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S244T |
| Hayward | ProSeries 24" Sand Filter - Top Mount (2" VariFlo Valve Included) | W3S244T2 |
| Hayward | ProSeries 27" Sand Filter - Top Mount (1 1/2" VariFlo Valve Included) | W3S270T |
Compatibility is based on Hayward parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
Replace the full lateral set at one time rather than swapping in a few new pieces alongside old ones — laterals wear unevenly, and a single cracked or loose lateral is often enough to let sand migrate past the underdrain and into your pool's return plumbing.
