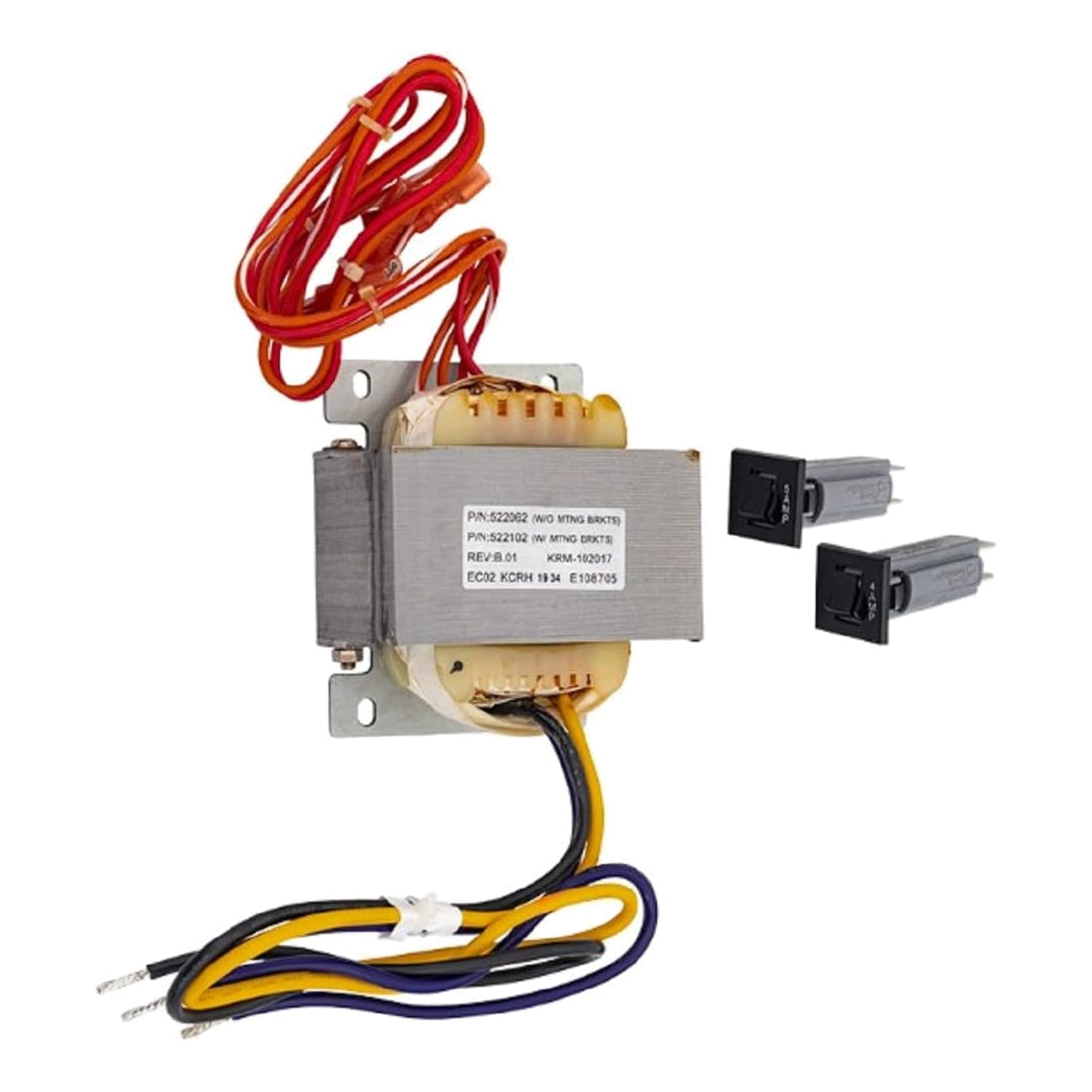

metal electrical transformer with attached multi-colored wires and two small black rectangular connectors with grips

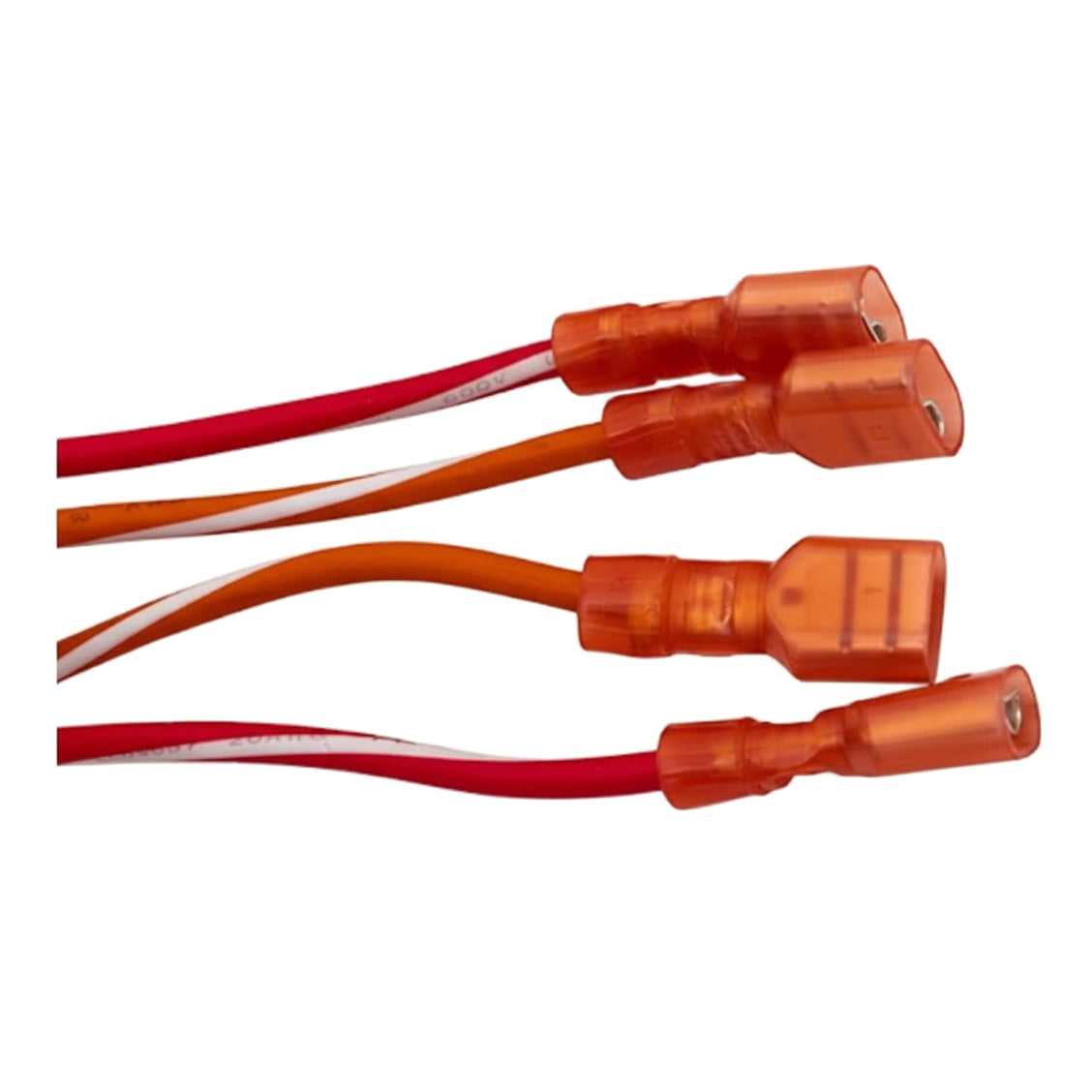

Close-up of red and orange insulated electrical wires with translucent orange connectors attached at the ends

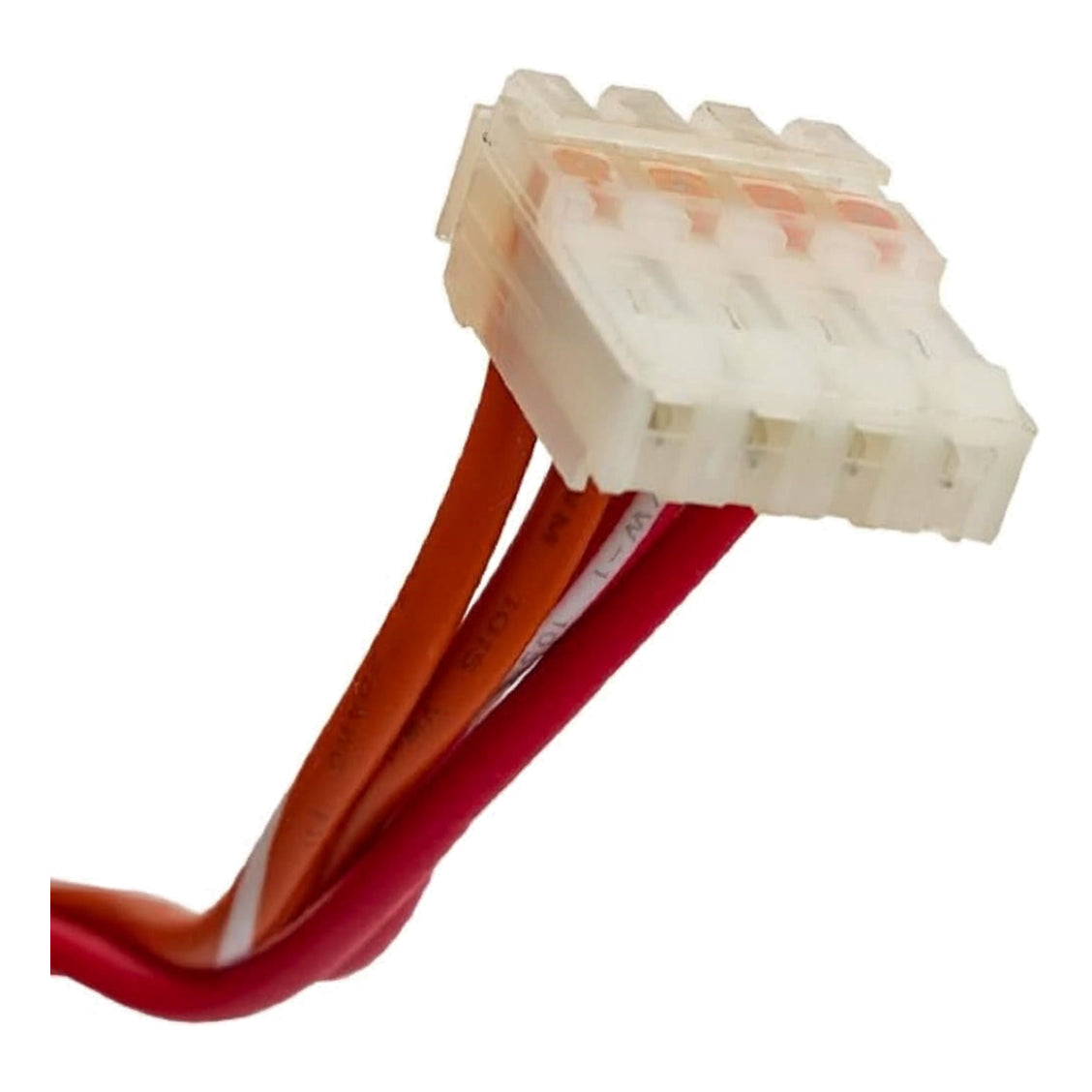

Close-up of white plastic electrical connector with five slots attached to red and orange wires

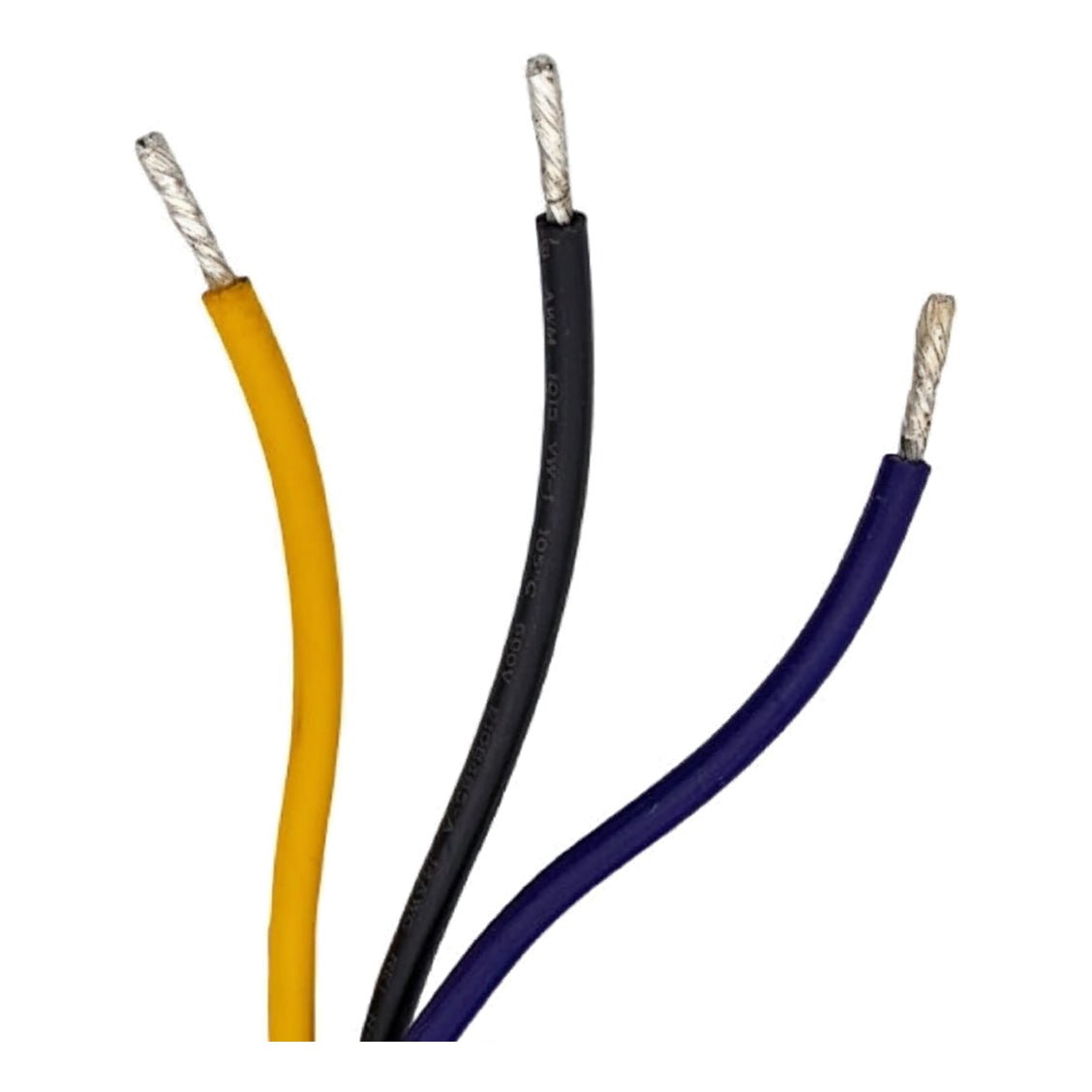

Three electrical wires with exposed silver-colored strands at their ends in yellow black and blue insulation

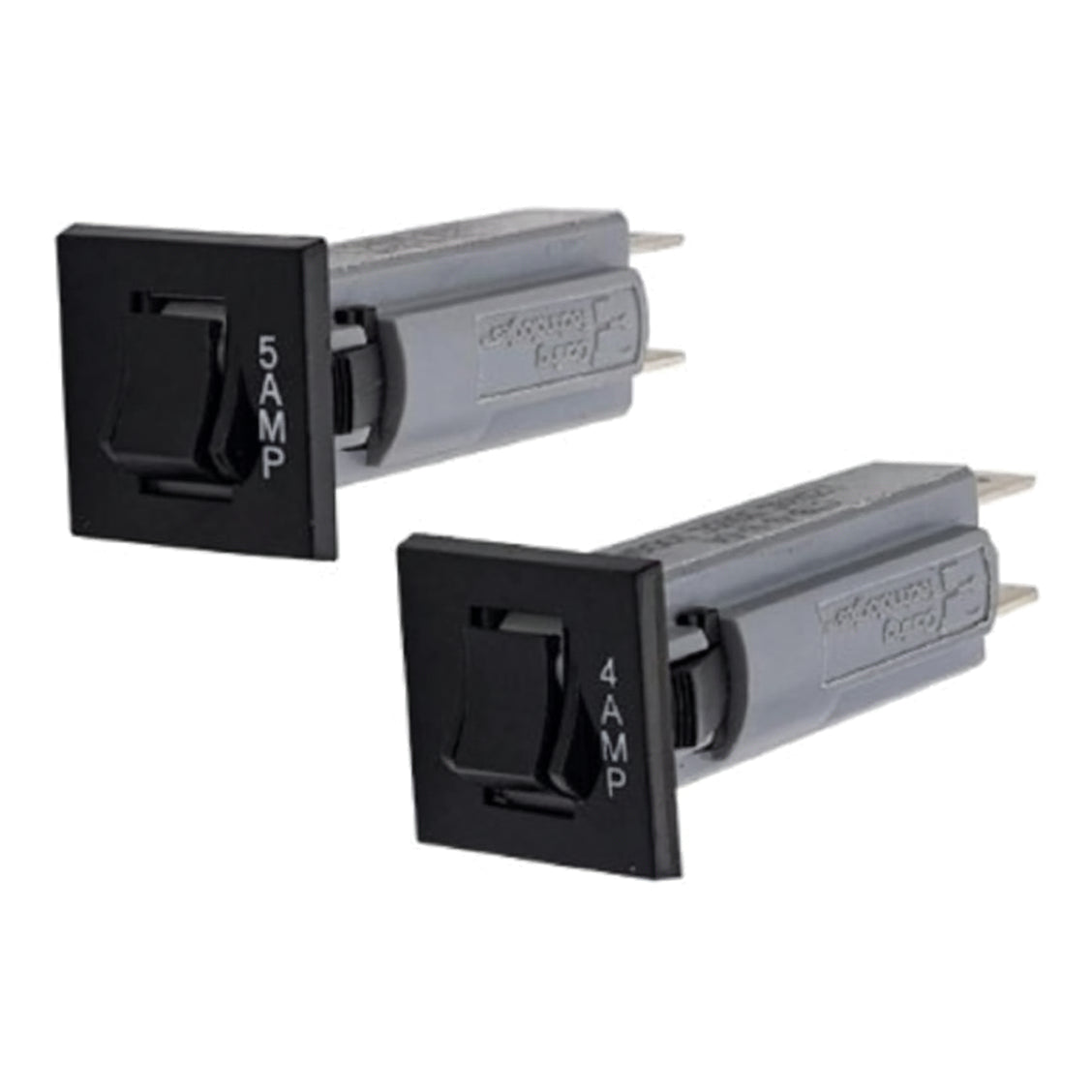

Two small electrical switches with black rectangular faces and gray bodies labeled 5 AMP and 4 AMP respectively
metal electrical transformer with attached multi-colored wires and two small black rectangular connectors with grips
Close-up of red and orange insulated electrical wires with translucent orange connectors attached at the ends
Close-up of white plastic electrical connector with five slots attached to red and orange wires
Three electrical wires with exposed silver-colored strands at their ends in yellow black and blue insulation
Two small electrical switches with black rectangular faces and gray bodies labeled 5 AMP and 4 AMP respectively
Pentair Pool Products and Parts

Pentair System Transformer | IntelliCenter | 522102Z

5.0 ★★★★★ (5) ▾
$132.99
/
Genuine Pentair OEM Part Guaranteed Authentic
Pentair Authorized Dealer Full Manufacturer Warranty Support
Free Shipping On this item
No Hassle Returns 30 Days Paid Returns
SKU:
522102Z

  • Poolaroo Promise

    • Fast Shipping — Ships in 1–2 Business Days
    • 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
    • Powered By People Who Care - No Faceless Conglomerate

About This Item

The Pentair System Transformer (522102Z) is the OEM replacement transformer for the IntelliCenter automation system, compatible with current square-cutout IntelliCenter Upgrade Kits manufactured from 2012 through 2023.

IMPORTANT: LICENSED PROFESSIONAL INSTALLATION REQUIRED
Electrical control components must be installed or replaced by a qualified electrician or certified pool technician. This transformer operates at mains voltage. Do not attempt installation without proper certification.

IMPORTANT: VERIFY YOUR CUTOUT TYPE AND MANUFACTURE DATE BEFORE ORDERING
This transformer is designed for current square-cutout IntelliCenter Upgrade Kits (2012–2023). It is also included as a component within the IntelliCenter Upgrade Kit for EasyTouch and IntelliTouch systems. Confirm your panel's cutout type and manufacture date match before ordering.

The System Transformer supplies the low-voltage power required to drive the IntelliCenter control board and its connected automation modules. A failed or degraded transformer is a common cause of unresponsive IntelliCenter panels and intermittent control loss. Replacing it with the OEM part restores proper voltage delivery to the entire control system.

Specifications

Pentair Part Number 522102Z
Part Name System Transformer
Sub-Category Transformers / Automation & Controls Parts
Quantity Included Each
Compatible Panel Type Square cutout IntelliCenter Upgrade Kits (2012–2023)

Fits Into

Brand Equipment Line Model / Part Number Notes
Pentair IntelliCenter 522047 — IntelliCenter Upgrade Kit i10 Pool Current square cutout systems (2012–2023); included with IntelliCenter Upgrade Kit for EasyTouch/IntelliTouch
Pentair IntelliCenter 522048 — IntelliCenter Upgrade Kit i10 Pool/Spa Current square cutout systems (2012–2023); included with IntelliCenter Upgrade Kit for EasyTouch/IntelliTouch
Pentair IntelliCenter 523049 — IntelliCenter Upgrade Kit i10 Dual Current square cutout systems (2012–2023); included with IntelliCenter Upgrade Kit for EasyTouch/IntelliTouch
Pentair IntelliCenter 523529 — IntelliCenter Upgrade Kit Expansion Current square cutout systems (2012–2023); included with IntelliCenter Upgrade Kit for EasyTouch/IntelliTouch

Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.

Poolaroo Pro Tip

Before ordering, visually inspect your IntelliCenter load center panel to confirm the square cutout format and check the manufacture date label inside the door. IntelliCenter panels manufactured outside the 2012–2023 window may use a different transformer. If you are unsure, cross-reference the part number on your existing transformer against 522102Z before purchasing.
