Pentair Seal Plate | EQ Series Commercial Plastic Pump | 356795
- In stock, ready to ship
- Backordered: contact us for ETA
- SKU:
- 356795
-
Poolaroo Promise
- Fast Shipping — Ships in 1–2 Business Days
- 30-Day Risk-Free Returns — We Pay Return Shipping, No Restocking Fees
- Powered By People Who Care - No Faceless Conglomerate
About This Item

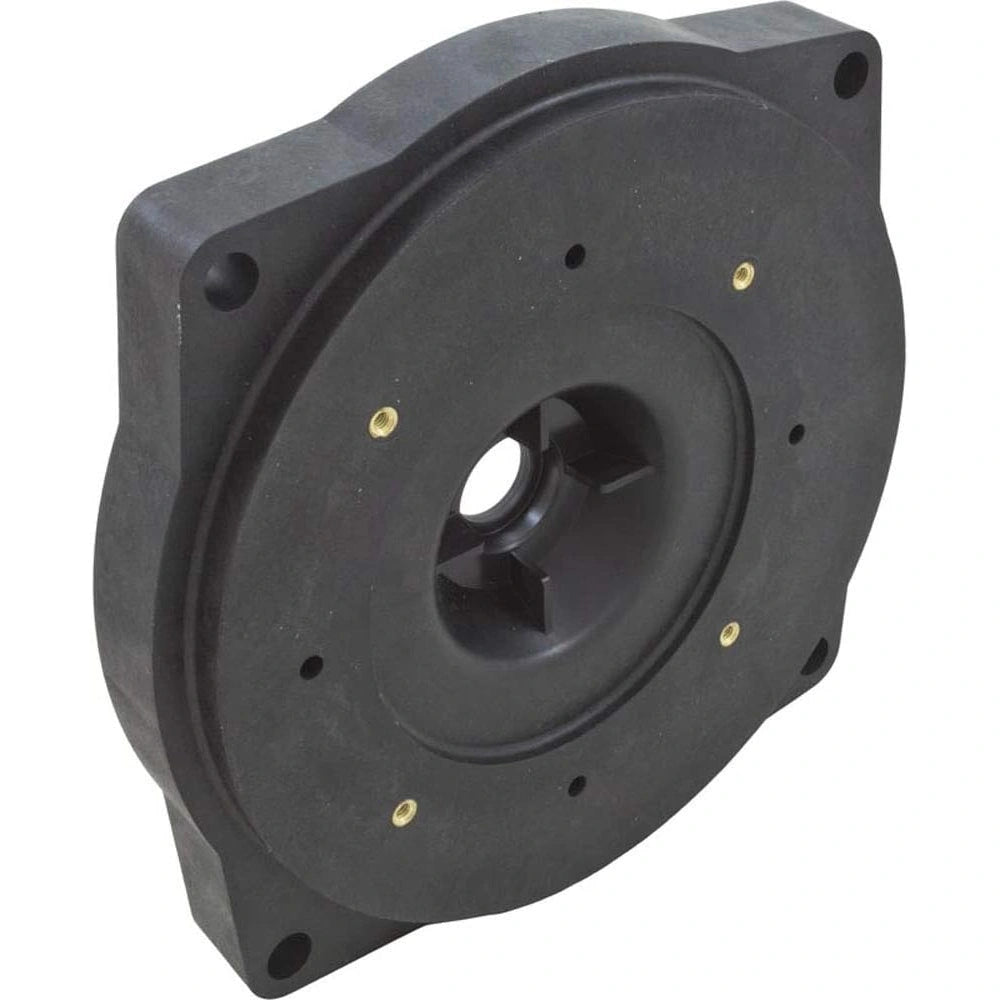

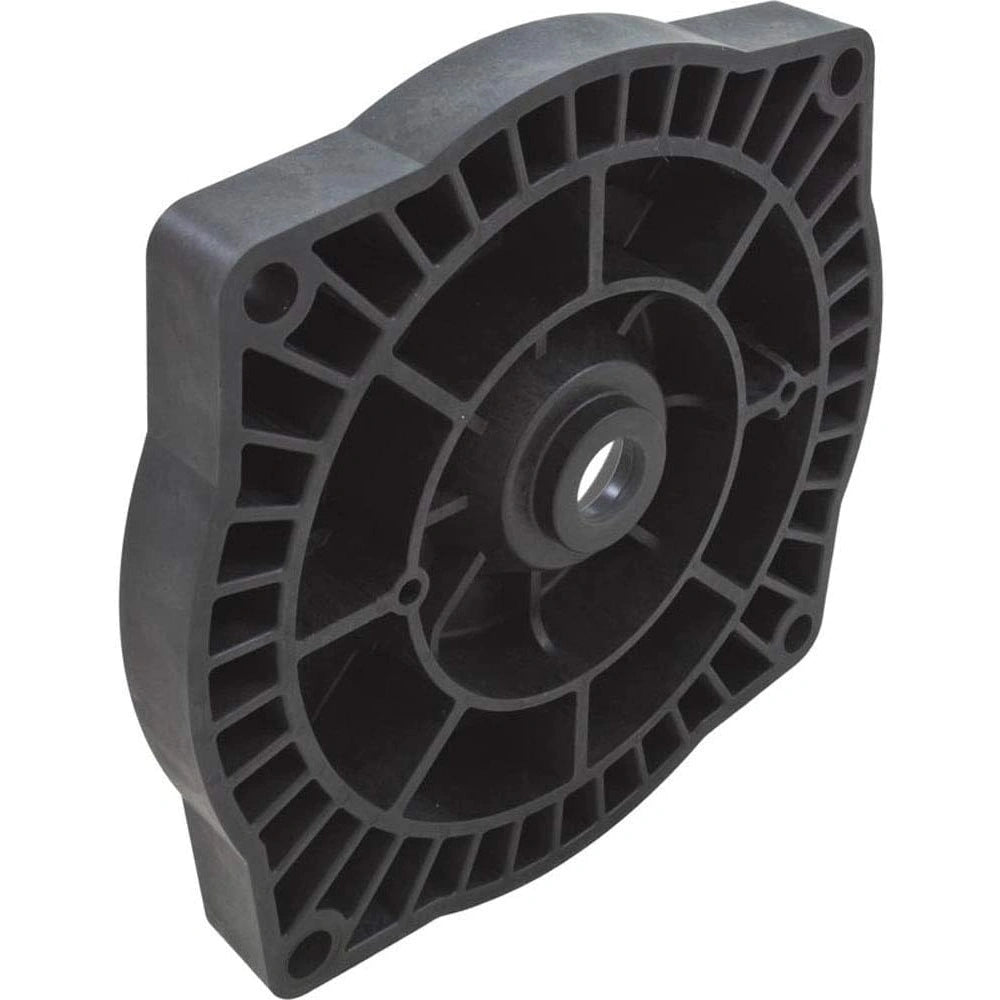

The Pentair Seal Plate (356795) is the OEM replacement seal plate for the EQ Series commercial plastic pump line.
The seal plate forms the structural interface between the pump's wet end and motor assembly, housing the mechanical shaft seal and maintaining the pressure boundary between the motor and the hydraulic chamber. A worn or cracked seal plate is a common cause of shaft seal failure and water intrusion into the motor end.
Specifications
| Pentair Part Number | 356795 |
| Part Name | Seal Plate — EQ Series |
| Quantity Included | 1 (Each) |
| Dimensions | 10 in. L × 6 in. H × 7-3/4 in. W |
| Compatible Equipment | EQ Series Commercial Plastic Pump |
Fits Into
| Brand | Equipment Line | Model / Part Number | Notes |
| Pentair | EQ Series Commercial Plastic Pump | EQW 300, EQWK 300, EQW 500, EQWK 500, EQ500, EQK500, EQ750, EQK750, EQ1000, EQK1000, EQK1500 | — |
Compatibility is based on Pentair parts documentation and available OEM records. This is not an exhaustive list. For certainty, verify the part number in your equipment's manual or on the original part itself before ordering.
Poolaroo Pro Tip
When replacing the seal plate, inspect the mechanical shaft seal at the same time — if the seal plate has failed, the shaft seal is typically at or near end of service life as well. Replacing both components together avoids a second pump teardown shortly after.
